More Information About 3D Model :

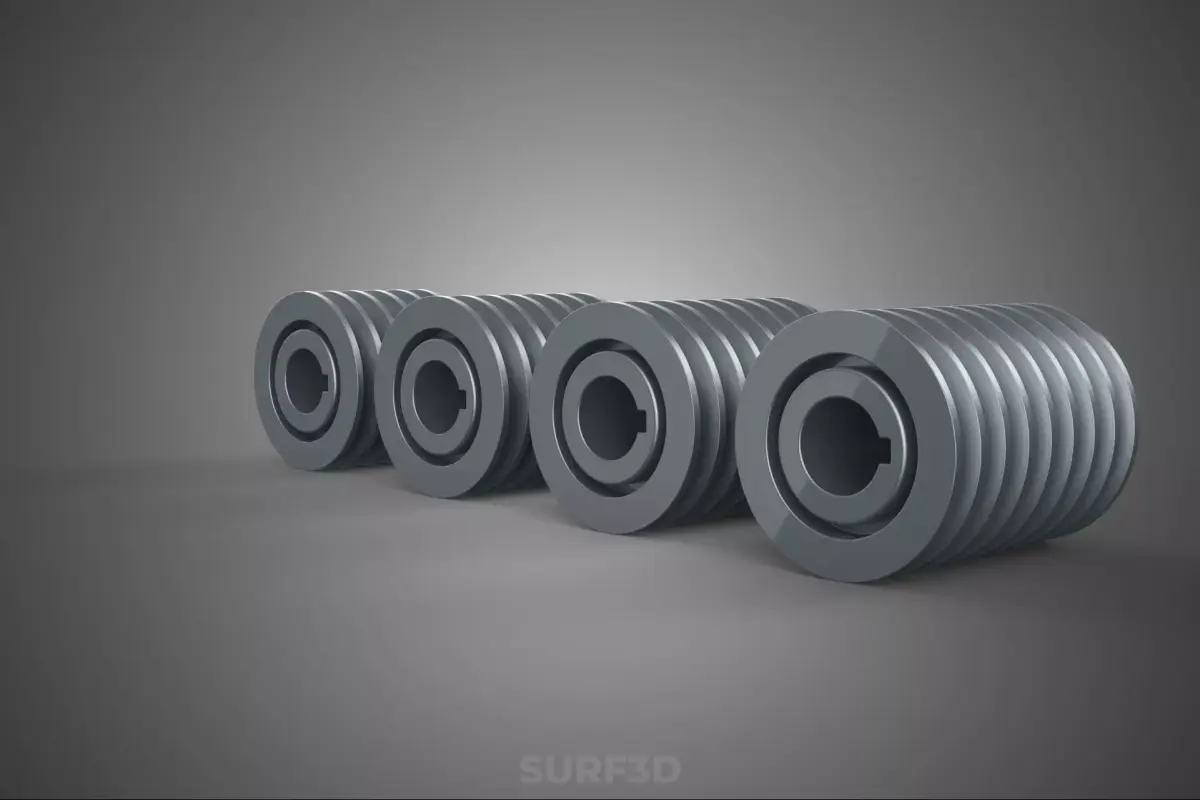

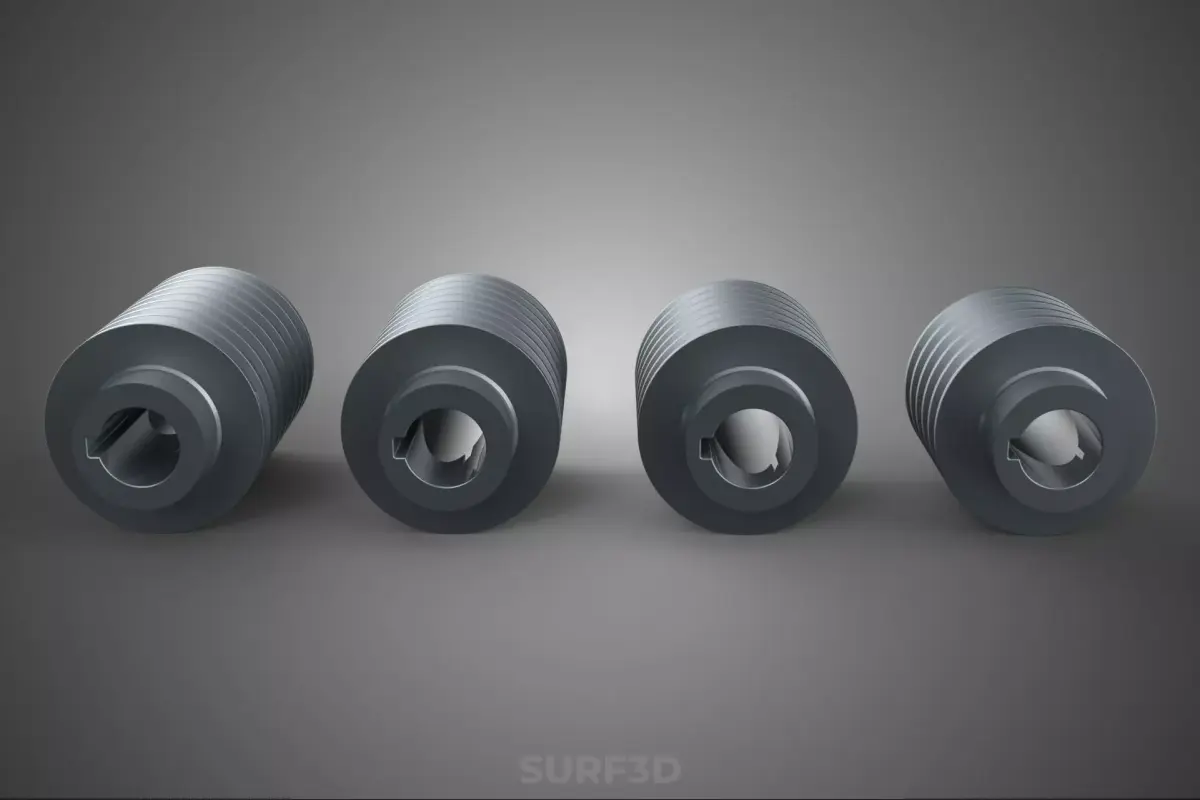

The Collection Standard Pulley Sheave Wheel Drive Multi Groove Track refers to a standardized assembly or catalogue of mechanical components designed for efficient rotational kinetic energy transfer, typically via belt or rope drive systems requiring high torque capacity and reliability. These components, interchangeably referred to as sheaves or pulleys, are central elements in mechanical power transmission, facilitating the transfer of power between parallel shafts, often incorporating ratios for speed reduction or increase.
Nomenclature and Definition
A Sheave Wheel (pulley) is a wheel mounted on an axle or shaft, designed to support movement and change of direction of a cable or transfer power using a belt. The defining feature described here is the Multi Groove Track, which denotes a machined or cast circumference featuring multiple parallel grooves. This configuration is essential for high-load applications where distributing the motive force across several belts (most commonly V-belts or sometimes synchronous timing belts) simultaneously minimizes belt slippage, enhances torque capacity, and prolongs the lifespan of the drive system by distributing wear.
The designation **Collection Standard** emphasizes that these components adhere strictly to internationally recognized industrial metrology and design specifications (e.g., ISO 4183, DIN 2217, or MPTA standards in North America). Standardization ensures dimensional interchangeability, guaranteeing that pulleys from different manufacturers can be mated with standard industrial belts and shafts without custom modification.
Design and Engineering Specifications
The multi-groove track design is engineered for optimized engagement. Key standardized features include:
- Groove Profile (Pitch and Angle): Critical for V-belt drives, the grooves feature precise angles (typically 34° to 38°) designed to allow the belt to wedge slightly under load, increasing friction and thus drive capability. Multi-groove sheaves are classified by belt section sizes (e.g., 3V, 5V, 8V, A, B, C, D profile).
- Pitch Diameter (PD): The diameter measured at the theoretical pitch line where the drive belt operates. Standardization of the PD is crucial for accurate speed ratio calculation.
- Static and Dynamic Balance: Given their function in high-speed machinery, these sheaves must meet rigorous balance grades (often ISO G6.3 or G16) to prevent vibration, minimize noise, and protect shaft bearings.
- Bore and Hub Design: Pulleys are standardized based on their mounting mechanism, including straight bores for fixed keyway attachments, or tapered bore systems (such as Taper Lock or QD bushings) which simplify installation, removal, and ensure secure shaft fastening.
Materials utilized for manufacturing these standard components are selected based on required strength, inertia, and operating environment. Common materials include grey cast iron (due to excellent dampening properties and cost-effectiveness), ductile iron for increased strength, steel alloys for extremely high-load or shock-prone applications, and occasionally aluminum alloys for low-inertia, high-speed drives.
### Functional Applications
Multi-groove standard pulleys are foundational components across diverse industrial sectors requiring robust, efficient, and reliable kinematic systems. Typical applications include:
- Heavy Industrial Machinery: Crushers, mixers, industrial presses, and large-scale gearboxes.
- Fluid Handling: High-capacity centrifugal pumps, industrial compressors, and blowers.
- HVAC Systems: Large air handling units and centralized ventilation systems.
- Manufacturing and Material Handling: Conveyor belt drives, synchronized assembly line equipment, and machine tool spindle drives.
The use of multiple standardized grooves ensures redundancy and allows the system to maintain power transmission even if a single belt fails, providing a reliable and maintainable power transfer solution critical to continuous operational environments.
KEYWORDS: Pulley, Sheave, Multi-groove, V-belt, Power transmission, Standardization, Mechanical drive, Torque distribution, Kinematic system, Cast iron, Aluminum, ISO standard, Drive track, Pitch diameter, Groove angle, High load, Rotational motion, Belt drive, Drive wheel, Component collection, Mechanical advantage, Industrial machinery, Conveyor systems, Centrifugal pump, Compressors, Interchangeability, Synchronous drive, Speed reduction, Torque transfer, Groove profile
