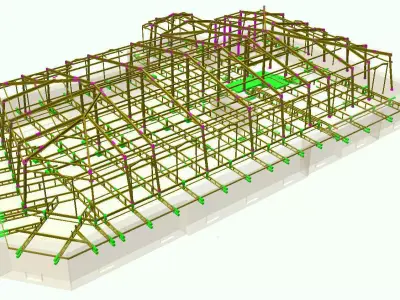

construction of the attic floor and roof 3D model

$199.99

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

pryakha

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «pryakha». CGhub does not claim copyright ownership over the content used.

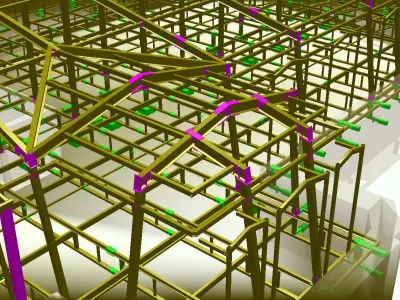

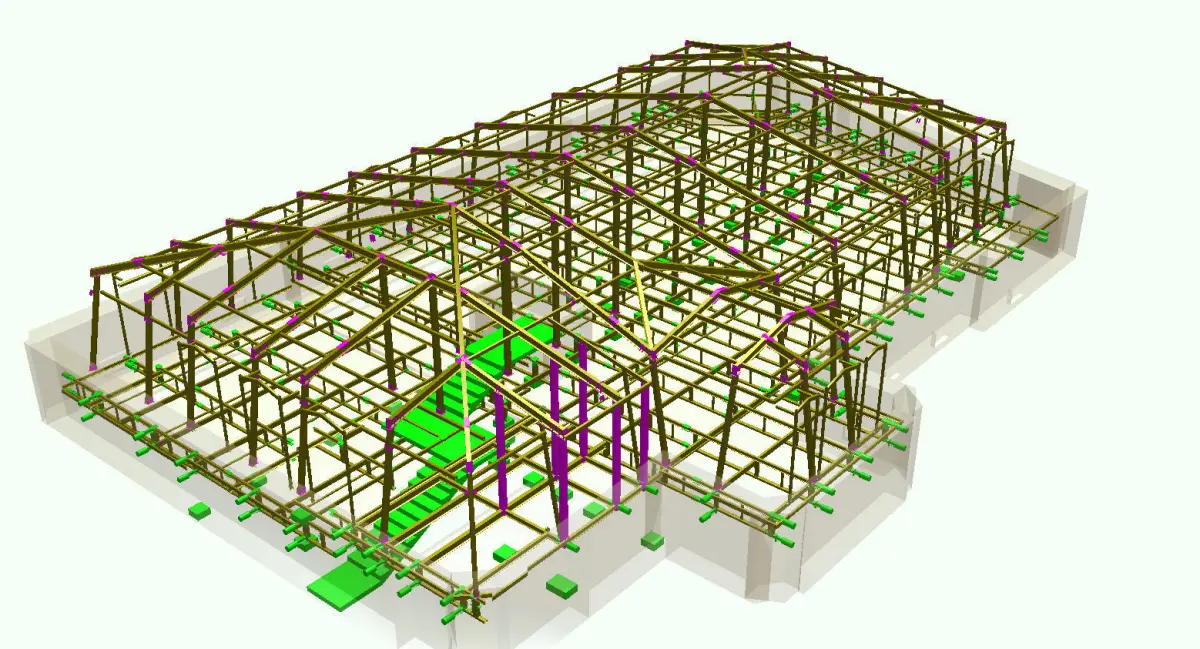

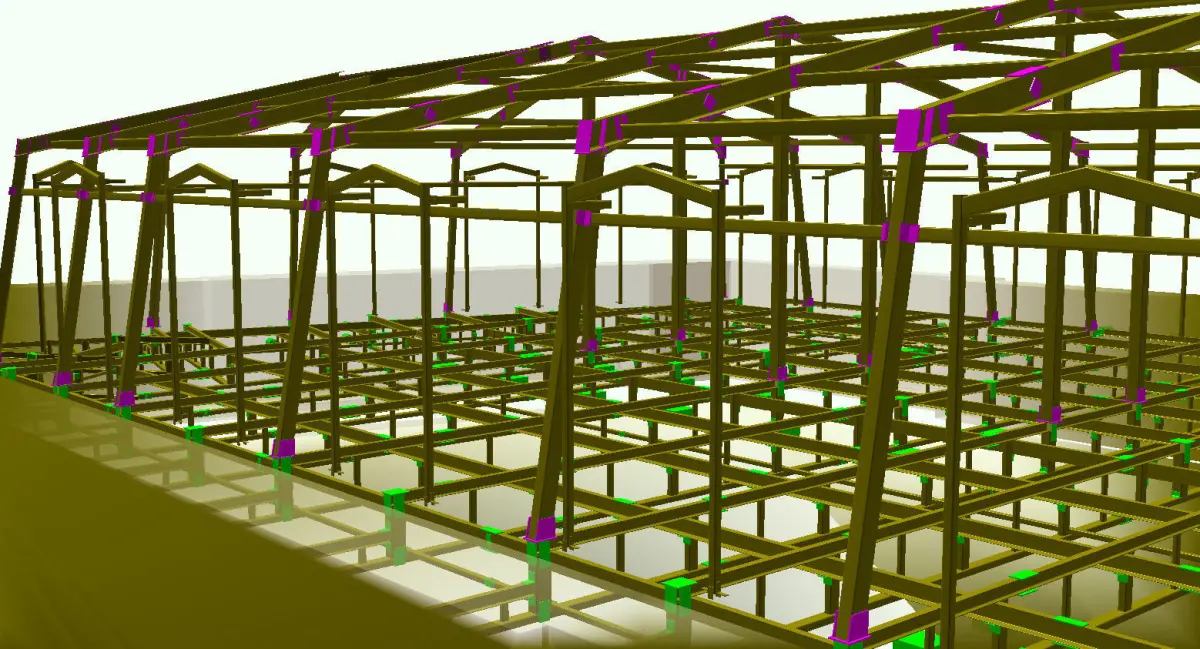

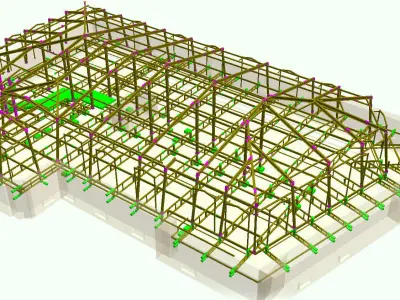

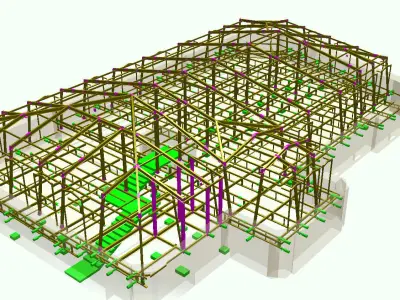

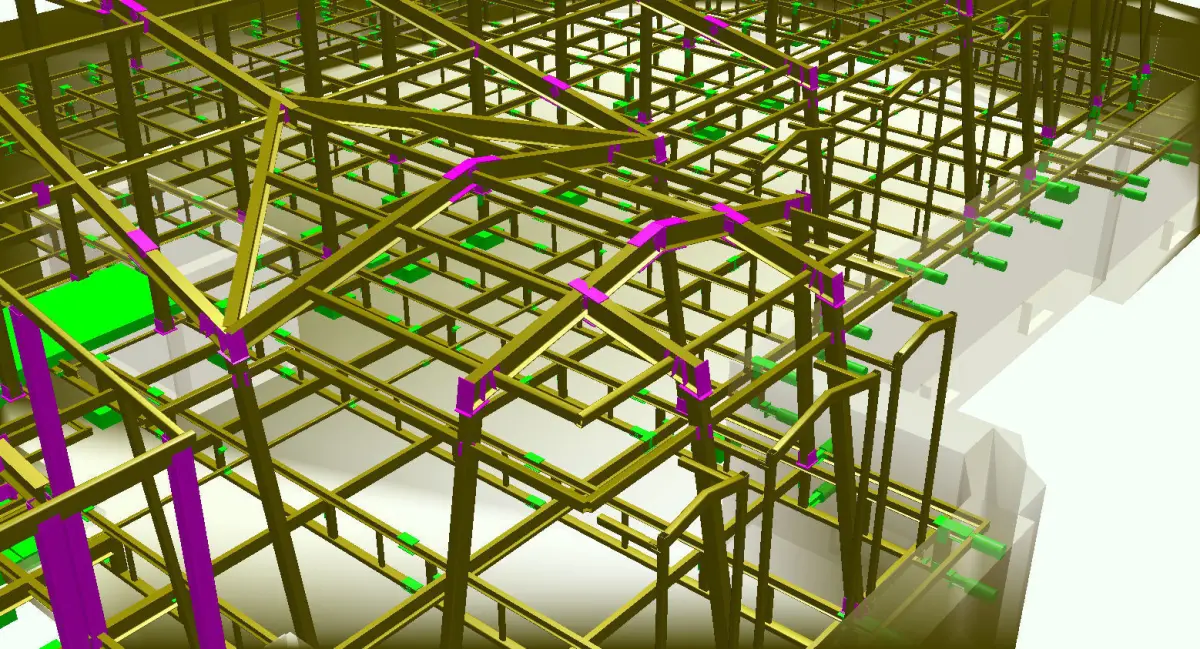

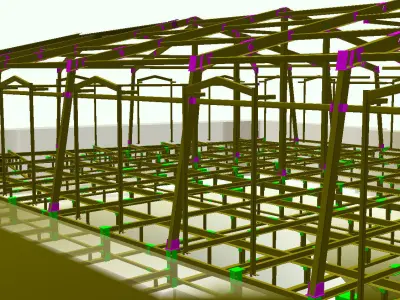

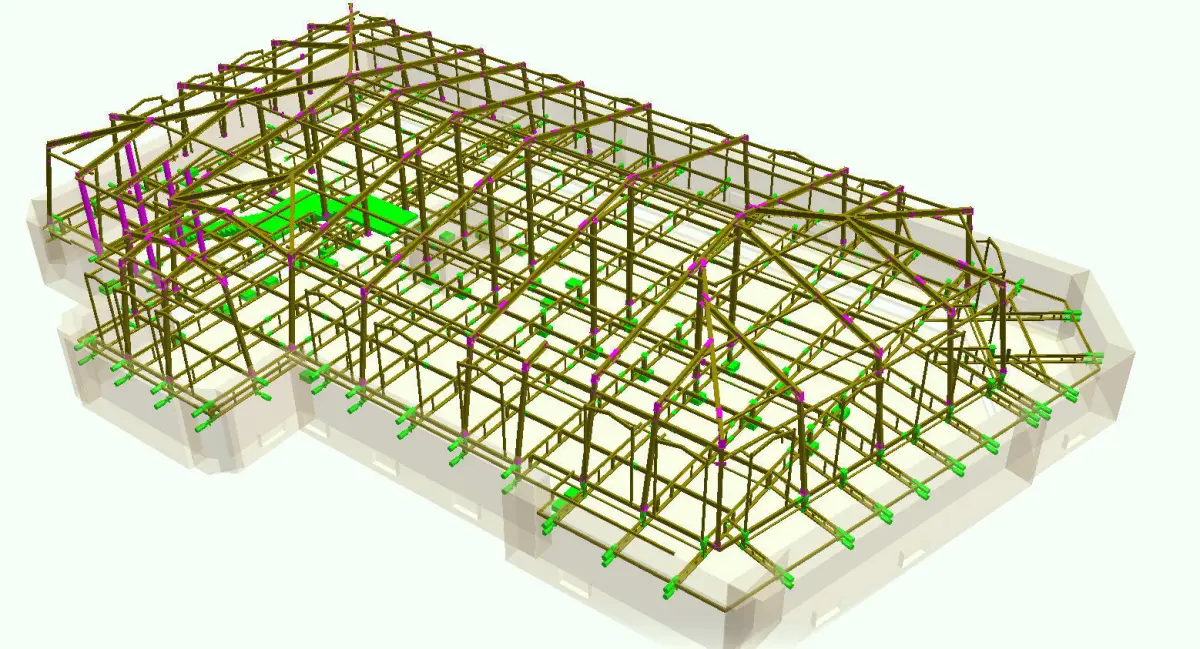

The construction of the attic floor and the construction of the roof of the attic. The construction is made in accordance with building codes. Overlapping of the attic is carried out over the existing attic floor. The design of the new ceiling is a metal structure of steel rolling profiles, trusses, connected together by runs.The main farms have a height of 590 mm, in the terrace area - the height of the farm is 290 mm. The construction of the attic is a system of racks and beams of basic and secondary. Rolled profiles of rolled metal are used. The model has all the nodes for connecting the elements of the structure.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs:
Geometry: Unknown
Polygons: 0
Vertices: 0

Tags

Attic Construction Structure Truss Beams Building Steel Reconstruction Roof Mauerlat Arch Overlapping Rafters Crate Ramp Architectural Engineering Construction building Steel structure
