Copper foil fitting cutting mechanism

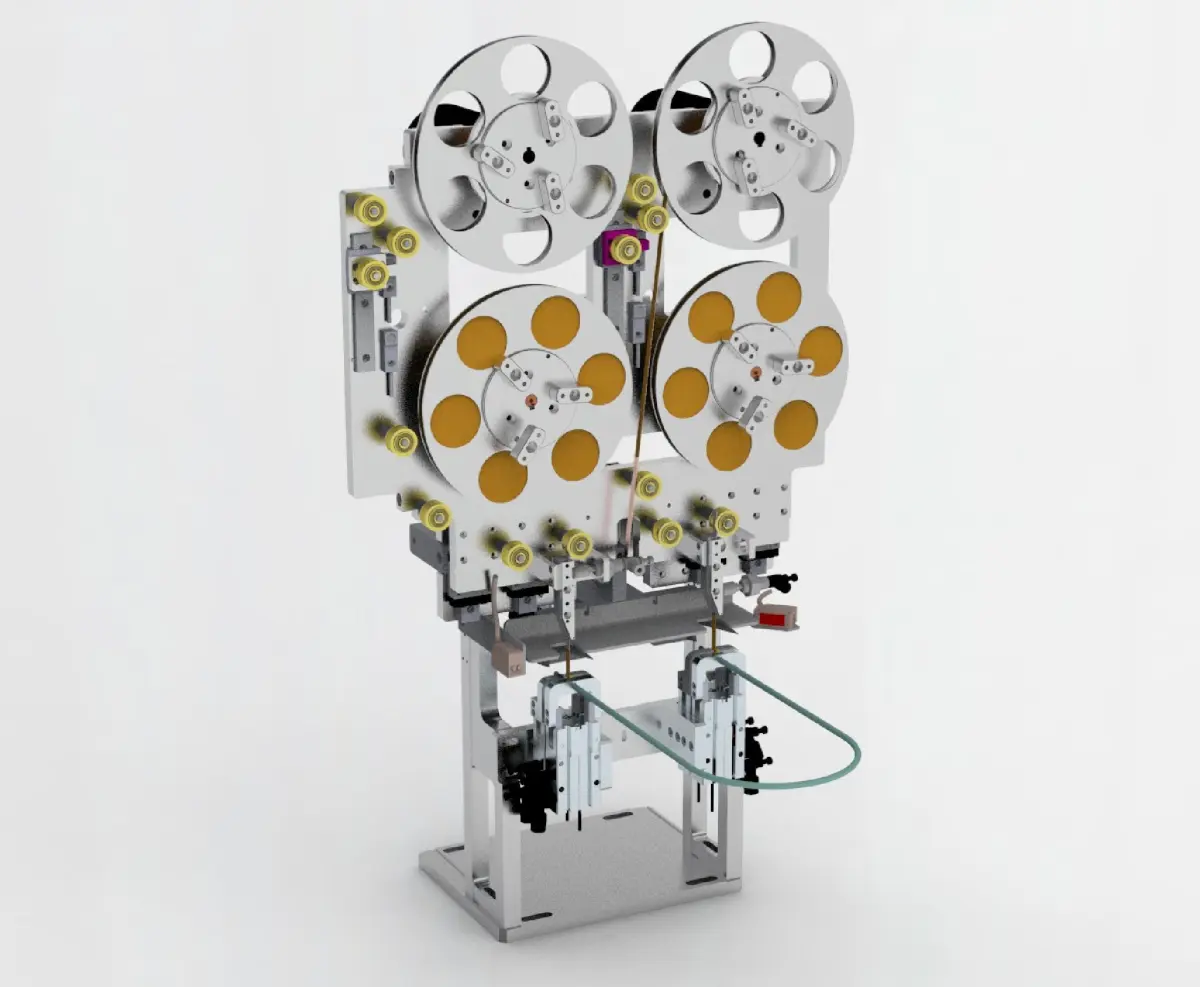

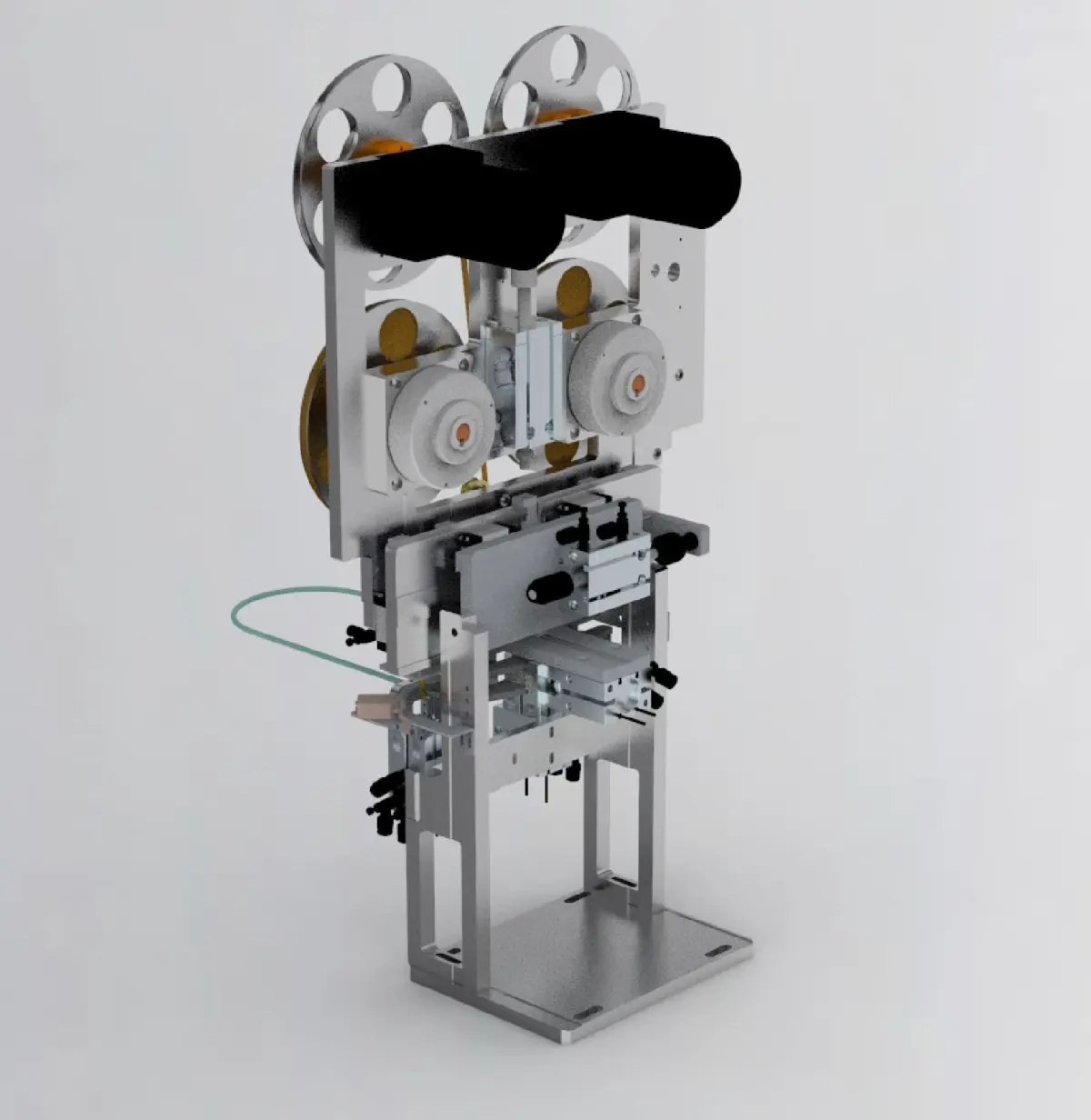

The mechanism through the coil feeding mechanism, the use of tension controller to control, to ensure that the coil conveying smooth, taut. Through many times of roller guide, conveying to wire mechanism out, using the cutting mechanism to cut off the wire, the mechanism is a set of automatic feeding cutting mechanism.

The mechanism includes the roller wheel feeding mechanism of the coil;

The mechanism comprises a tension control mechanism;

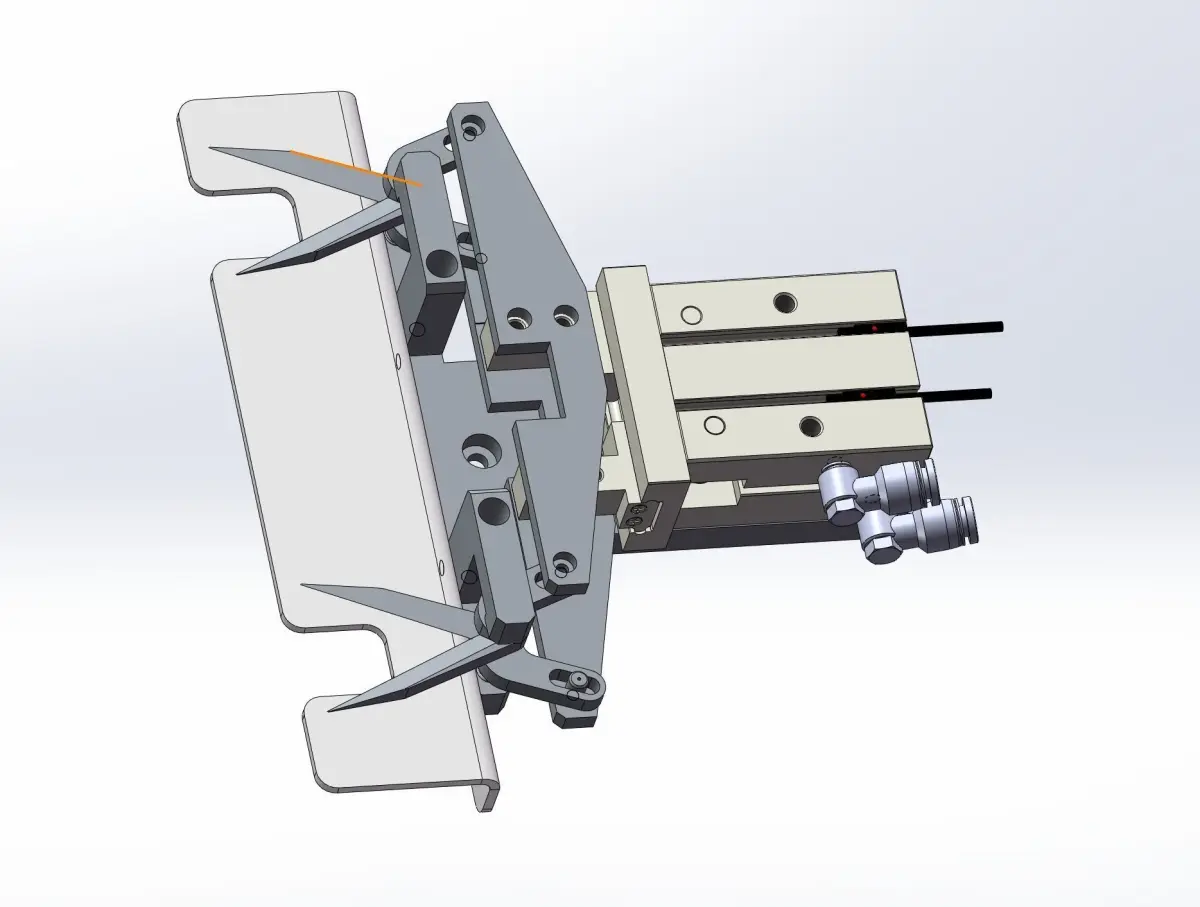

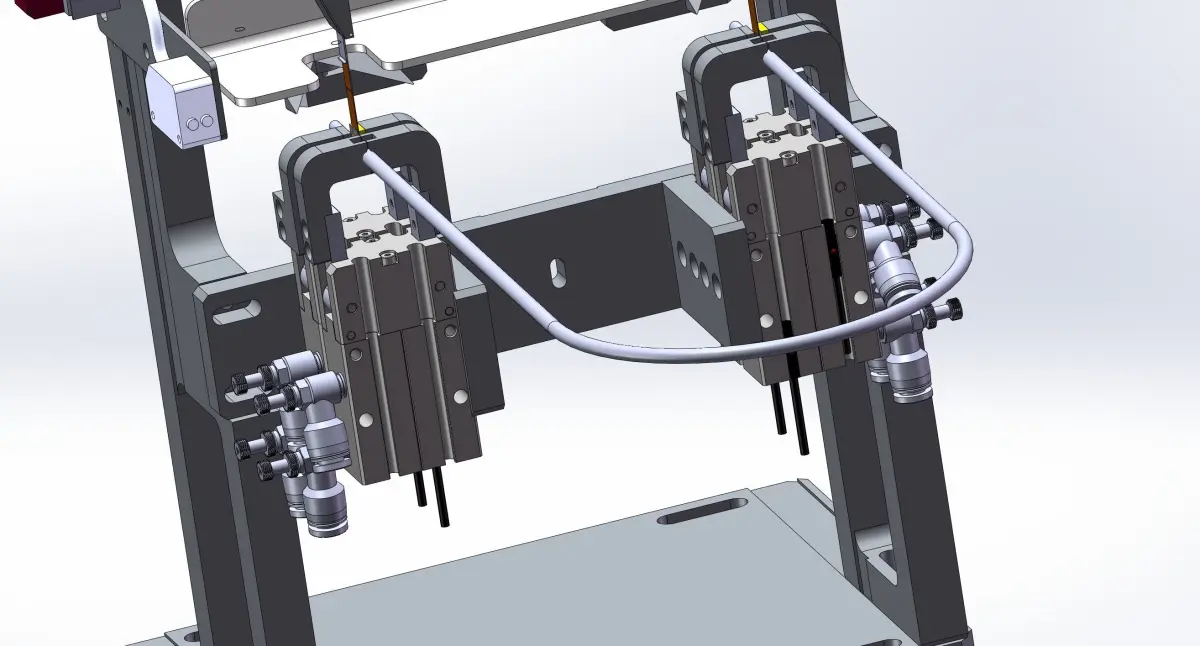

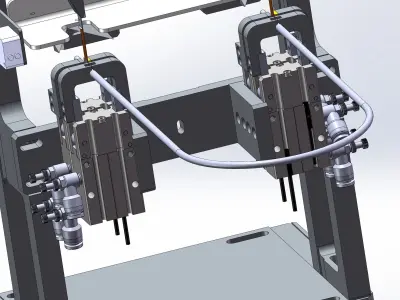

The cutting mechanism is included in the mechanism.

The model is a good feeding mechanism and cutting mechanism of metal sheet, and is a good reference model.

polygons: 5641376

Vertice: 11286484

Files format contains

-solidworks 2017-step-iges-obj-3ds-Fbx-3dmax

and other formats

If you like,you can buy for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with Keyshot
