cottor joint Free 3D model

free

License: Royalty Free No Ai License

author:

ayushjaiswal376

Description

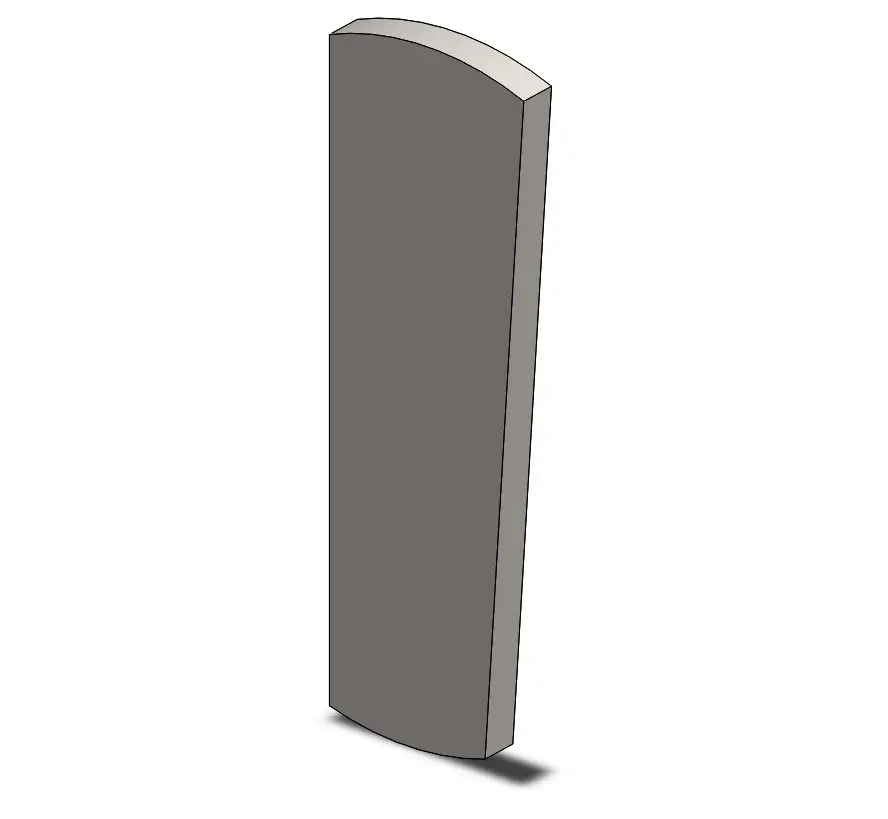

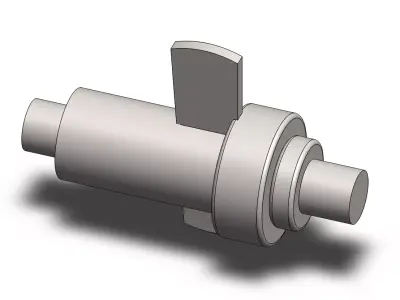

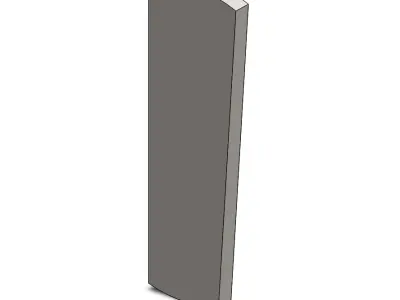

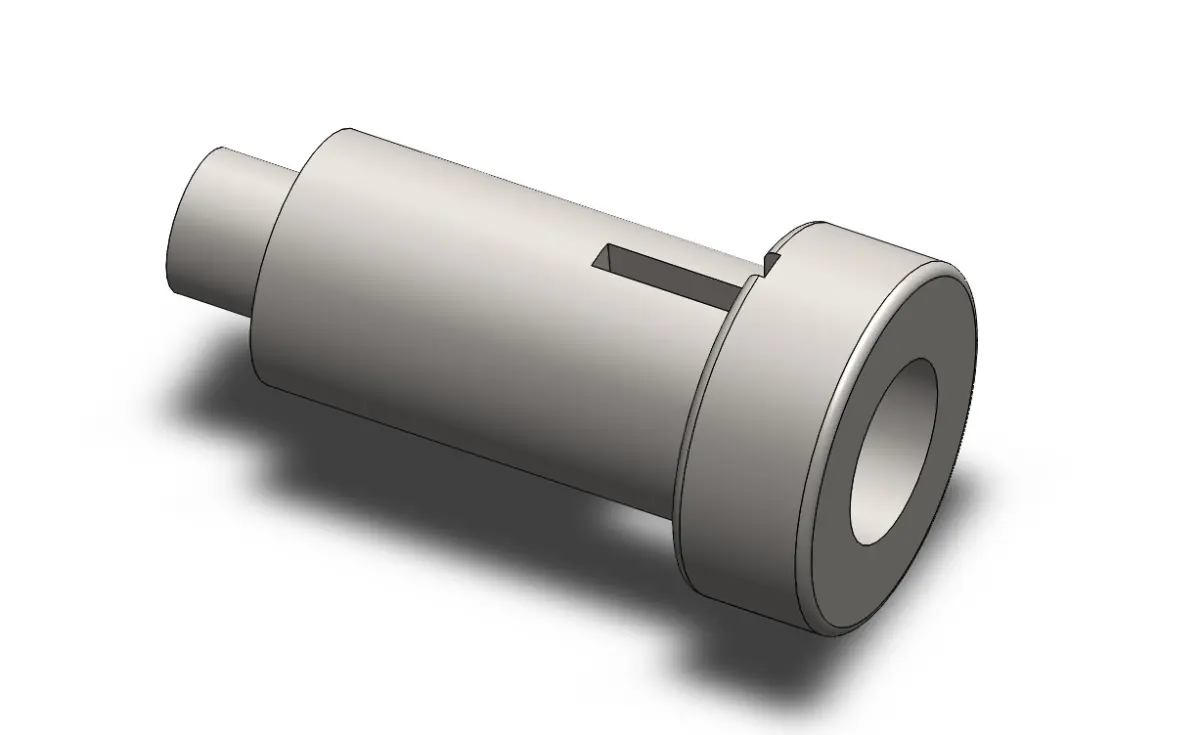

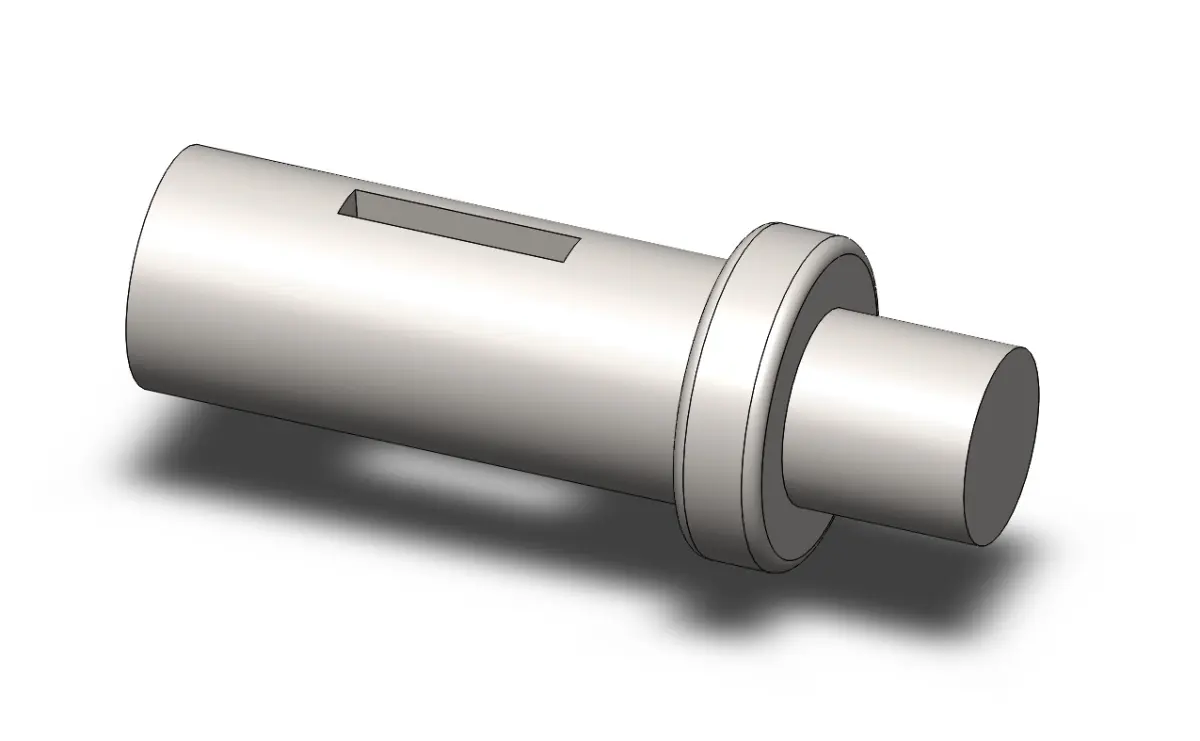

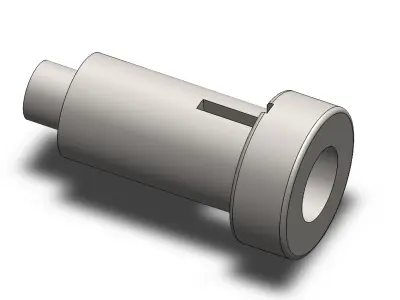

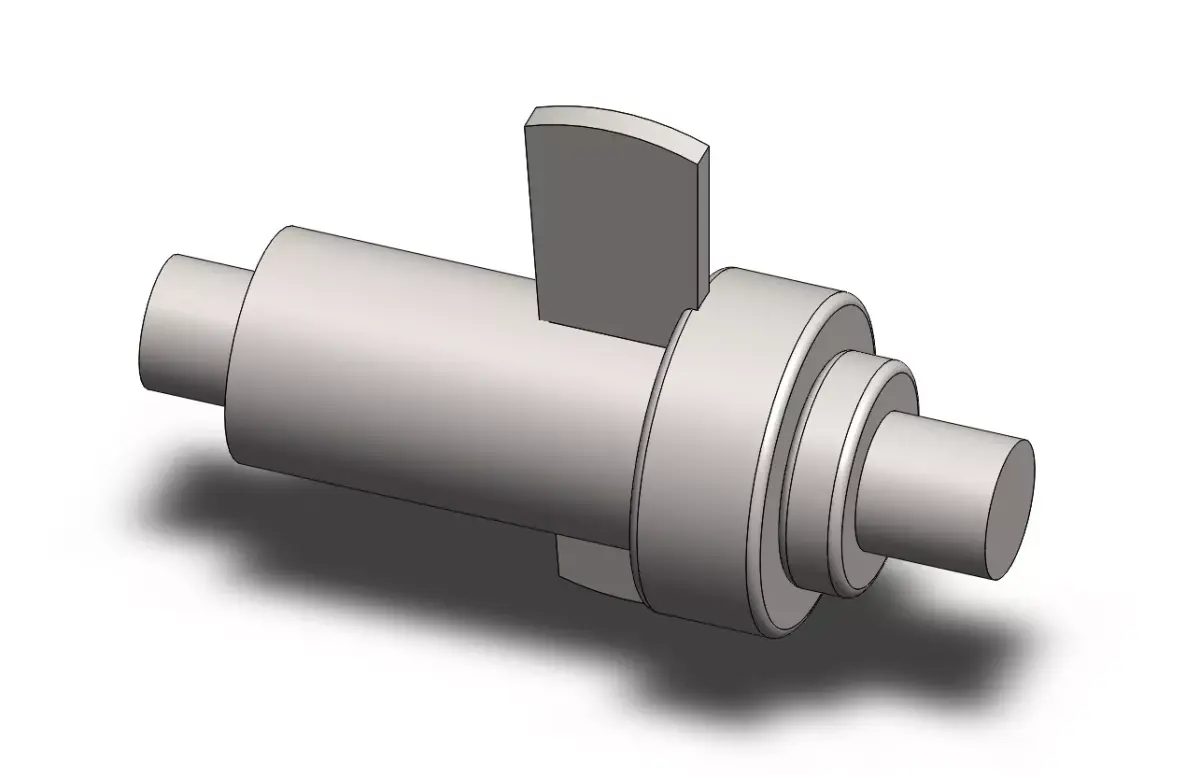

A cotter joint is a type of mechanical joint used to connect two coaxial rods or bars rigidly, typically under axial tensile or compressive loads. It is also known as a socket and spigot joint. The joint consists of a socket on one rod, a spigot on the other, and a wedge-shaped cotter that is driven through slots in both rods to create a tight, temporary connection.

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: -
Polygons: 0
Vertices: 0

Tags

Design Joint Assembly Machine Tools Components Mechanical Engineering Parts Engineering parts Solidworks

All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «ayushjaiswal376». CGhub does not claim copyright ownership over the content used.
