Buy Counter Spindle of CNC Lathe 3D model

Name: Counter Spindle of CNC Lathe 3D model
Brand: alex863
SKU: 893781
Price: 20.00 USD
Availability: InStock

$20

License: Royalty Free No Ai

author:

alex863

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «alex863». CGhub does not claim copyright ownership over the content used.

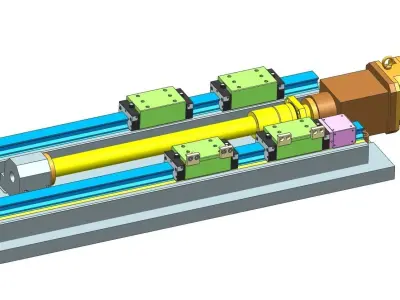

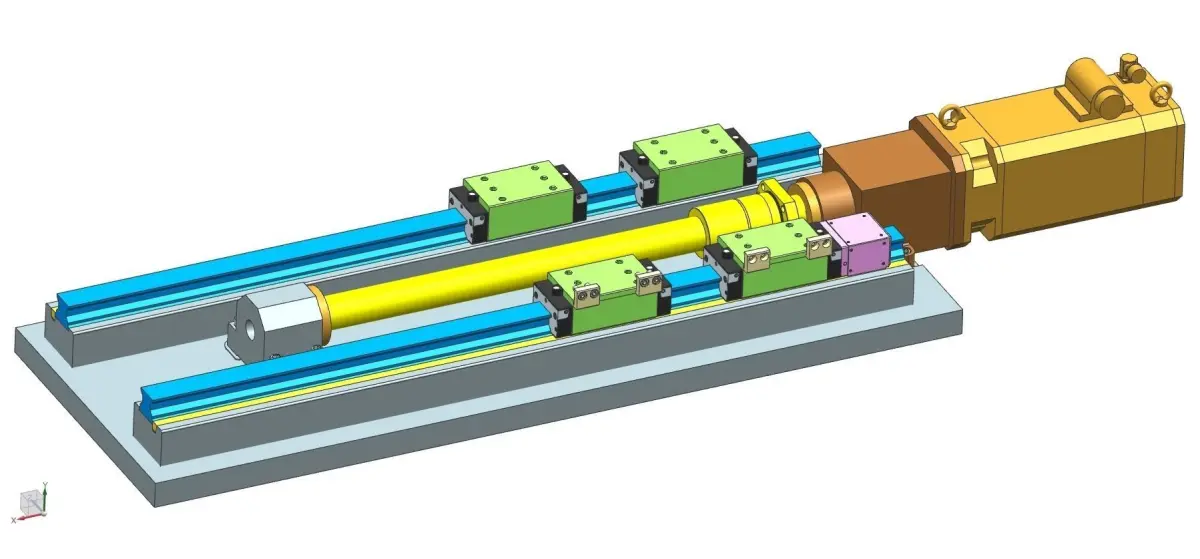

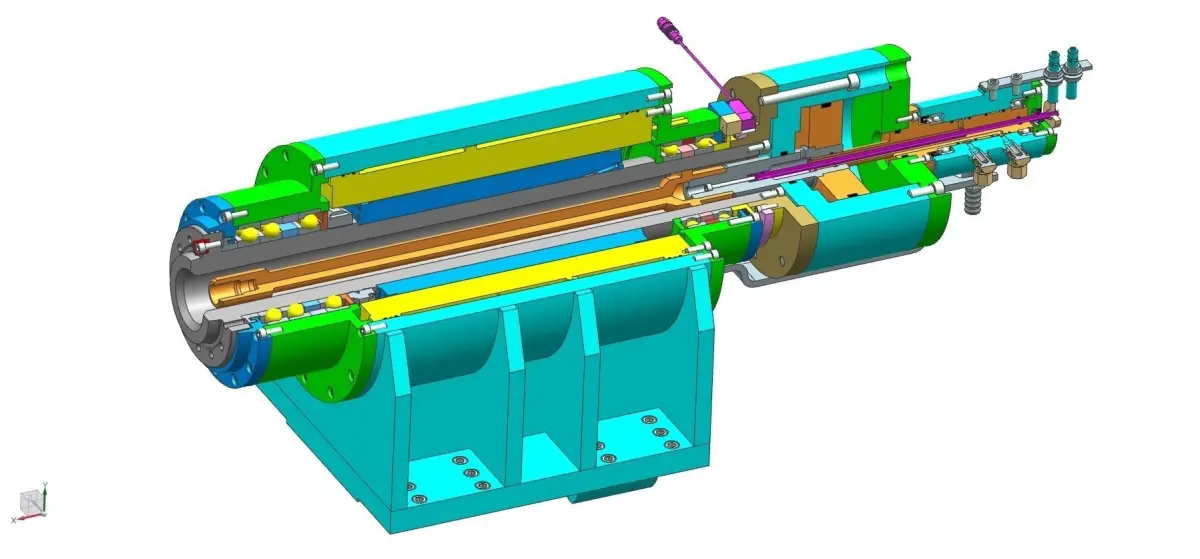

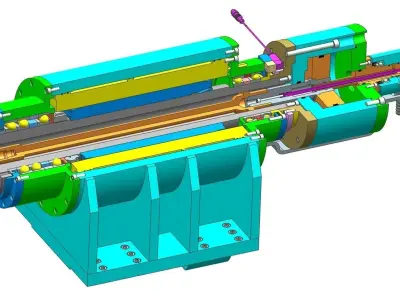

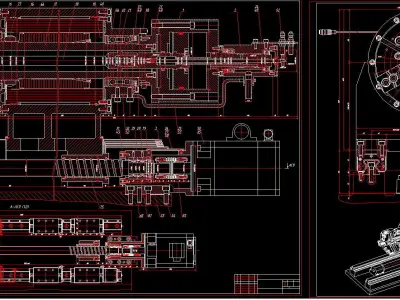

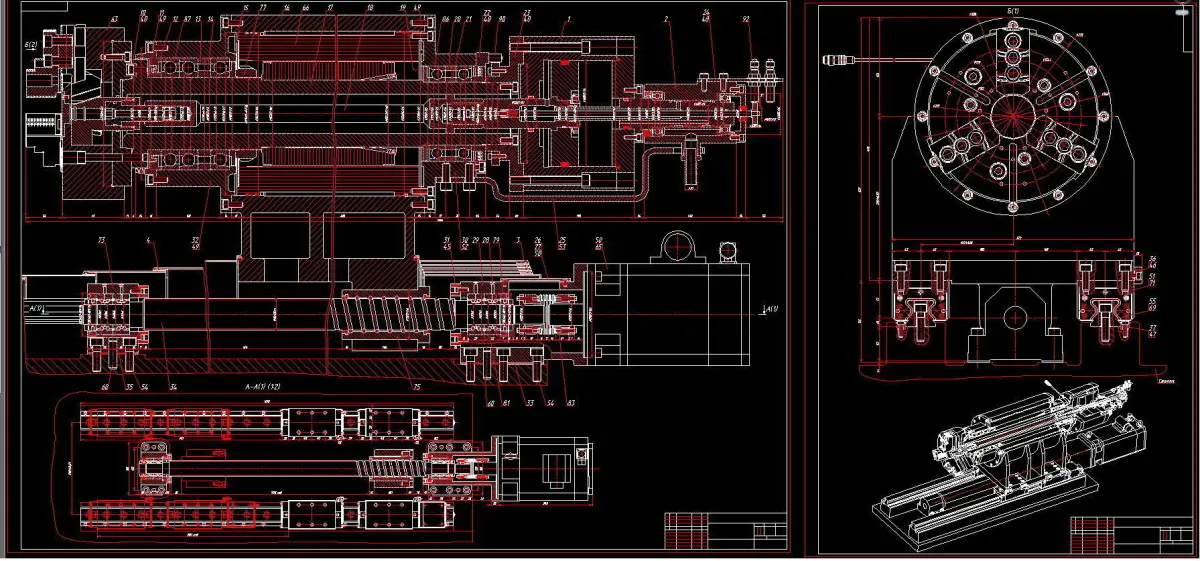

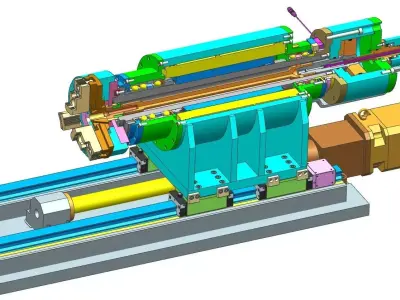

The counter is an auxiliary spindle unit with main motion drive, clamping, etc., mounted on a rolling table. It is designed for final machining of short workpieces after intercepting them from the main spindle. The counter spindle is separate, modular, with infinitely variable spindle speed control. It consists of an adjustable AC motor, spindle headstock with spindle assembly, workpiece clamping mechanism, angular position sensor.

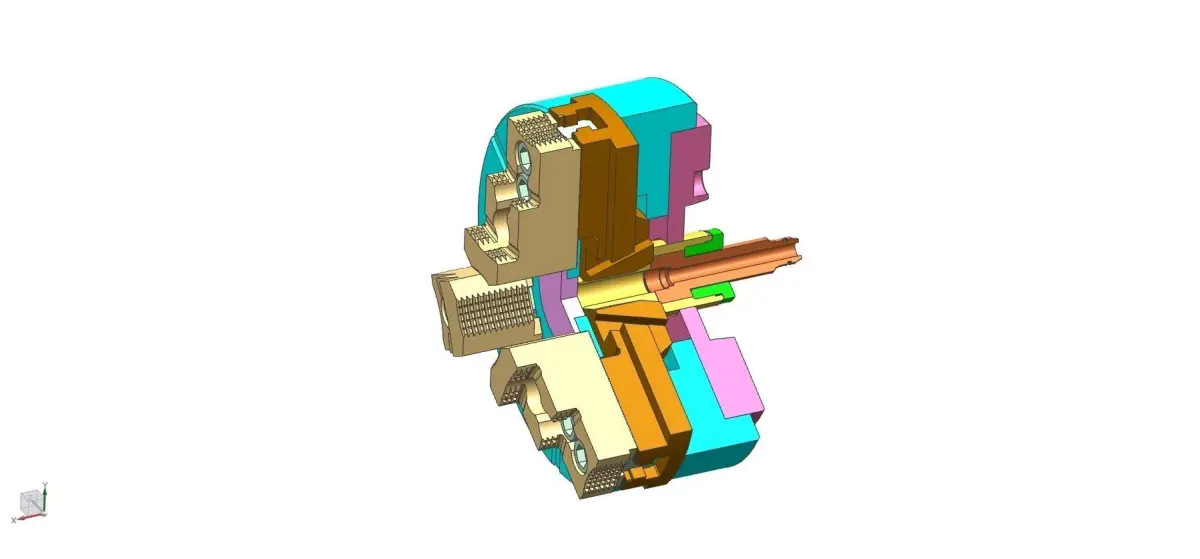

The diameter of the spindle in the front support is 100mm. Spindle end A2-6. 10 inch chuck.
