Crankshaft V8 cross-plane 3D model
Crankshaft V8 cross-plane 3D model
Crankshaft V8 cross-plane 3D model
Crankshaft V8 cross-plane 3D model
Crankshaft V8 cross-plane 3D model

Publication date: 2023-10-30

Crankshaft V8 cross-plane 3D model

$3

License: Royalty Free

author:

uasad

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «uasad». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $3 Add to Wishlist
  • Description
  • Formats

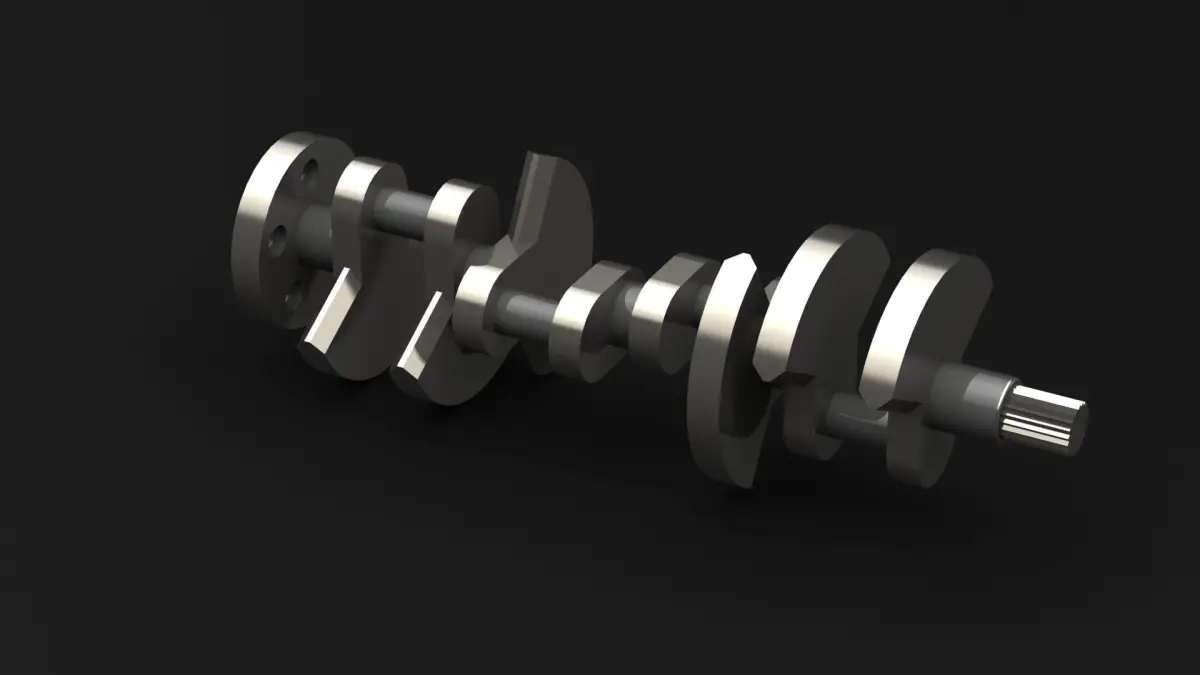

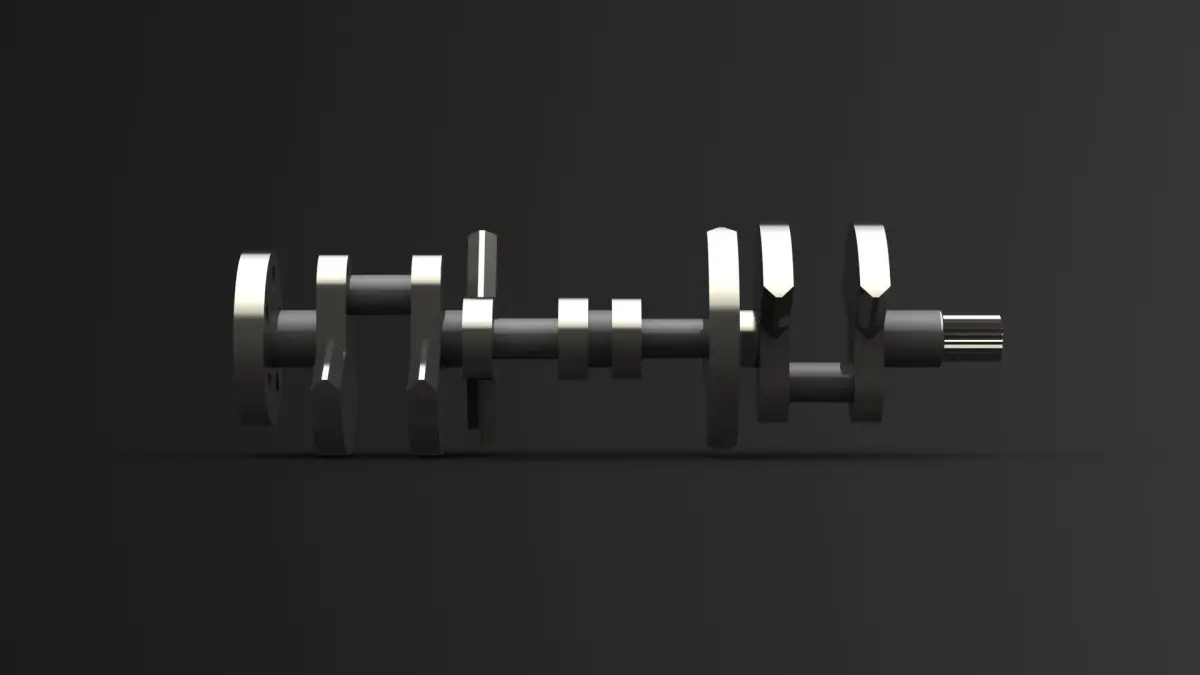

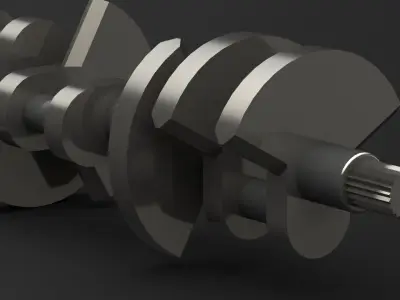

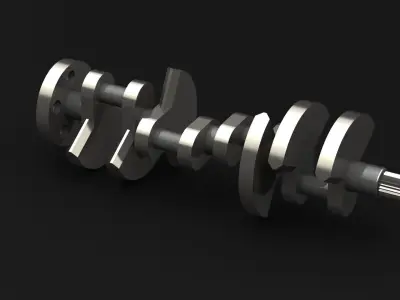

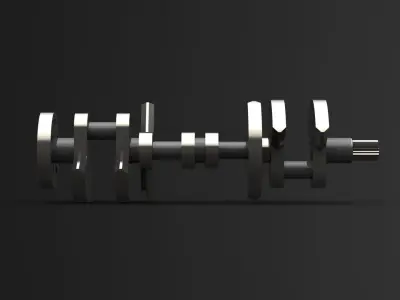

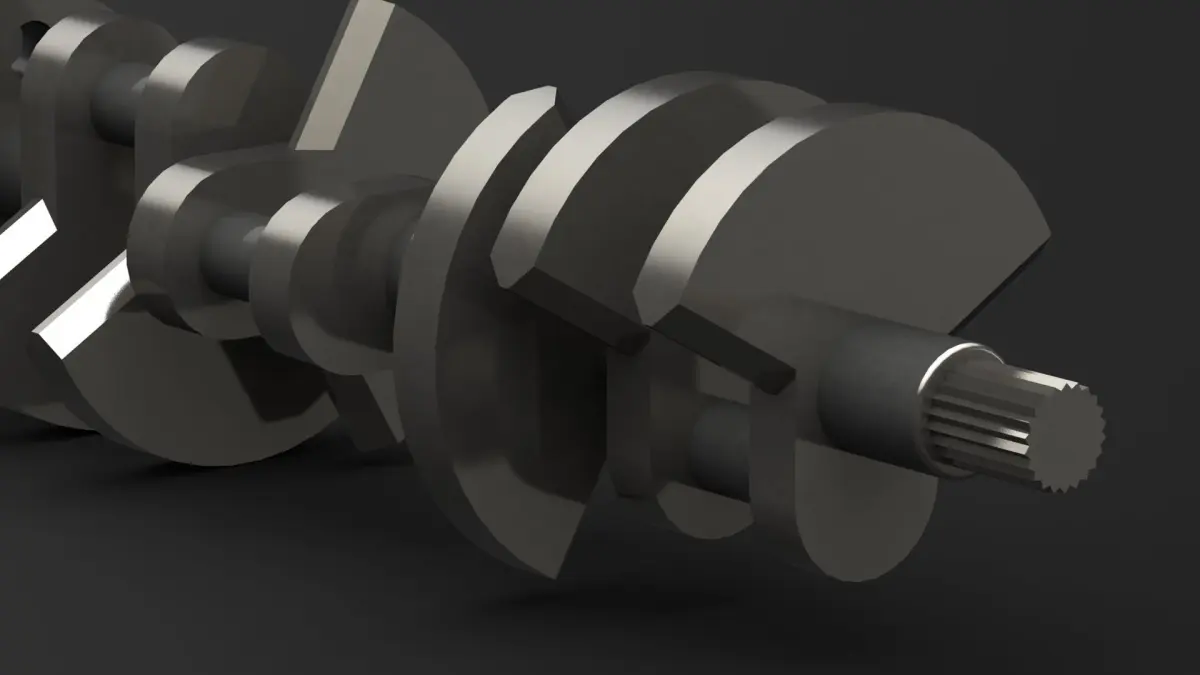

A mechanical crankshaft designed for a personal modeled V8 engine. Made in Solidworks with variable parameters. Easily edited according to requirements. Specifications:

  • Crossplane (0-270-180-90)
  • Length 114.5mm
  • Stroke length 15mm

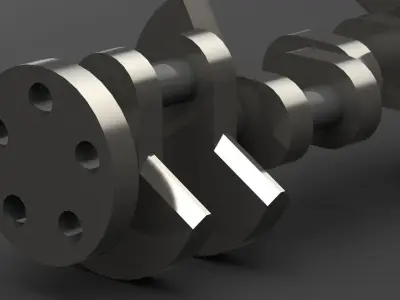

  • Flange Dia 30mm
  • PCD 20mm
  • Holes 5
  • Hole Dia 5mm

This model is printable but requires some experience in 3D printing. File types included are SLDPRT, STEP, STL, IGES.

*this model is part of a greater assembly and can be edited on demand

Native Formats: SLDPRT (SolidWorks, filesize: 654 KB) Exchange Formats: STL (Stereolithography, filesize: 1.28 MB), IGE (IGES, filesize: 654 KB), STP (STEP, filesize: 654 KB), PDF (PDF, filesize: 654 KB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Unknown
  • Polygons: 3358
  • Vertices: 4700

Tags

Machinery Steel Iron Weightlifting Technology Engine Car Automotive Industrial Equipment Isolated Concept Concept car
