Cube Brick Free 3D print model

free

License: Editorial No Ai License

author:

Ridwan

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Ridwan». CGhub does not claim copyright ownership over the content used.

Description

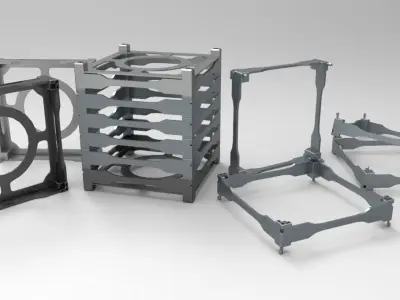

Cube Brick

Modeled with SolidWorks 2014

Rendered & Animated with KeyShot 5

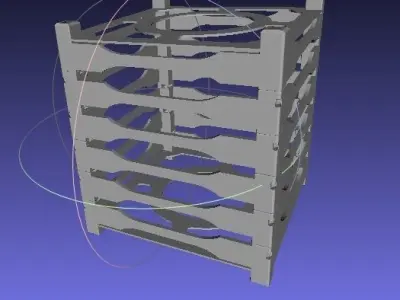

File Types : .SLDPRT, .IGS, .OBJ, .STL.

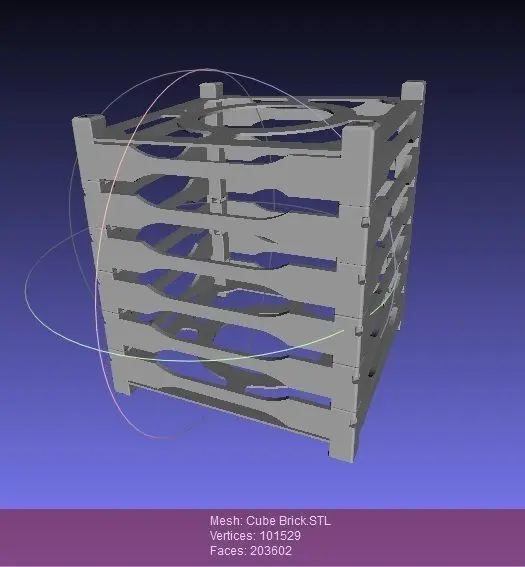

Vertices : 101529

Polygons : 203602

I make CubeSat based on total PCB modul, I make separate components for each PBC. I see the PCB are have stack in a pattern, so I think this method is helpfull for assembly the CubeSat.

Adventages use this Cube Brick is :

Easy to Assembly
Lightweight because use Nylon material (or some recommended material that capable with this)
Use FUSED DEPOSITION MODELING as additive manufacturing technique.
Strong and stable, and we can make it directly into 1U, 3U or else because this stack system (like lego).

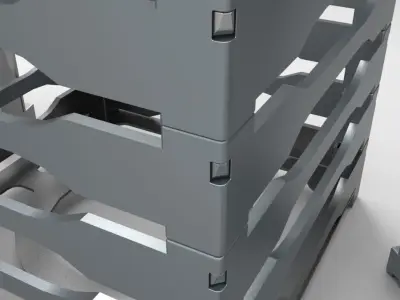

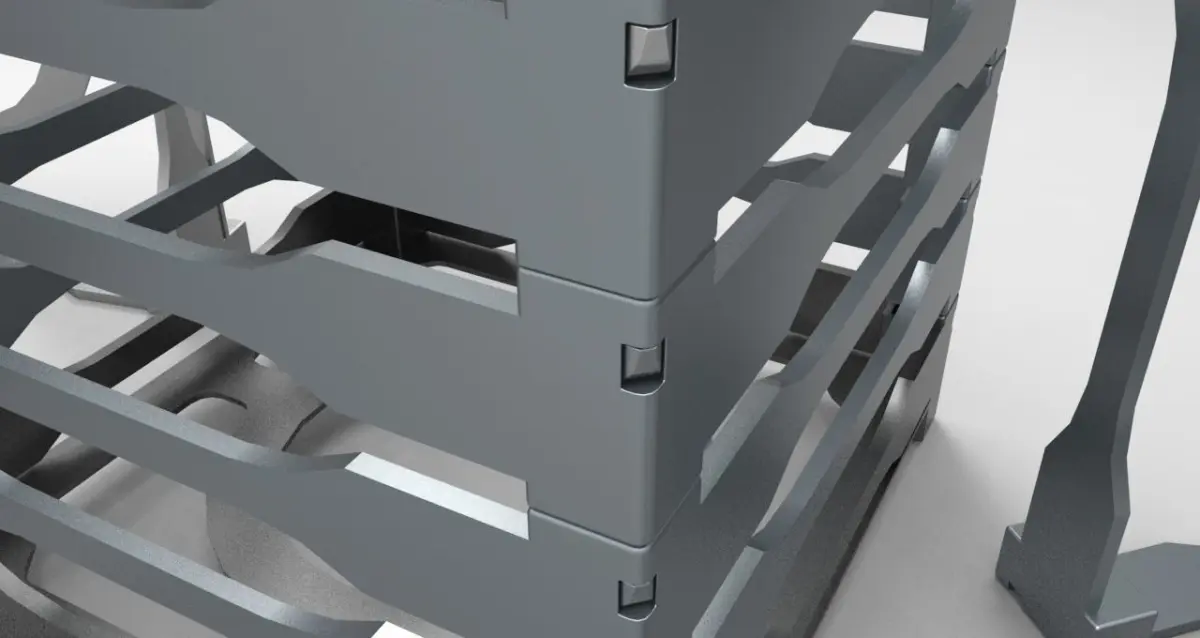

Use snapfit system to attach one components to other.

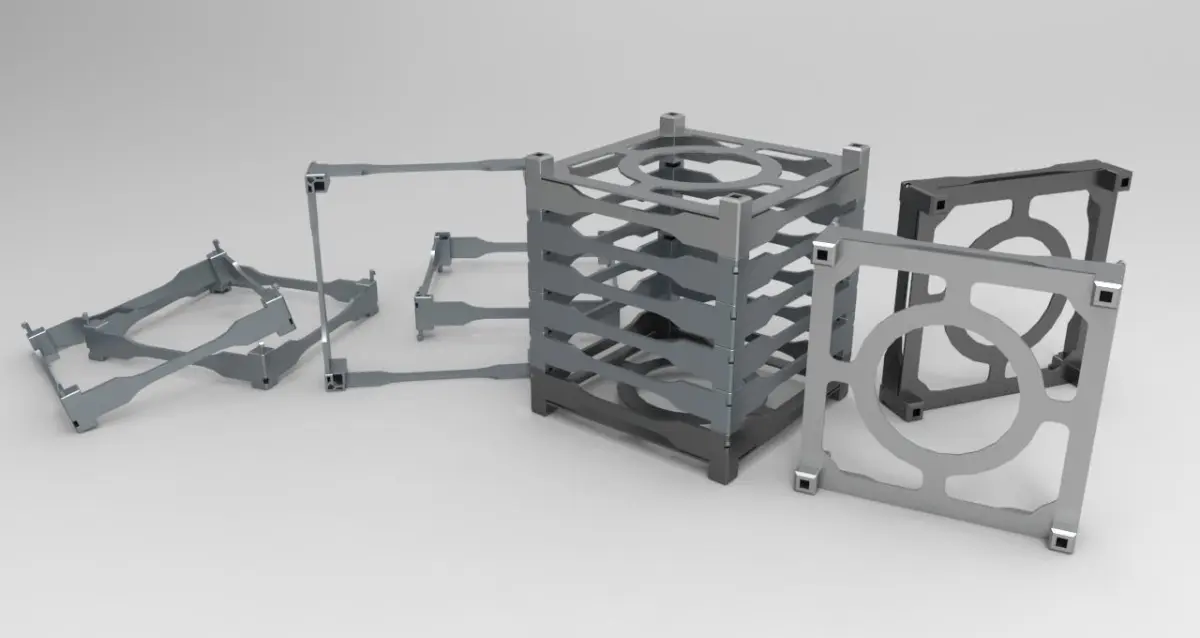

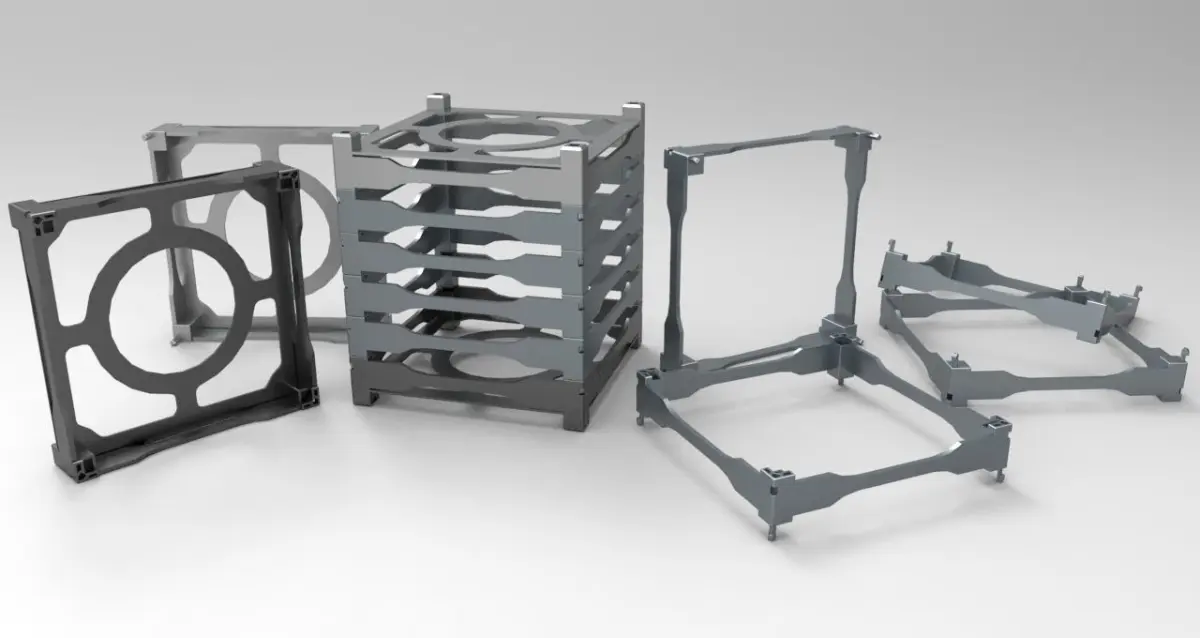

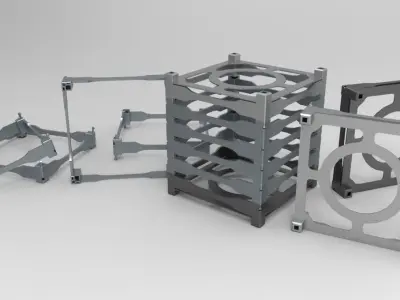

Just have 3 differents components

Base (Qty 1)
Support PCB Cover (Qty 1)
Top Cover ". (Qty 4 or based on total PCB modul that's we use)

Easy to close and open when needed.
Without any fastener to assembly this construction.
Stable and strong enough

You can download this model for Free, but you should to hit ♥ button as the payment :).

Catch us :

Email : onefuturesolutions@gmail.com

Instagram : https://www.instagram.com/1futuresolution/

Youtube : http://bit.ly/ytc-onefuturesolution

FB : https://www.facebook.com/1futuresolution/

Cheers,

Ridwan S
