- If you want to purchase this 3D model, but need to change the dimensions, contact us.
- We also accept orders for 3D modeling. Our experienced professionals will help you create the perfect 3D model to suit your requirements.

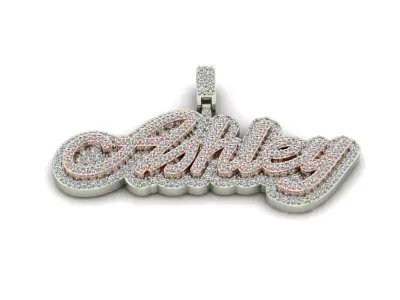

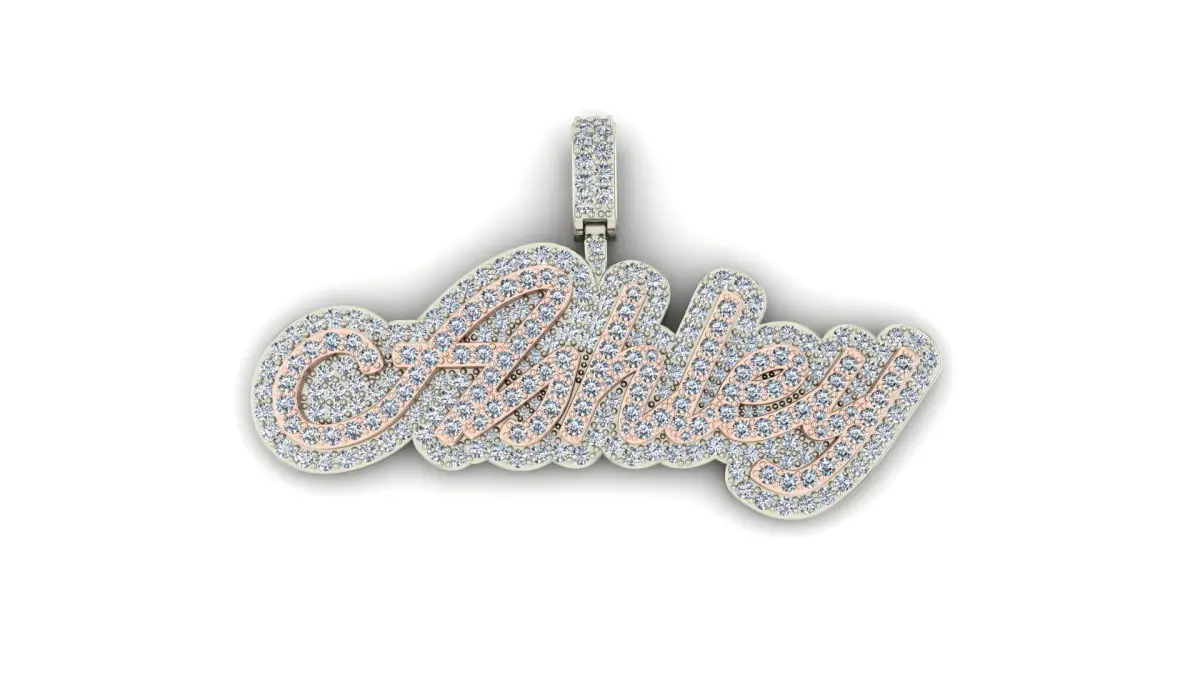

This jewel is a personalized nameplate pendant, designed to spell a name.

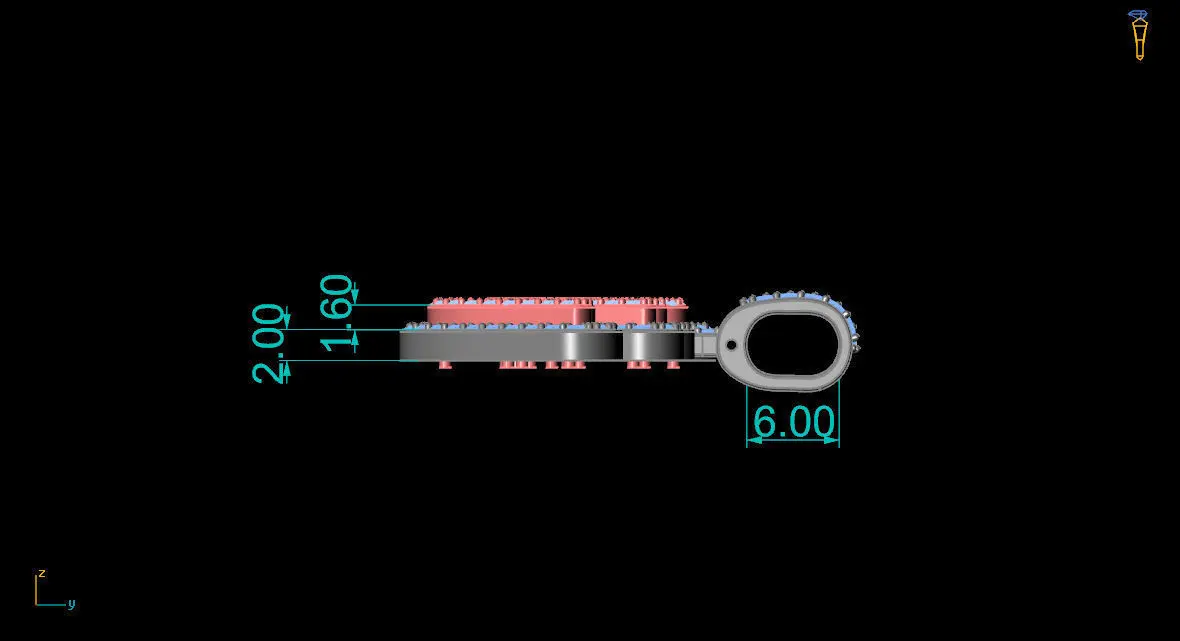

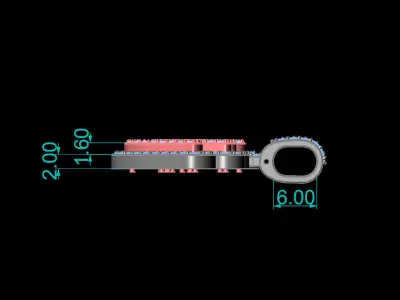

Overall Dimensions:Length: 50.70 mmHeight: 20.50 mmThickness: 2.00 mm (base thickness), with an additional 1.60 mm for the top setting, resulting in a total height of 3.60 mm when considering the stones and their setting.Bail Opening Width: 6.00 mm
Gemstone Details (Diamonds):Total Gemstone Count: 259 stonesTotal Gemstone Weight: 2.35 carats total weight (tw)Gemstone Type: Round
Gemstone Distribution by Size and Weight:0.80 mm x 0.80 mm: 22 stones, 0.042 tw1.40 mm x 1.40 mm: 210 stones, 2.16 tw (This is the predominant size and contributes most to the total weight)1.20 mm x 1.20 mm: 18 stones, 0.12 tw1.00 mm x 1.00 mm: 9 stones, 0.034 tw
Metal Specifications (Approximate Weights for various gold alloys):Yellow Gold 10KY: 20.09 grams (12.92 DWT)Yellow Gold 14KY: 22.60 grams (14.53 DWT)Yellow Gold 18KY: 27.04 grams (17.38 DWT)

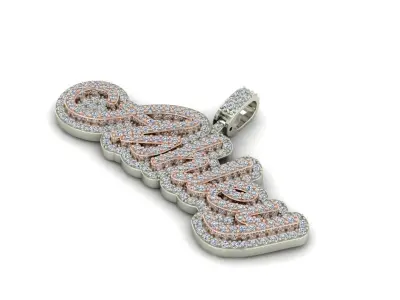

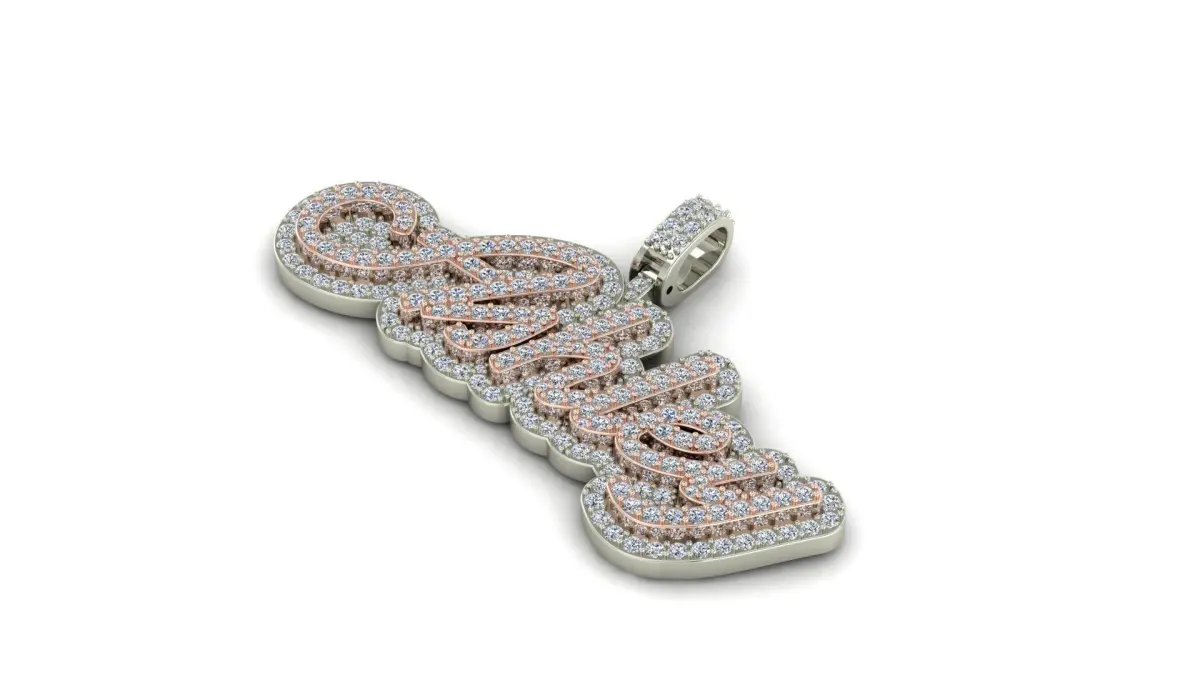

Design Elements:The pendant features a name in a cursive, flowing script. The entire top surface of the lettering is comprehensively pave-set with numerous round diamonds, creating a continuous and brilliant sparkle. The diverse range of diamond sizes is intentionally chosen to fill the contours of the letters effectively, ensuring maximum brilliance. An integrated bail, also adorned with diamonds, extends from the top of the design, forming an open loop for a chain. The side view reveals a two-tiered construction, with a solid base and a raised upper section for the diamond settings, indicating a robust and substantial design.
