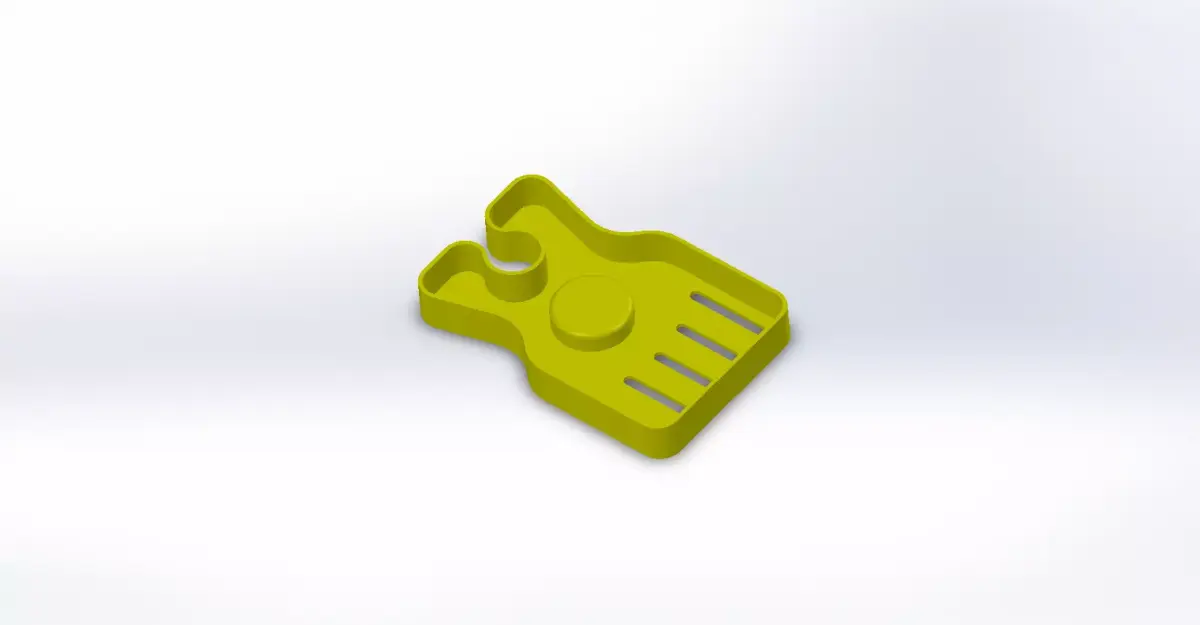

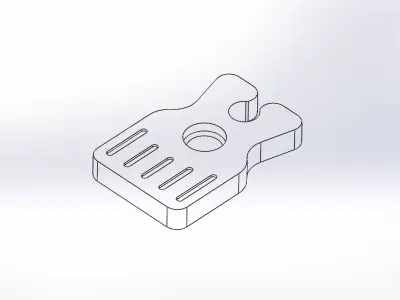

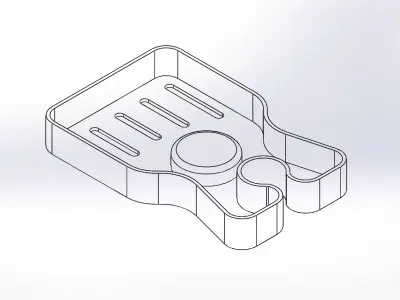

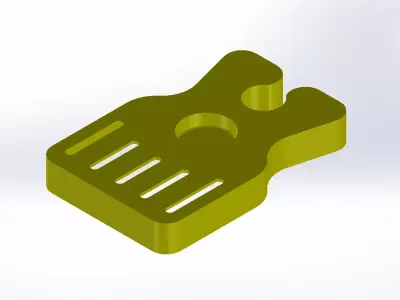

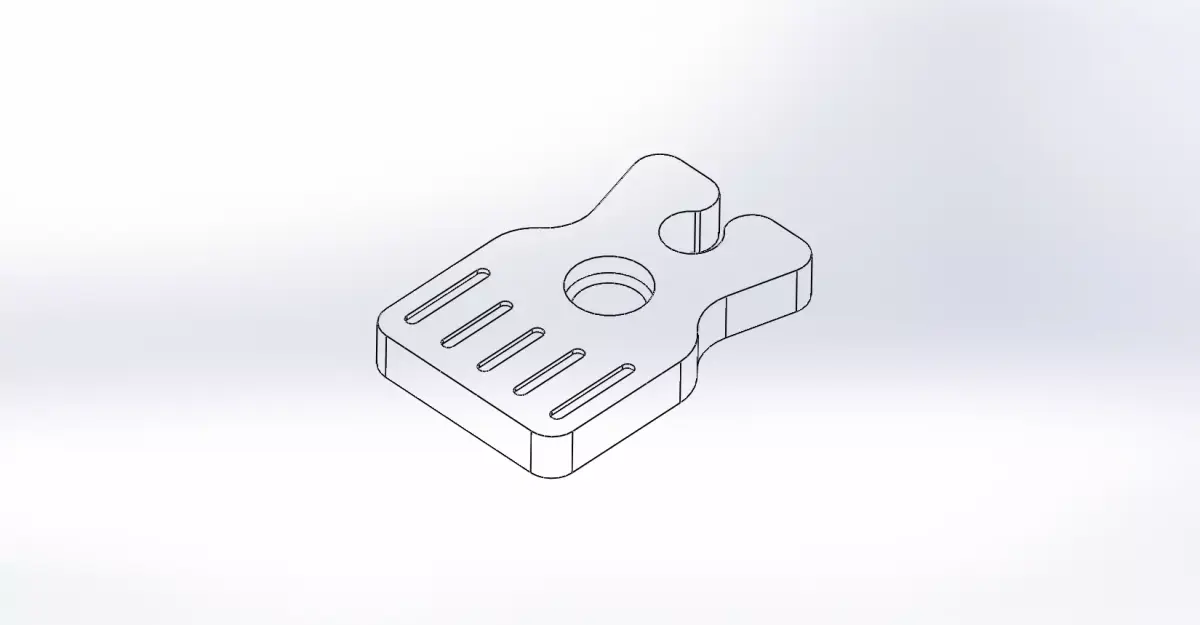

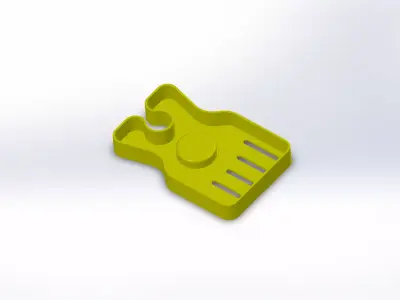

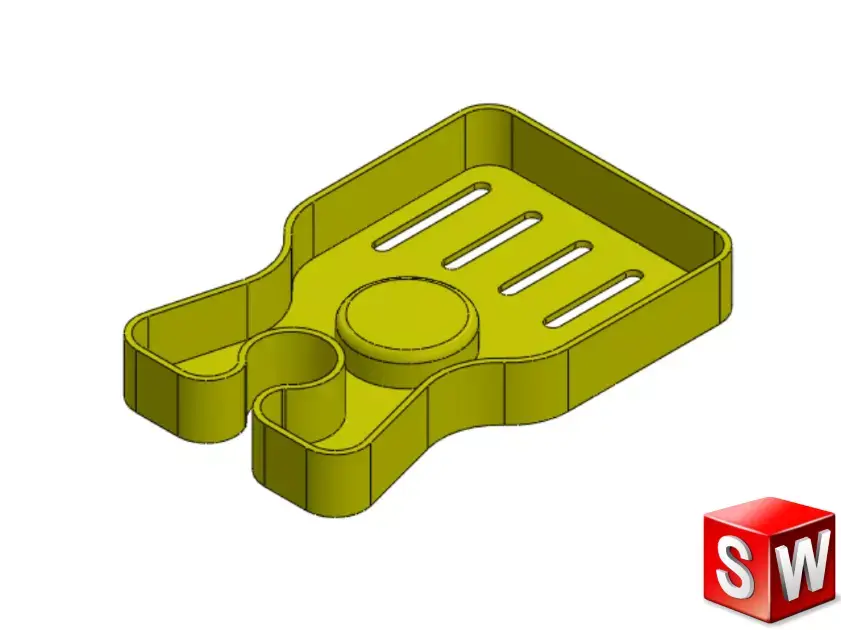

This is a 3D CAD model of a machining fixture component, designed in SolidWorks. The part features:

Rectangular base plate with rounded edges for stability
Circular raised boss for mounting or positioning purposes
Slotted cutouts for clamping, weight reduction, or coolant flow
Profiled edges allowing precise fitment in assembliesThis component can be used as part of fixtures, jigs, CNC machining setups, or custom tooling applications.
