Publication date: 2025-07-12

Custom Quadcopter Drone Frame CAD Model 3D print model

$14.99

License: Royalty Free No Ai Html

author:

Lasty3D

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lasty3D». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $14.99 Add to Wishlist
  • Description
  • Formats

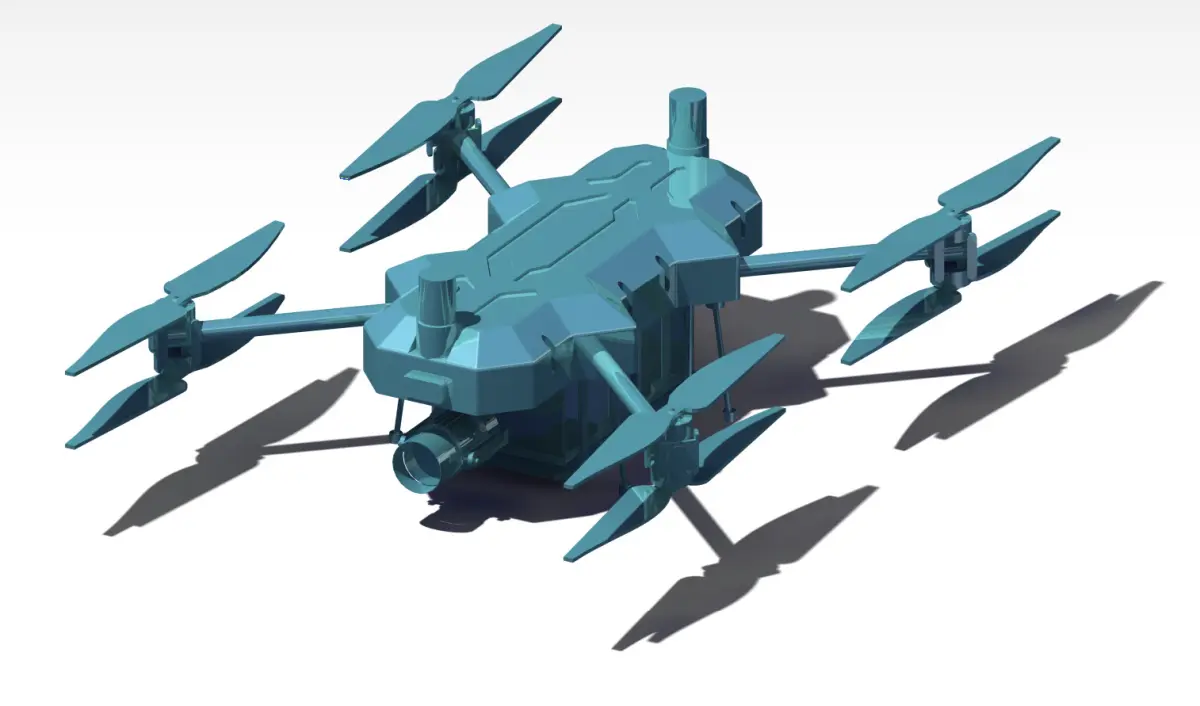

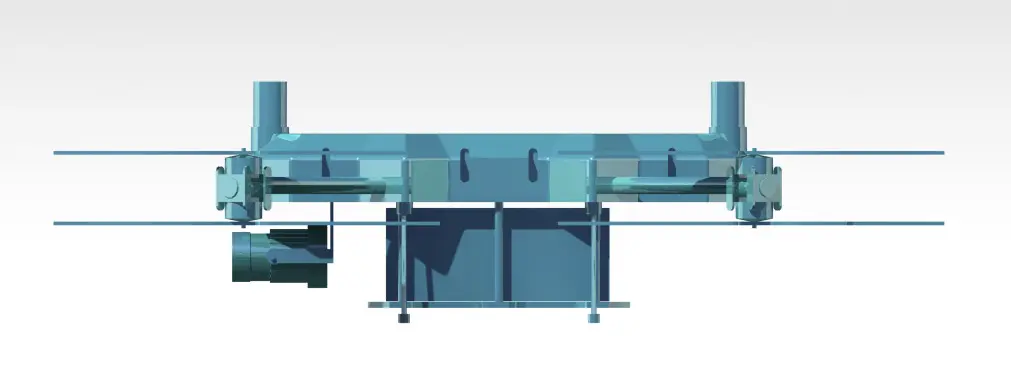

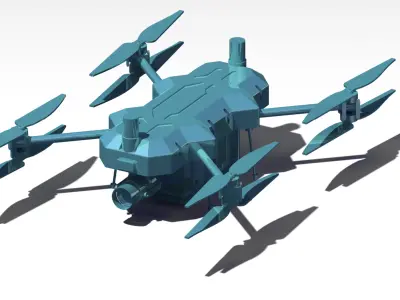

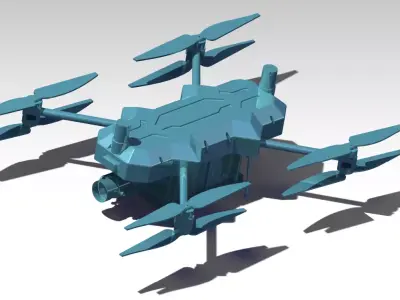

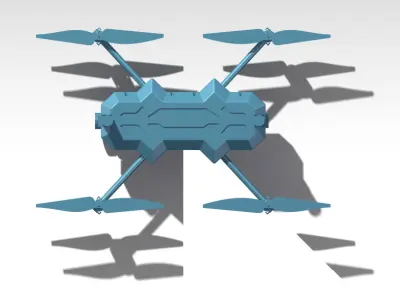

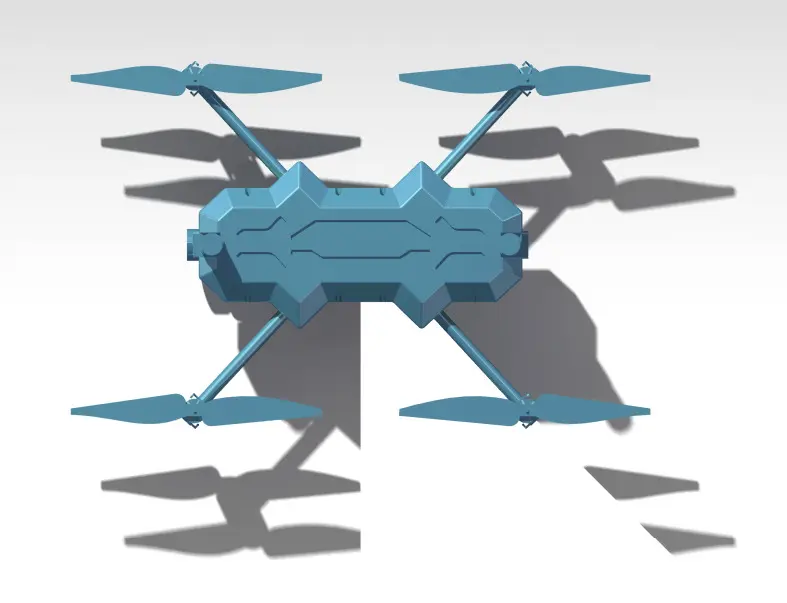

This is a custom-designed quadcopter drone frame modeled in CATIA V5. The design is optimized for robustness, modularity, and aerodynamic efficiency, making it suitable for UAV development, simulation, and educational purposes.

The model includes:

  • A strong central body with smooth aerodynamic contours
  • Four extended arms designed to mount dual-blade propellers
  • A front-facing housing for FPV or surveillance cameras
  • A modular structure with designated areas for battery, ESCs, and additional payloads

The geometry is clean and organized, ideal for integration in simulation environments (CFD, FEA), academic demonstrations, or conceptual drone builds. No moving parts or electronics are included.

Applications:

  • Custom UAV design and prototyping
  • Academic and student drone projects
  • Simulation and structural testing
  • 3D visualization and CAD integration
  • Tactical drone development mock-ups

File formats:

  • CATIA V5 (.CATPart)
  • STEP (.stp)
  • IGES (.igs)
  • STL (optional for preview or basic rendering)
Native Formats: CATPRODUCT (CATIA, filesize: 3.89 MB) Exchange Formats: IGE (IGES, filesize: 7.79 MB), STL (Stereolithography, filesize: 7.79 MB), STP (STEP, filesize: 7.79 MB), PNG (PNG, filesize: 3.89 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Unknown
  • Polygons: 0
  • Vertices: 0

Tags

Quadcopter Drone Frame Uav Cad Model Catia 3d Fpv Design Chassis Surveillance Body Modular For Simulation Science Engineering
