Buy Custom Worm Gear Collection 01 3D print model

Name: Custom Worm Gear Collection 01 3D print model
Brand: cbspicer
SKU: 891933
Price: 16.00 USD
Availability: InStock

$16

License: Royalty Free

author:

cbspicer

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «cbspicer». CGhub does not claim copyright ownership over the content used.

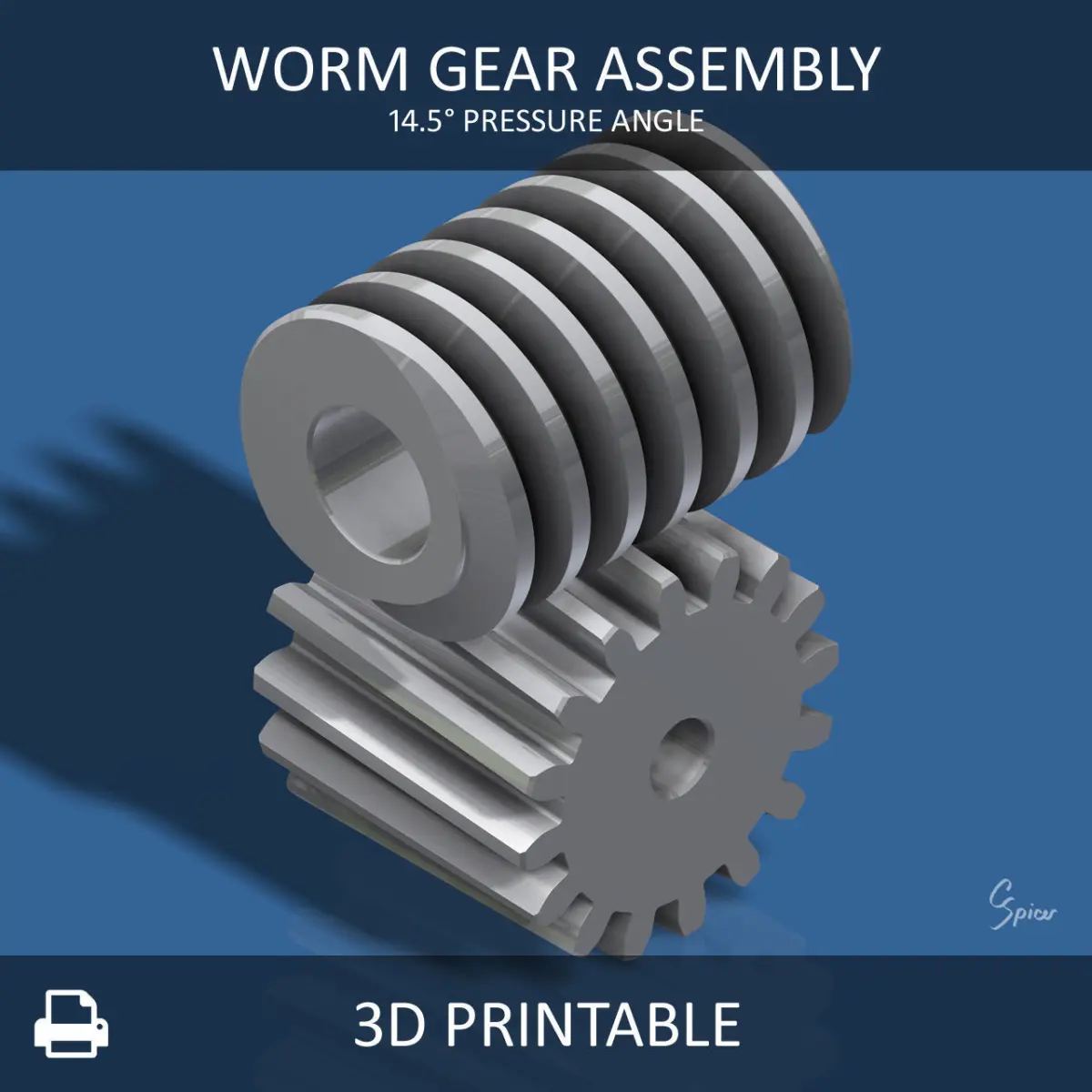

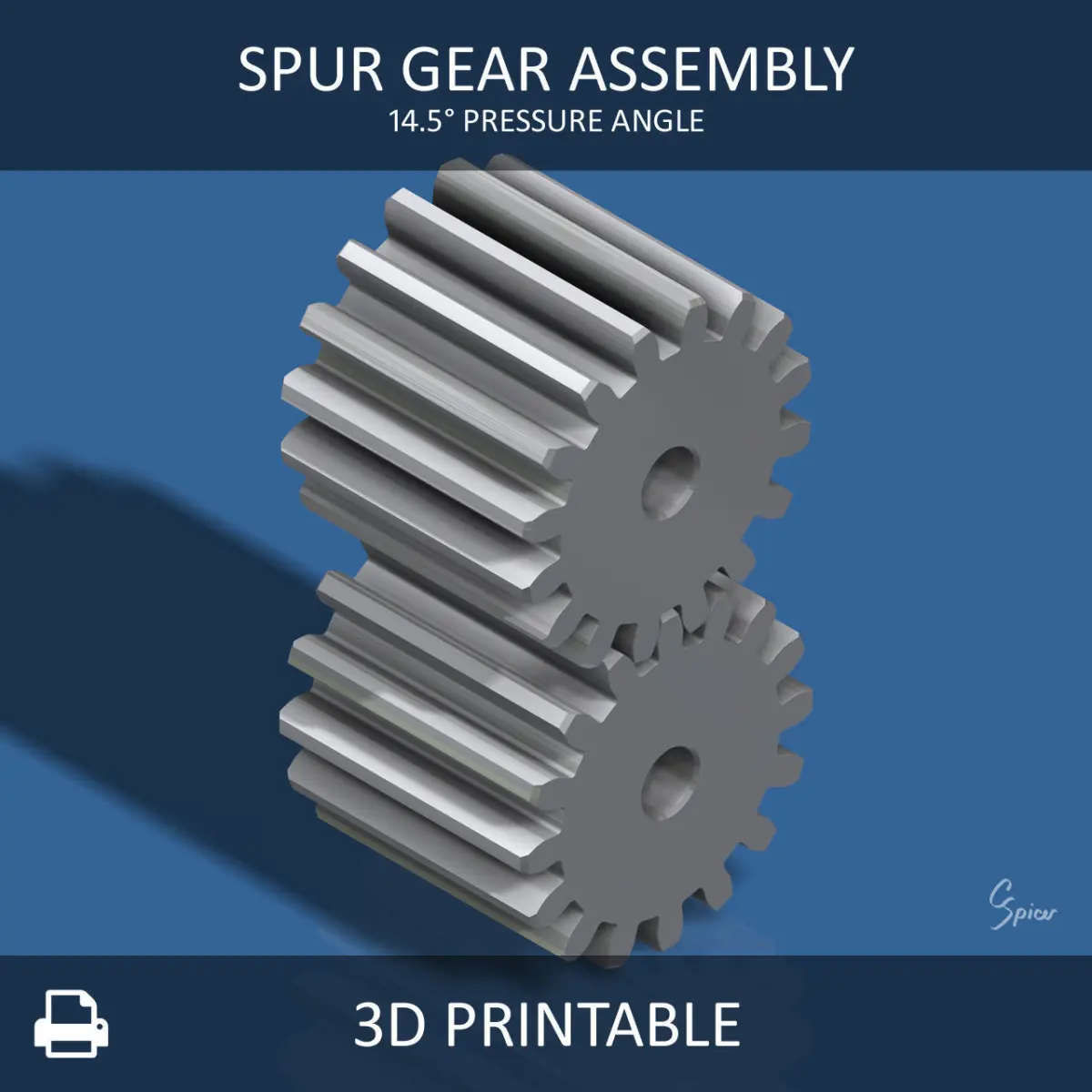

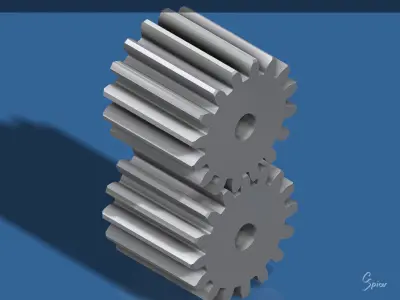

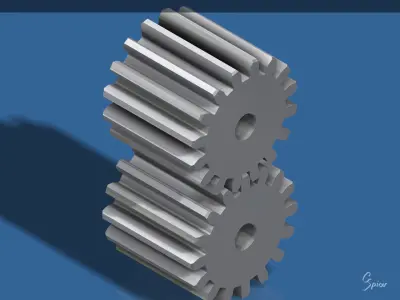

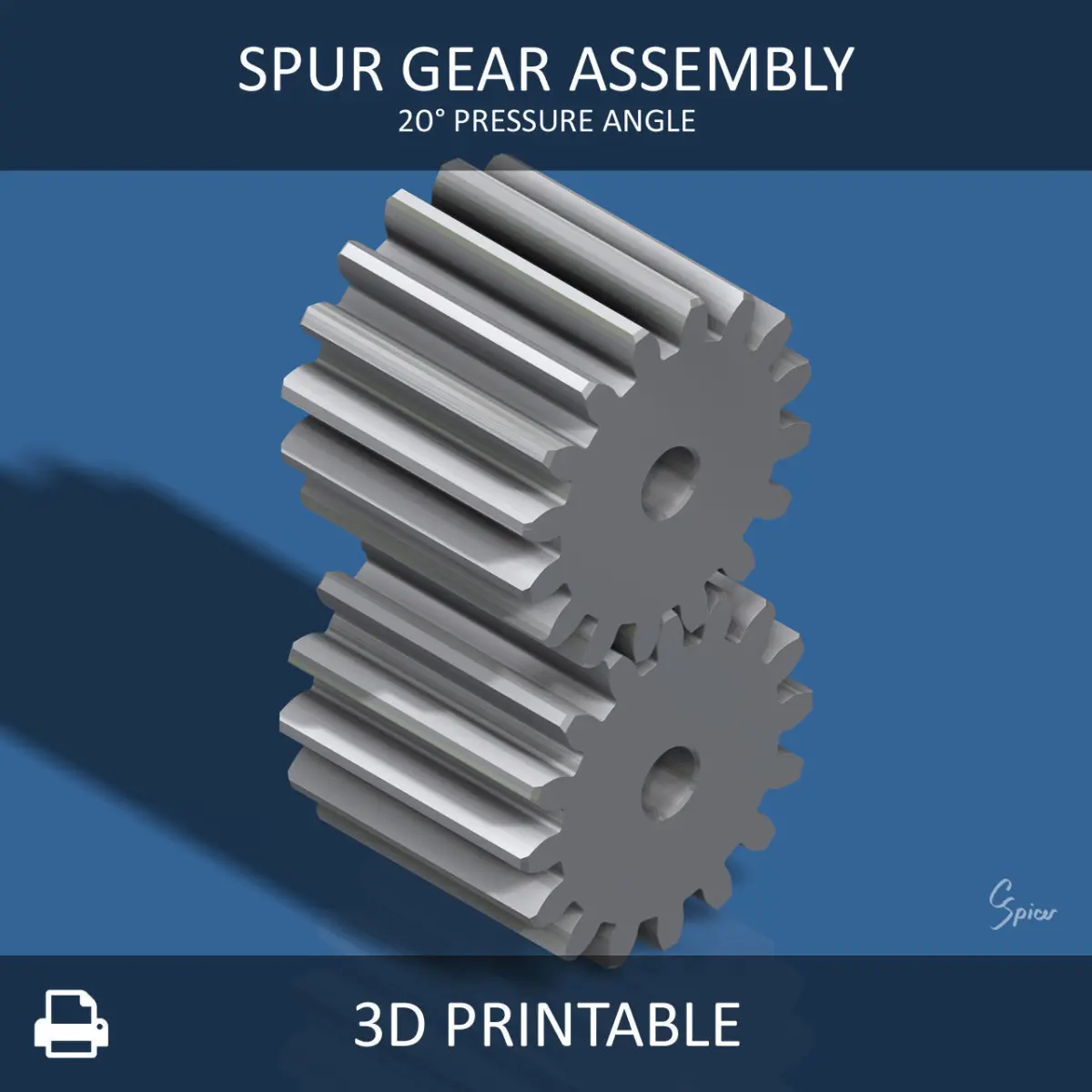

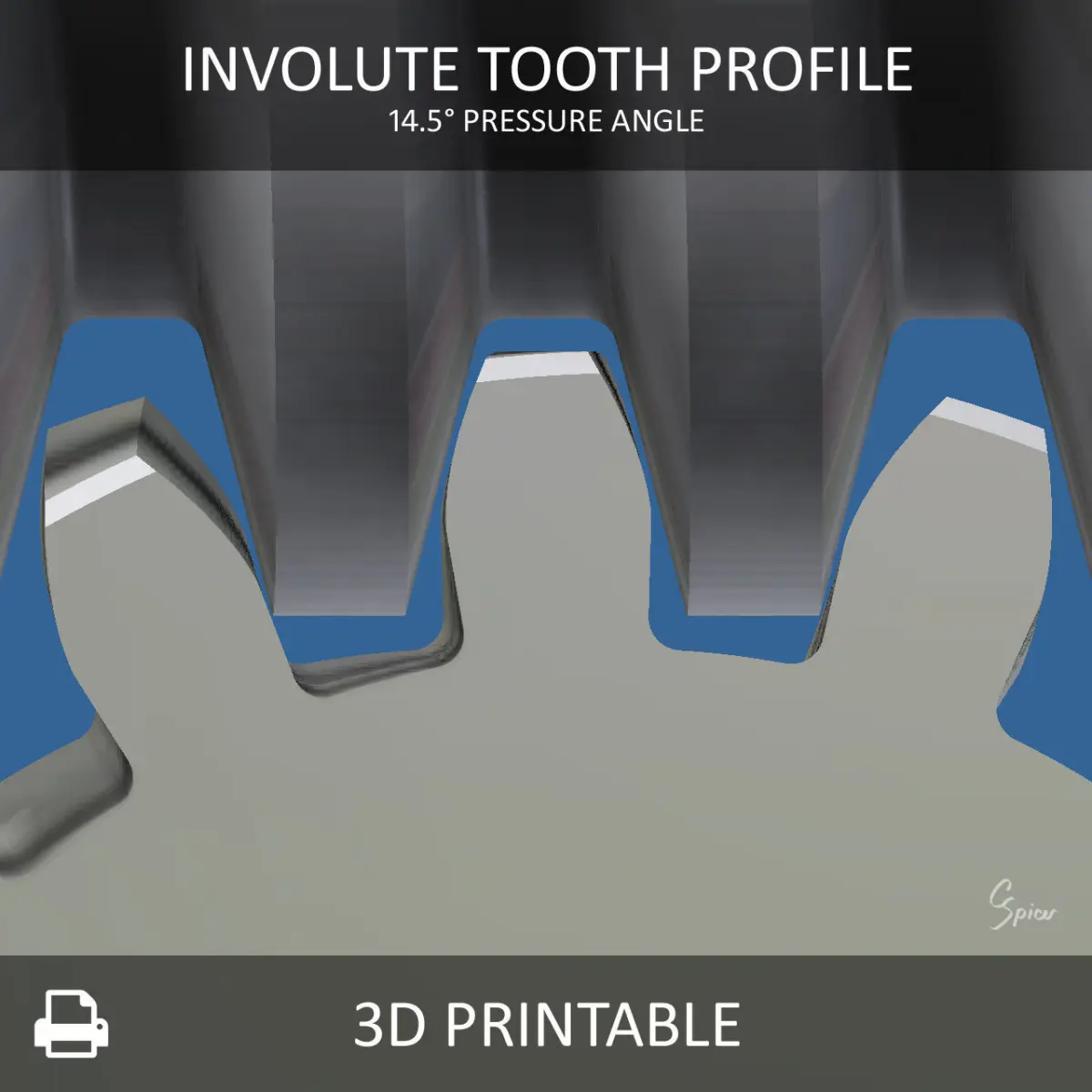

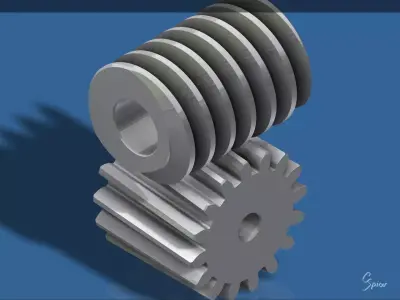

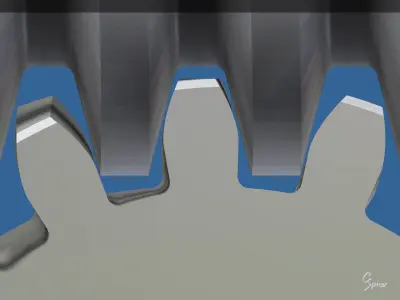

Worm gear collection provided in multiple file formats (3DS, CAR, OBJ, SAT, STL, and STP), and ready for CAD, CGI, and 3D printing. Collection includes helical worm, helical gear, and spur gear (see specifications below). Each gear is modeled with an accurate involute tooth profile and a small amount of backlash to ensure proper engagement. Two variations of each gear are provided to support the two most common pressure angles - 14.5 and 20 degrees.

Gear specifications:

Helical Worm:

Module: 1.5
Pressure Angle: 14.5° and 20°
Outside Diameter: 22.5mm
Pitch Diameter: 19.5mm
Length: 30mm
Bore: 10mm

Helical Gear:

Module: 1.5
Pressure Angle: 14.5° and 20°
Teeth: 16
Outside Diameter: 27mm
Pitch Diameter: 24mm
Width: 23mm
Bore: 5mm

Spur Gear:

Module: 1.5
Pressure Angle: 14.5° and 20°
Teeth: 16
Outside Diameter: 27mm
Pitch Diameter: 24mm
Width: 23mm
Bore: 5mm

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 164018
Vertices: 0
Geometry: Manifold geometry | No N-gons |
