CVT - Small continuously variable transmission 3D model
CVT - Small continuously variable transmission 3D model
CVT - Small continuously variable transmission 3D model
CVT - Small continuously variable transmission 3D model
CVT - Small continuously variable transmission 3D model

Publication date: 2013-04-09

Buy CVT - Small continuously variable transmission 3D model

$25

License: Royalty Free

author:

jvr3D

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «jvr3D». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $25 Add to Wishlist
  • Description
  • Formats

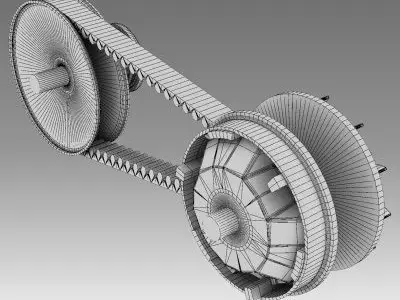

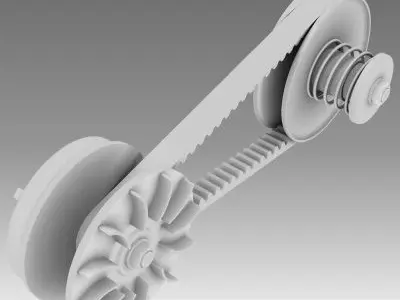

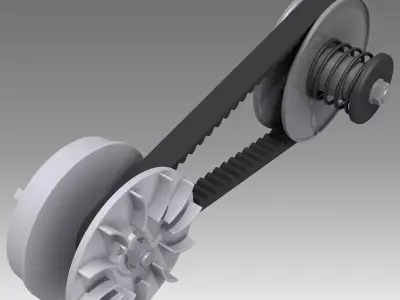

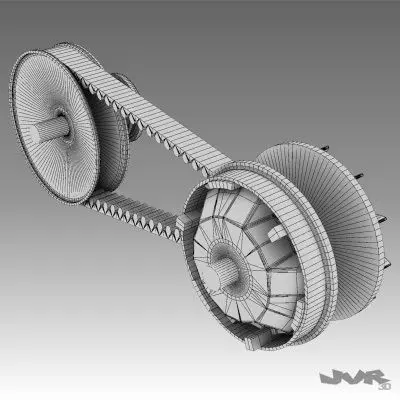

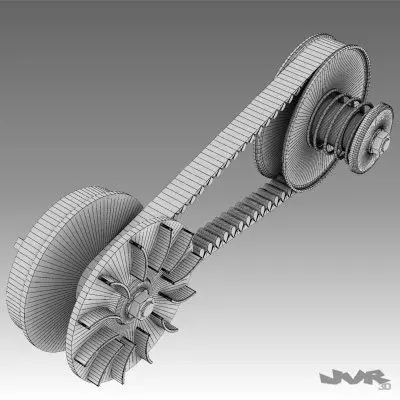

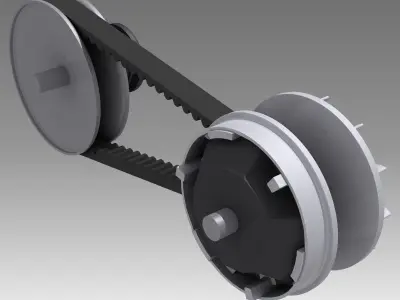

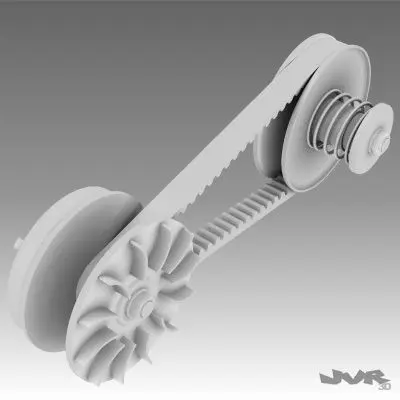

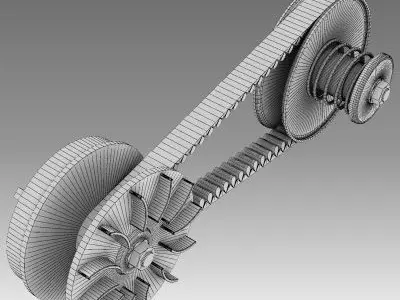

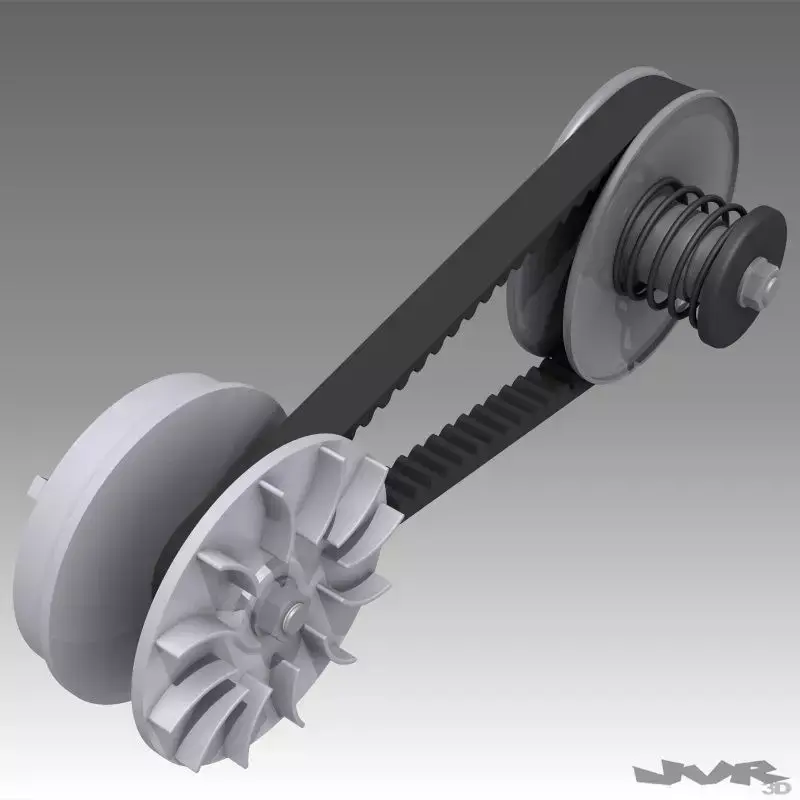

The model represents a small continuously variable transmision, used commonly in scooter, quad or snowmovil.

The product contains four files with low, medium and high gear ratio configuration and an exploded view.

File with mental ray settings is included in MAX version and includes the setup used to render the preview images.

PDF file with instructions is included.

3DS, OBJ and FBX notes:

  • Sometimes it is necessary to reassign map files path.
  • Material reflection must be manualy setup.
OBJ (OBJ, filesize: 2.73 MB), MAX (Autodesk 3ds Max, filesize: 1.95 MB), PDF (PDF, filesize: 9.81 MB), 3DS (3D Studio, filesize: 1.85 MB), FBX (Autodesk FBX, filesize: 4.65 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 23300
  • Vertices: 45000
  • Geometry: No N-gons | No faceted geometry | Manifold geometry |

Tags

Variable Transmission Automatic Scooter Motorcycle Gears Quad Snowmobile Fbx Vehicle Part Vehicle part – Download & Buy
