Cylinder pushing mechanism 3D model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

forestlsls

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.

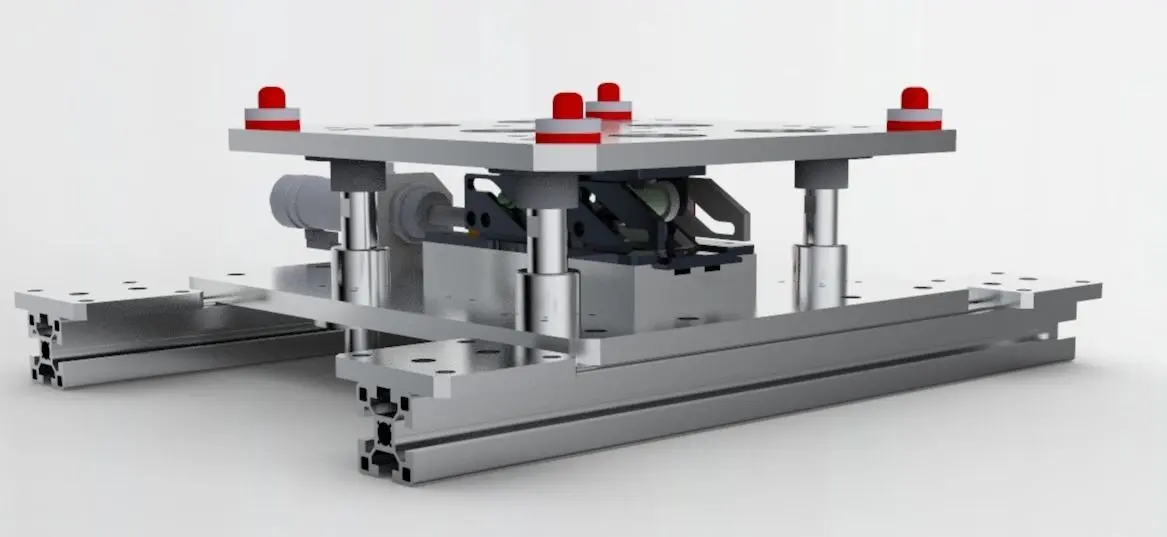

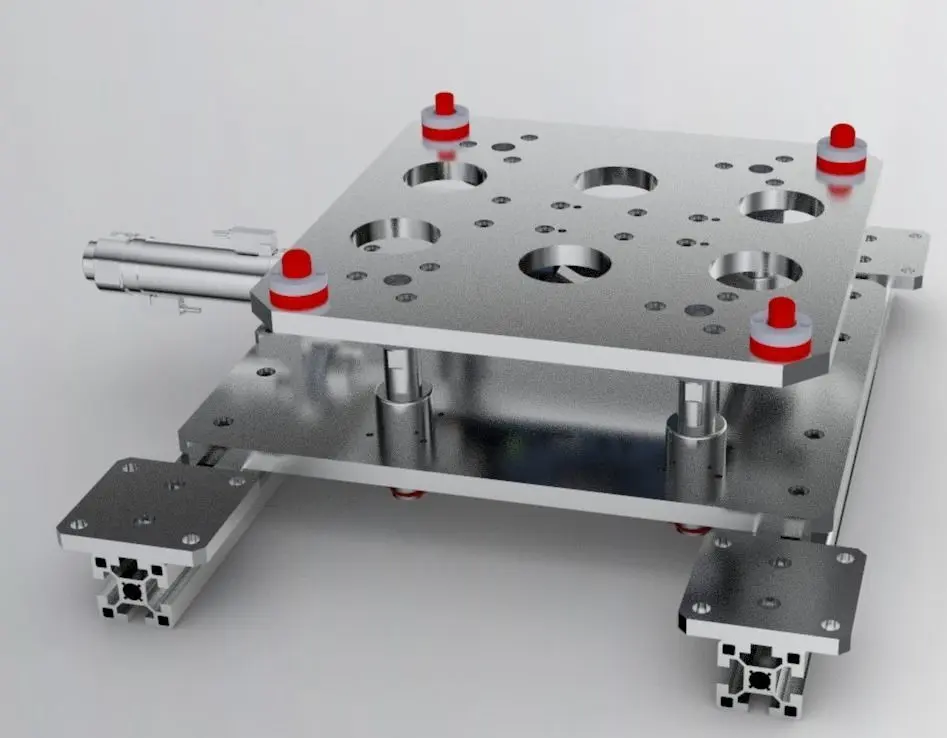

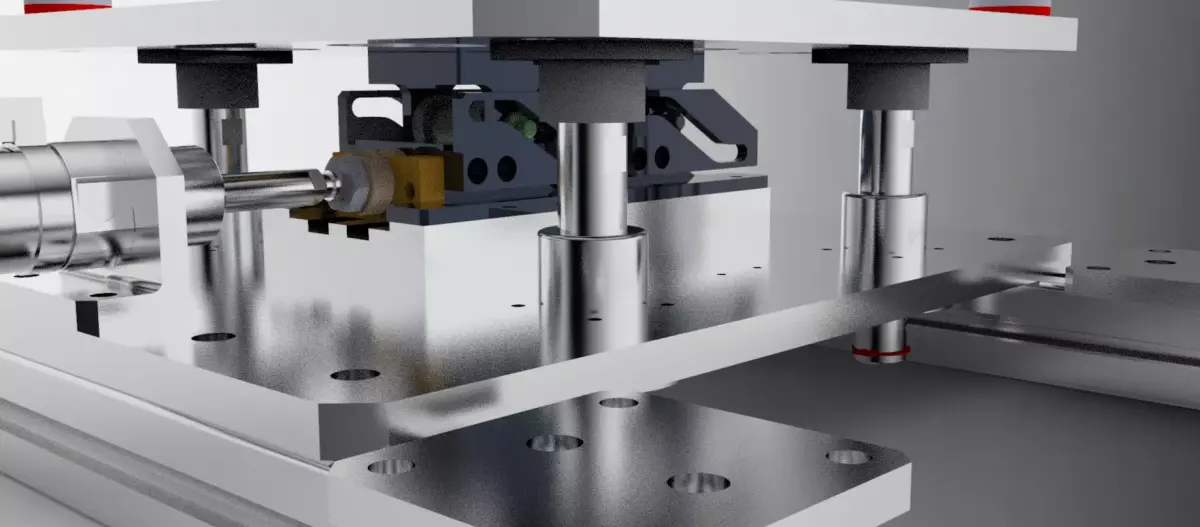

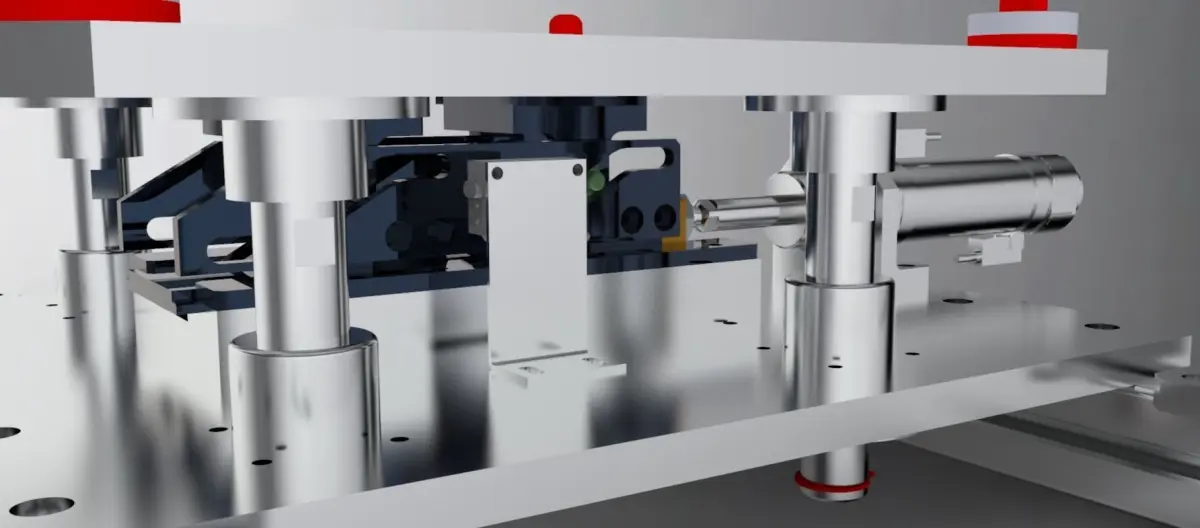

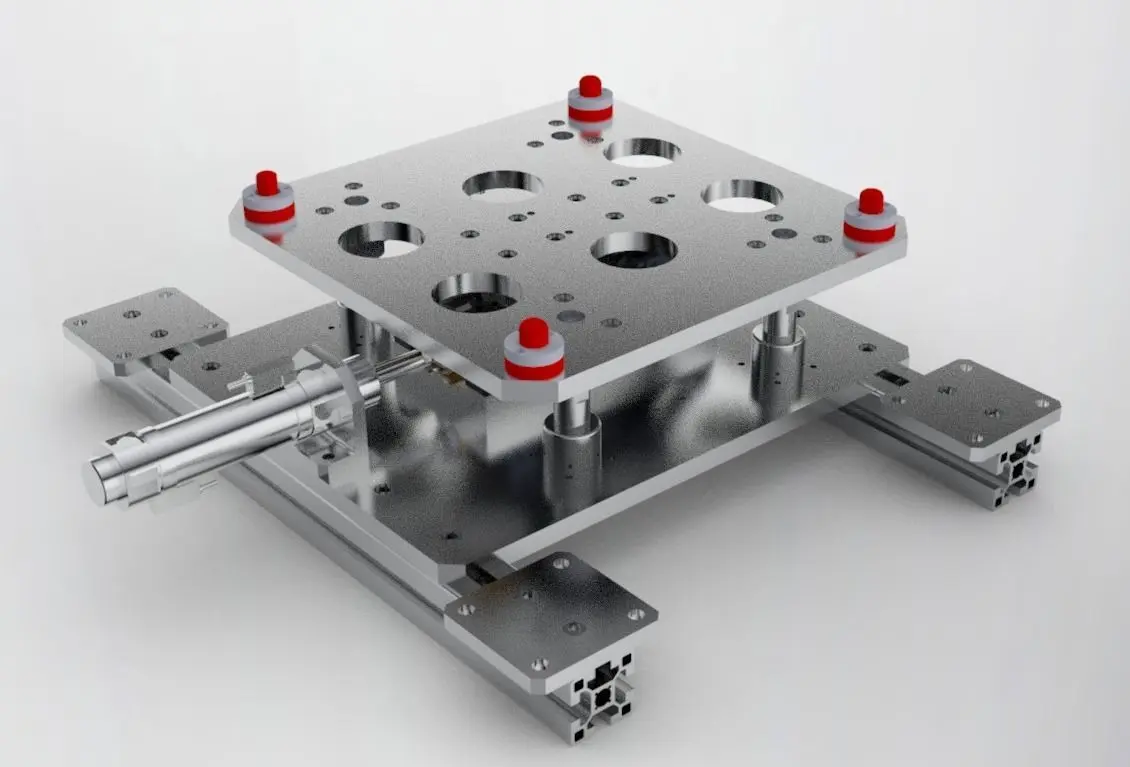

Cylinder pushing mechanism, the mechanism through the passage of the horizontal cylinder, the use of chute guide bar mechanism will be transverse movement into longitudinal movement module, the mechanism includes rail transverse movement, transverse and longitudinal conversion mechanism, the mechanism is ingenious, is a good design model drawingsThe mechanism includes:

1. Cylinder shifting mechanism 2. Chute guide bar mechanism

Files format contains-solidworks 2017-step-iges-stl-obj-3ds-Fbx-3dmax

- and other formats

If you like,you can buy for you to get this models or if you have any questions also you can email to me.If you have any questions about the details and design of the model, you can email me at any time, and I will give you all the answers as soon as possible.This is especially true after the purchase.
