Cylindrical gear - paired - z25 m2 D54 d15 3D print model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

RTT-Studio

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «RTT-Studio». CGhub does not claim copyright ownership over the content used.

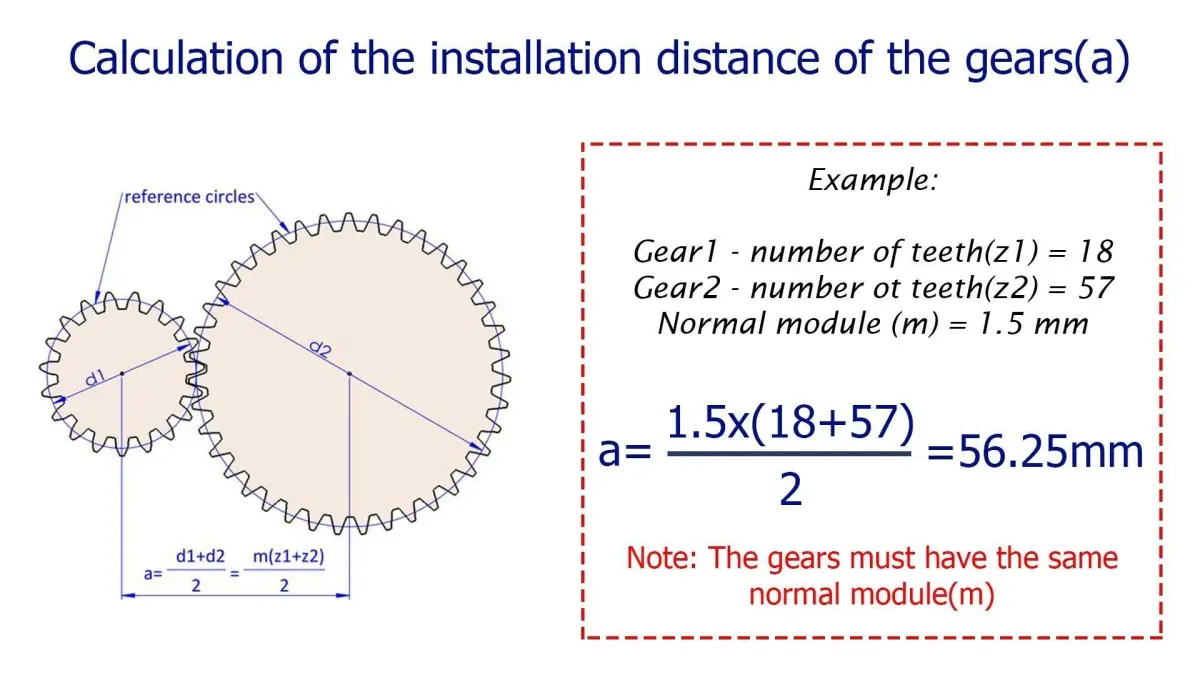

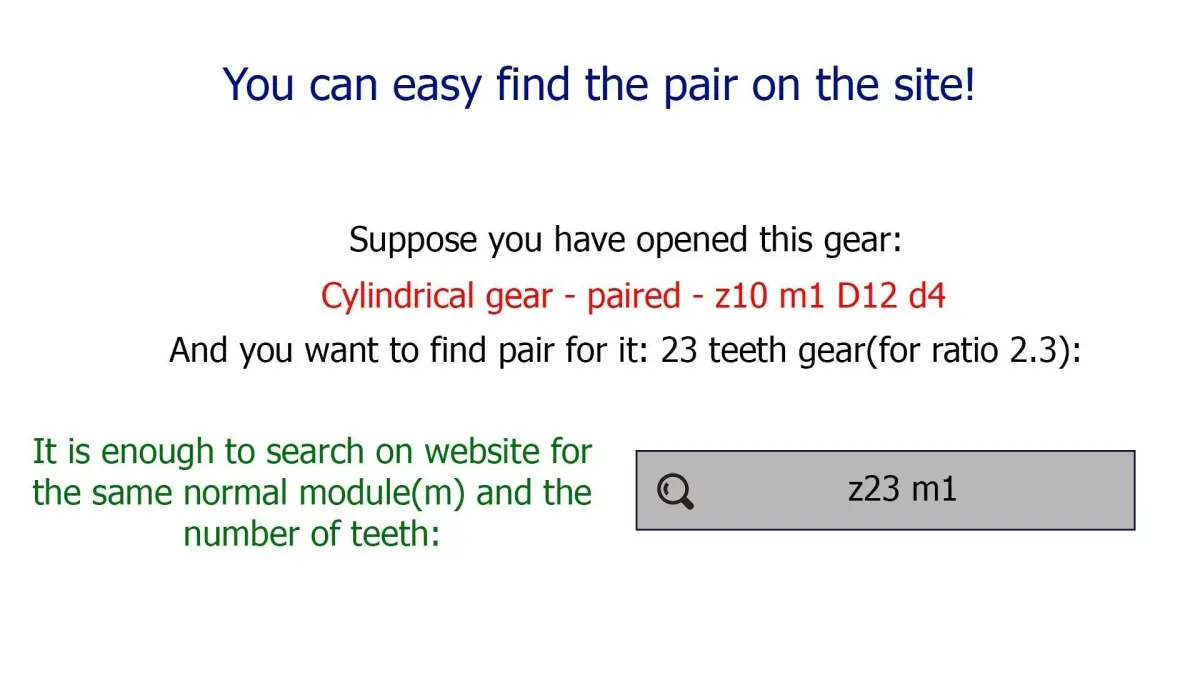

High precision gear - ready for manufacturing/printable. This gear can be paired with any of the 90 other gears that we upload on the site with the same normal module (m). We uploaded gears from 10 teeth to 100 teeth, so you can create the necessary combination.

Number of teeth (z) = 25
Normal module (m) = 2mm
External diameter (D) = 54mm
Internal diameter (d) = 15mm (the same gear with other variations of the shaft uploaded: 10mm and 12mm)
Facewidth (b) = 20mm

All the gears that will be uploaded on the site can be found on the link below:

https://docs.google.com/document/d/14TF4ElVvJZOPYGqzJ7M7w4xhbq6pLIw6/edit?usp=sharing&ouid=102940960935982922564&rtpof=true&sd=true

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 0
Vertices: 0

Tags

Gears Gearwheel Cog Cogwheel Teeth Print Steel Metal Plastic Tool Part Industrial Mechanism Machinery Differential Technology Engine Transmission Science Other
