D20T3B4 TY2-Motorized or Manually mechanical shutter design CNC 3D print model

$49

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

monk3947

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «monk3947». CGhub does not claim copyright ownership over the content used.

What you get will be digital files, including PDF, DWG, STEP, 3DPDF formats. What you get is not a physical product. But you can manufacture this products with these files. Ignore the FBX, STL and OBJ format files, they are only used to meet the platform’s requirement.

Parts are designed towards to manufacturing purpose,parts can be machined on cnc routers, and the functional unit can be used on industrial products. If you plan to 3d print these parts, I cannot ensure the mechanism will work well, because it is not designed for 3d printing.

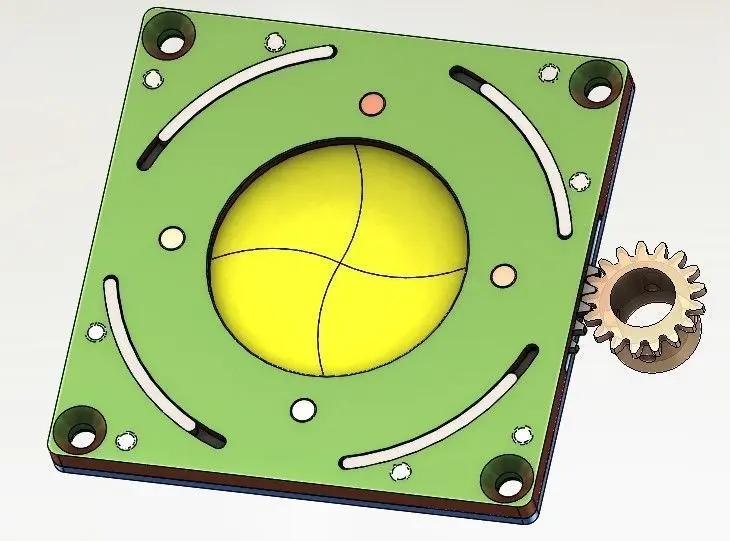

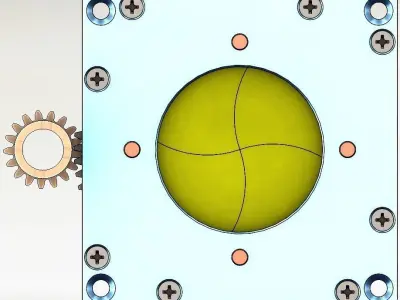

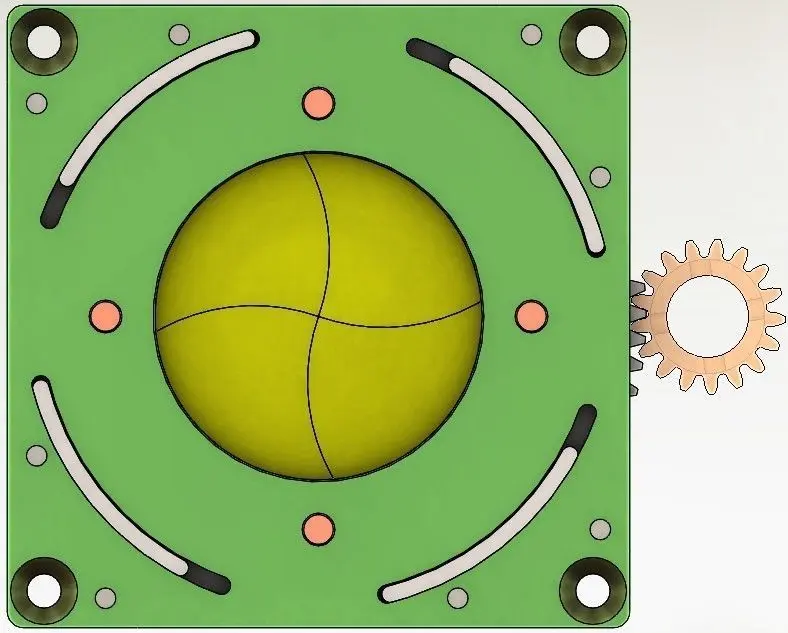

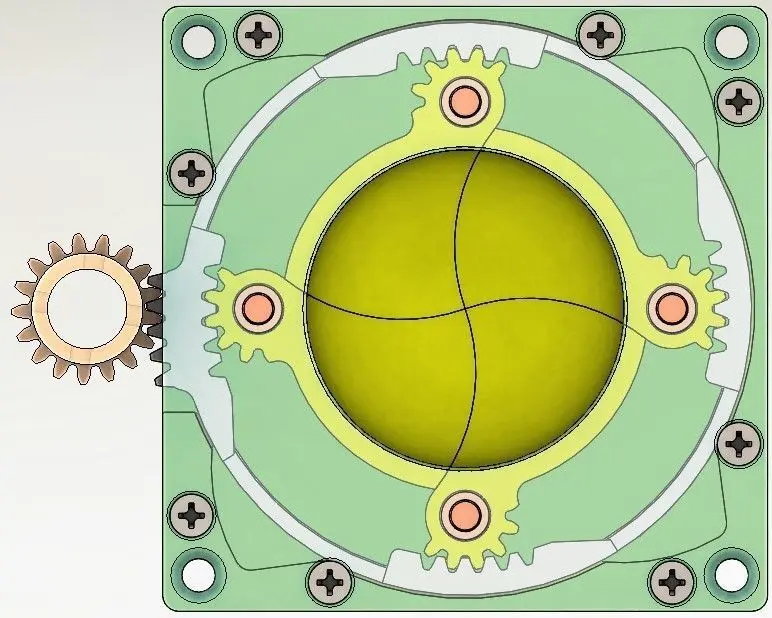

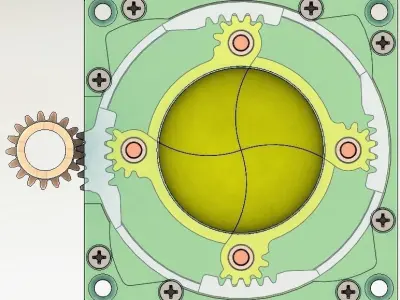

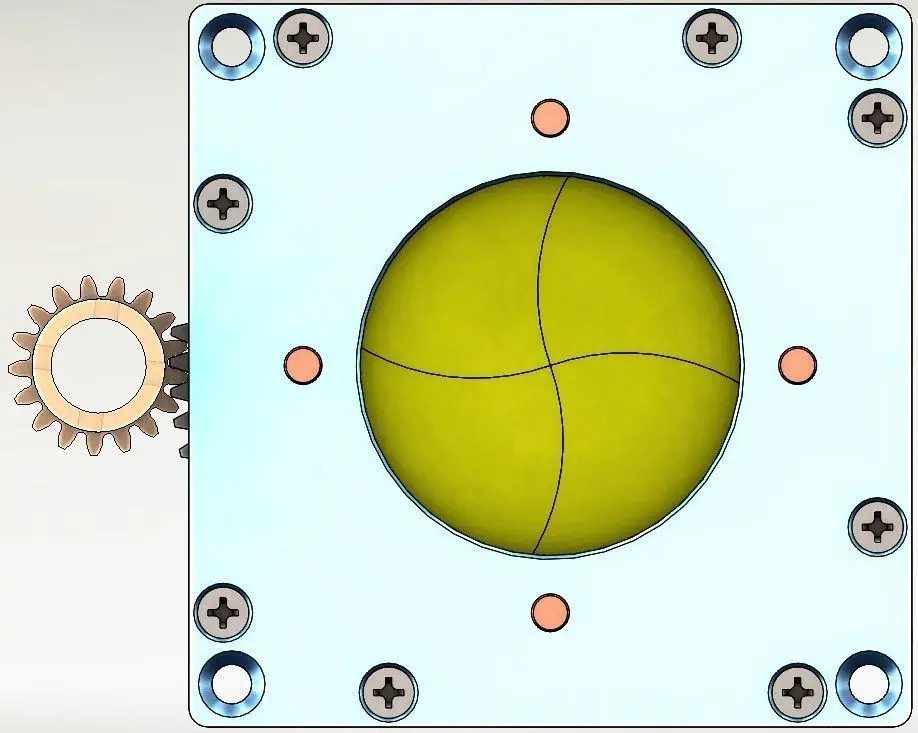

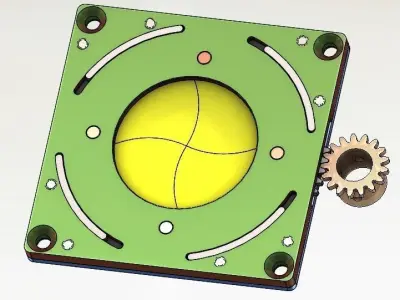

The whole mechanism can be used as a functional unit. When you rotate the “Drive Gear” or the “Ring” , the blades in the center hole open or close gradually. It is similar to a camera aperture or iris diaphragm. A motor can be used to drive the mechanism.

The “Drive Gear”(Part D20.003TY2) is optional. You can use any gear as driving gear as long as its gear teeth’s parameter is the same to the table in the drawing.

If you want to know more about the mechanism, read this article:

https://www.tanerxun.com/mechanical-shutter-design-plan/.html
