D20T3B4TY1-industrial mechanical shutter design CNC machining 3D print model

$49

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

monk3947

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «monk3947». CGhub does not claim copyright ownership over the content used.

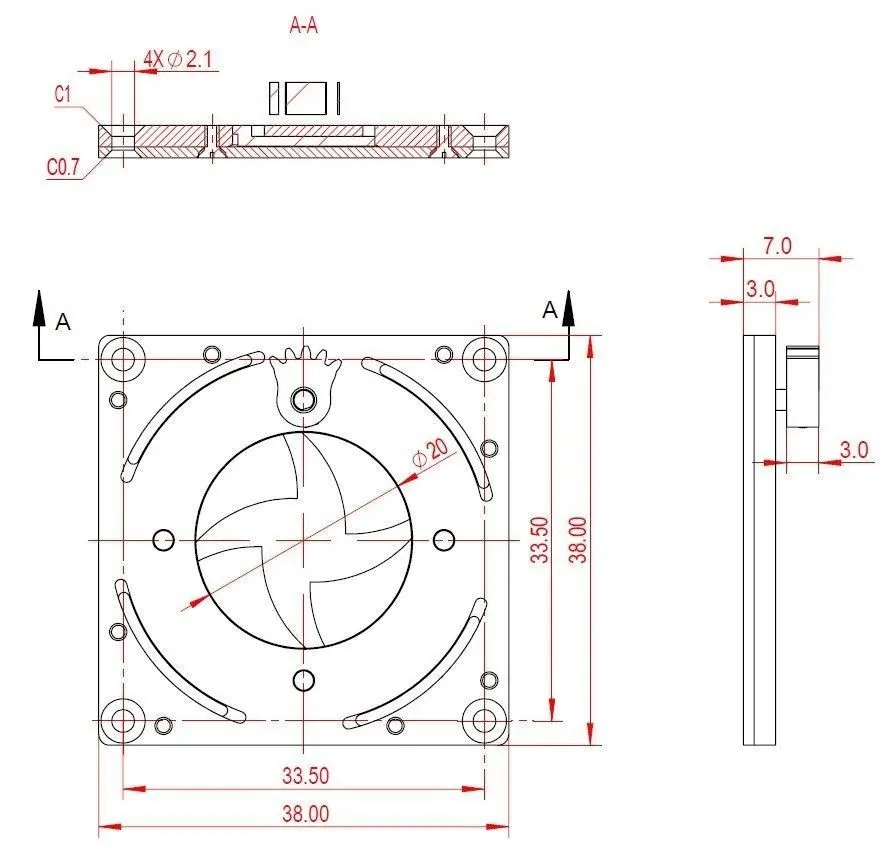

What you get will be digital files, including PDF, DWG, STEP, 3DPDF formats. What you get is not a physical product. But you can manufacture this products with these files.

Parts are designed towards to manufacturing purpose, you can manufacture these parts with CNC routers, and the functional unit can be used on industrial products. If you plan to 3d print these parts, I cannot ensure the mechanism will work well, because it is NOT designed for 3d printing.

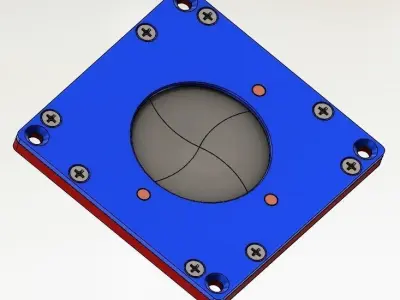

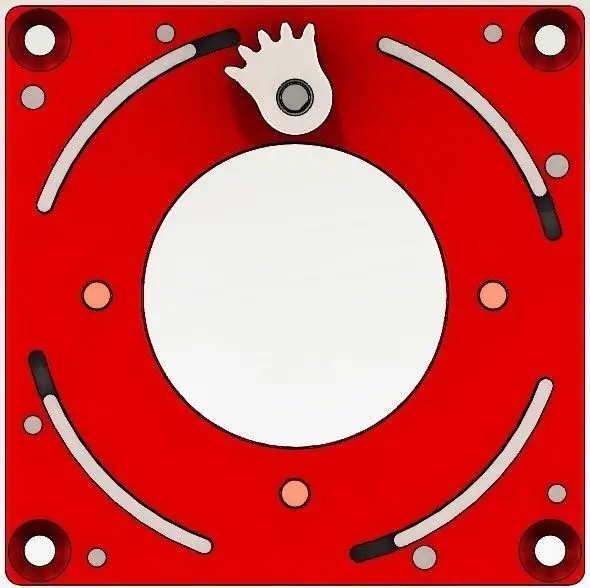

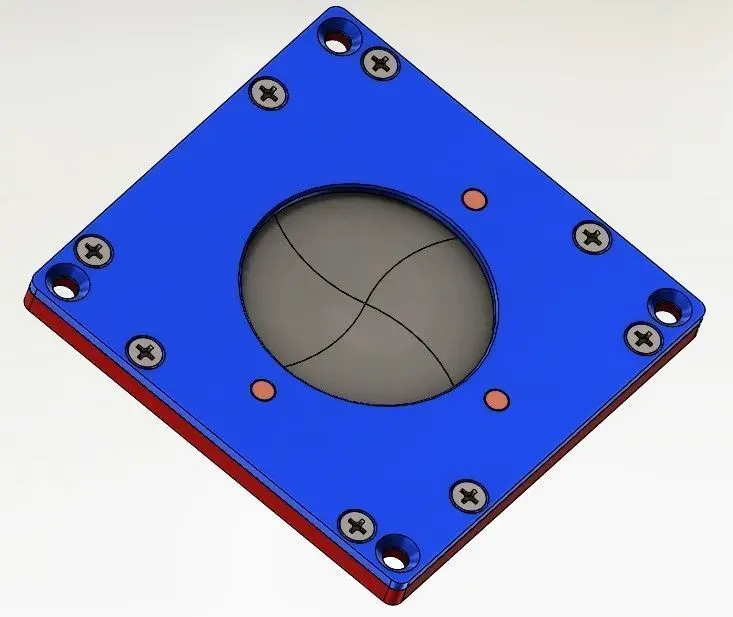

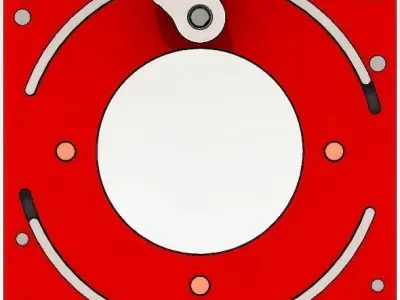

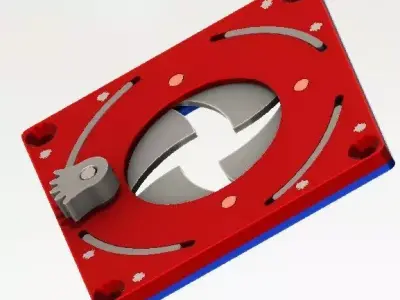

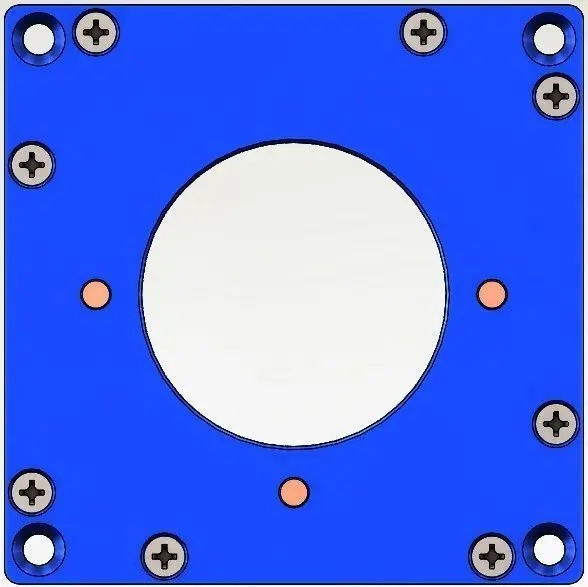

The whole mechanism can be used as a functional unit. When you rotate the “Drive Gear”, the blades in the center hole open or close gradually. It is similar to a camera aperture or iris diaphragm. A motor can be used to drive the mechanism.

If you want to know more about the mechanism, read this article: https://www.tanerxun.com/mechanical-shutter-design-plan/.html

Ignore the FBX and OBJ format files, they are only used to meet the platform’s requirement.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 0
Vertices: 0

Tags

Mechanical design Mechanism design Aperture Mechanical shutter Iris mechanism Mechanical iris Iris diaphragm Lens protector Mechanical engineering Industrial design Robotics Mechanical mechanism Planetary gear Gear set Mechanical parts Cncmachining Caddrawing Cadplan Mechanical Parts Hobby Diy Hobby diy
