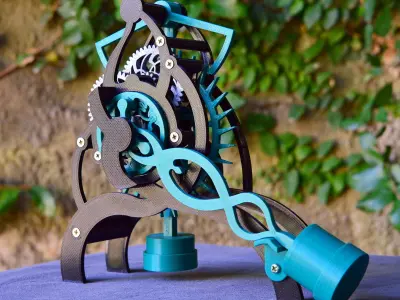

Deadbeat Escapement Mechanical Countdown Timer MKII 3D print model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

berraud

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «berraud». CGhub does not claim copyright ownership over the content used.

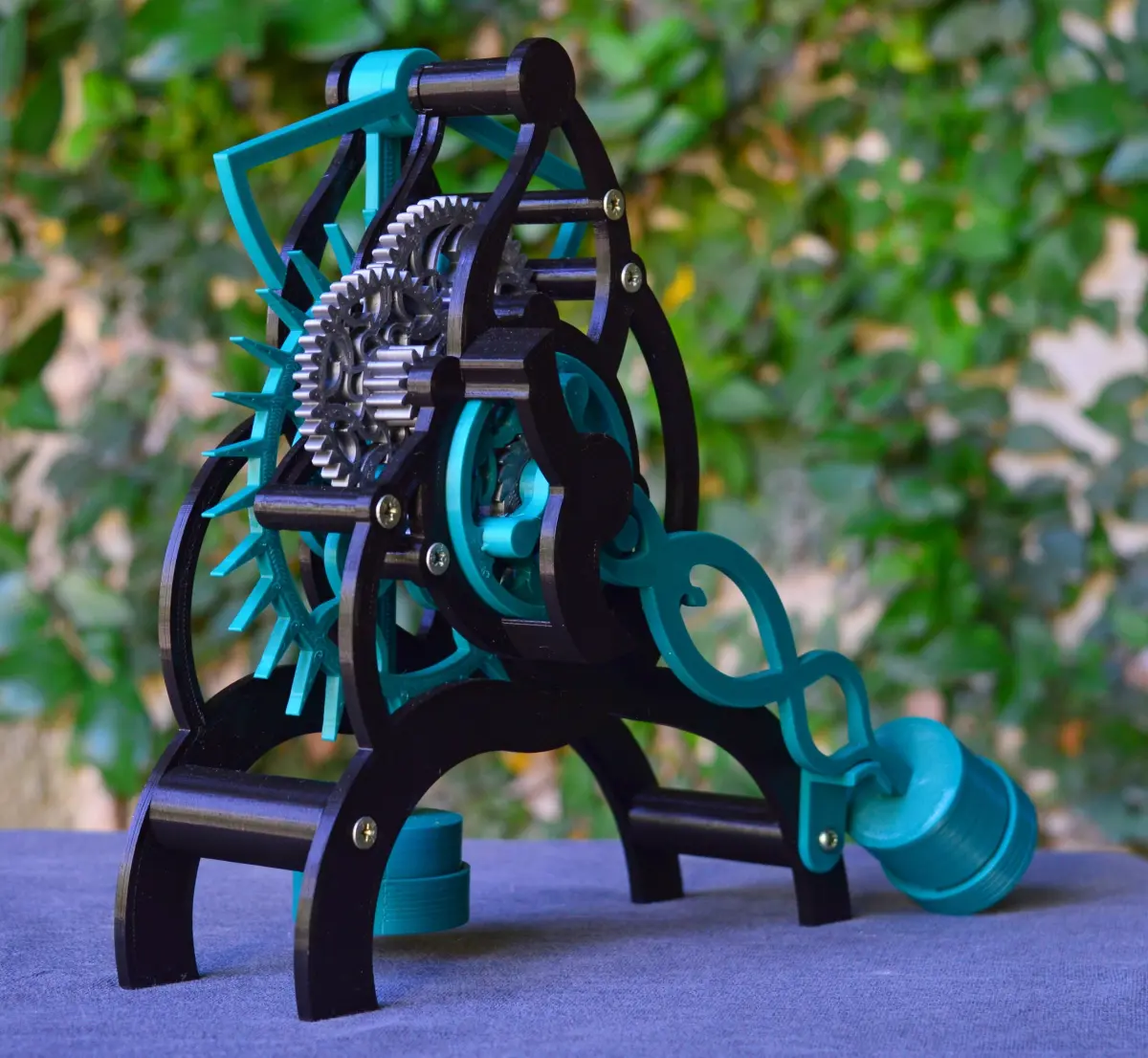

This is the second version of the fully-functional mechanical countdown timer meant for board games.Now with an extra gear stage to count up to 4 minutes!It's fully 3D printed, except for the axles, which can be salvaged from an old inkjet printer, a handful of screws and some coins or washers for weight.The machine features a print-in-place ratchet mechanism to load the weight arm in increments of 1 minute. The energy is transferred to the deadbeat escapement wheel via a gear train.It includes a comprehensive 23-page building guide with lots of pictures!

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 0
Vertices: 0

Tags

Time Machine Countdown Timer Escapement Clock Clockwork Boardgames Mechanical Mechanism Gears Deadbeat Mesmerizing Steampunk Design Gift Science Engineering
