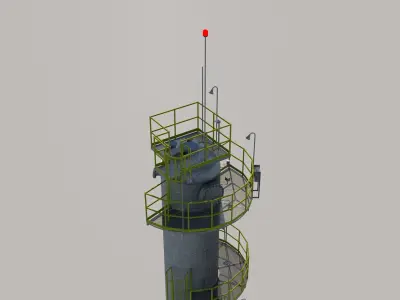

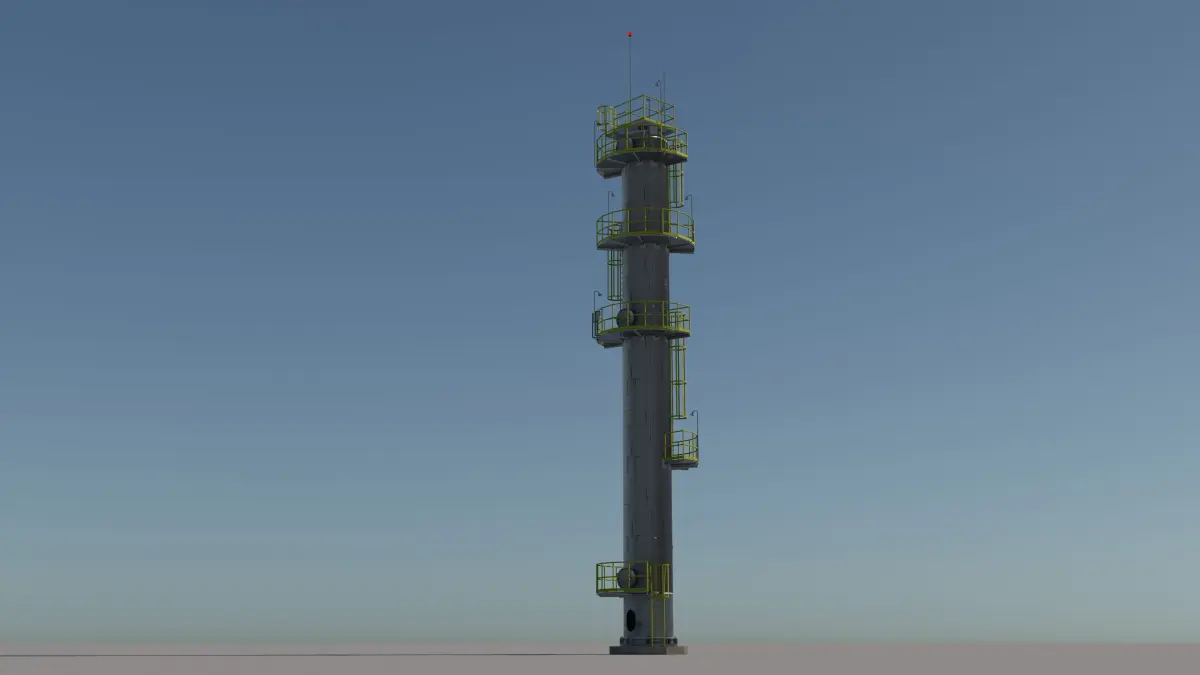

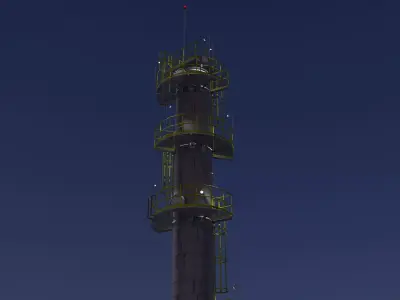

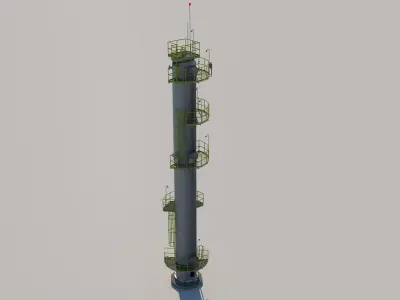

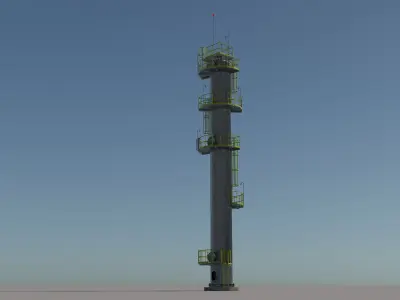

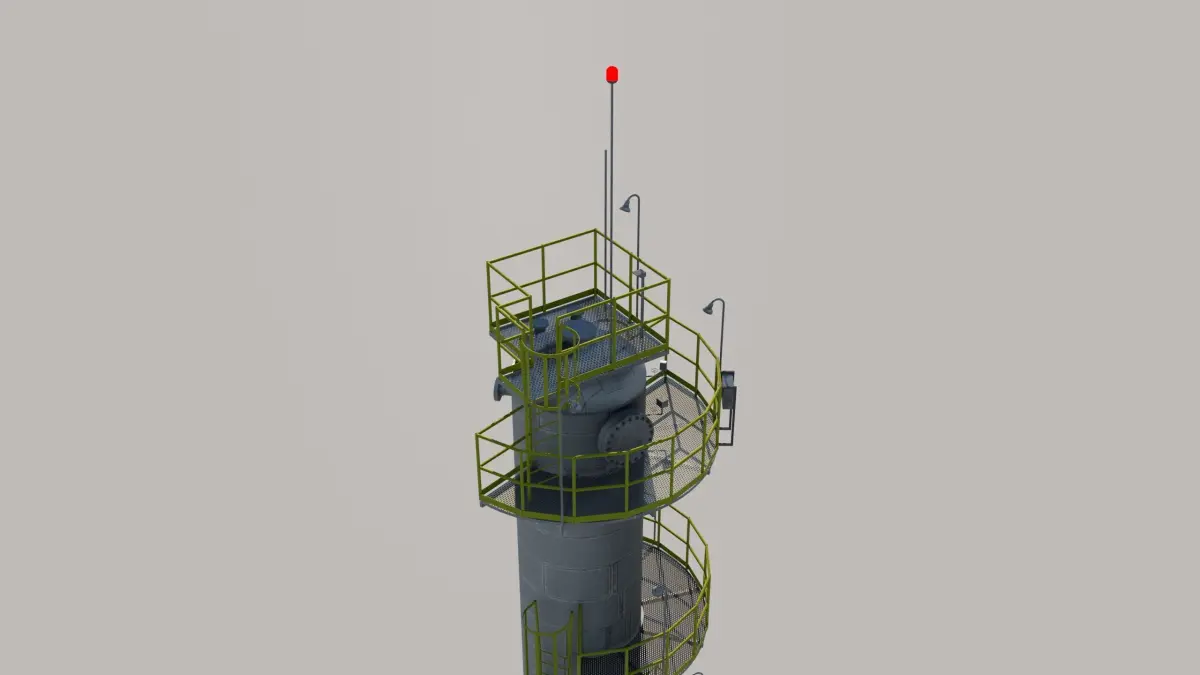

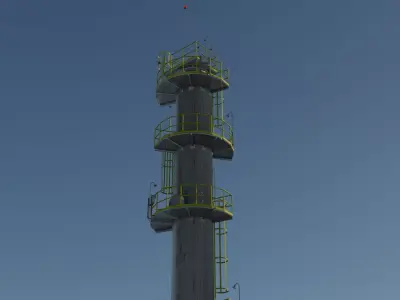

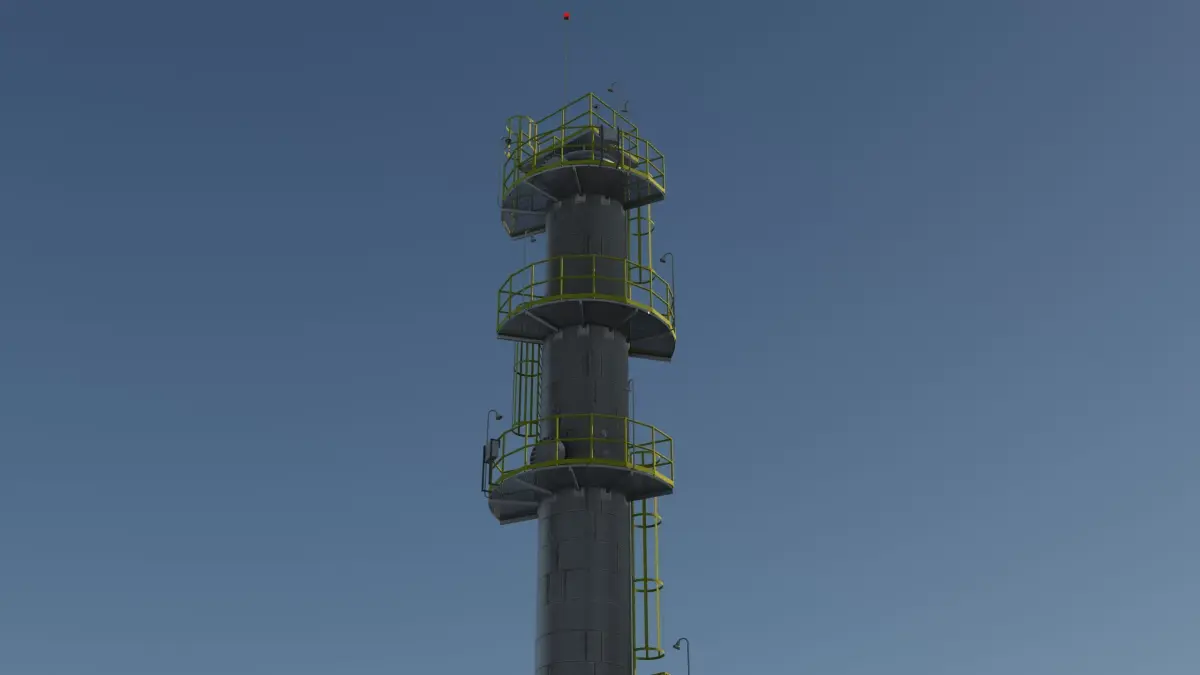

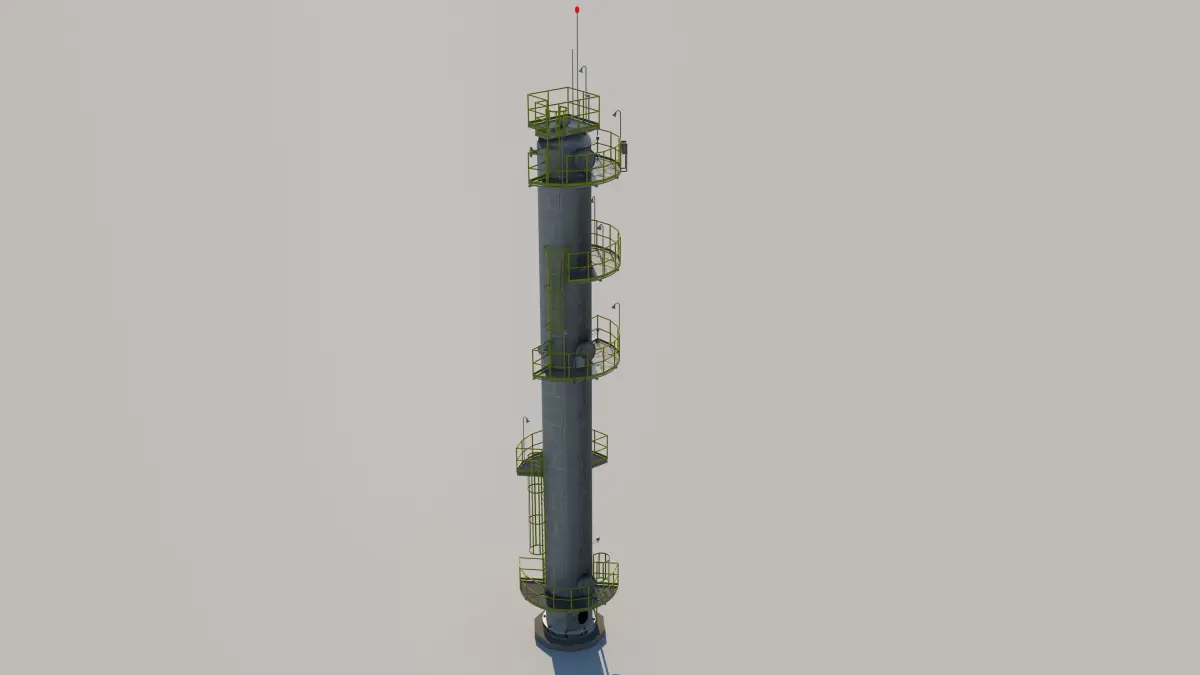

This 3D model represents a packed depropanizer column with a highly realistic and technically precise design, ideal for engineering applications, professional presentations, academic training, and even CFD simulations.
Key Features:
- Dimensions: 1905 mm diameter and 18288 mm column body height. Includes 7 stages in the enrichment section, 11 stages in the stripping section, and feed located at stage 9.
- Structure: The model features a skirt support, access ladders, working platforms, and details such as temperature transmitters and pressure gauges located at critical points (bottom, feed, and top of the column).
- Suggested Materials: The column is designed following industrial specifications, with a metallic body simulating carbon steel class 300 panels.
Technical Modeling Details:
- Texturing: The model includes a fully configured UVW map for seamless application of custom textures.
Available Formats:
.fbx: Includes the full geometry, but textures need to be manually assigned after import.
- Rendering: The model was rendered using Arnold Renderer, ensuring professional visual quality and high fidelity in materials and finishes.
- Optimized Topology: Suitable for visualization and simulation projects, balancing detail and efficiency.
Recommended Uses:
- Industrial engineering projects.
- Educational or technical training materials.
- Industrial or architectural visualization.
- Computational Fluid Dynamics (CFD) analysis or specific simulations.
Important Note:
This model does not include piping systems or other external elements, focusing solely on the column and its associated structure. Textures may require adjustments depending on the software used for import.
Native Formats: MAX (Autodesk 3ds Max, filesize: 23.3 MB)
Exchange Formats: FBX (Autodesk FBX, filesize: 12.6 MB)
