Diesel exhaust - Urea injection 3D model

$39

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

jvr3D

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «jvr3D». CGhub does not claim copyright ownership over the content used.

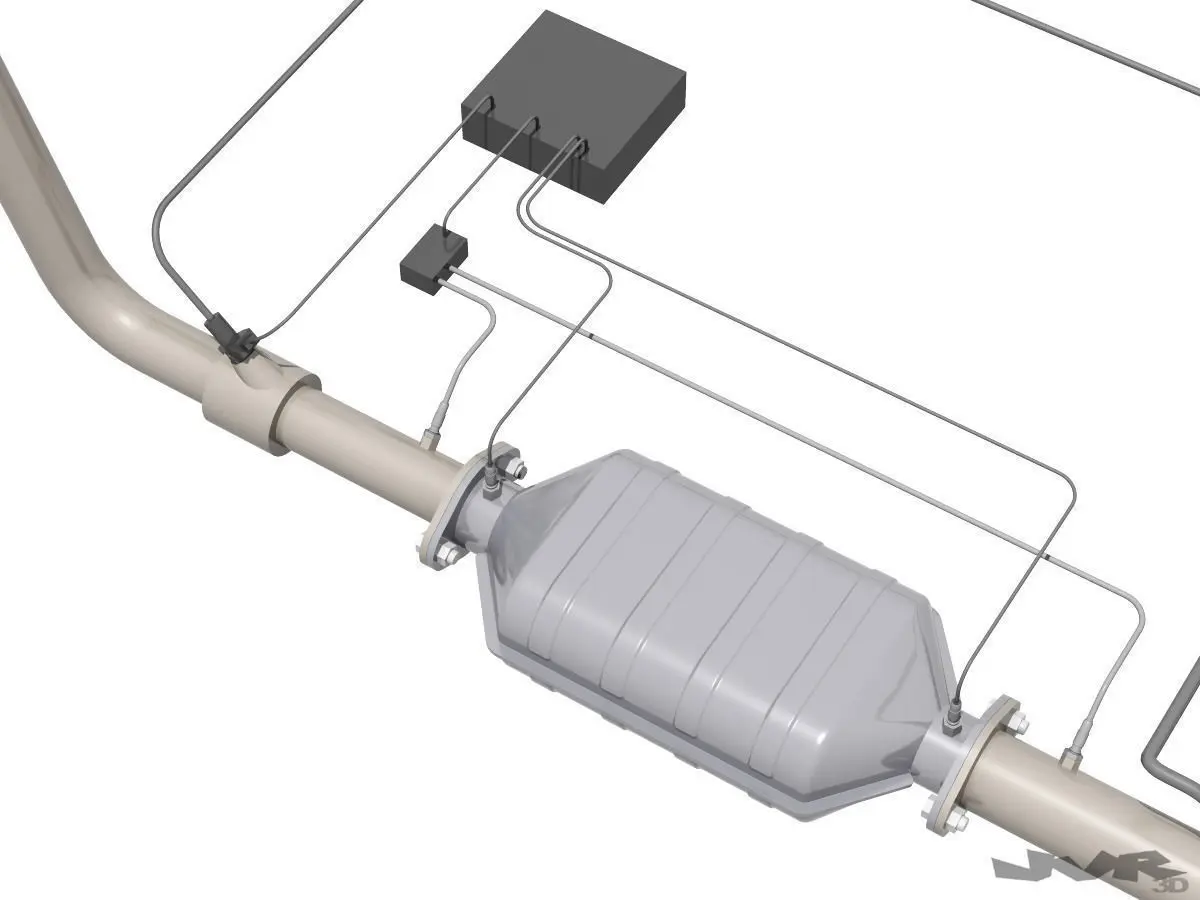

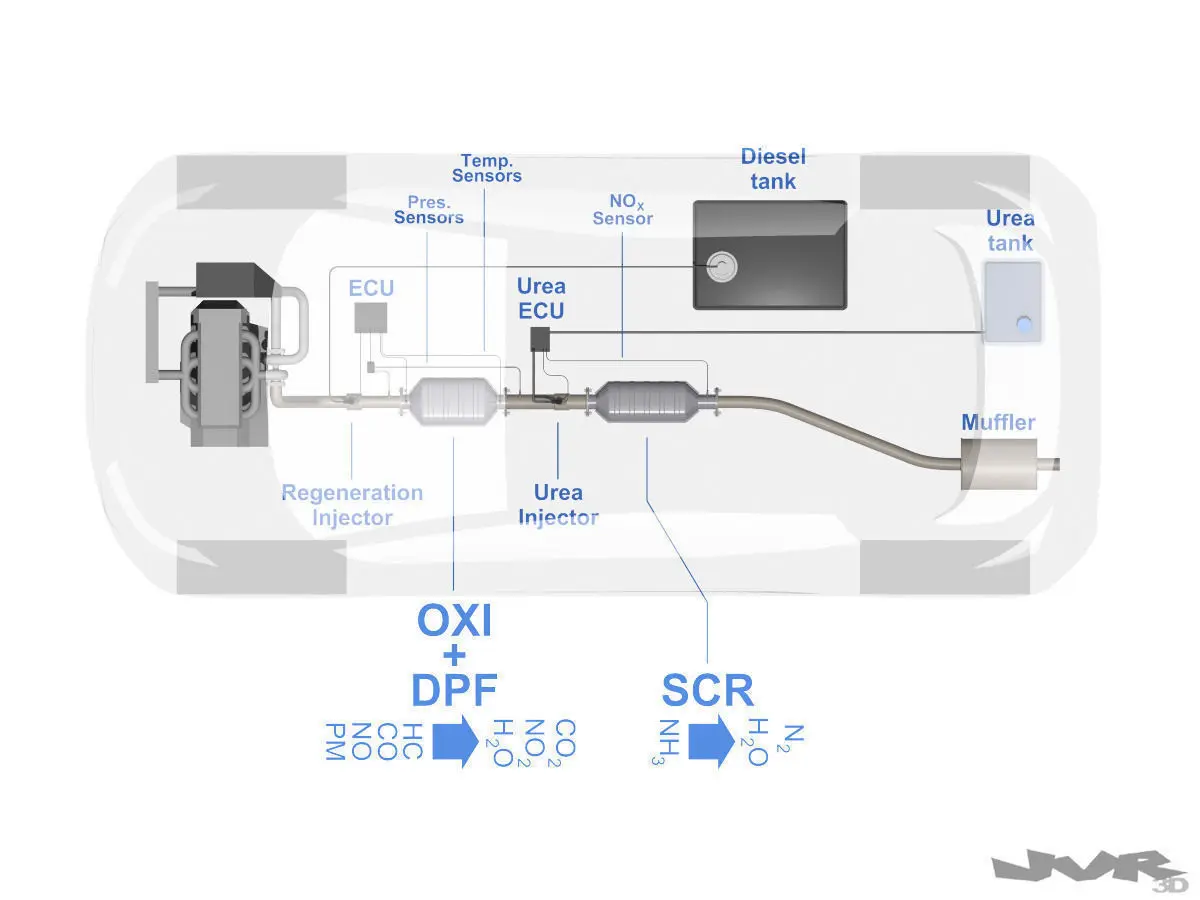

3D Scheme of diesel exhaust including:

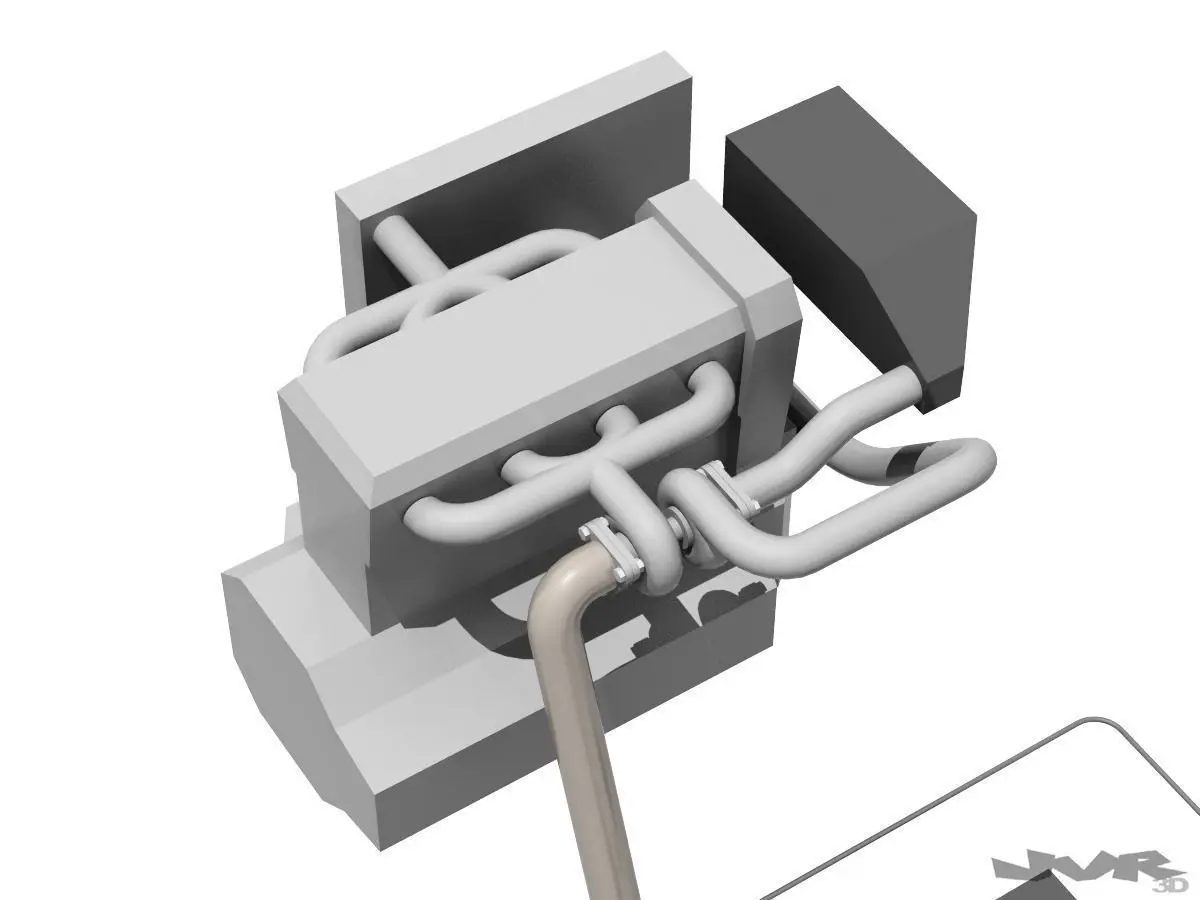

- Urea injection with SCR (Selective Catalytic Reduction)- Oxidation and DPF (Diesel Particle Filter)- Schematic four cylinder turbo diesel engine with intercooler.- Generic ghost car- Explanatory text

PDF file with instructions is included.

Notes:- Images generated with native MAX mental ray file. Standard material version also included in MAX format.- 3DS, OBJ and FBX need some material adjustments.- This is a polygonal model and is not prepared to be imported into parametric CAD software.- This model is not optimized for 3D printing.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs:
Geometry: Polygon mesh
Polygons: 114000
Vertices: 64000

Tags

Diesel engine Exhaust Urea Particle Oxidation Filter Dpf Scr Catalytic Reduction Euro Catalyst Ammonia Nitrogen Contamination Emission Pipe Co2 No No 2 H2o Vehicle Part Fbx Vehicle part
