Differential Clamp 3D model
Differential Clamp 3D model
Differential Clamp 3D model
Differential Clamp 3D model
Differential Clamp 3D model

Publication date: 2015-04-02

Buy Differential Clamp 3D model

$5

License: Royalty Free

author:

meca-v

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «meca-v». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $5 Add to Wishlist
  • Description
  • Formats

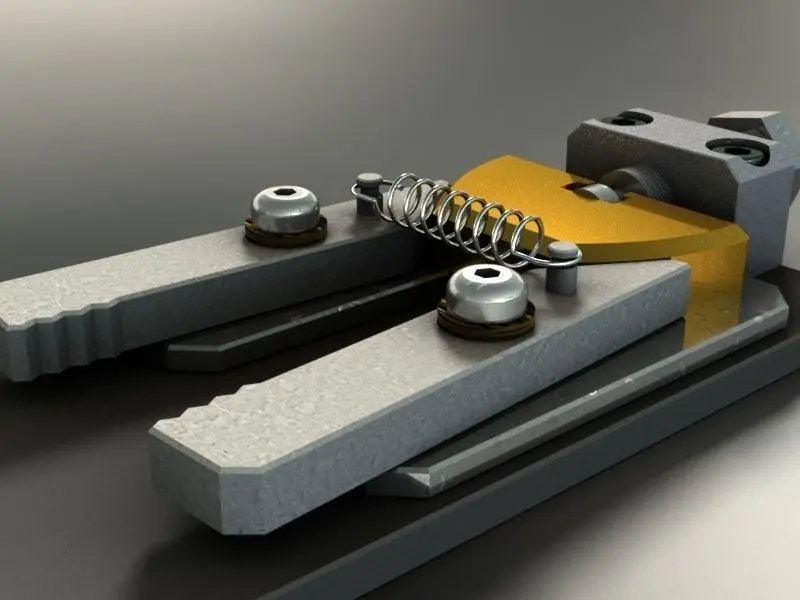

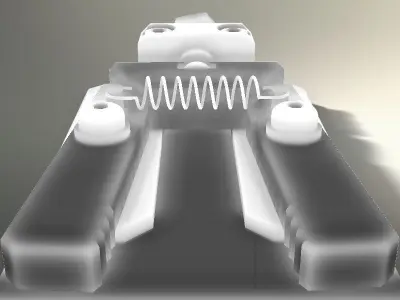

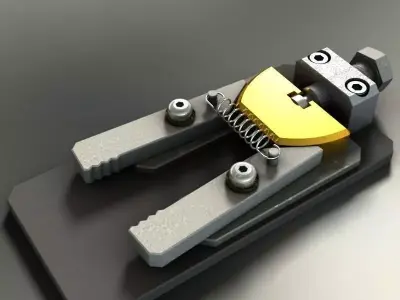

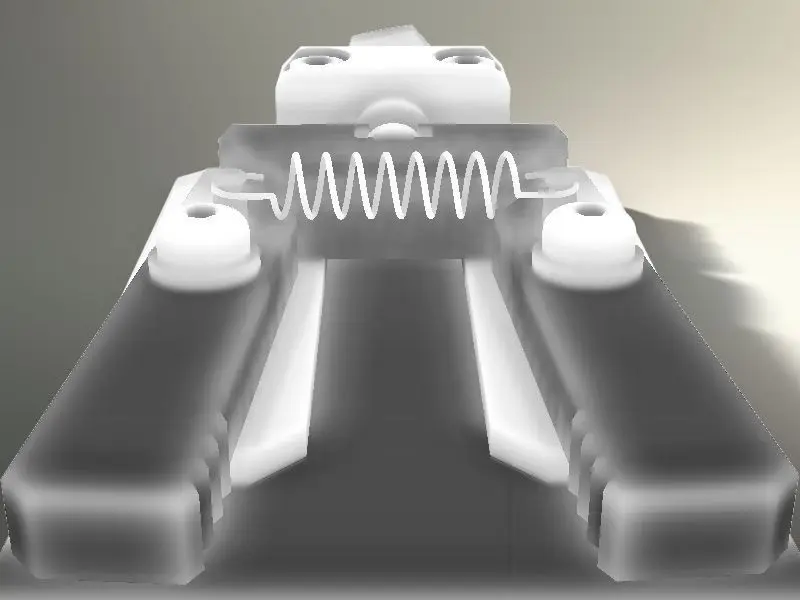

This Clamp is convenient for securing a workpiece without shifting or distorting it. The jaws adjust their position to suit the workpiece.

Inventor users: Edit the Extension Spring usign Design Accelerator and toggle between Min. Load Length, Working Load Length and Max. Load Length to observe different operating positions.

STL (Stereolithography, filesize: 4.75 MB), IAM (Autodesk Inventor, filesize: 6.38 MB), OTHER (Other, filesize: 187 KB), STP (STEP, filesize: 595 KB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: Polygon mesh

Tags

Jig Clamp Tooling Industrial Machining Jaws Tool
