Publication date: 2023-12-11

DIN-EN Butterfly Valves - Lug Type - Yellow 3D model

$10

License: Royalty Free No Ai License

author:

3DCADengineer

Description

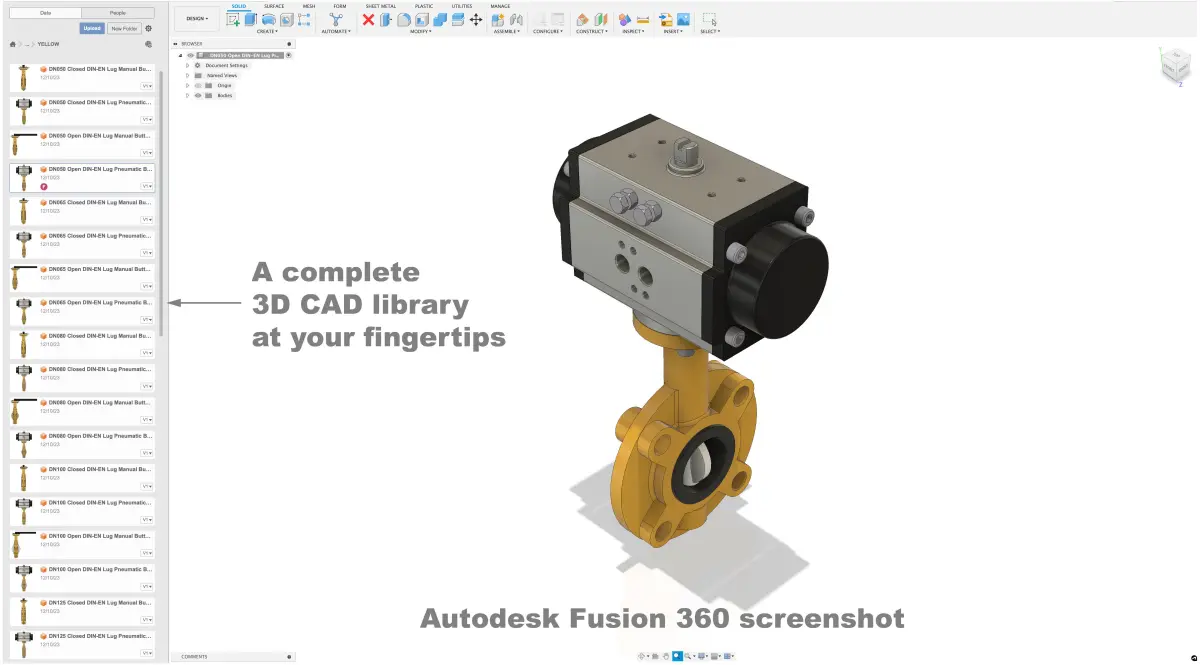

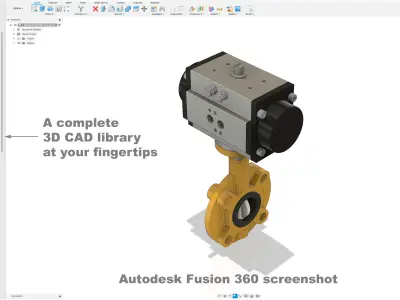

IN THIS 3D CAD COLLECTION:

40 Different 3D CAD files.
F3D and STEP file types.
Lug type butterfly valves with connections for DIN-EN flanges (European Standard)
Diameters DN50 up to DN300
Pressure Rating PN16
Manual and pneumatic operation
Open- and closed situation
Valve body color Yellow

THE FILE TYPES:

.step (STP): This file type is often used for exchanging 3D models and is compatible with most CAD software, such as SolidWorks, Inventor, AutoCAD, and Fusion 360.
.f3d (Fusion 360): Suitable specifically for Autodesk Fusion 360 users, it allows you to import the models directly into this popular design application.

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Other
Polygons: 14,000
Vertices: 7,000

Tags

Din Cadlibrary Piping Pipework Butterfly Valve Cad Inventor Fusion360 Solidworks Step F3d Type Industrial Part Industrial part
