Buy DIY CNC ROUTER - 1600x2150mm 3D model

Name: DIY CNC ROUTER - 1600x2150mm 3D model
Brand: georgeion88
SKU: 893917
Price: 20.00 USD
Availability: InStock

$20

License: Royalty Free

author:

georgeion88

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «georgeion88». CGhub does not claim copyright ownership over the content used.

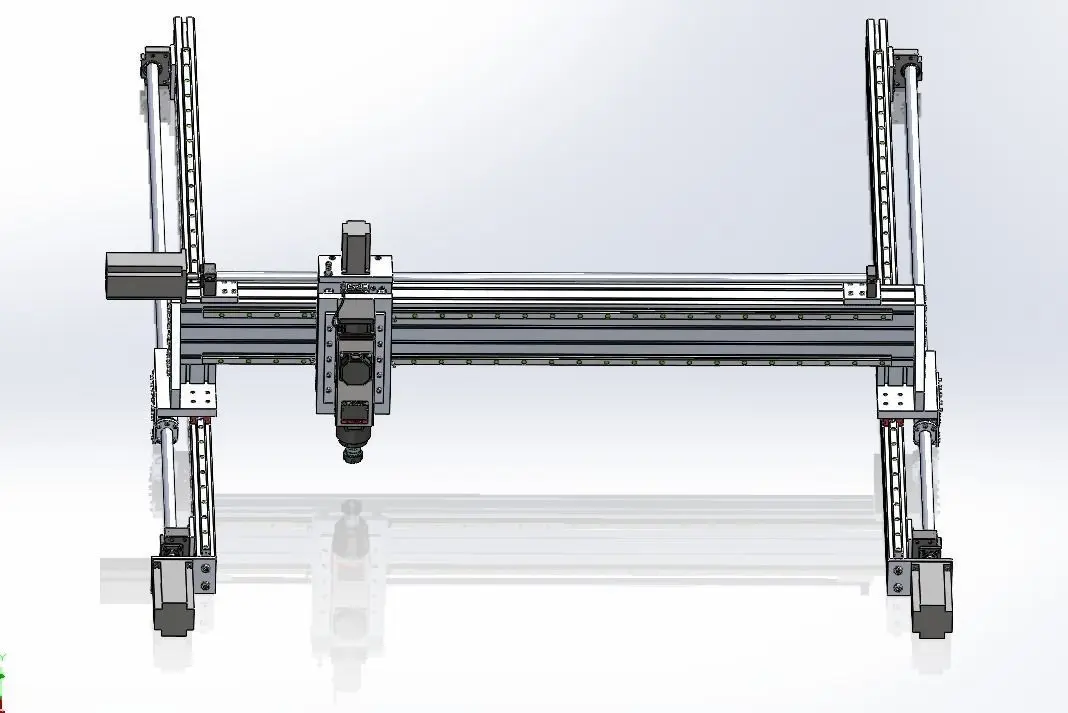

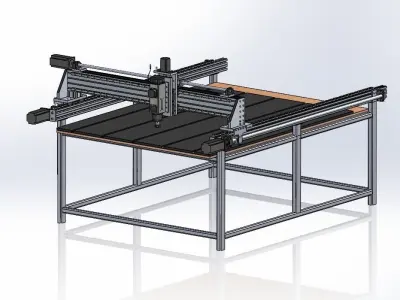

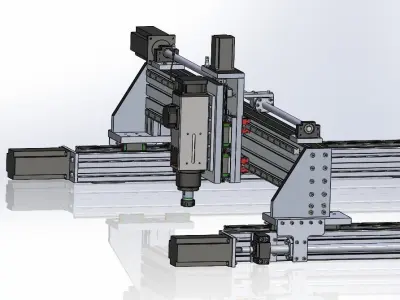

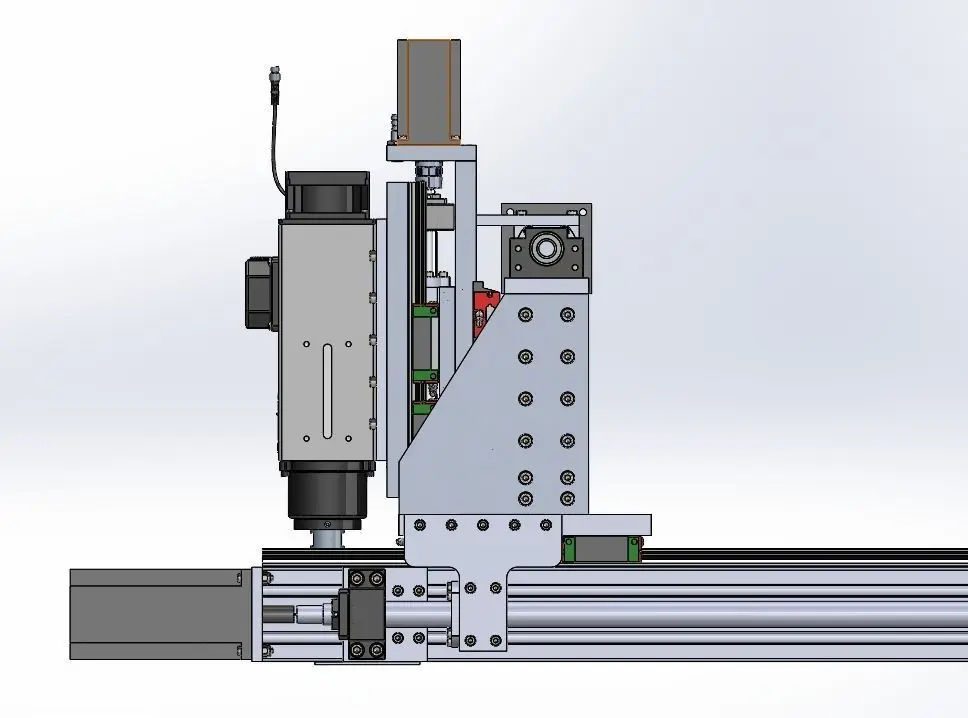

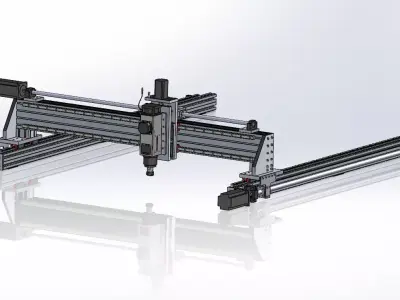

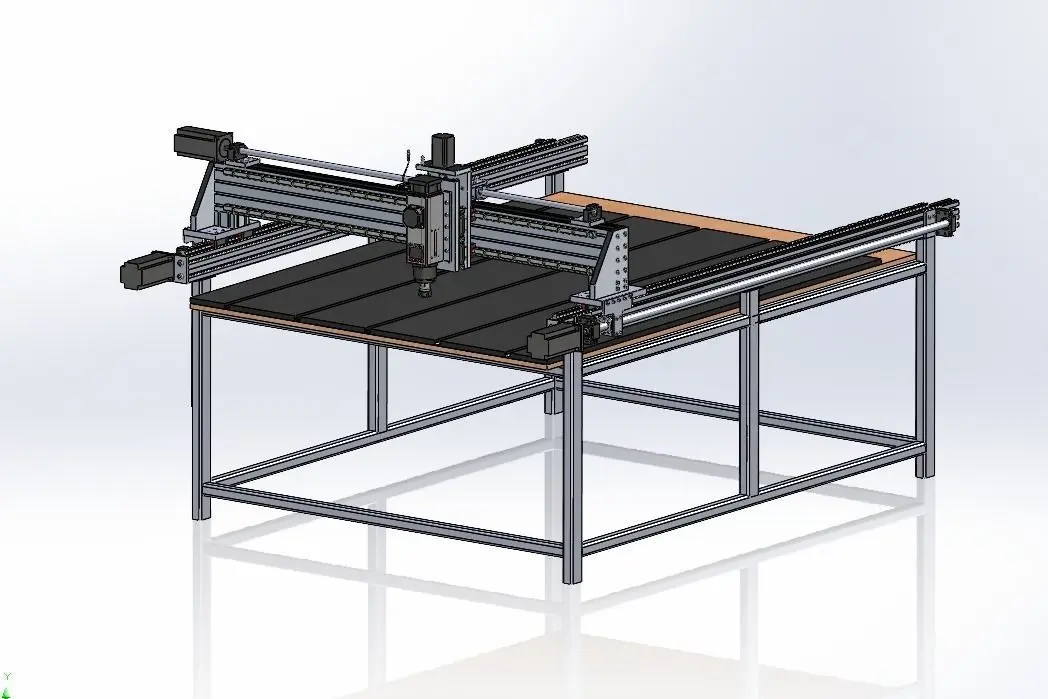

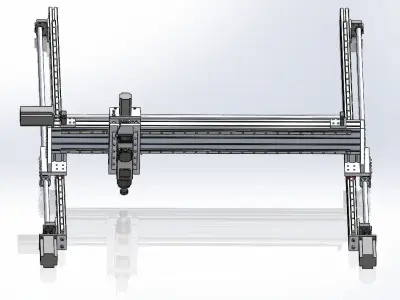

DIY CNC ROUTER DESIGN Working area:1800x1350x130mm. The design is made only with standard components. Motors: Nema 34 8Nm for X and Y Axis and Nema 24 4Nm for Z Axis.Linear Carriage Slides: Hiwin HGW20CC for X Axis, HGH20CA Z and Y Axis .Linear Rail: Hiwin HGR20R 2x1500mm for X, 2x2150mm for Y and 300mm for Z Axis.Ball screw: SFU2005 1500mm for X, SFU2505 2000mm for Y and SFU1605 for ZExtrude Aluminium profile used : 80x160mm for X Axis, 45x60mm for Y Axis Aluminium plate thickness: 5mm, 10mm and 20mm.Screw used: M5, M6, M8 and M12

If you need any other format please request !
