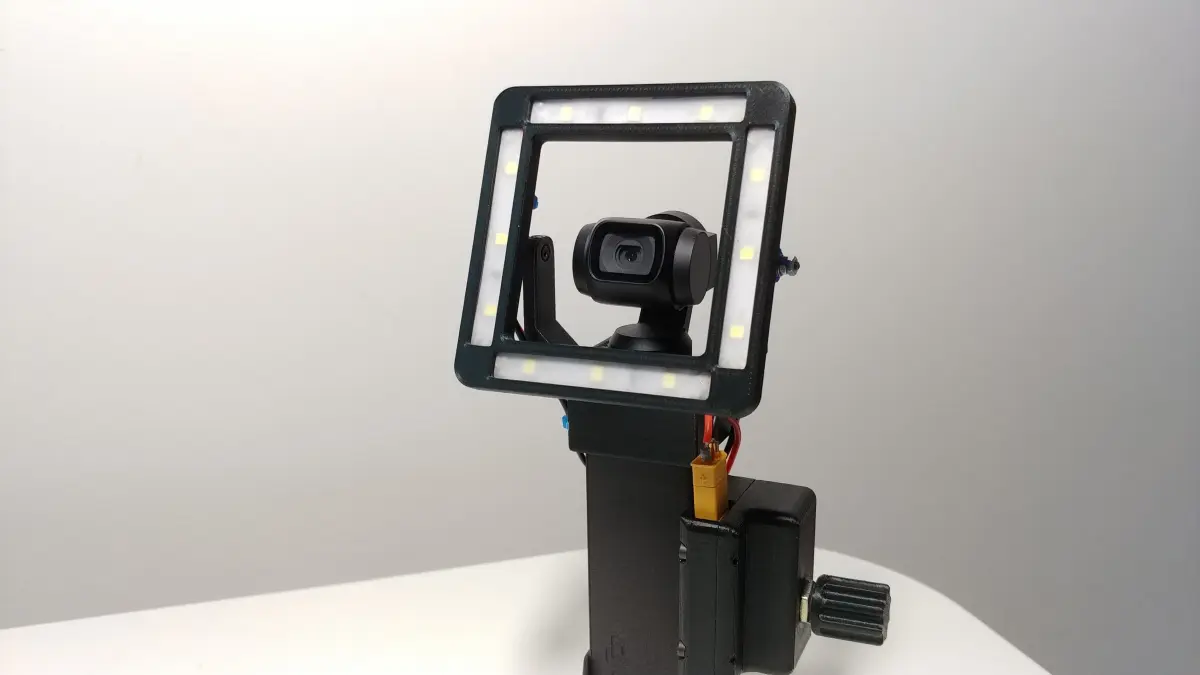

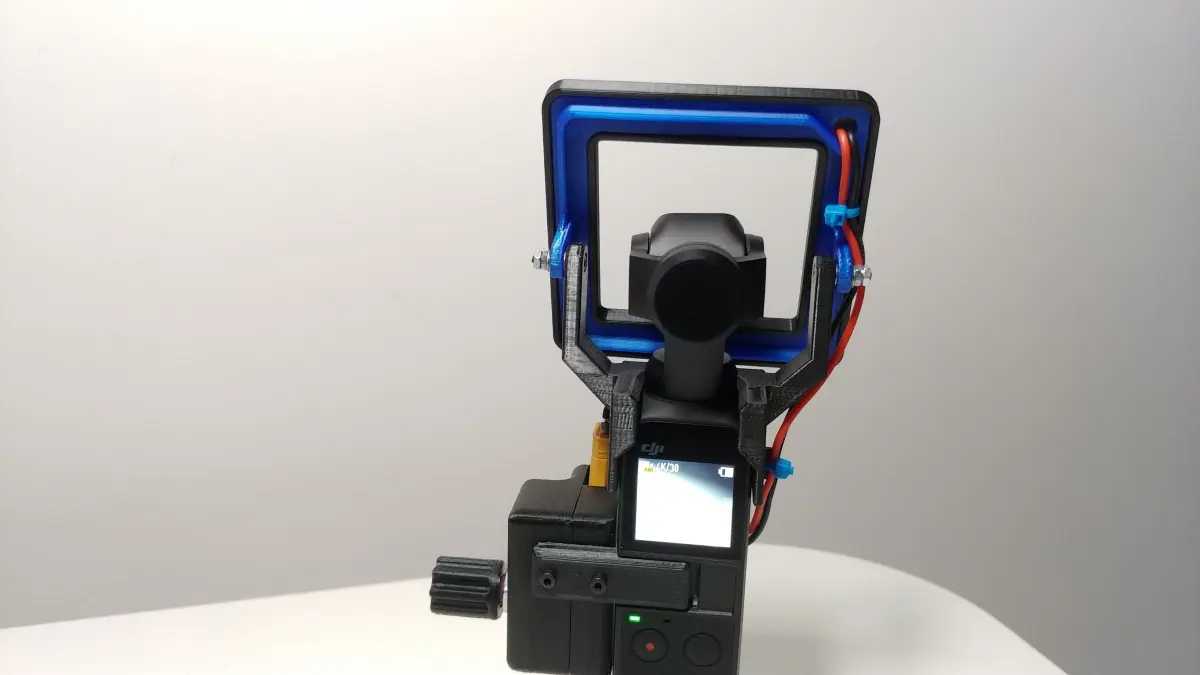

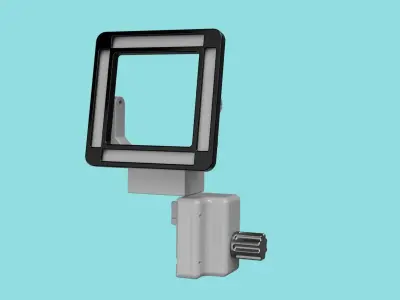

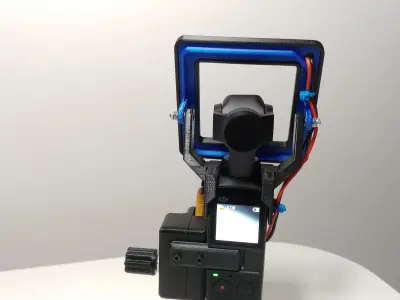

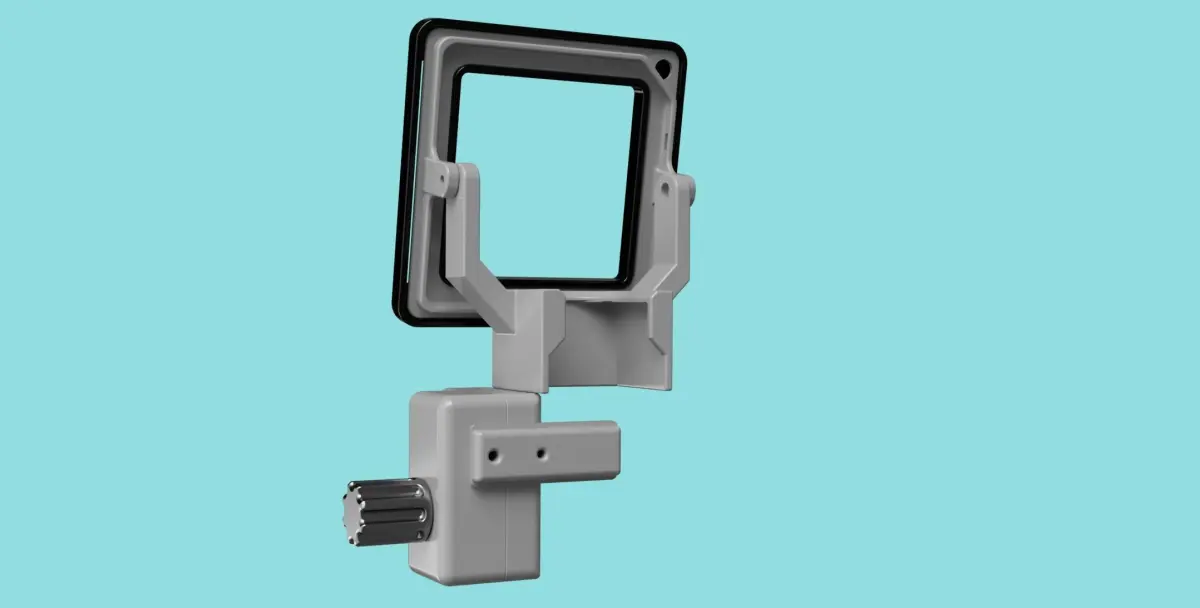

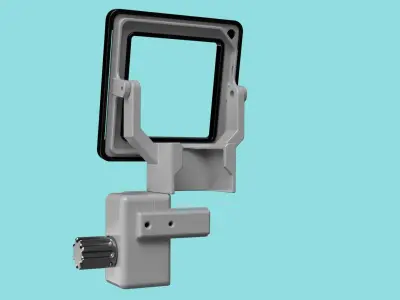

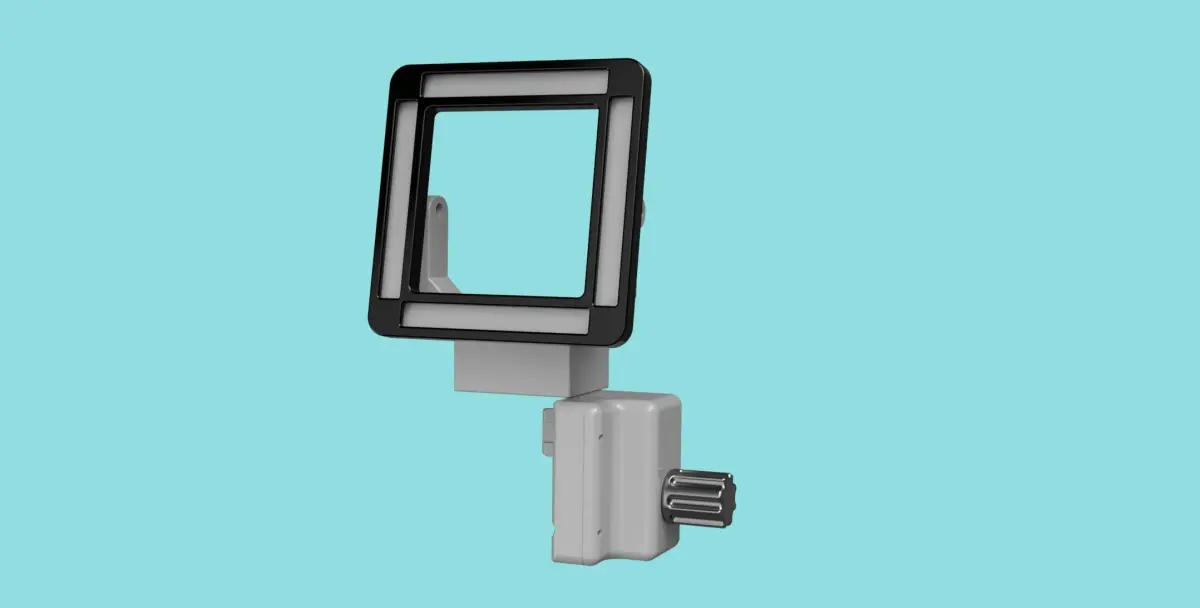

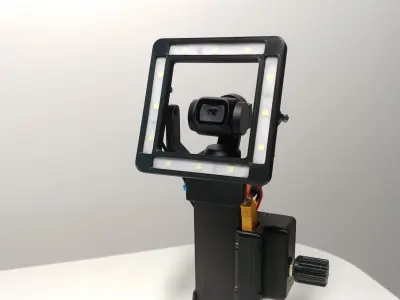

A very functional and cheap to make LED ring for DJI Osmo Pocket.

Video with detailed overview: https://youtu.be/lTESM3O_U2s

The model includes following elements:

  • LED ring in 4 different sizes
  • A cover for LEDs to hold tracing paper for softer light
  • Dimmer box
  • Slide door to hold the dimmer
  • Voltage step-up converter box
  • Template for tracing paper cut-out

Available sizes:

  • 4x1 50mm led strips
  • 4x2 50mm led strips
  • 5x1 50mm led strips
  • 5x2 50mm led strips

Components required for assembly:

  • 3D printed parts
  • White LED strip that can be cut into 50mm pieces, 8mm wide
  • LED strip dimmer
  • DC to DC voltage step-up converter
  • 4 pairs of XT30 connectors
  • 6 x 10mm M2 screws
  • 6 x 7mm M2 screws
  • 5 x M2 nuts
  • 8 x M2 washers
  • 1 x M7 half (thin) nut -> forgot to mention about it in the video
  • 2x 18650 batteries
  • A holder for two 18650 batteries
  • Around 1.5m of 2-wire cable
  • Small sheet of 60gsm tracing paper
  • Some Loctite
  • A bit of grease
STL (Stereolithography, filesize: 7.26 MB)
