Publication date: 2014-10-10

Door Hinge Free 3D print model

free

License: Custom No Ai

author:

sirajs

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «sirajs». CGhub does not claim copyright ownership over the content used.
Download at www.cgtrader.com Add to Wishlist
  • Description
  • Formats

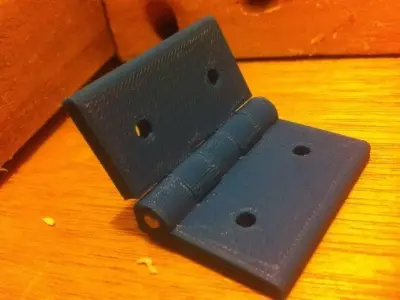

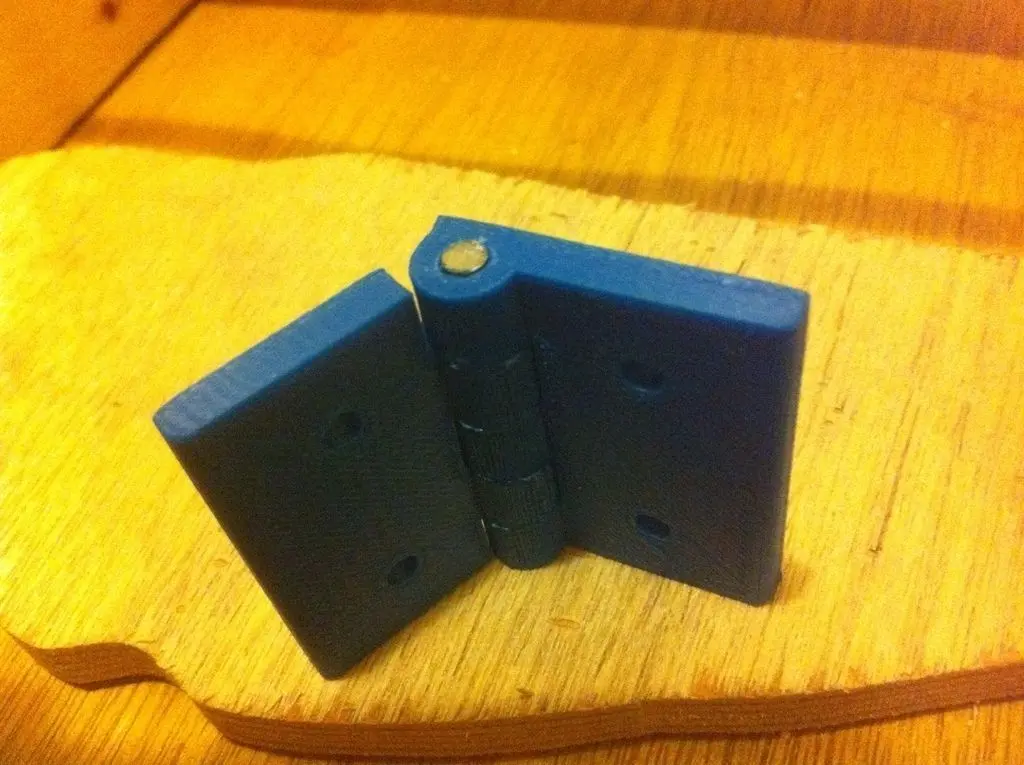

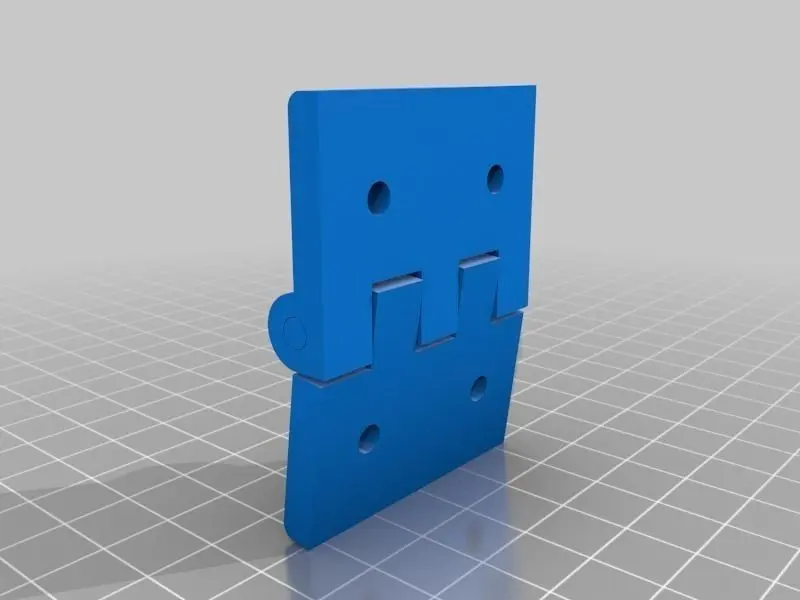

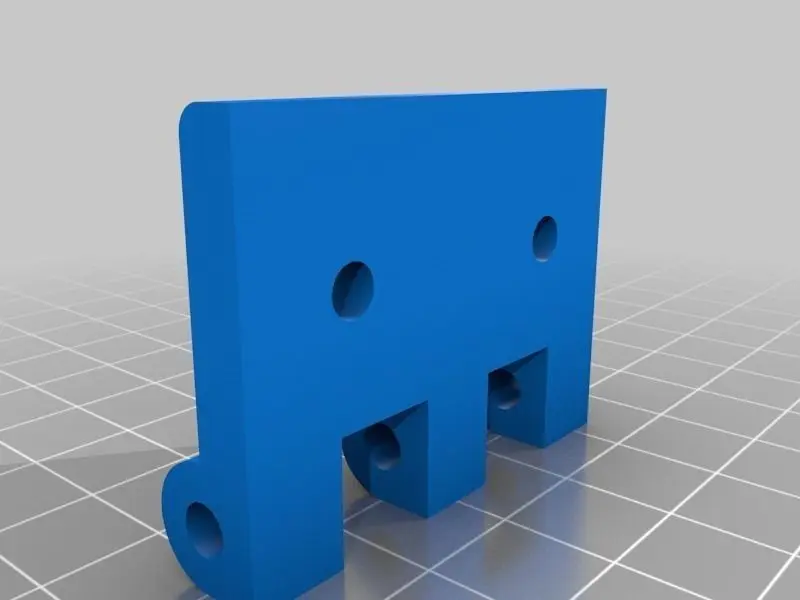

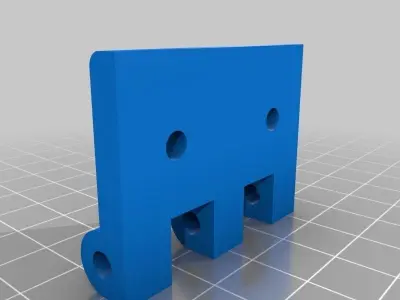

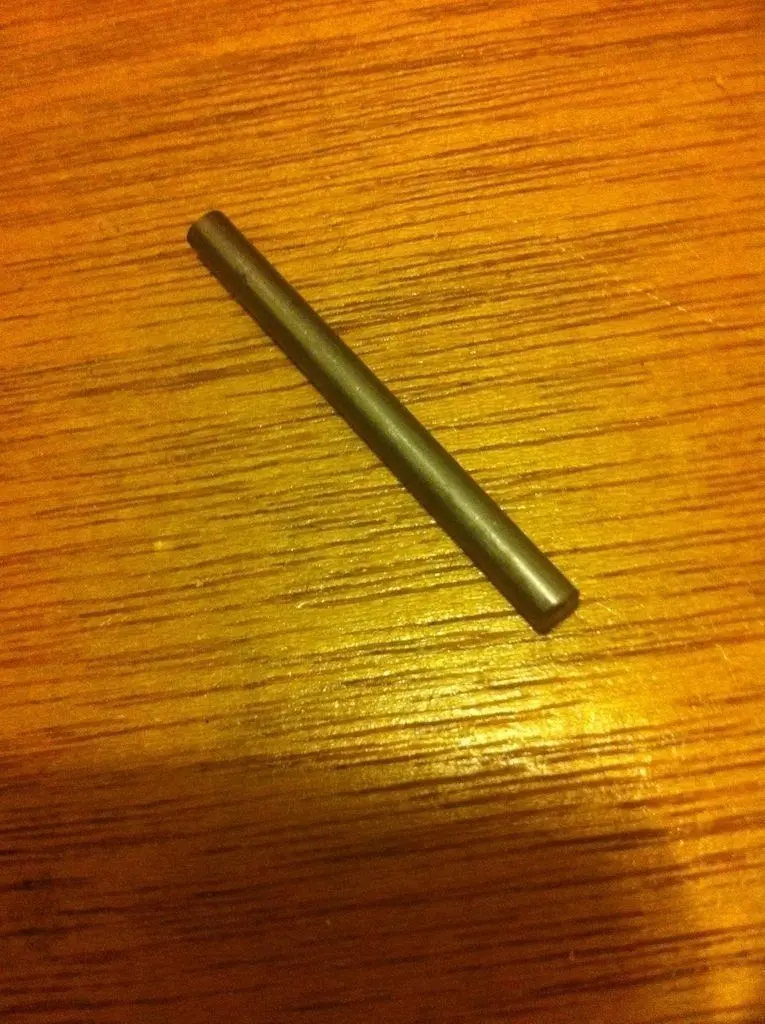

A simple door hinge that opens to at most 180 degrees rotation. Dimensions for given file are: 45mm x 34mm x 5mm hingeA/B with 4mm dowel and 4mm screw holes. Autodesk Inventor IPT file is parameterizable via the design table. There's an additional 0.2mm added to the holes so that the screw and dowel slide in easily. Likewise, for the hinge joint, an additional 0.4 mm clearance has been added to each inside edge of hingeA.

STL (Stereolithography, filesize: 3.79 MB), OTHER (Other, filesize: 294 KB), IAM (Autodesk Inventor, filesize: 71.5 KB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: Manifold geometry | No N-gons |

Tags

Door Hinge Parameterizable 180 Degrees Design Table Autodesk Inventor House Accessories Door hinge
