Publication date: 2023-08-16

Door Linkage Mechanism 3D print model

$3

License: Royalty Free

author:

M-Sami

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «M-Sami». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $3 Add to Wishlist
  • Description
  • Formats

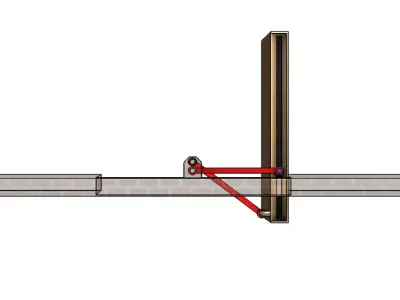

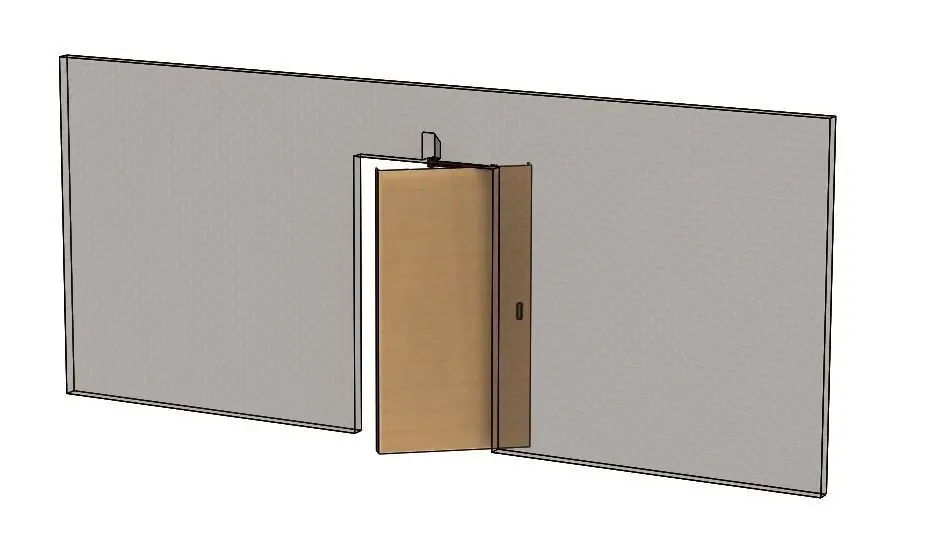

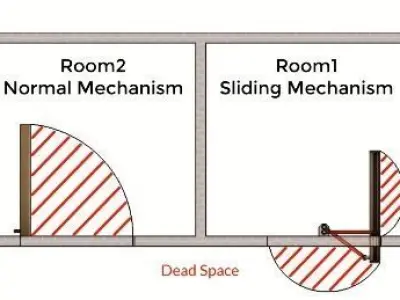

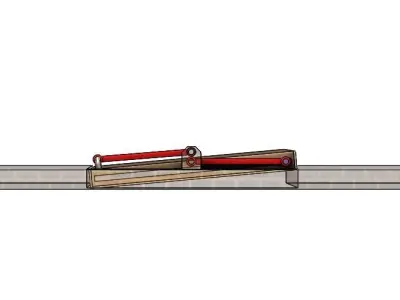

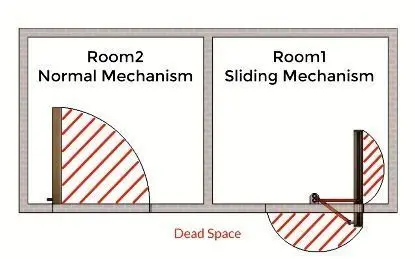

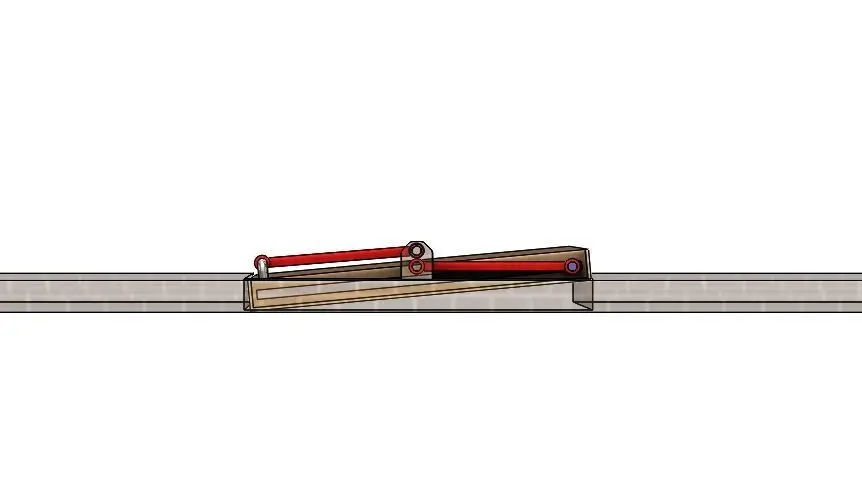

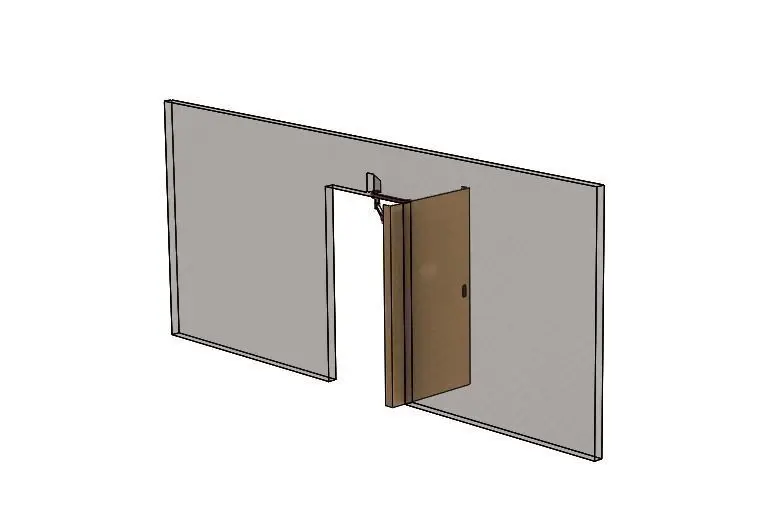

A concept mechanism of Door opening/closing with a couple of linkages, the mechanism is simple and saves space in cozy studios and apartments.

This concept is ready to be a product with the real dimensions.

All files are available to fabricate a 3D model as a prototype by using 3D printer.

SLDPRT (SolidWorks, filesize: 706 KB), OBJ (OBJ, filesize: 360 KB), STP (STEP, filesize: 333 KB), IGE (IGES, filesize: 638 KB), STL (Stereolithography, filesize: 56.1 KB), 3MF (3D Manufacturing File, filesize: 146 KB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: Manifold geometry | No N-gons |

Tags

Mechanism Linkages Mechanical Door Concept Drafting Machine Linkage Tool Saving Space Furniture Hobby Diy Hobby diy Parts Mechanical parts
