Double axle shifting load fine tuning platform 3D model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

forestlsls

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.

Double axle shifting load fine tuning platform

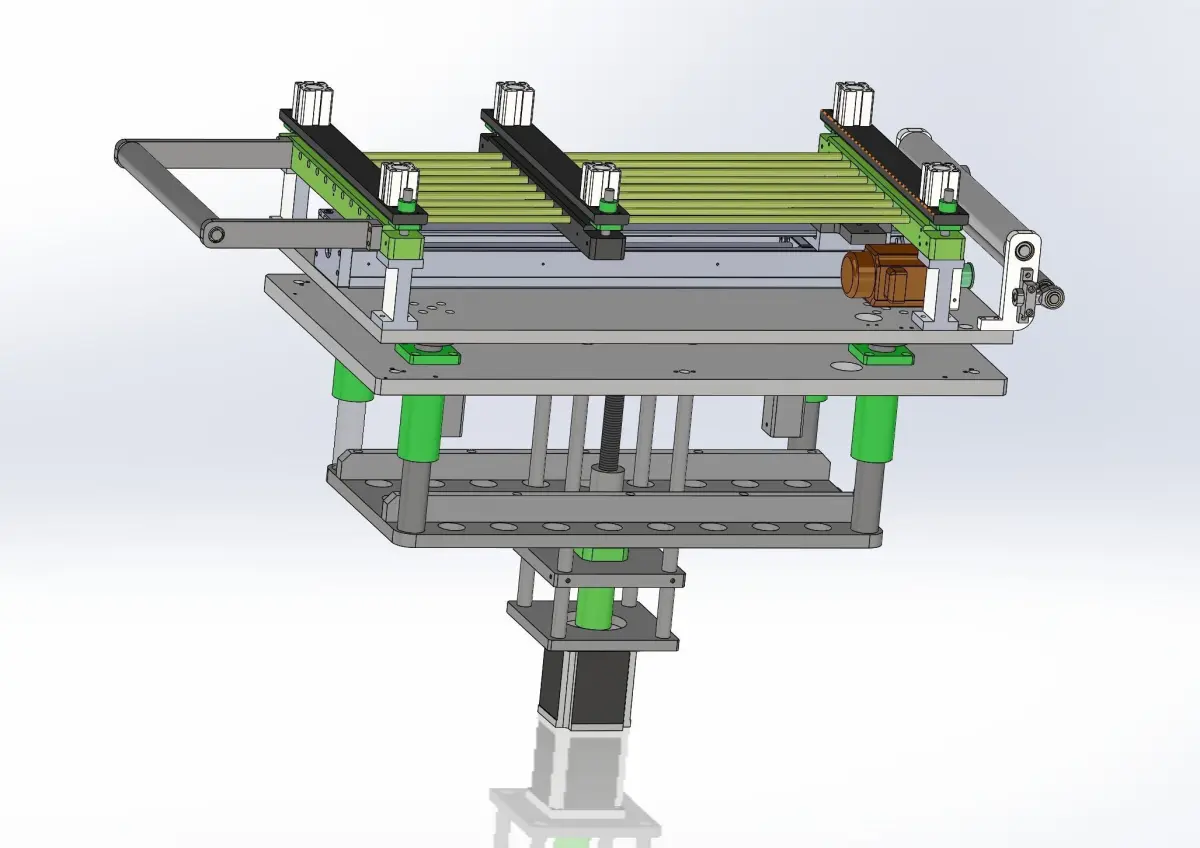

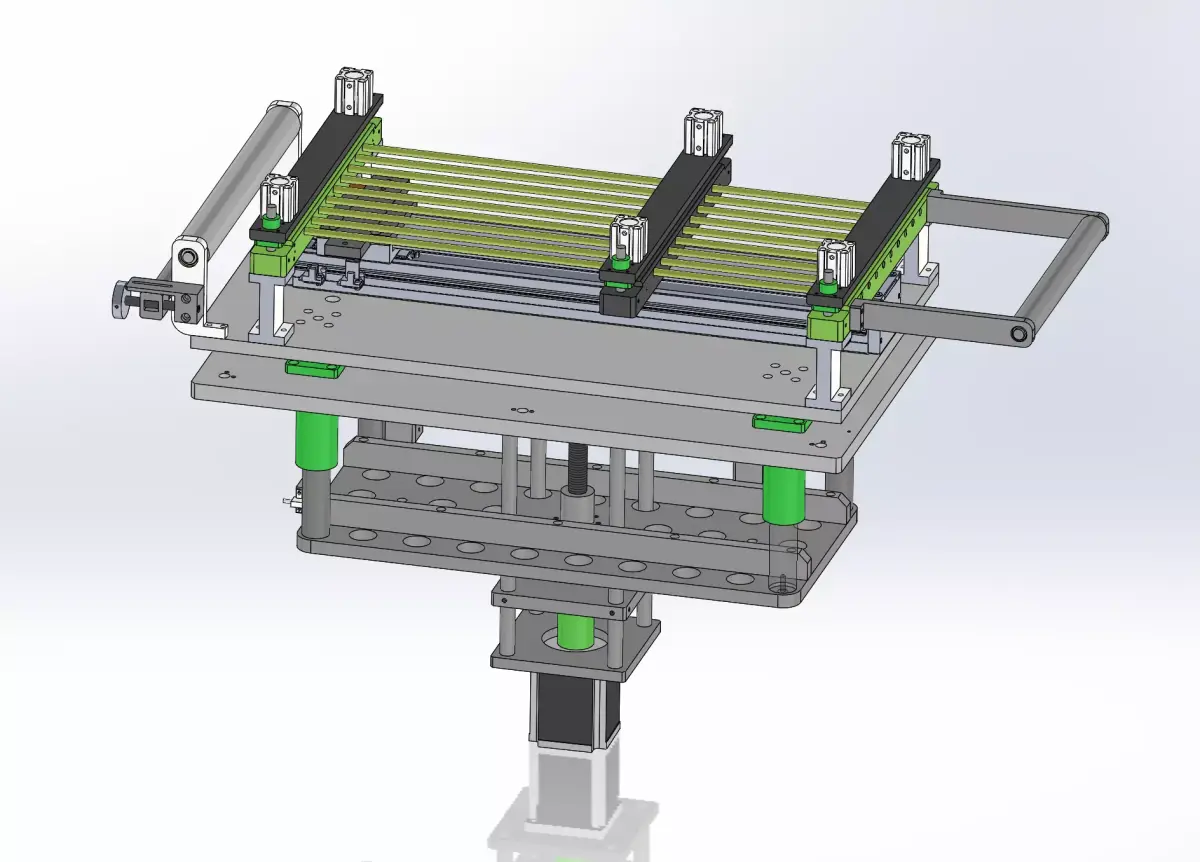

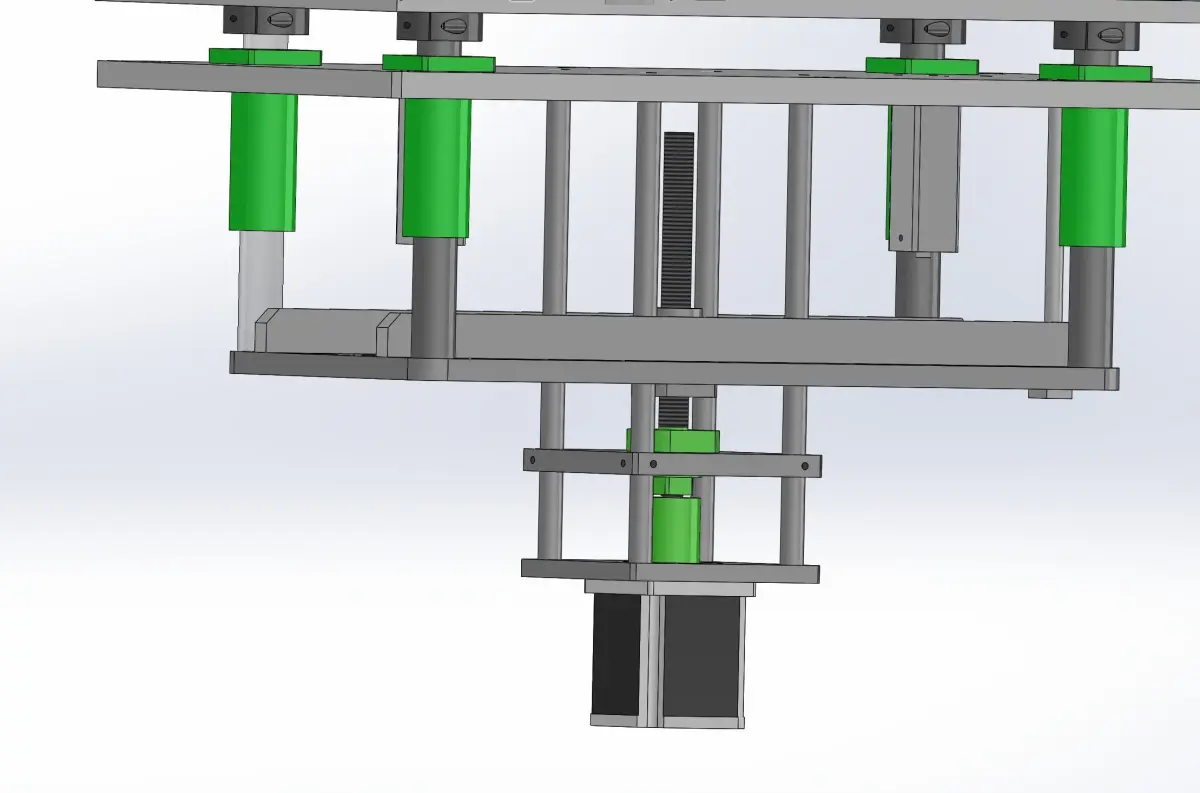

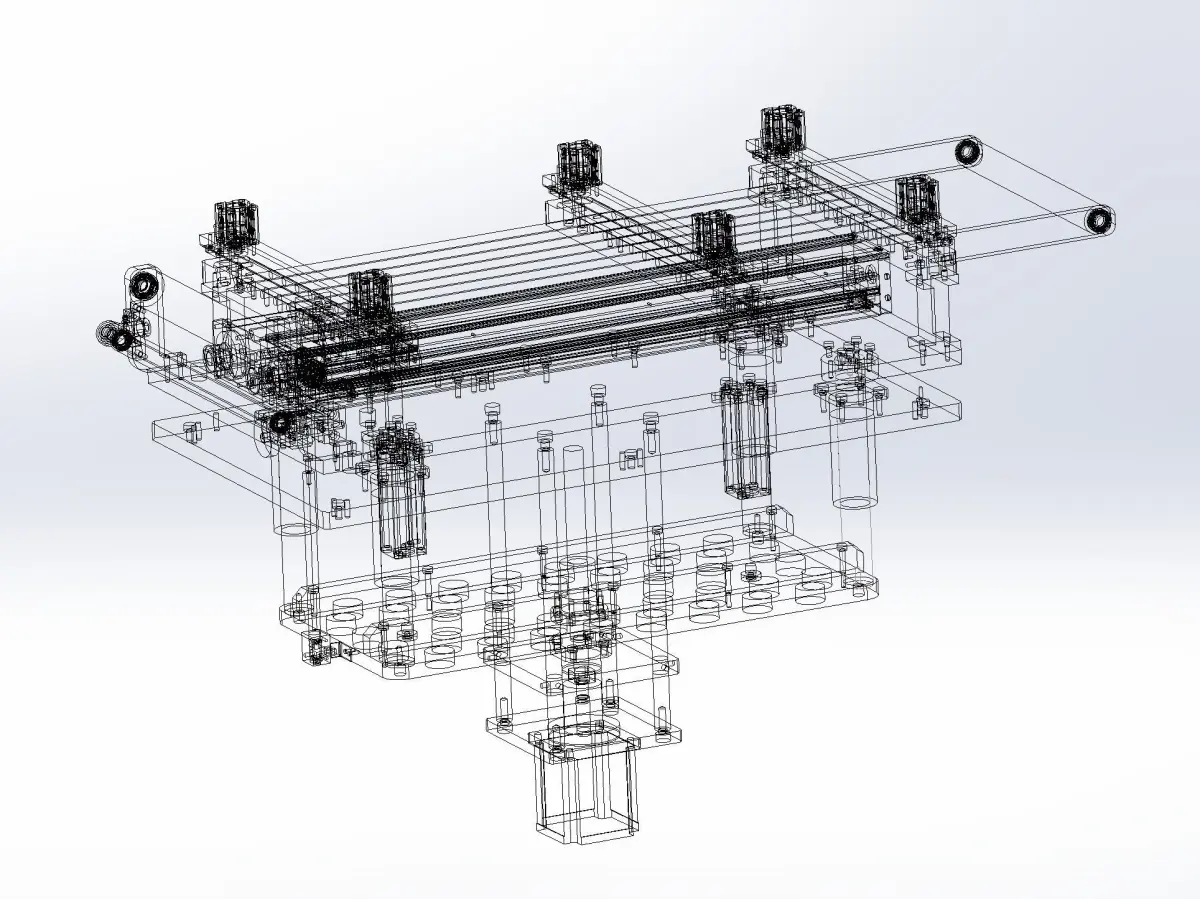

The platform is composed of a fine tuning mobile platform mechanism by a lead screw and a slide rail mechanism. The platform mechanism includes two axis moving mechanisms, one of which is Z-axis moving mechanism and the other is Y-axis moving mechanism, which can be used as a fine tuning mechanism for displacement. It is a good reference model

polygons: 1988991

Vertice:3840242

Files format contains

-solidworks 2017-step-iges-3ds-Fbx-3dmax

and other formats

If you like,you can buy for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with Keyshot

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 1988991
Vertices: 3840242
Plugins used

Tags

Machine Industry Industrial Equipment Manufacture Production Assembly Factory Automatic Mechanic Engine Tool Part Device Robot Tunning Screw Shift Station Industrial machine Industrial part Industrial factory Industrial robot
