DOUBLE DOOR BASE Cabinet Revit Family UK Parametric 3D model

Publication date: 2025-06-25

DOUBLE DOOR BASE Cabinet Revit Family UK Parametric 3D model

$15

License: Royalty Free

author:

RevitFams

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «RevitFams». CGhub does not claim copyright ownership over the content used.

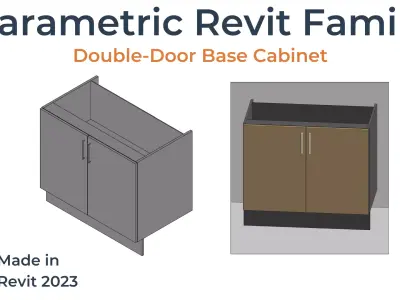

Fully parametric Revit family for a double-door base cabinet, built to UK standards and ready for residential interiors.

Main Features:

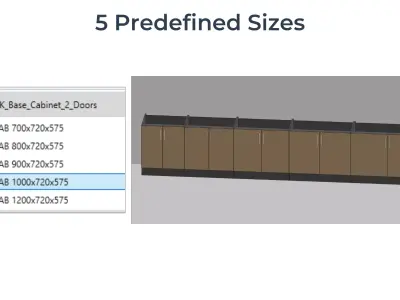

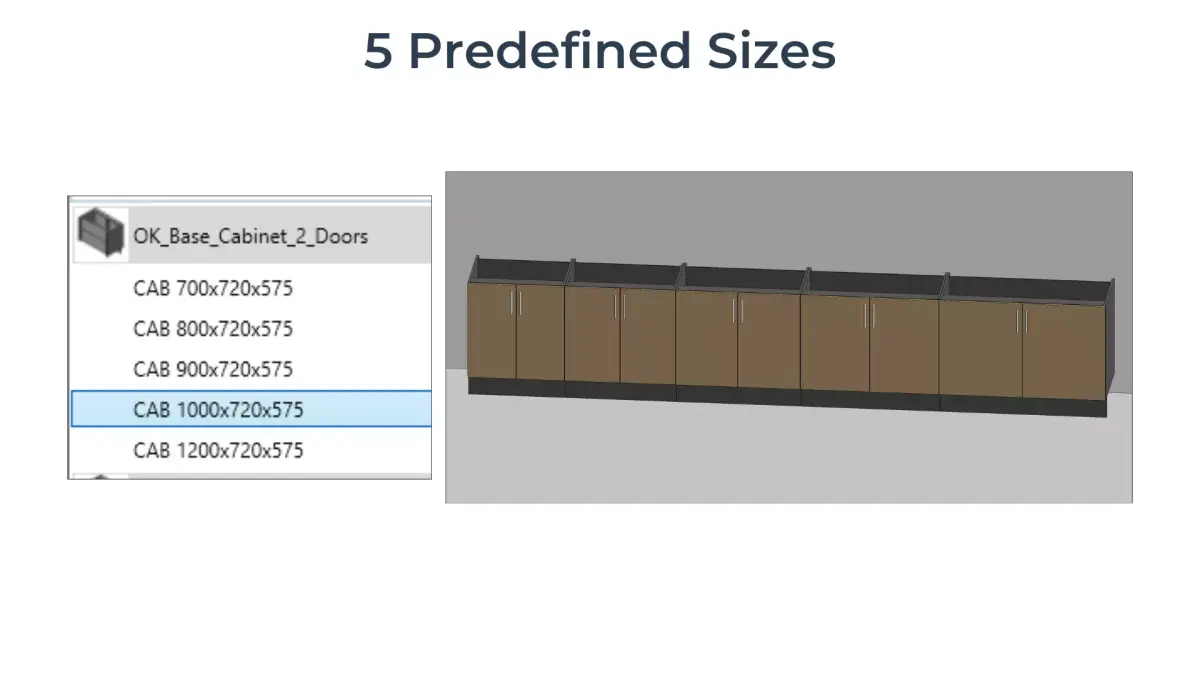

5 predefined sizes included

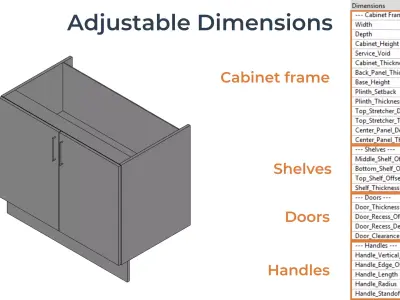

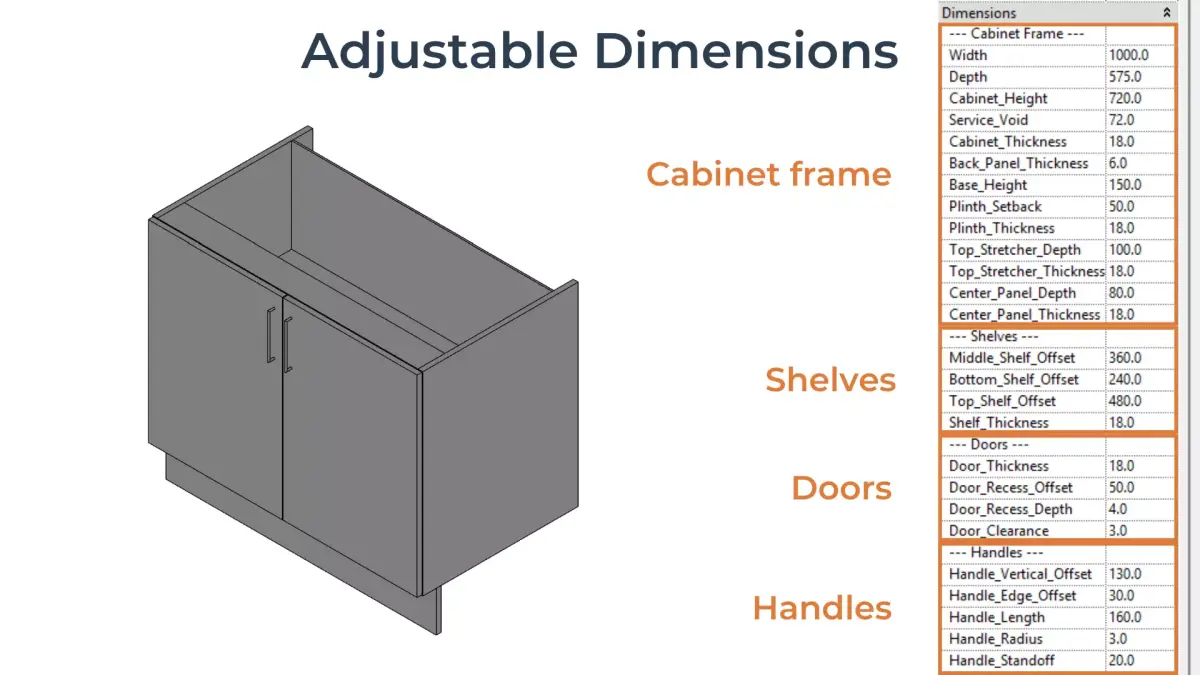

Adjustable dimensions for cabinet frame, doors, shelves, and handles

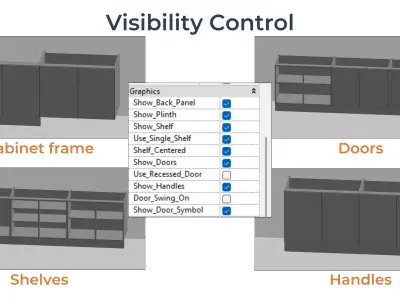

Visibility controls for back panel, plinth, shelf, doors, and handles
Switch easily between single and double shelf setup
Switch easily between slab and recessed door panels

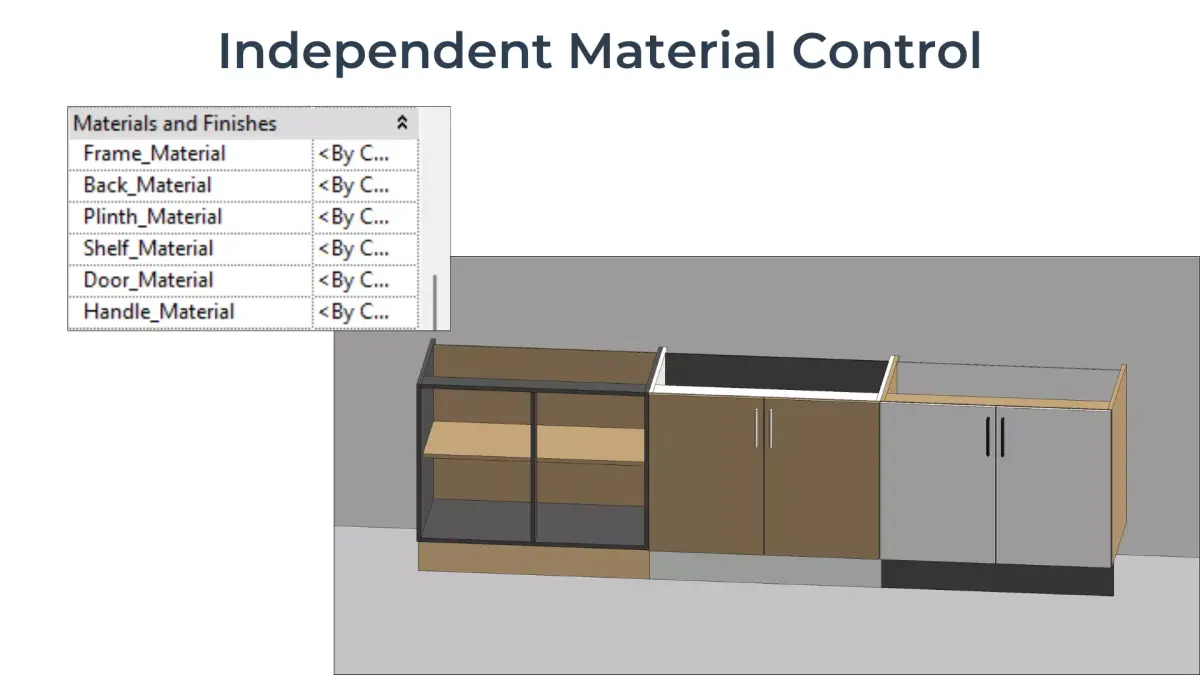

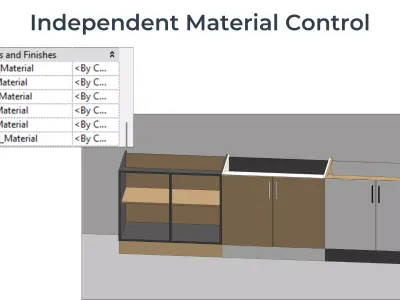

Editable materials for cabinet frame (incl. top stretcher and center panel), back panel, plinth, shelf, door front, and handles
Independent visibility for swing arcs and door side indicators.

Why Choose This Family?

Created from scratch using Revit best practices
No cleanup needed - just load and start using
Easy to edit in the Family Editor - clean reference planes, named parameters, and tooltips for quick adjustments
Includes a simple user guide for quick setup

Compatibility & Details:
