Introducing a timeless and elegant Double Row Pave Heart Pendant, designed with precision in MatrixGold. This high-quality 3D model features a stunning graduated diamond layout, creating a luxurious halo effect that maximizes brilliance.
Designed for professional jewelers and 3D printing enthusiasts, this file is fully optimized for casting, with accurate stone setting prong placements and a lightweight structure to minimize gold cost without sacrificing durability.
DESIGN DETAILS
Style: Classic Heart Shape with Double Row Pave Setting.
Bail: Integrated, sturdy bail suitable for various chain sizes.
Back Profile: Clean, polished back rim with optimized stone seats for easy cleaning and maximum light return.
Prongs: Pre-modeled prongs for easy stone setting.

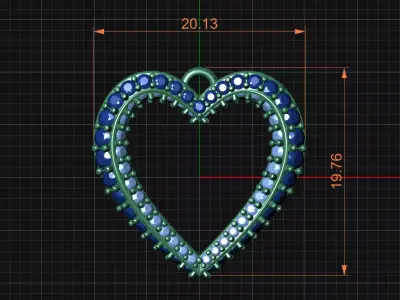

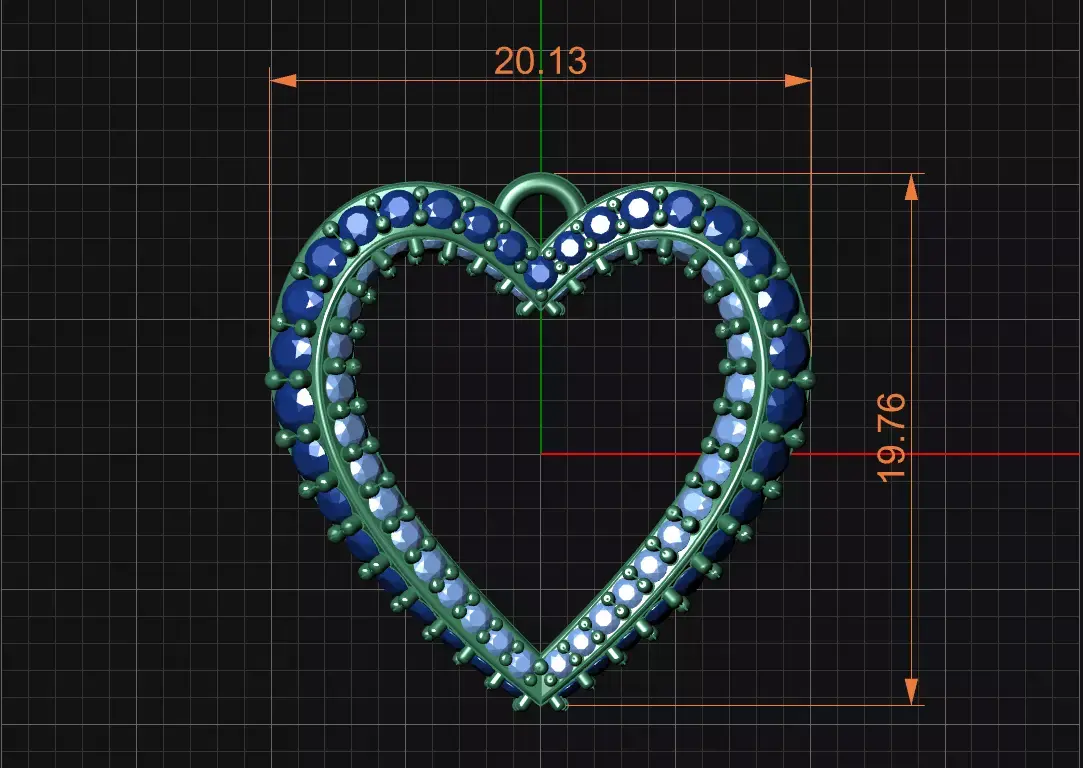

DIMENSIONS
Height: 19.76 mm
Width: 20.13 mm
Depth/Thickness: Proportional for standard jewelry manufacturing.
STONE SPECIFICATIONS (TOTAL: 71 Stones)
This design utilizes a graduated stone layout for a perfect curve. A detailed stone map is included in the images.
Stone Shape: Round Brilliant Cut
1.1 mm: 6 pcs
1.2 mm: 10 pcs
1.3 mm: 13 pcs
1.4 mm: 14 pcs
1.5 mm: 10 pcs
1.6 mm: 4 pcs
1.7 mm: 4 pcs
1.8 mm: 4 pcs
1.9 mm: 4 pcs
2.0 mm: 2 pcs
Total Carat Weight (Approx): ~0.95 ctw (depending on stone cut).
METAL WEIGHT ESTIMATES
10k Gold: ~2.39 Grams (1.54 DWT)
14k Gold: ~2.68 Grams (Estimate)
18k Gold: ~3.20 Grams (Estimate)
Note: Weights are approximate and may vary based on casting/finishing.
FILES INCLUDED
.3DM (Source file - Editable)
.STL (Stereolithography - Ready to Print/RP)
.OBJ (Exchange format)
ADDITIONAL NOTES
Production Ready: The mesh is watertight, inspected, and free of naked edges.

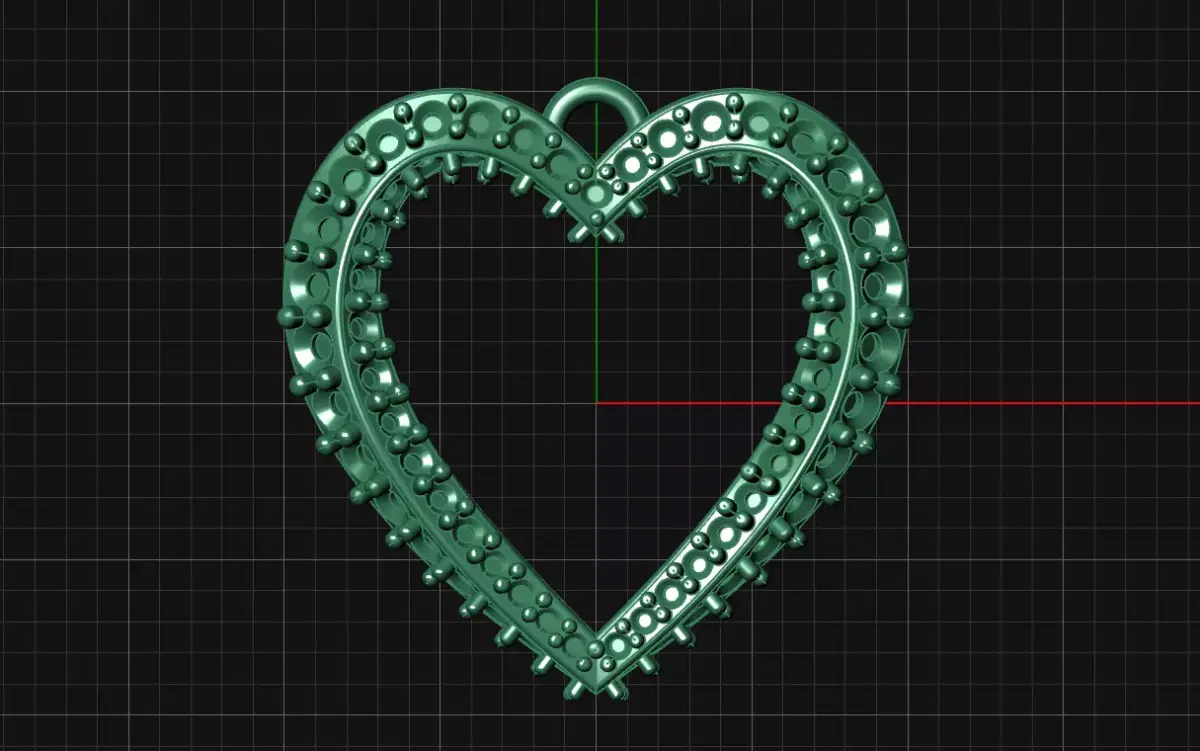

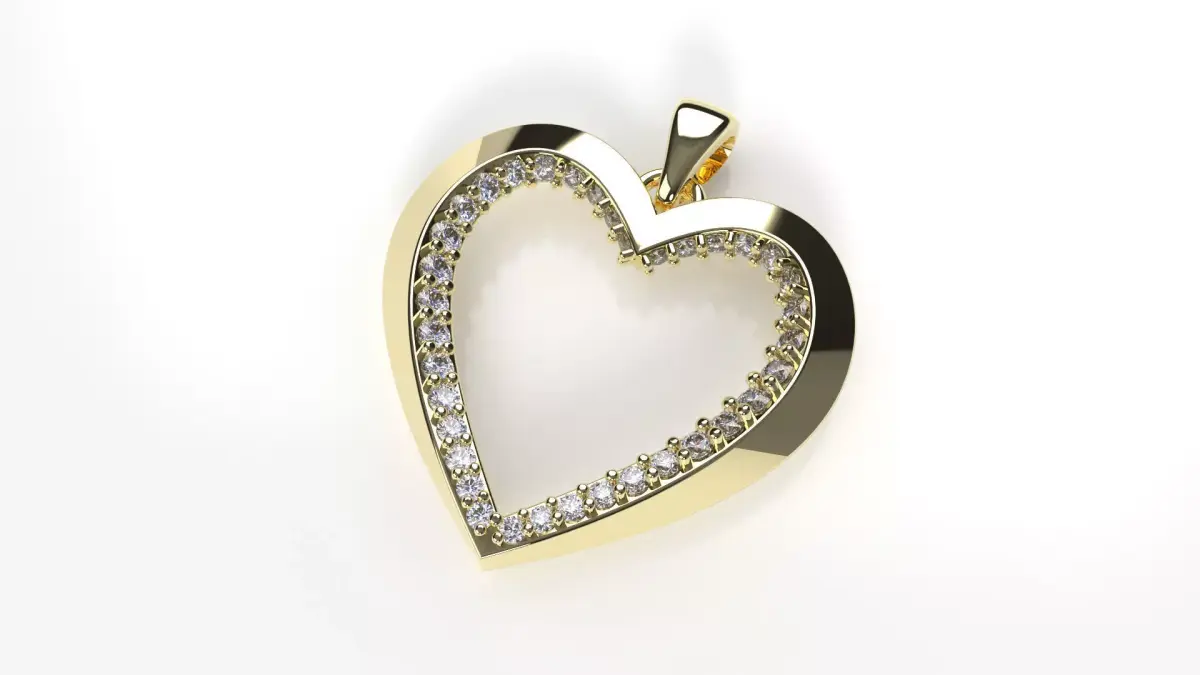

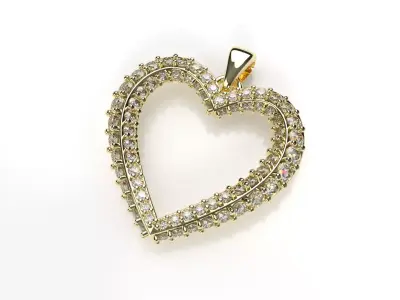

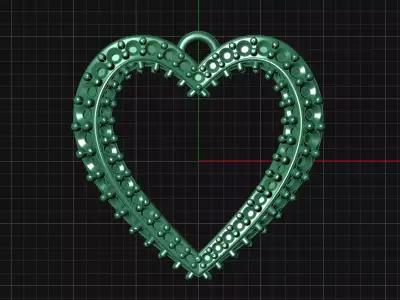

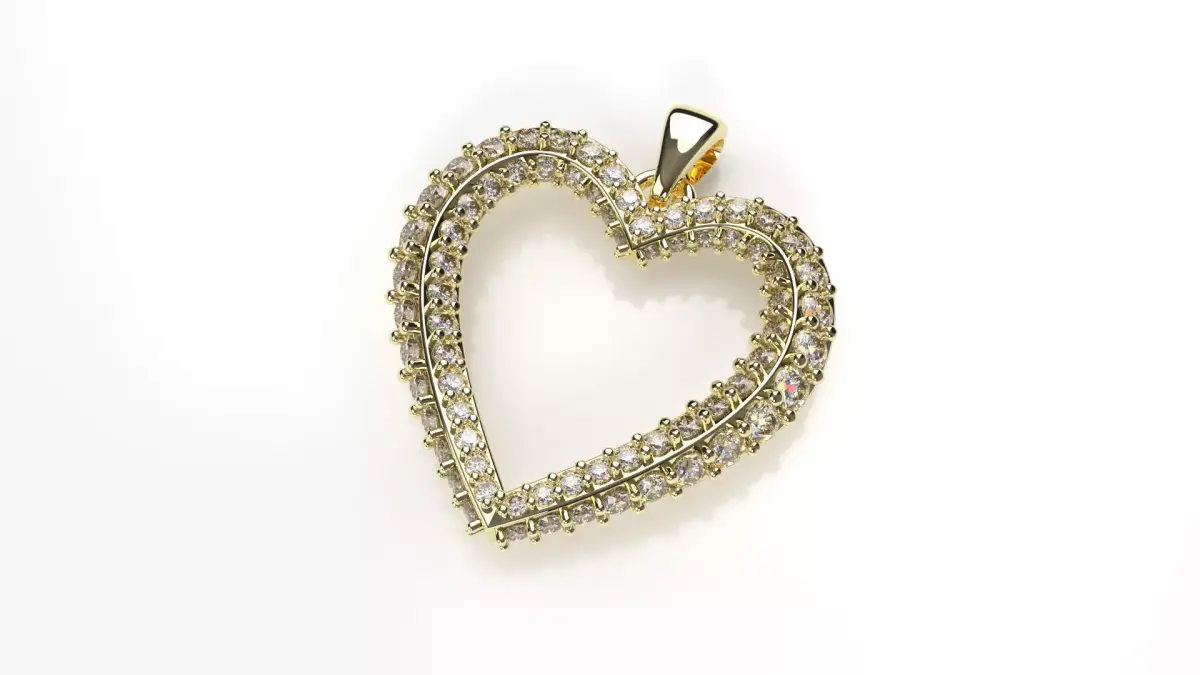

Rendering: Images shown are realistic renders of the 3D model.
Support: If you need any assistance with the file or format conversion, please feel free to contact me.
3DM (Rhinoceros 3D, filesize: 166 MB), OBJ (OBJ, filesize: 203 MB), FBX (Autodesk FBX, filesize: 116 MB), 3DM (Rhinoceros 3D, filesize: 166 MB), STL (Stereolithography, filesize: 132 MB)
