This is a wall based Double Sliding Balcony Aluminium External Door revit family. Fully Parametric.

Both panels slide open ( left and right ) with parameter to control the graphical represantation. User can create family types controling the rough width and height, glass thickness, panel offset from wall, guide frame and panel frame width as well as the materials.

Panels net width and height are calculated automatically from rough width and height and the frame width parameters.

Panels frame depth also is calculated automatically from the glass thickness parameter.

Bottom guide frame is embedded into the floor.

ATTRIBUTES

Revit Version : 2022
Family Type : Door Wall Based
File Extension : .rfa

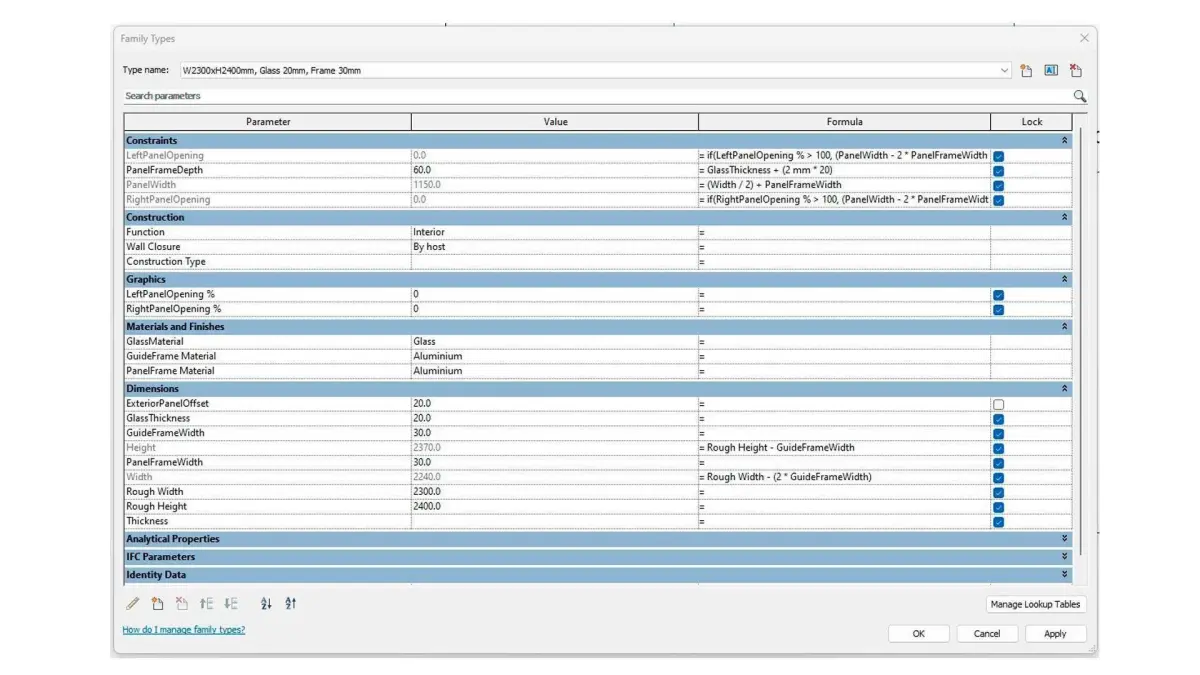

PARAMETERS:

Rough Width ( wall opening )
Rough Height ( wall opening )
Glass Thickness
Panel offset from wall
Guide Frame Width
Panel frame width
Left and right Panel Opening %
Materials ( panel frame, guide frame, glass )
Panel frame depth, panel width and height are calculated automatically

FAMILY TYPES:

W2300xH2400mm, Glass 20mm, Frame 30mm
W3000xH2700mm, Glass 24mm, Frame 50mm

User can create unlimited variations of family types by changing the available parameters.

Family can be cut through sections.
