Double Station Cam Manipulator Mechanism

Introduction

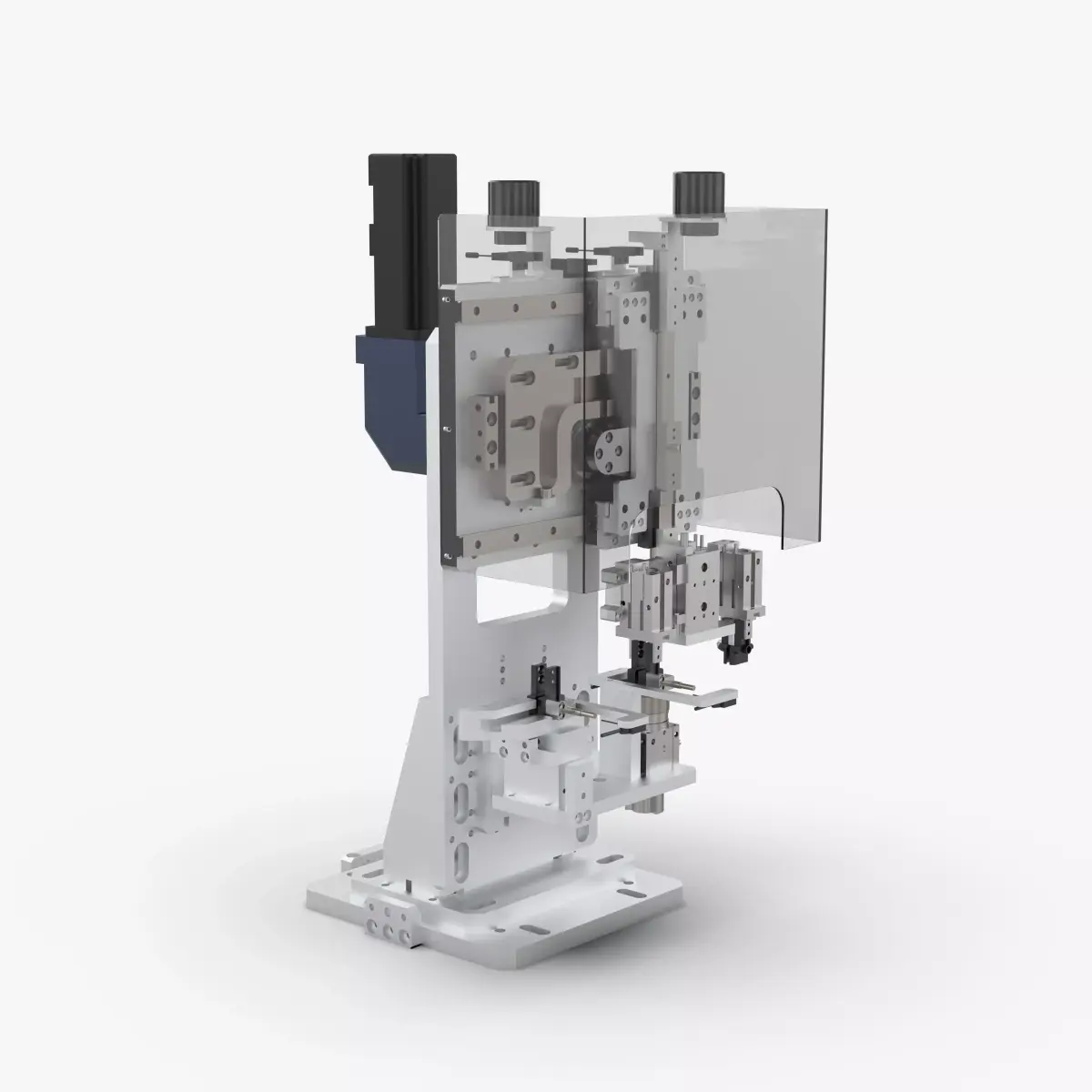

This is a double station for fast directional transplanting. After the workpiece is positioned, select the 180-degree mechanism. The classic mechanism commonly used in non-standard automatic fully automatic assembly lines. The cam mechanism is driven by the servo motor to quickly transplant the workpiece up and down horizontally to the positioning seat and rotate. The cylinder rotates after the workpiece is in place to meet the subsequent assembly requirements

File Formats

SolidWorks 2018 | Keyshot 10
STEP (Standard for the Exchange of Product Data)
IGES (Initial Graphics Exchange Specification)
STL (Standard Tessellation Language )
OBJ (Object Files)

Geometry

Polygons: 233,262
Vertice: 699,786

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 233264
Vertices: 699786
Plugins used
Geometry: Polygon mesh

Tags

Double Station Cam Manipulator Mechanism Solidwork Design Assembly Modeling Automatic Automation Machinery Part Machine Line Production Robot Manufacture Drawing Industrial Industrial machine – Download & Buy
