DRAWERLINE DOUBLE DOOR BASE Cabinet Revit Family UK Parametric 3D model

Publication date: 2025-07-21

Buy DRAWERLINE DOUBLE DOOR BASE Cabinet Revit Family UK Parametric 3D model

Name: DRAWERLINE DOUBLE DOOR BASE Cabinet Revit Family UK Parametric 3D model
Brand: RevitFams
SKU: 627294
Price: 15.00 USD
Availability: InStock

$15

License: Royalty Free

author:

RevitFams

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «RevitFams». CGhub does not claim copyright ownership over the content used.

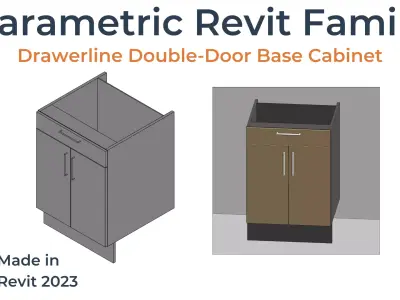

Fully parametric Revit family for a drawerline double-door base cabinet, built to UK standards and ready for residential interiors.

Main Features:

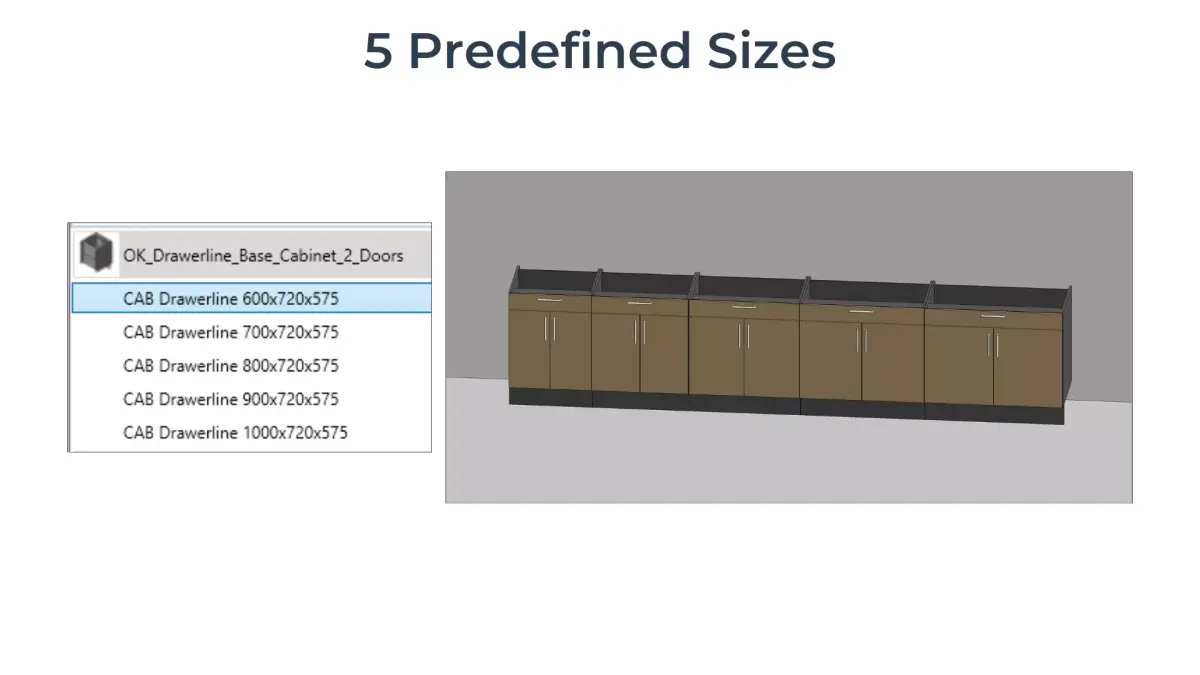

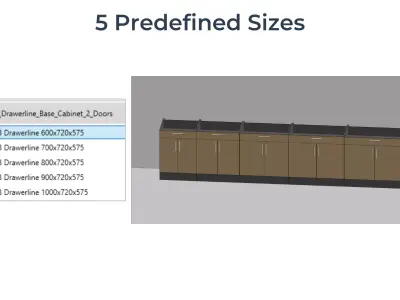

5 predefined sizes included

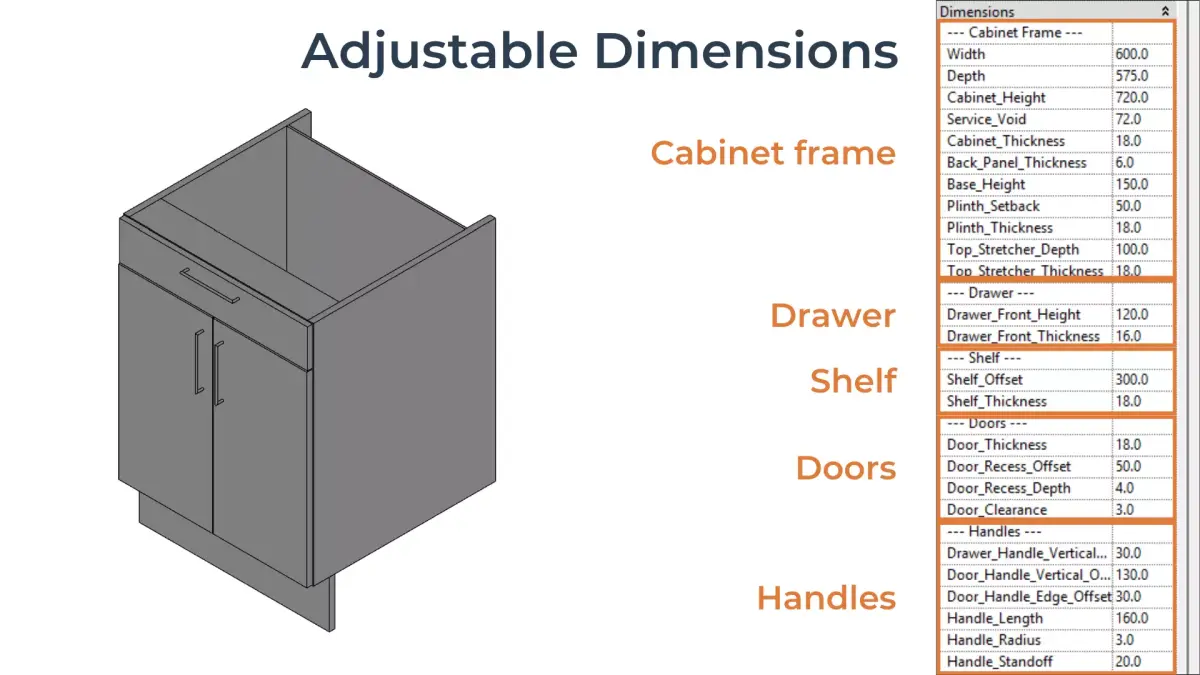

Adjustable dimensions for cabinet frame, drawer, shelf, doors, and handles

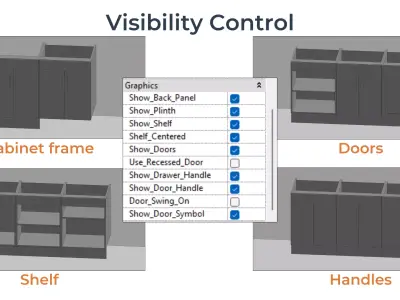

Visibility controls for back panel, plinth, shelf, doors, and handles
Switch easily between slab and recessed door panels
The drawer comes with a fixed slab front

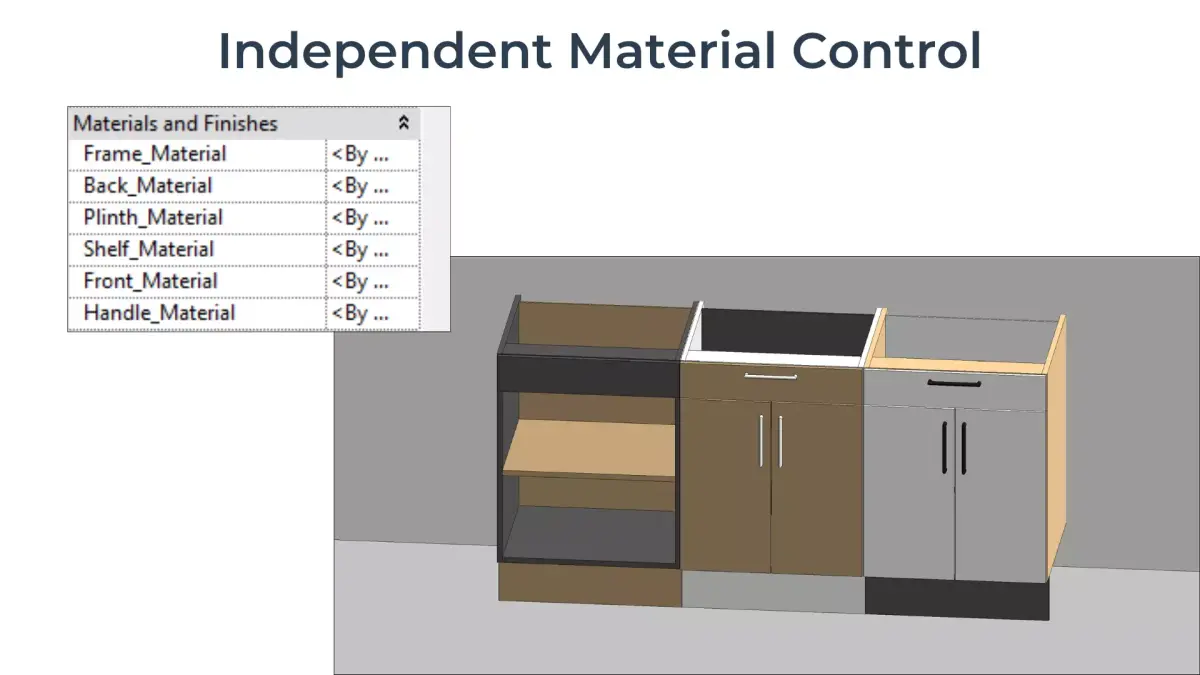

Editable materials for cabinet frame (incl. top stretcher), back panel, plinth, shelf, front, and handle
Independent visibility for swing arcs and door side indicators.

Why Choose This Family?

Created from scratch using Revit best practices
No cleanup needed - just load and start using
Easy to edit in the Family Editor - clean reference planes, named parameters, and tooltips for quick adjustments
Includes a simple user guide for quick setup

Compatibility & Details:
