Publication date: 2022-04-07

Dry Sump Oil System 3D print model

$26

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

Torza-14

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Torza-14». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $26 Add to Wishlist
  • Description
  • Formats

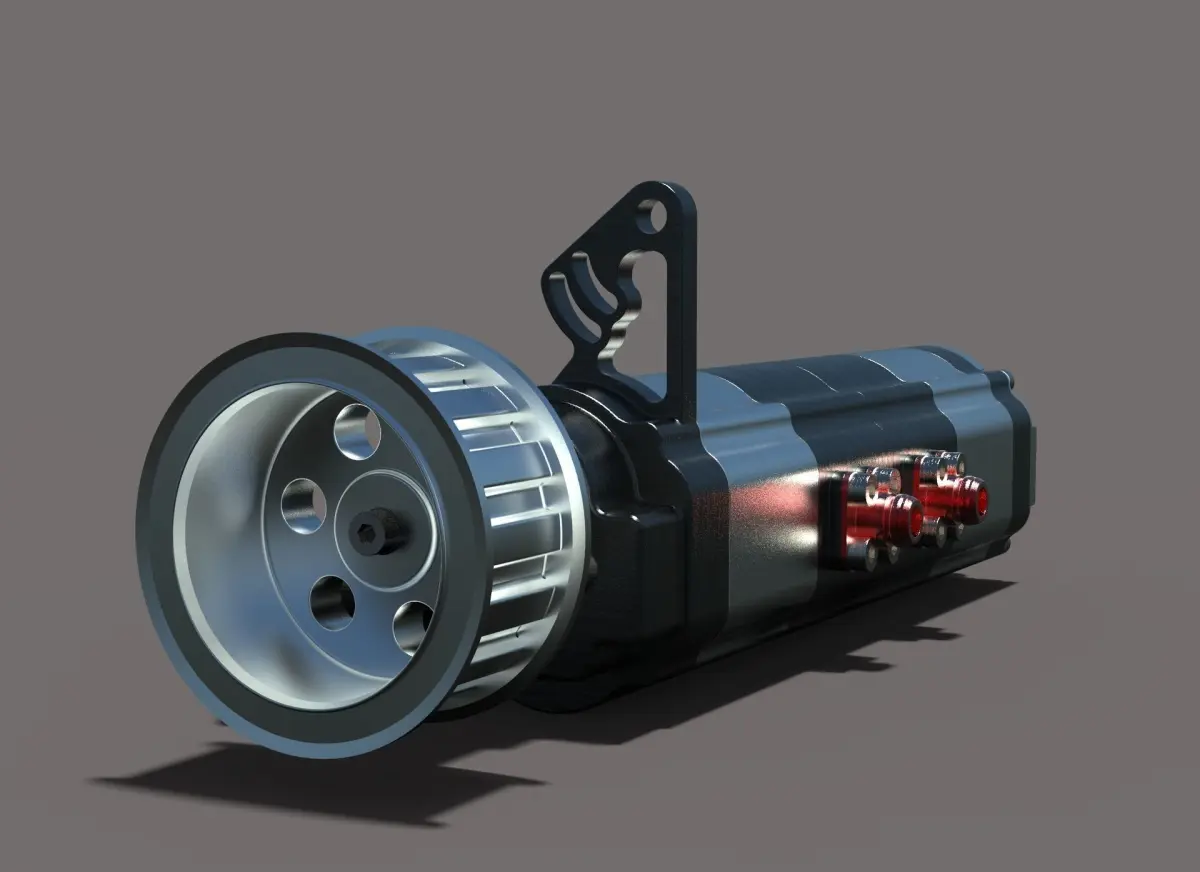

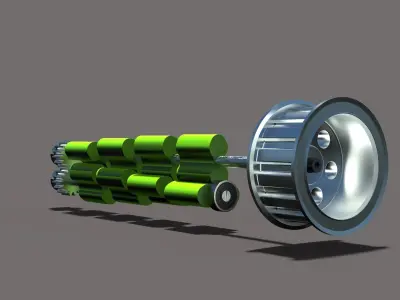

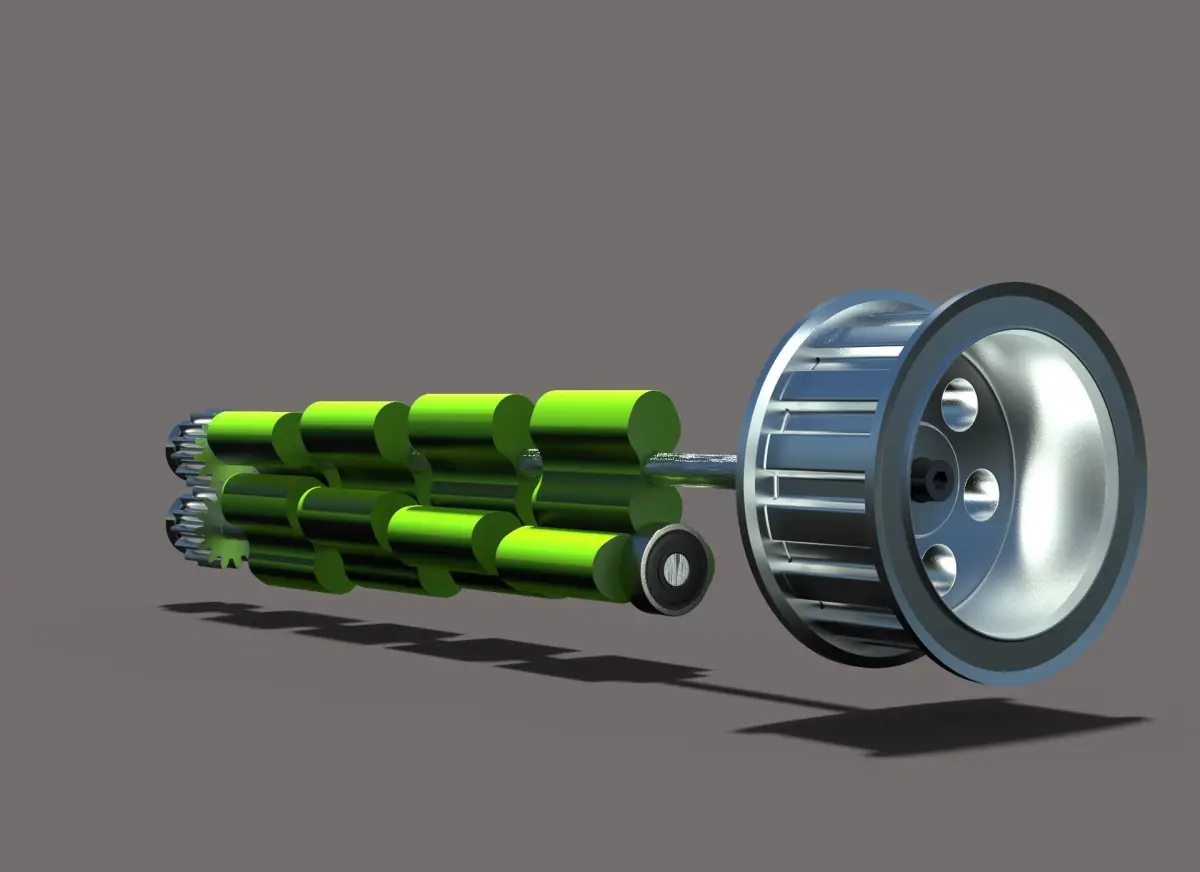

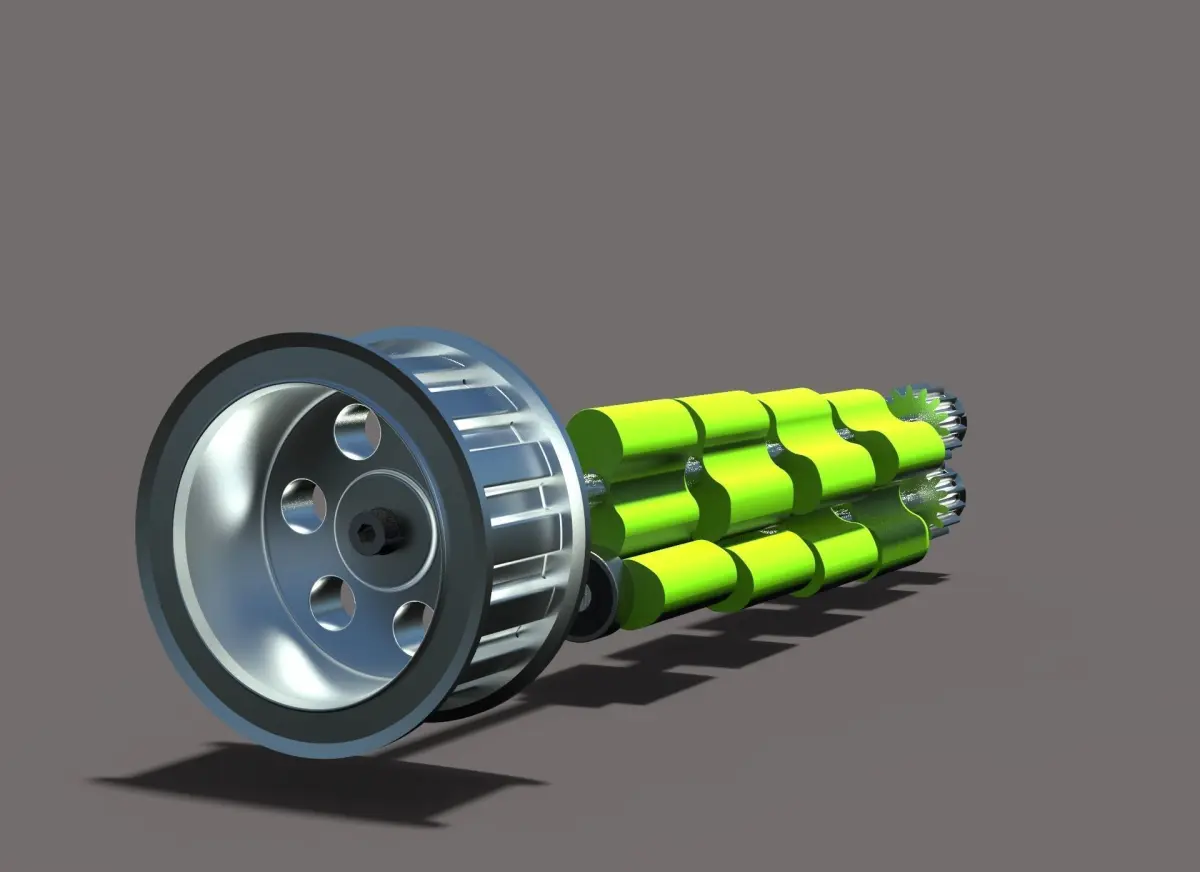

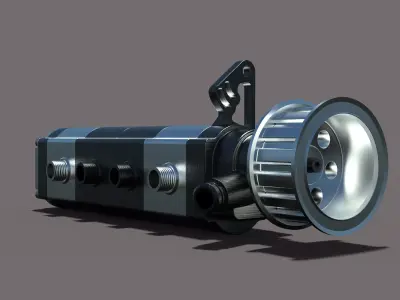

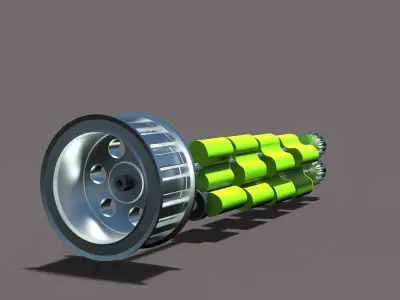

3D Model CAD from a Dry Sump Oil System made on CATIA V5 R21.

STEP Model + .CATProduct & 23 .CATParts

Recapitulation of: Dry Sump Oil Pump.

  • Different parts: 23
  • Total parts: 159

CATIA V5 (R21 >) flies contains:

  • Kinematics Simulation.

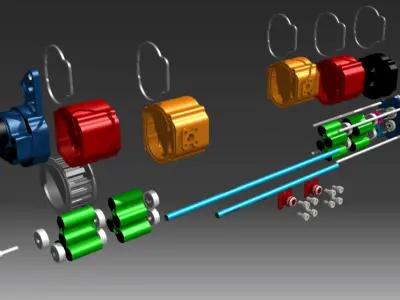

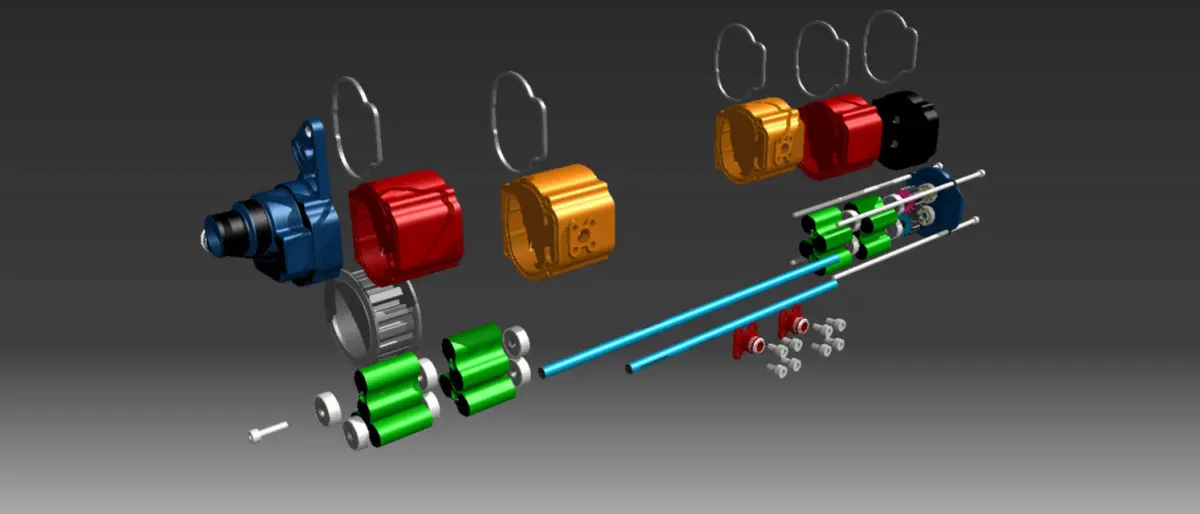

  • 3 sequences (Disassembly, Disassembly + Cam tracking & Kinematics Simulation + Cam tracking).
Native Formats: CATPRODUCT (CATIA, filesize: 8.14 MB) Exchange Formats: STP (STEP, filesize: 8.14 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Unknown
  • Polygons: 0
  • Vertices: 0

Tags

Oil Sump Car Mechanism Pulley Lobe Machinery Assembly Engine Lubrication Science Engineering Car engine
