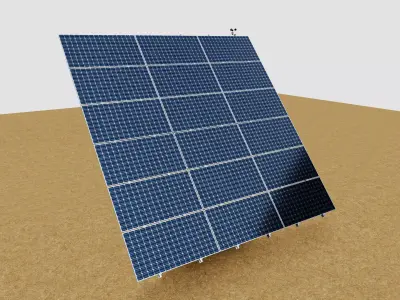

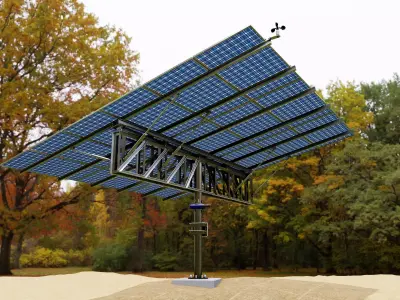

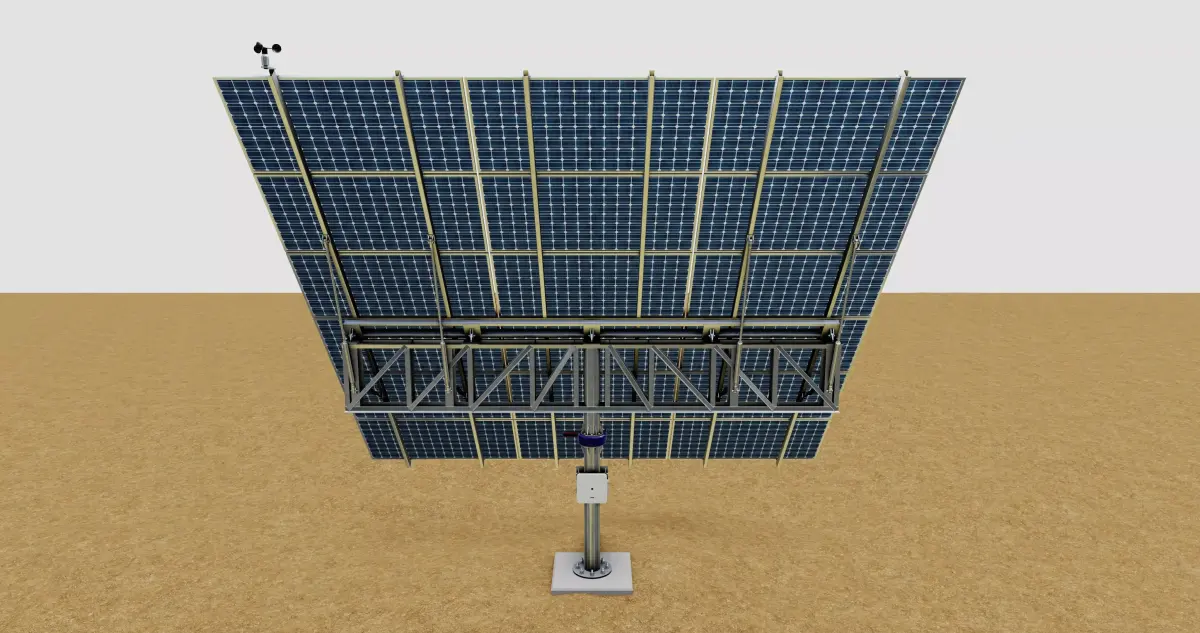

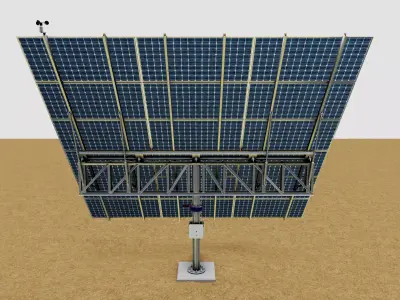

Dual Axis Solar Tracker Pole-3x6 Panel Layout-SOLAR-SIM V.0.1
3x6 Horizontal Panel Layout
Energy Generation Simulation With Python Script Code in Blender
A total of 18 solar panels with a total of 1 solar pole placements
An animation related to the sun has been prepared. It rotates 180 degrees by tracking the sun and the time of day in an east-west direction. After sunset, it returns to its original position.
Ground Connection Type; With Anchor Plate
Panel Dimensions : 2279 x 1134 x 35 mm
Panel Power : 590Wp
1 solar panel steel construction produces 10,62 kWp power in 1 hour

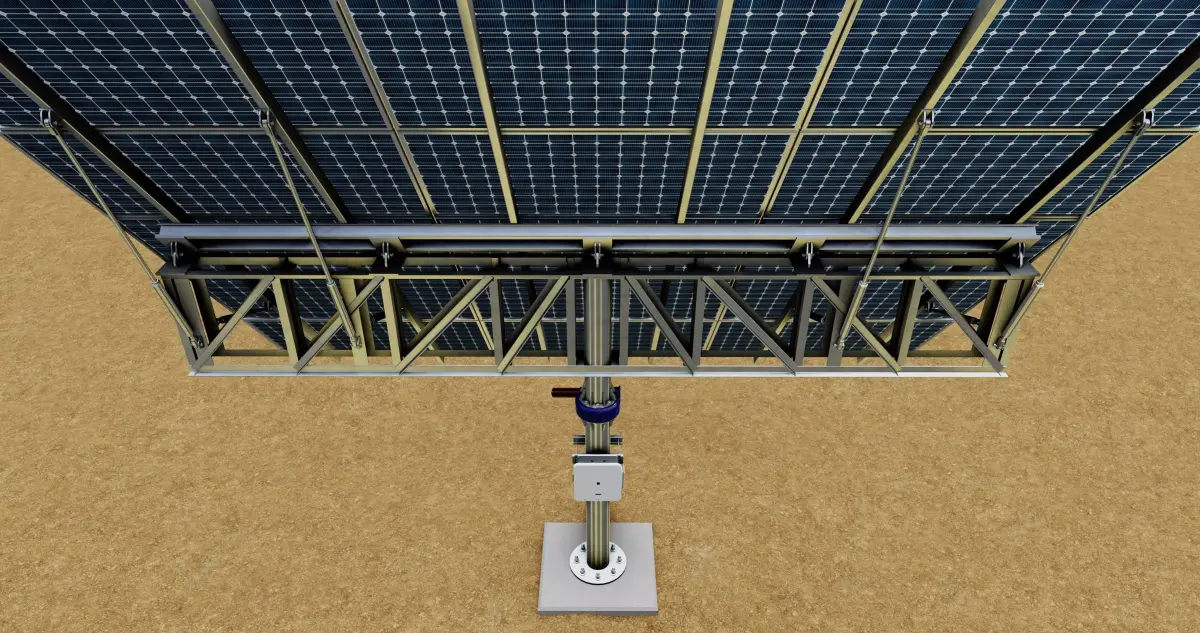

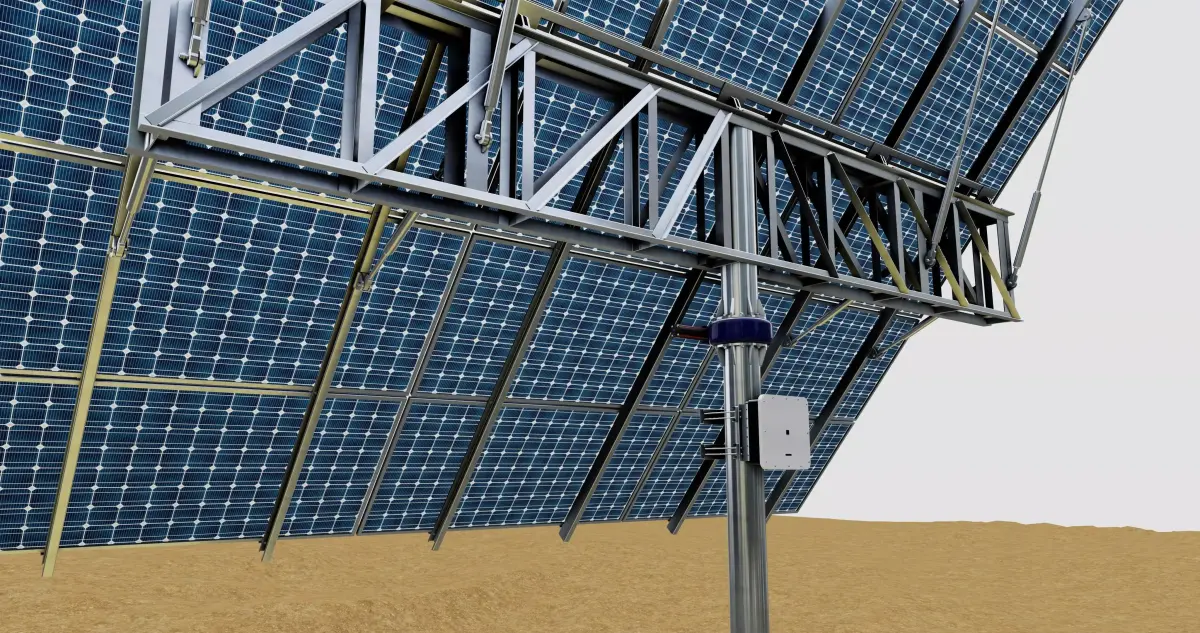

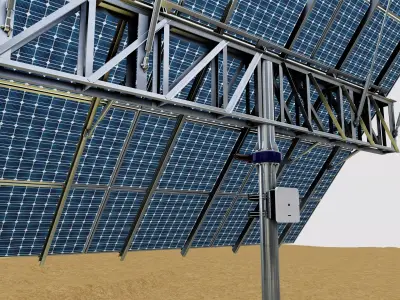

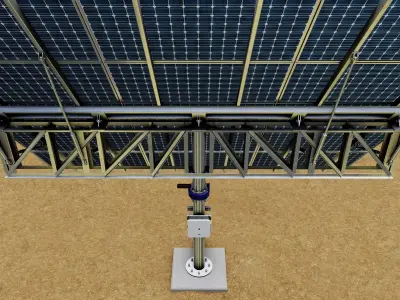

Single Column Design
Horizontal angle of panel 55°
A Python script code has been prepared in Blender to simulate energy production during the day. When the timeline is played, energy production is simulated between 8:00 a.m. and 4:00 p.m. A monitoring screen has been modeled to display the technical data of the power plant, and the technical information has been adapted to the screen in text form.
To run the energy production simulation and prevent it from resetting when it malfunctions, simply go to the Scripts section in Blender, press the PLAY button once in the code section, and switch to the model section.
HDRI has been downloaded free of charge from the Poly Haven site. There is no charge for HDRI. HDRI can be downloaded with the model or other HDRI files can be used from the Poly Haven site with different fees or free of charge.
Used HDRItiergarten_4k
All models are 1/1 real world scale.
Exported formats;
Animation has not been added to exported formats. There is no animation in formats other than Blender.
Animation can be added to dae-fbx-obj formats upon request after purchase.
Prepared With BLENDER Version 4.0.1
Polygons : 331748
Vertices : 441740
Objects : 843
Native Formats: BLEND (Blender, filesize: 23.3 MB)
Exchange Formats: OBJ (OBJ, filesize: 47.8 MB), FBX (Autodesk FBX, filesize: 43.7 MB), OTHER (Other, filesize: 128 MB), DAE (Collada, filesize: 44.6 MB)
