Name: Electro Magnetic Induction Heater - Steam Engine - Concept 3D model
Brand: Raqia-Design
SKU: 198141
Price: 7.00 USD
Availability: InStock

License: Editorial No Ai

author:

Raqia-Design

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Raqia-Design». CGhub does not claim copyright ownership over the content used.

Electro Magnetic Induction Heater - Steam Engine Design - Concept.

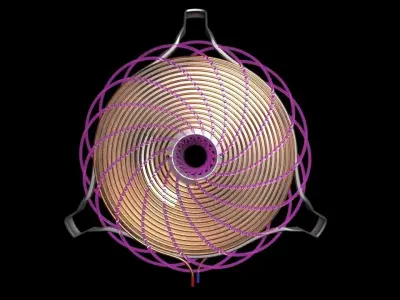

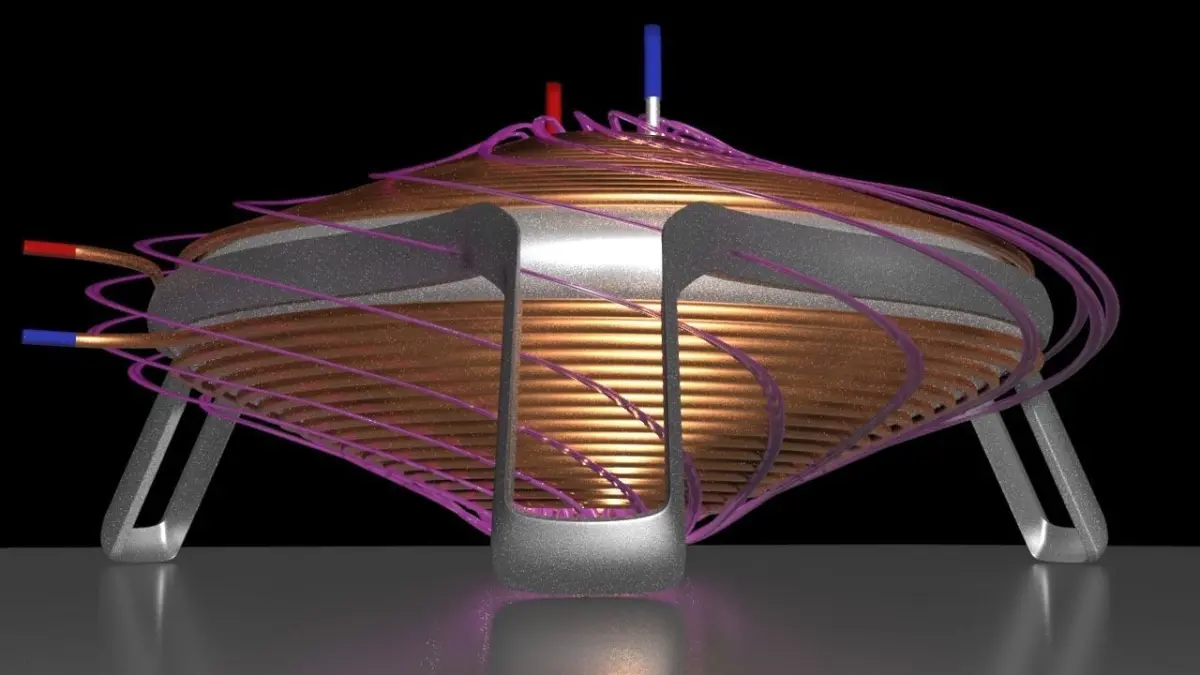

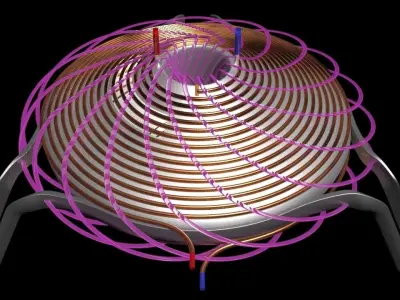

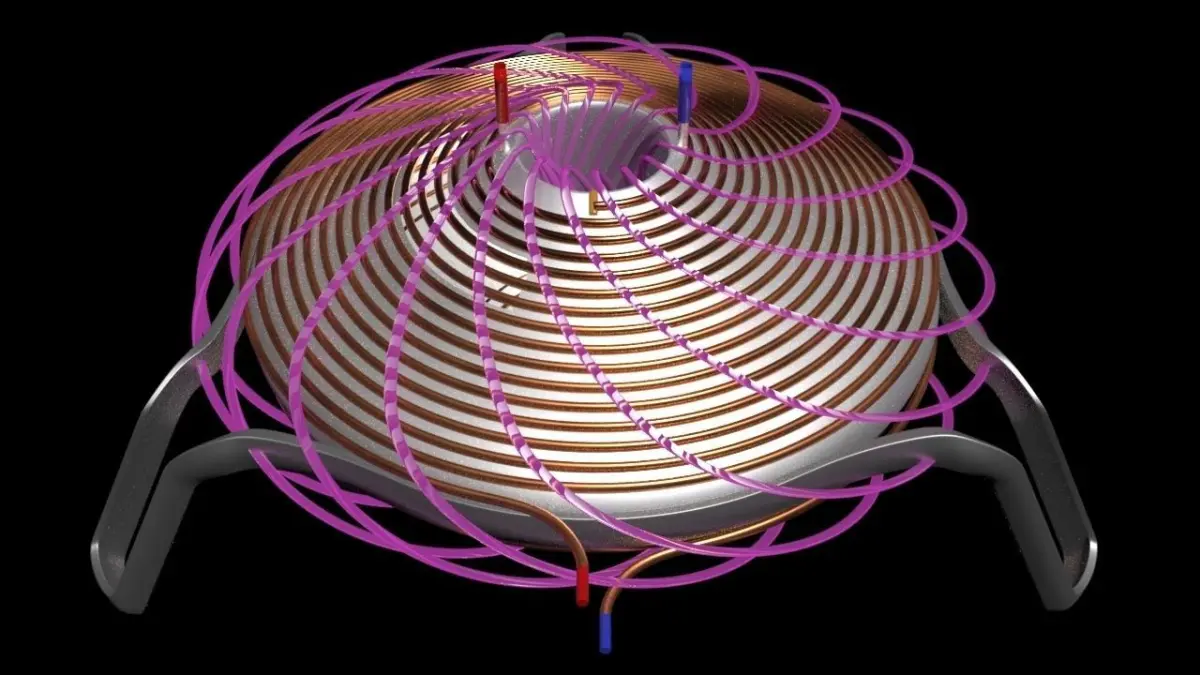

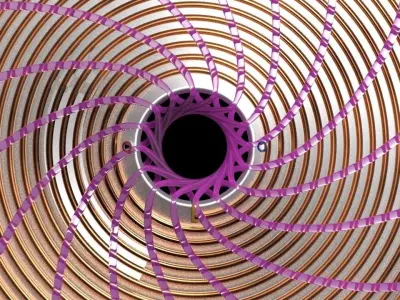

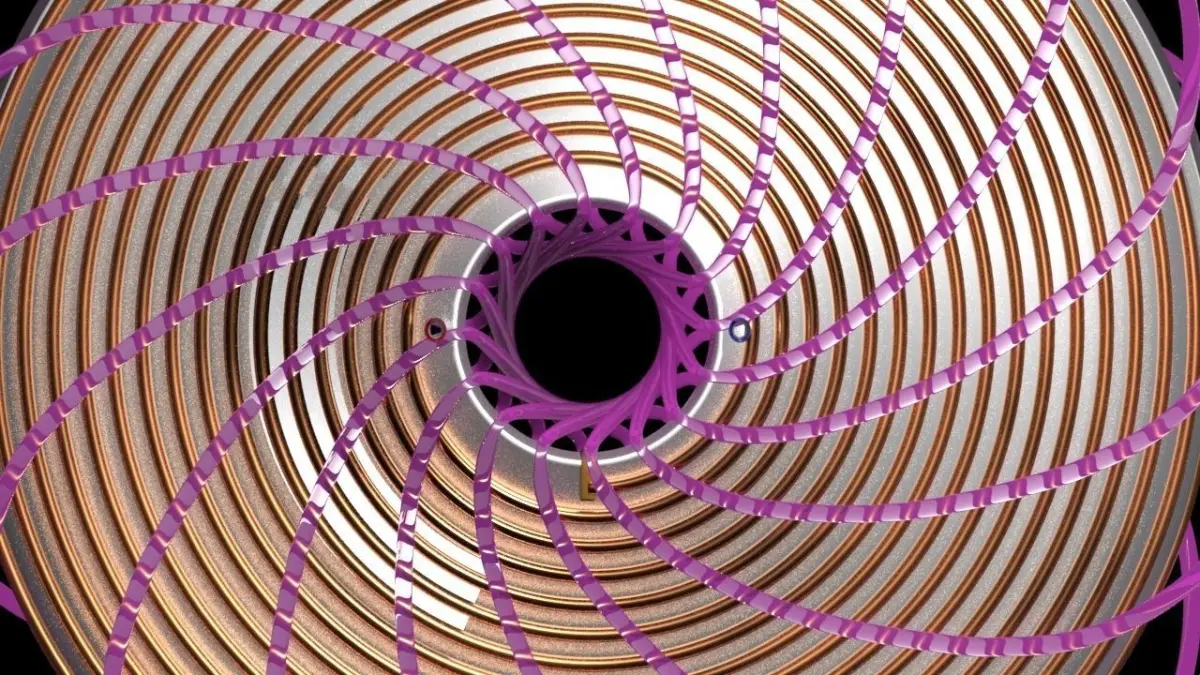

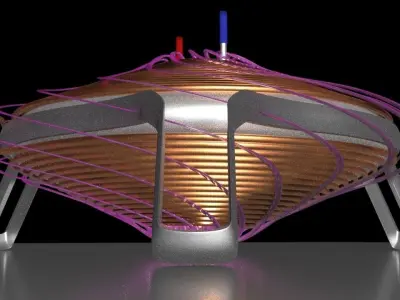

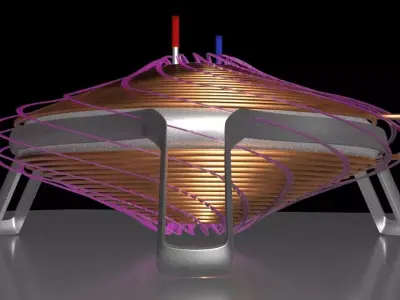

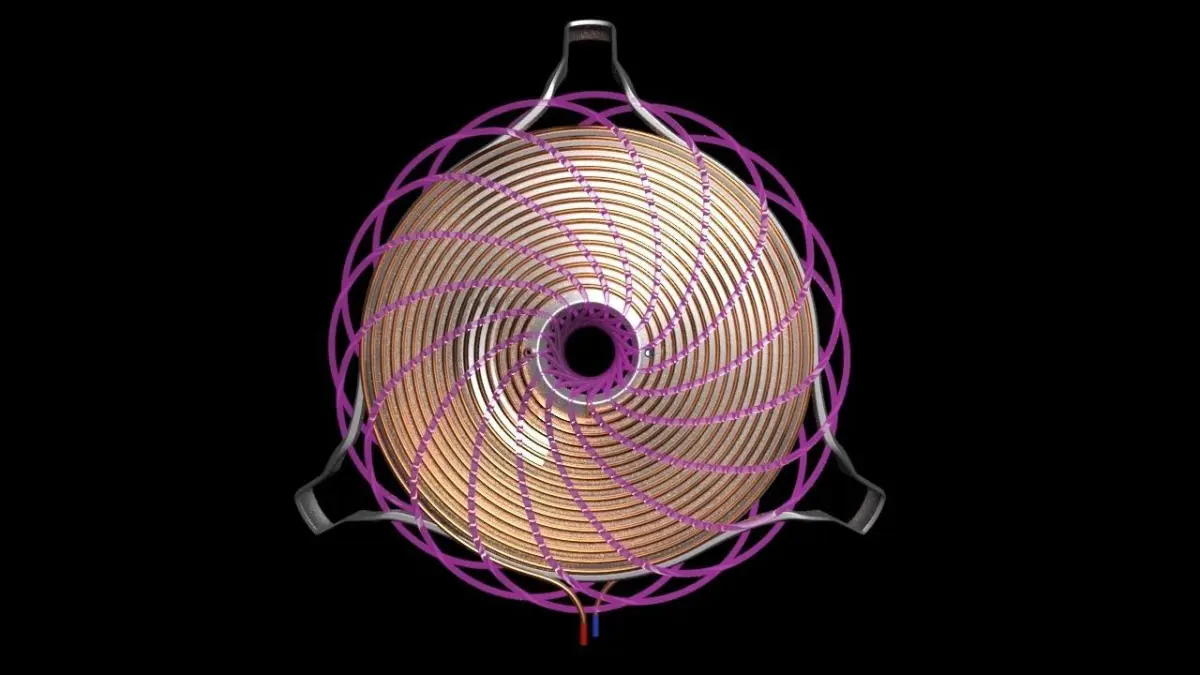

The coil, is a assymetric pancake coil, connected to the bottom assymetric pancake coil, in a single circuit, together forming a single electro magnetic coil, creating a rotating magnetic field through the entire water basin. we could even add a spinning magnetic disc inside, able to stir the water or fluid, for an even quiker boil temperature. perhaps add a few capacitor plates inside as well. ive modeled in two top pipes, one for filling water, one for extraing steam. in this example the water container as well as the surrounding holder are made out of aluminum, as it responds well to magnetic polar switches and vibration. a magnetic field will move from top to bottom or vice versa, through the entire apparatus. the idea is to heat or boil water using only a magnetic field and no rotating magnets, although they too could be added below for experimentation purposes etc.

Have a great day, thank you for your support, every like helps me out.
