Electromagnetic Insulator - Amplifier Coil - Concept.

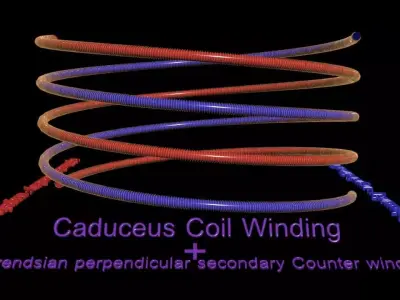

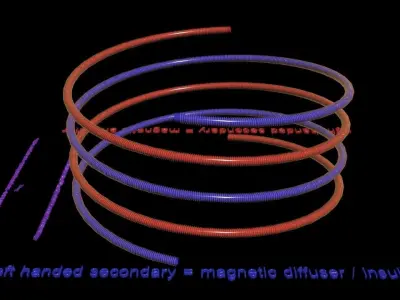

Tesla coil combined with a perpendicular wound secondary coil around it. perhaps two separate coils can be used in a caduceus configuration, depending on the output need or intension of the coil.

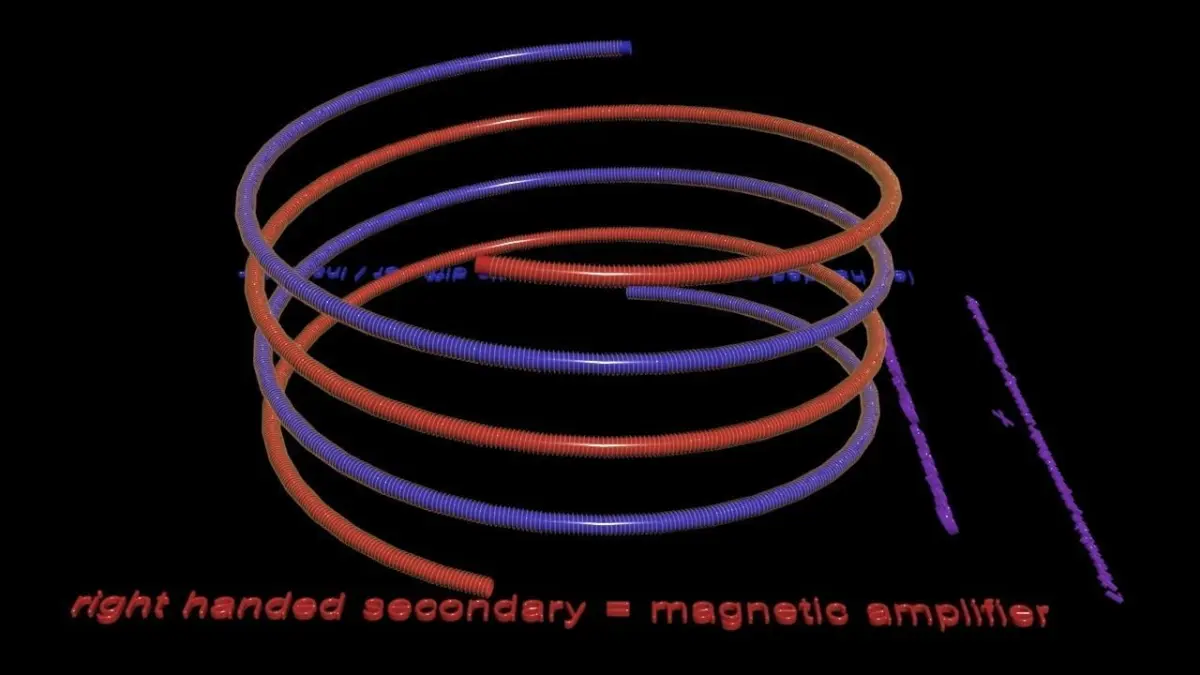

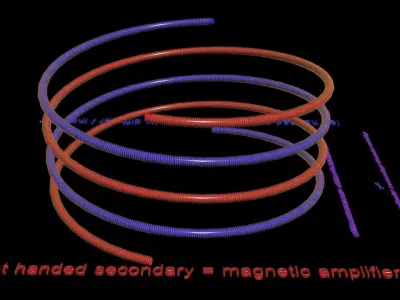

the right handed rule suggests that if we wind the secondary coil with the current of the mains electric current flow, we amplify the magnetic field with the extra secondary coil winding.

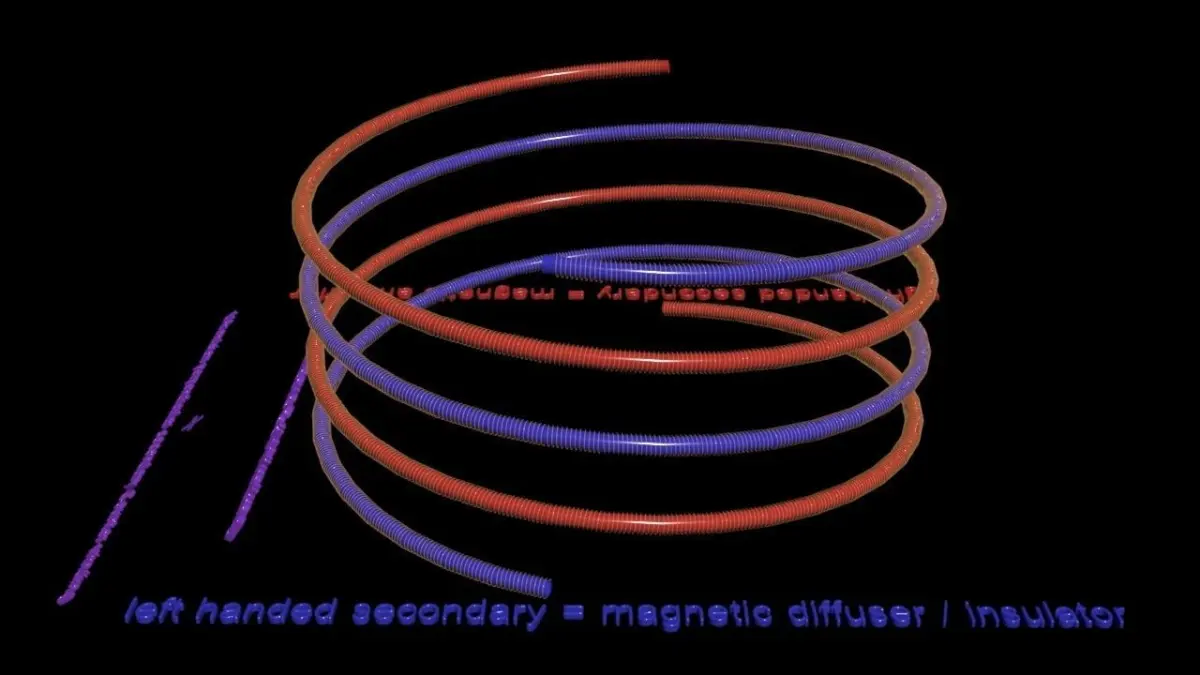

if we wind if left handed, counter the current flow, we disturb the magnetic flow outward of the primary, and we can insulate, disturb or diffuse the electromagnetically created magnetic field perhaps.

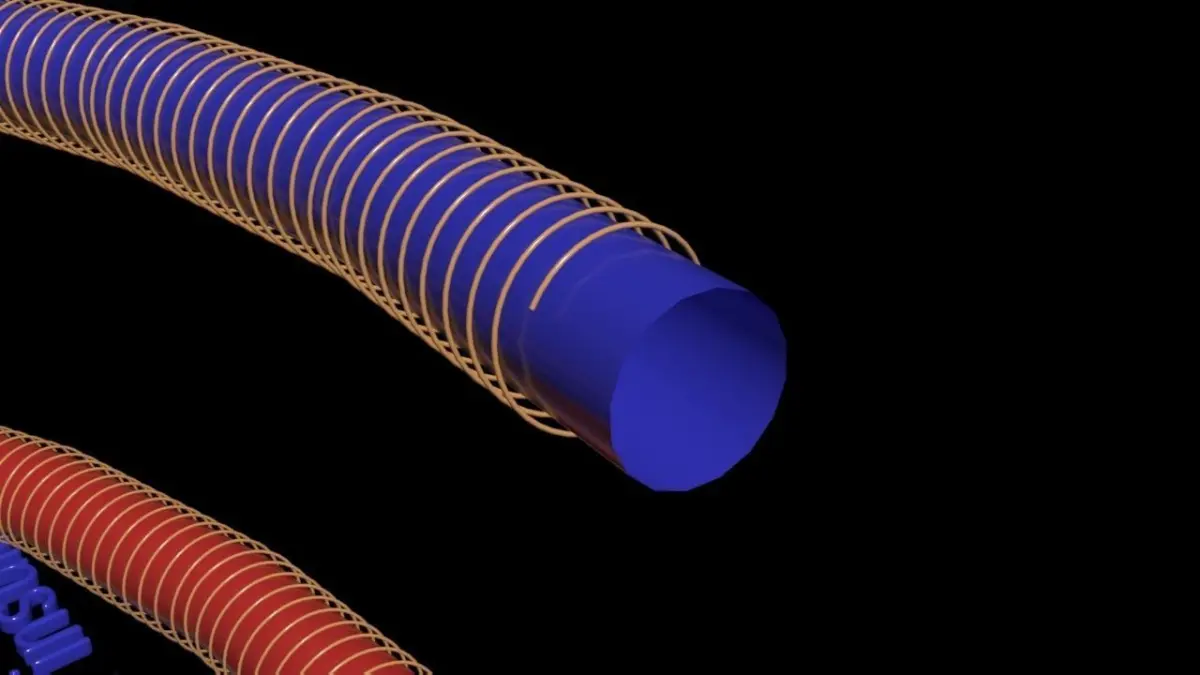

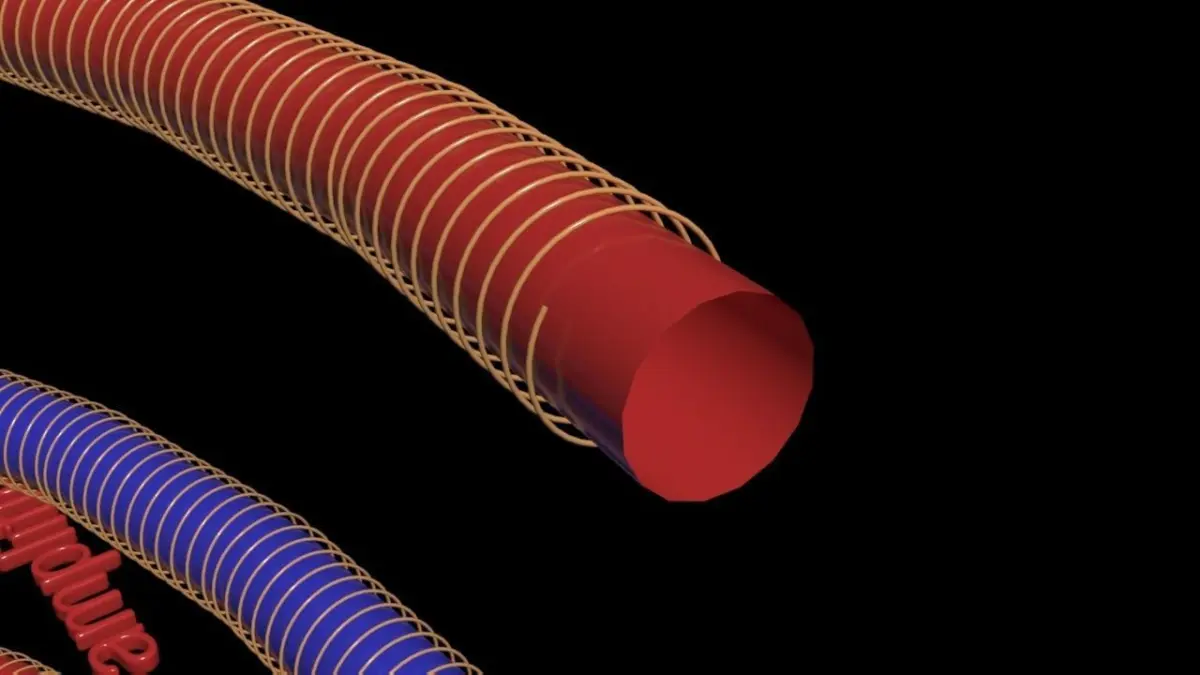

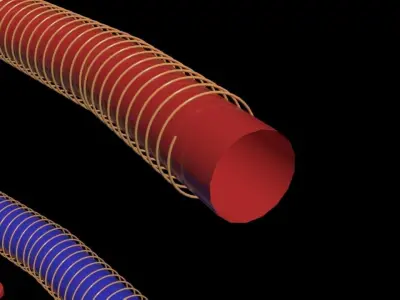

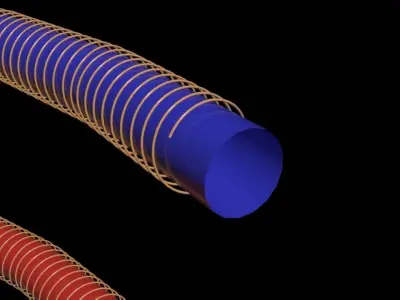

multiple configurations could be tested with this model, depending on the initial winding direction of the coil, the initial secondary coil, and the need from the coils. if we gave thickness to the main coil, and kept it hollow, we could fit in a copper cable, stick it through it, and insulating it (or not) from the secondary coil winding.
