Emergency Curtain Wall Panel Door 3D model

License: Royalty Free

author:

droumbas

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «droumbas». CGhub does not claim copyright ownership over the content used.

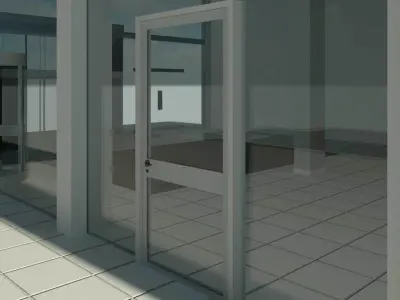

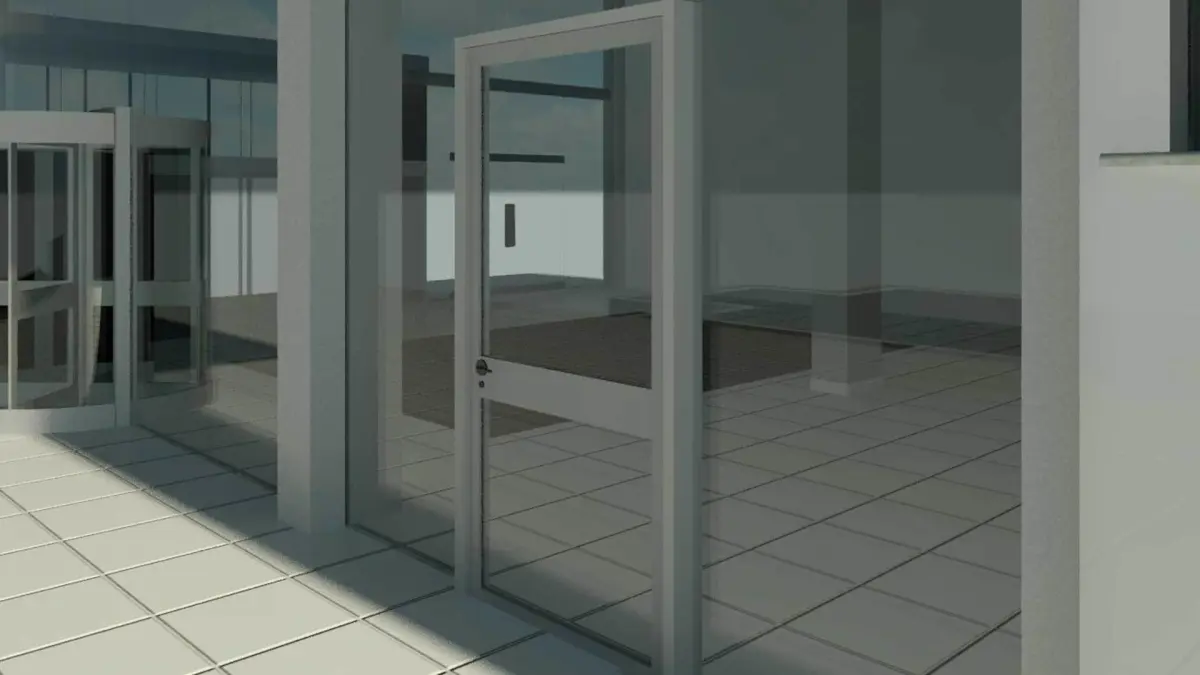

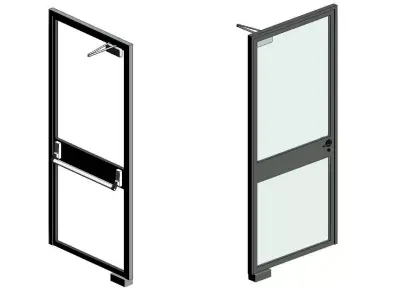

Revit Family Model of an Emergency Curtain Wall Panel Door. This is a fully parametric curtain wall panel based family than can be easily loaded into every project and placed on any curtain wall panel.Single emergency exit aluminium single door for curtain walls.

ATTRIBUTES:

Revit Version 2022
Family Type : Curtain Wall Panel
File Extension : .rfa

PARAMETERS:

Width and height are automatically adapted from the curtain wall panel dimensions
Frame Wdith and Depth
Glass Thickness
Leaf Frame Width and Depth
Leaf Setback from door frame
Panel Offset from curtain wall centerline
Middle Frame Height and Width ( for the emergency push bar )
Stopper Width
Materials ( leaf, frame, glass, ceiling spring, floor spring, emergency push bar, door handle and lock )

Use can create multiple family type variations to match design criteria of any project
