EN 1092-1 PN16 FLAT FLANGES 3D model
Home Catalog EN 1092-1 PN16 FLAT FLANGES 3D model
EN 1092-1 PN16 FLAT FLANGES 3D model
EN 1092-1 PN16 FLAT FLANGES 3D model
EN 1092-1 PN16 FLAT FLANGES 3D model
EN 1092-1 PN16 FLAT FLANGES 3D model
EN 1092-1 PN16 FLAT FLANGES 3D model

Publication date: 2022-02-27

EN 1092-1 PN16 FLAT FLANGES 3D model

$2

License: Royalty Free License

author:

albay3dstudio

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «albay3dstudio». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $2 Add to Wishlist
  • Description
  • Formats
Description

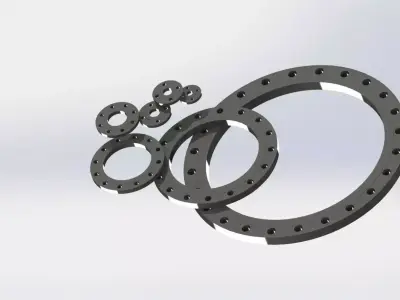

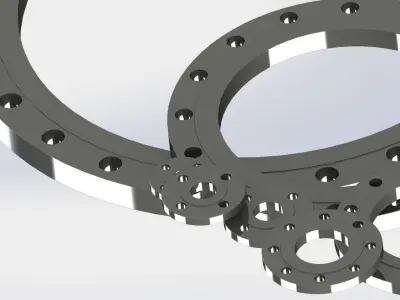

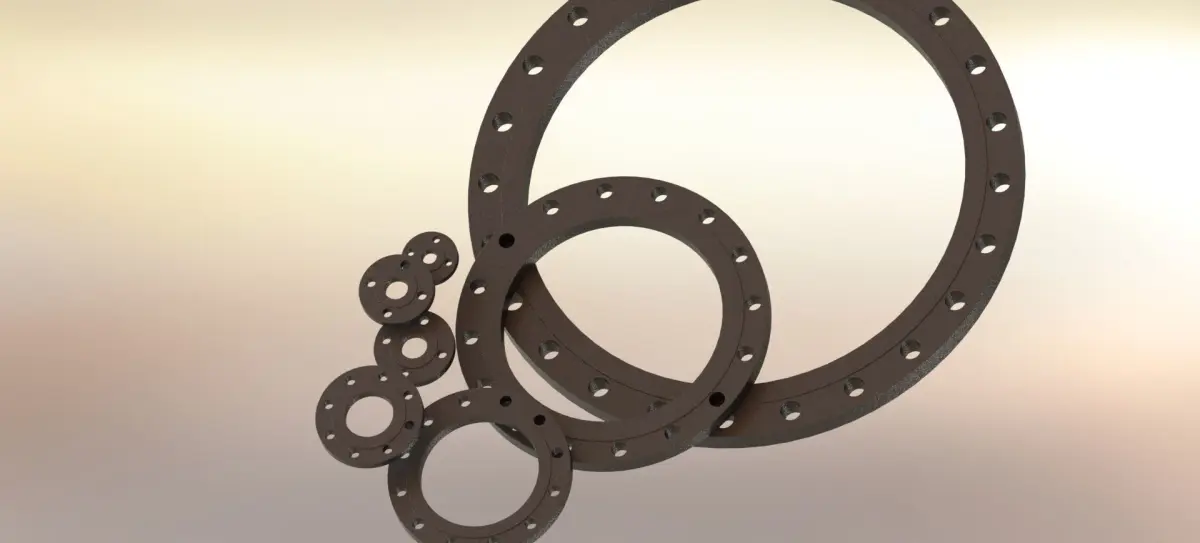

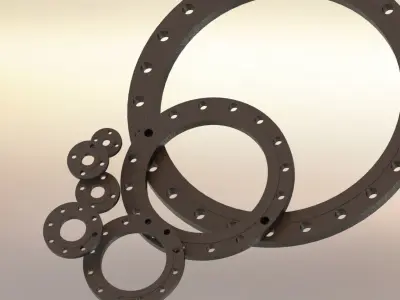

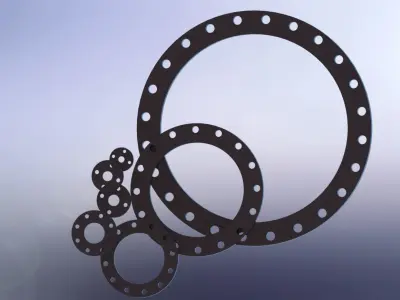

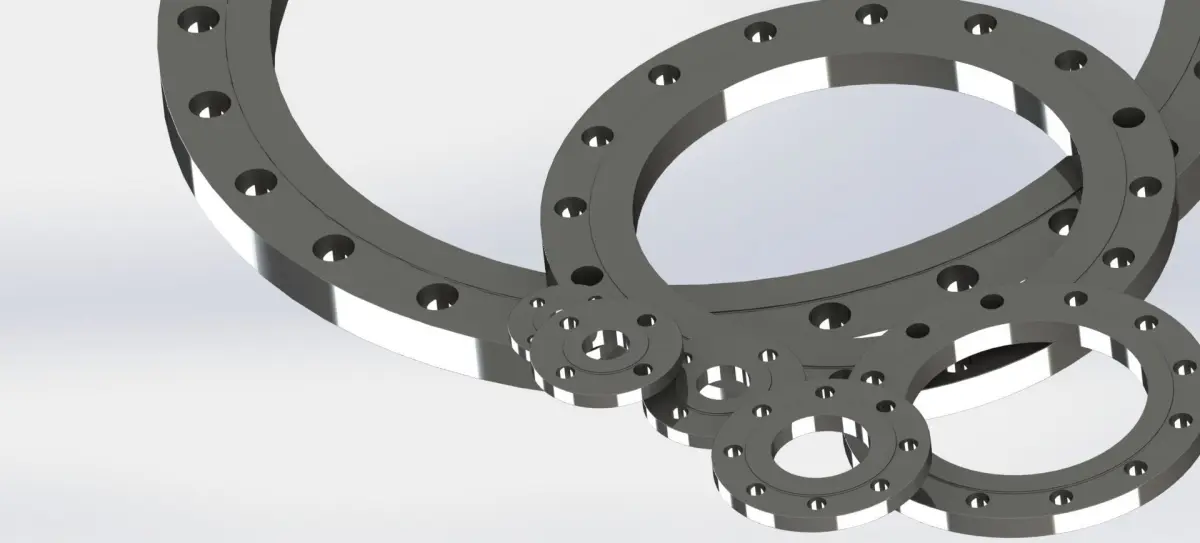

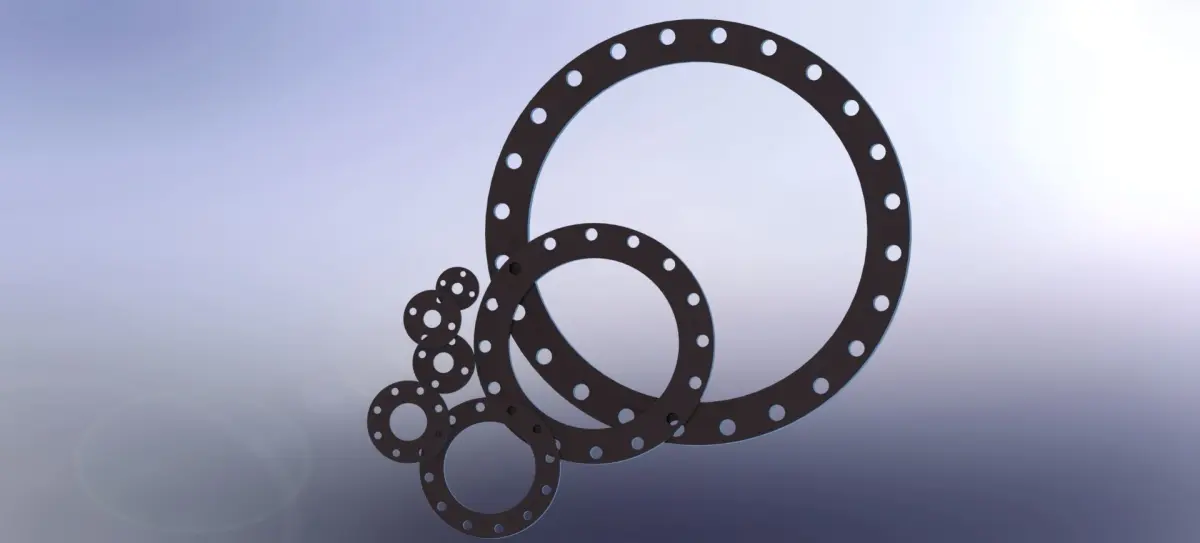

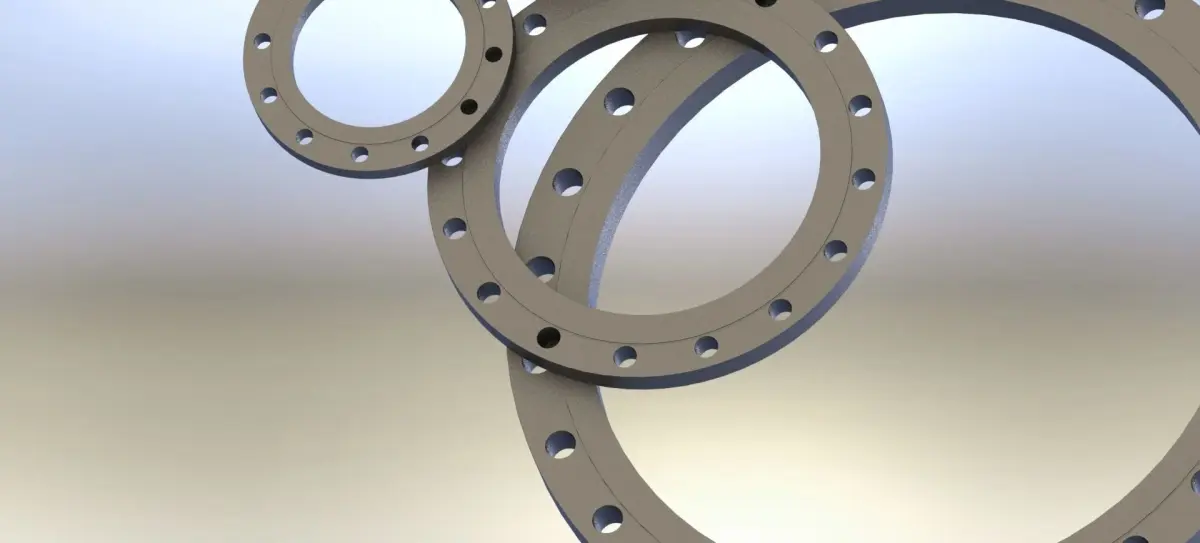

This model is including Flat Flanges (EN 1092-1) between DN15 - DN1000.

  • DN 15 - DN 1000 PN 16 Flat Flanges .Step and .Part Files.
  • Flange material chose as S235JR but you can changed to any material like (AISI 304L or AISI 316L).
  • There are 3 files in ZIP file, Part Files, Photos and STEP files.
  • DN 15 PN 16 Flat Flange, DN 20 PN 16 Flat Flange, DN 25 PN 16 Flat Flange, DN 32 PN 16 Flat Flange, DN 40 PN 16 Flat Flange, DN 50 PN 16 Flat Flange, DN 65 PN 16 Flat Flange, DN 80 PN 16 Flat Flange, DN 100 PN 16 Flat Flange, DN 100 PN 16 Flat Flange, DN 125 PN 16 Flat Flange, DN 150 PN 16 Flat Flange, DN 200 PN 16 Flat Flange, DN 250 PN 16 Flat Flange, DN 300 PN 16 Flat Flange, DN 350 PN 16 Flat Flange, DN 400 PN 16 Flat Flange, DN 450 PN 16 Flat Flange, DN 500 PN 16 Flat Flange, DN 600 PN 16 Flat Flange, DN 700 PN 16 Flat Flange, DN 800 PN 16 Flat Flange, DN 900 PN 16 Flat Flange, DN 1000 PN 16 Flat Flange
Native
  • SolidWorks 2018 ()7.14 MB
Exchange
  • STEP AP214 ()7.14 MB

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Other
  • Polygons: Unknown
  • Vertices: 0

Tags

Flat Flange Stainless Steel Flanges Solidworks Step File Industrial Part Industrial part
