EN10253 Pipe Elbow 90 Long Radius DN250-DN400 CAD Library 3D model
EN10253 Pipe Elbow 90 Long Radius DN250-DN400 CAD Library 3D model
EN10253 Pipe Elbow 90 Long Radius DN250-DN400 CAD Library 3D model
EN10253 Pipe Elbow 90 Long Radius DN250-DN400 CAD Library 3D model
EN10253 Pipe Elbow 90 Long Radius DN250-DN400 CAD Library 3D model

Publication date: 2026-04-04

Buy EN10253 Pipe Elbow 90 Long Radius DN250-DN400 CAD Library 3D model

$15

License: Royalty Free

author:

ivanstevanovic1974

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «ivanstevanovic1974». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $15 Add to Wishlist
  • Description
  • Formats

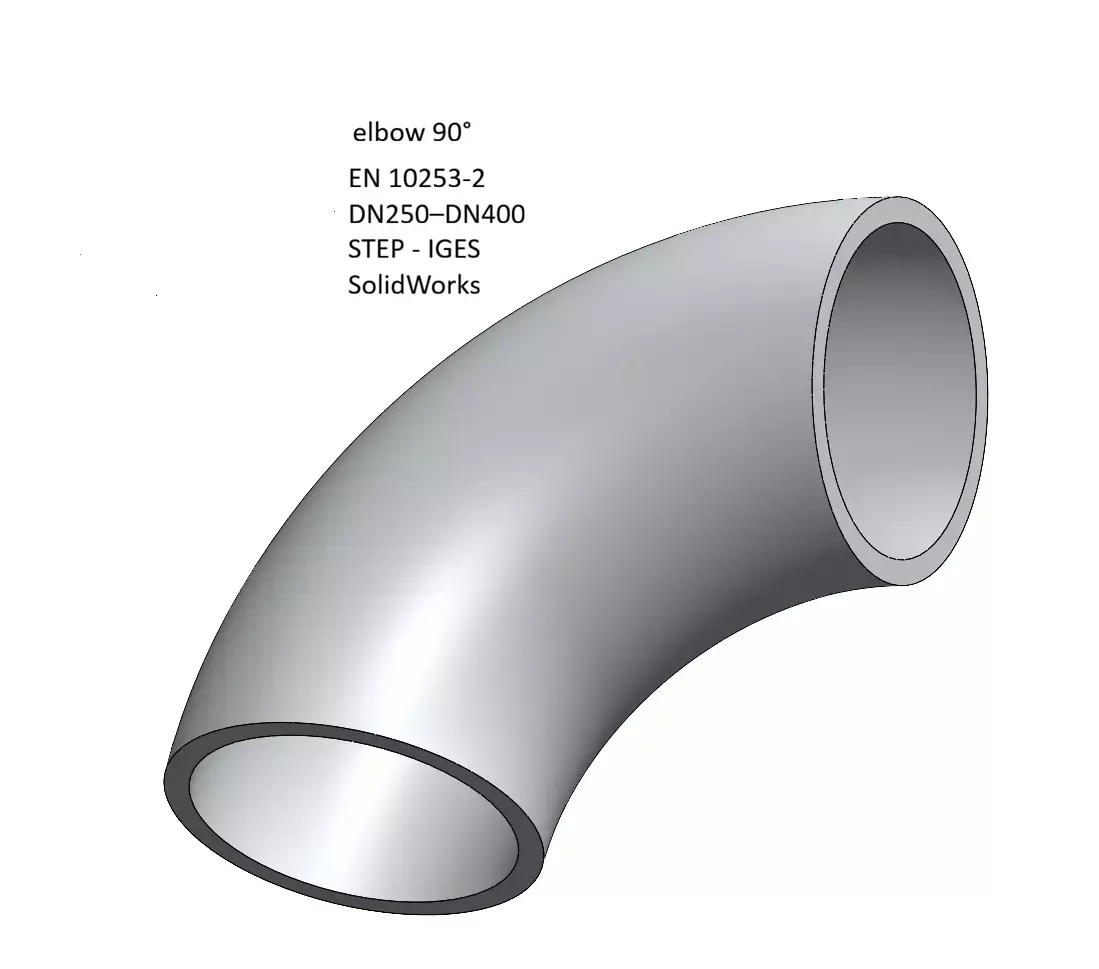

EN10253-2 Pipe Elbow CAD Library

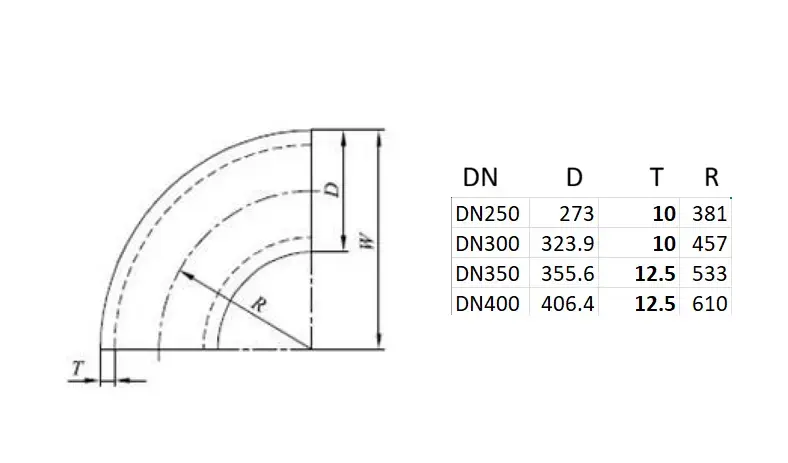

This library contains parametric 90 degree long radius pipe elbows based on the EN10253-2 piping standard.

Included nominal sizes:DN250DN300DN350DN400

The models are created as clean solid CAD geometry suitable for engineering assemblies and piping layouts.

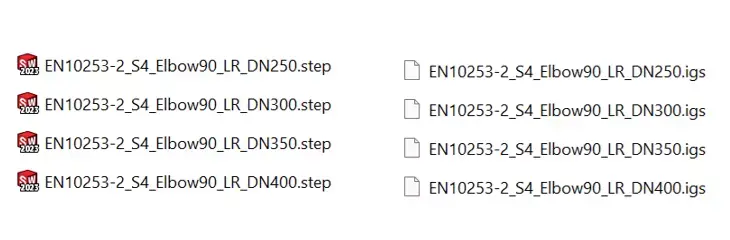

Formats included:STEP (.step)IGES (.igs)SolidWorks (.sldprt)

Geometry:NURBS / B-Rep solid geometry

Units:Millimeters

Applications:Industrial piping systemsPlant engineeringMechanical CAD assembliesPipeline routing and layouts

Software:Created in SolidWorks

IGE (IGES, filesize: 344 KB), SLDPRT (SolidWorks, filesize: 344 KB), STP (STEP, filesize: 344 KB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: Nurbs

Tags

Pipe Elbow Piping Fitting Cad Engineering Solidworks Step Pipeline Industrial Mechanical
