  • Description
  • Formats

Complete EN 1092-1 PN16 flange CAD library.

This pack contains three flange types commonly used in industrial piping systems:

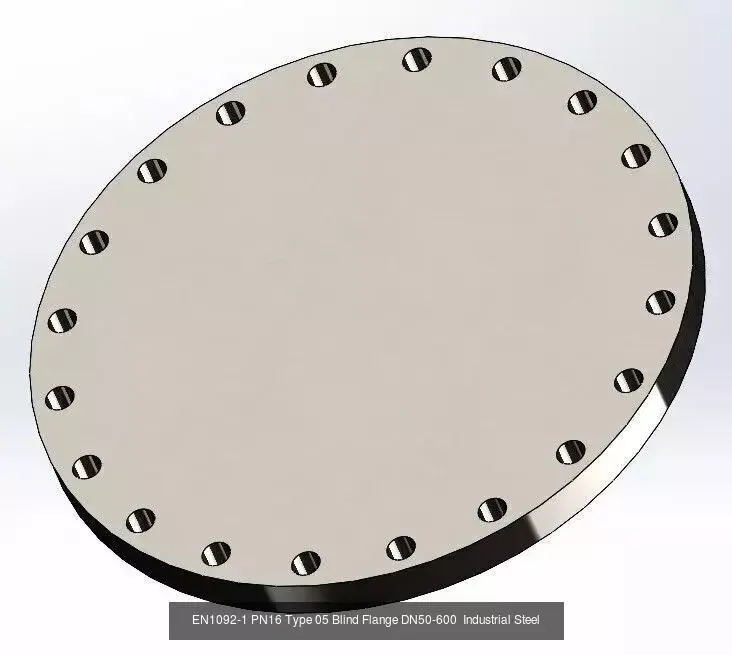

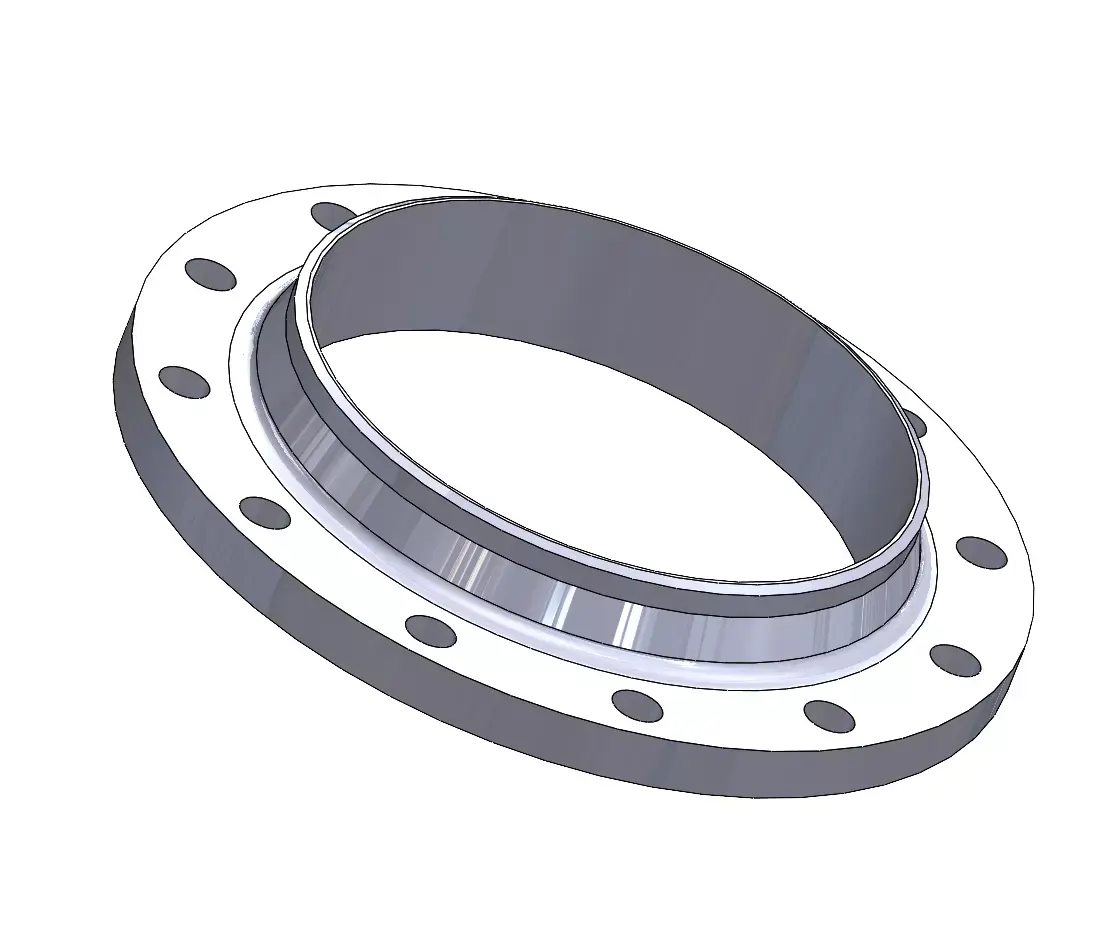

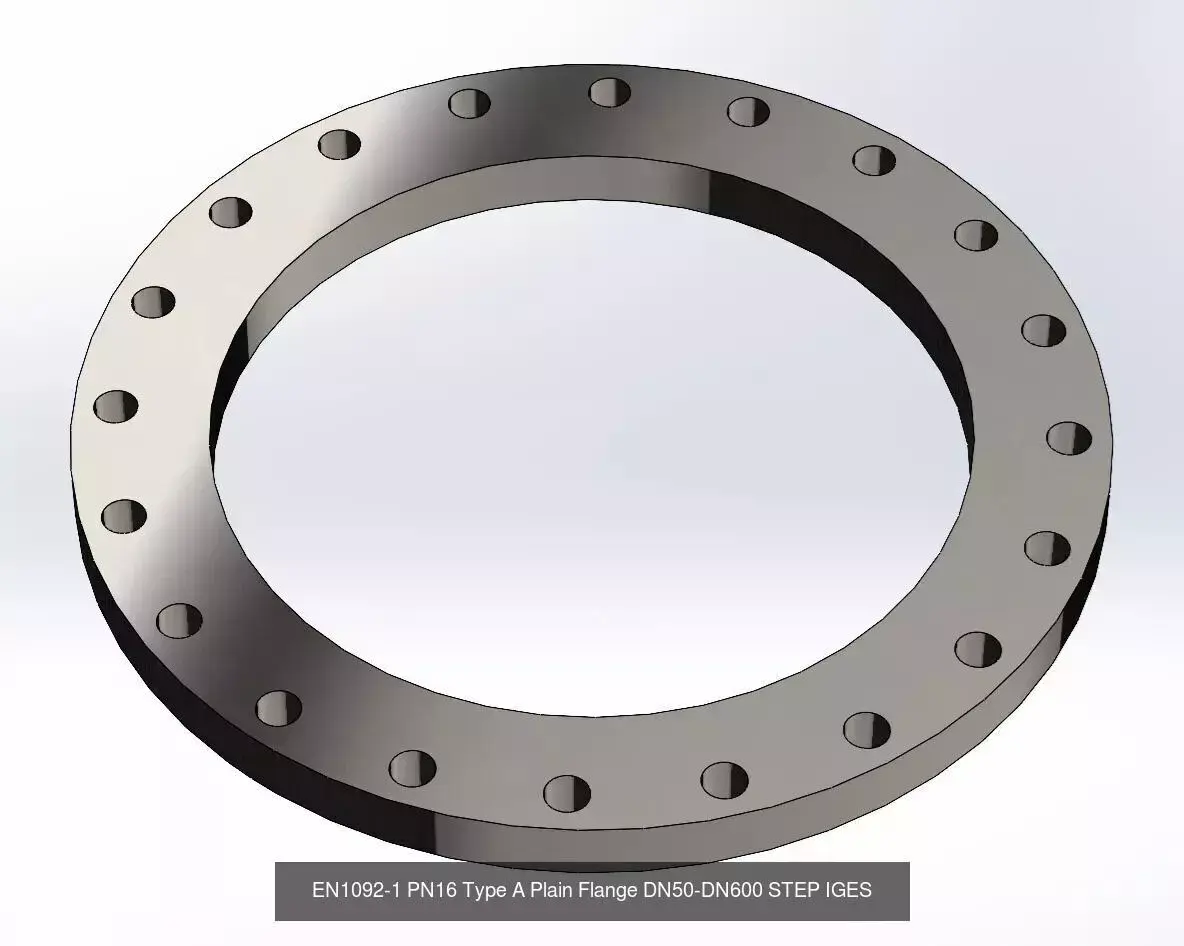

• Type 05 Blind Flange• Type A Plate (Plain) Flange• Type 11 Weld Neck Flange

Nominal sizes included:DN50 – DN600

The models are suitable for piping design, mechanical assemblies, plant engineering and industrial CAD projects.

Included file formats:• SOLIDWORKS• STEP• IGES

All models are clean CAD geometry and ready for professional engineering use.

SLDPRT (SolidWorks, filesize: 5.58 MB), IGE (IGES, filesize: 8 MB)
