Buy EN1092-1 PN16 Plain - Blind Flange Pack DN50-600

Name: EN1092-1 PN16 Plain - Blind Flange Pack DN50-600
Brand: ivanstevanovic1974
SKU: 910077
Price: 59.00 USD
Availability: InStock

$59

License: Royalty Free

author:

ivanstevanovic1974

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «ivanstevanovic1974». CGhub does not claim copyright ownership over the content used.

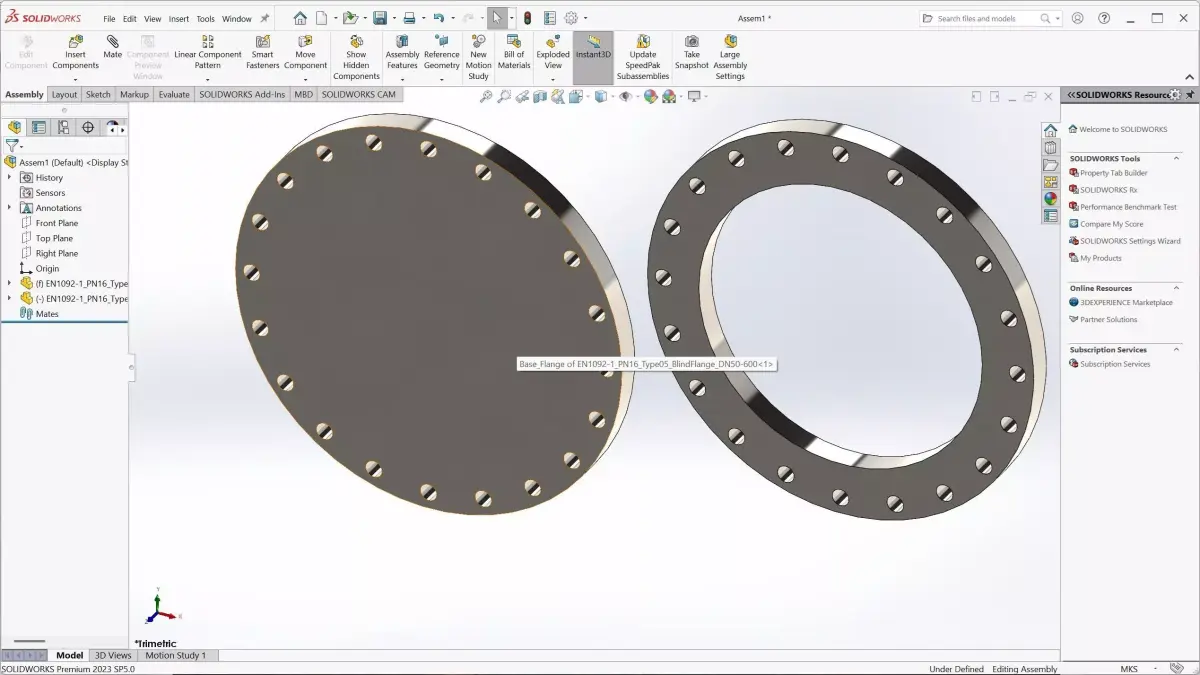

EN 1092-1 PN16 flange pack including:

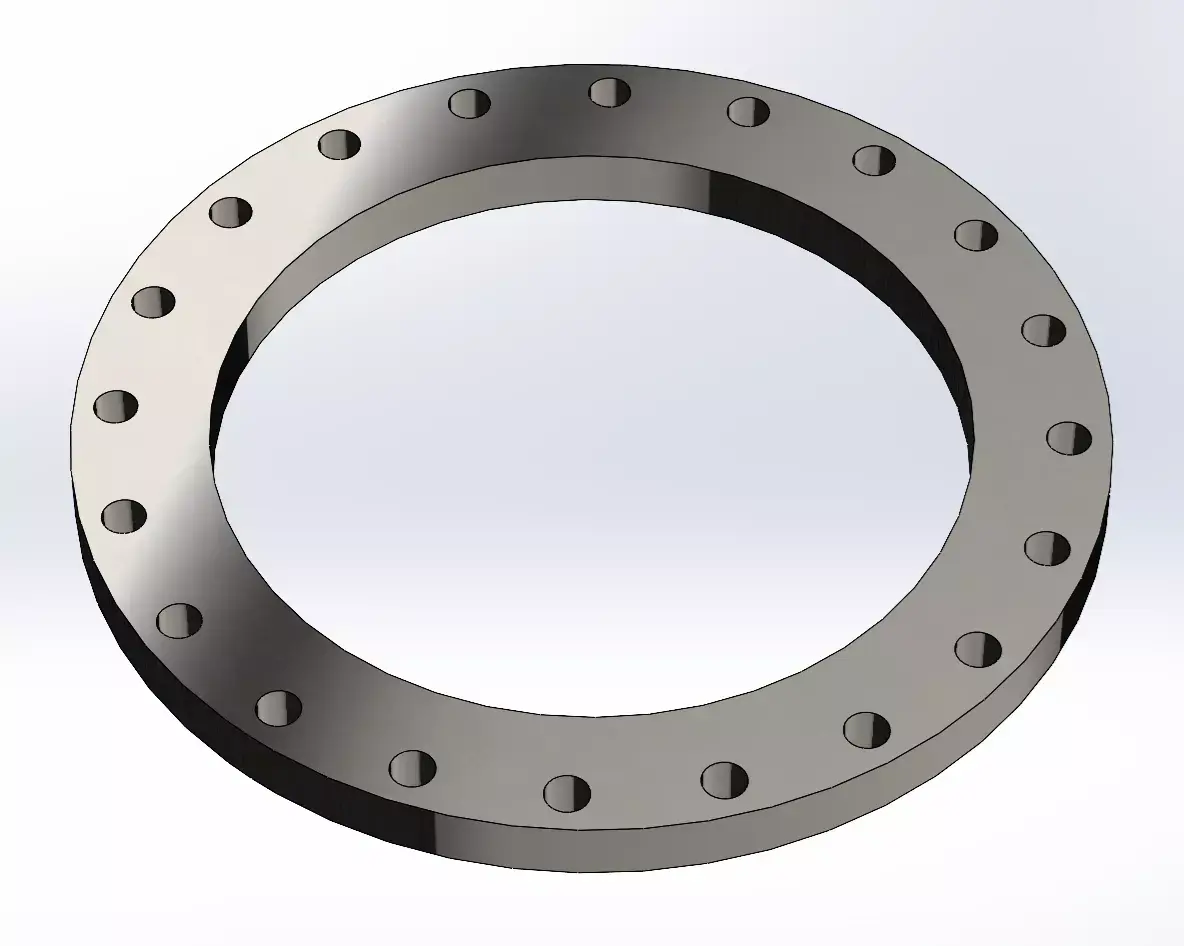

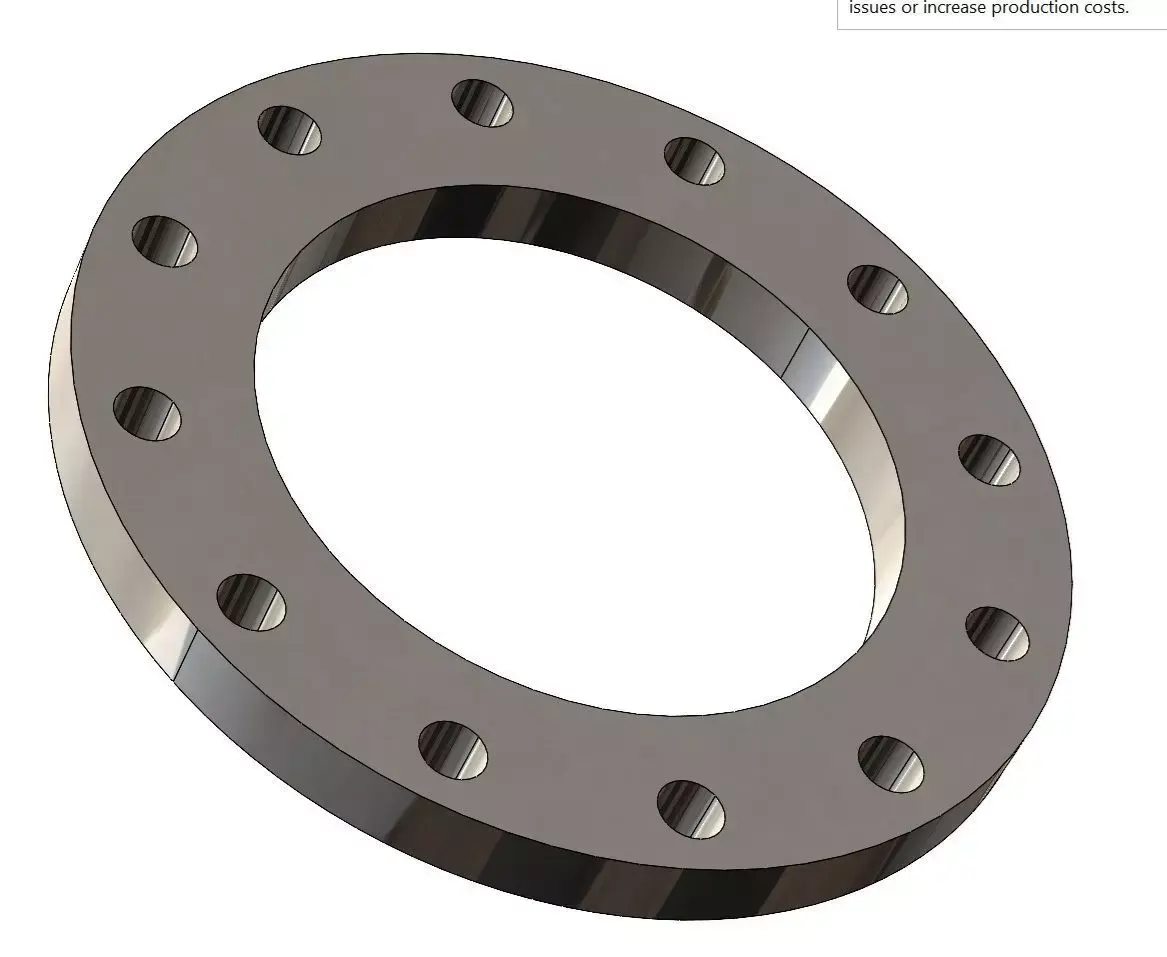

• Type A Plain Flange (DN50–DN600)• Type 05 Blind Flange (DN50–DN600)

All nominal diameters from DN50 to DN600 included.Fully compliant with EN 1092-1 PN16 standard.

Each model contains:

SolidWorks native file (.SLDPRT)
STEP neutral file (.STEP)
IGES file (.IGES)

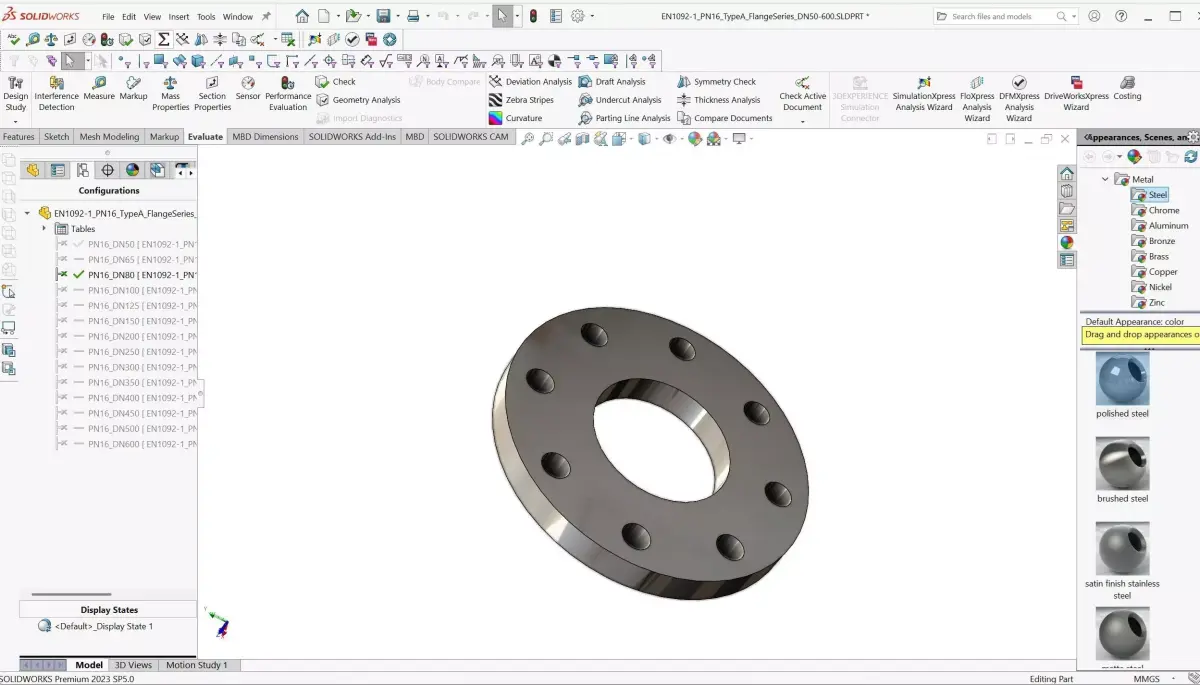

Parametric configuration table
Units: millimeters (mm)

Bolt circle, hole diameter and thickness are fully configurable.

Suitable for piping systems, pressure equipment and industrial design.

Standard dimensions according to EN 1092-1 Table 6.Pressure rating: PN16.Face type: Type A (Plain) / Type 05 (Blind).No central bore for blind version.
