EN1092-1 PN16 Type 05 Blind Flange DN50-600 Industrial Steel 3D model
EN1092-1 PN16 Type 05 Blind Flange DN50-600 Industrial Steel 3D model
EN1092-1 PN16 Type 05 Blind Flange DN50-600 Industrial Steel 3D model
EN1092-1 PN16 Type 05 Blind Flange DN50-600 Industrial Steel 3D model
EN1092-1 PN16 Type 05 Blind Flange DN50-600 Industrial Steel 3D model

Publication date: 2026-02-24

Buy EN1092-1 PN16 Type 05 Blind Flange DN50-600 Industrial Steel 3D model

$39

License: Royalty Free

author:

ivanstevanovic1974

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «ivanstevanovic1974». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $39 Add to Wishlist
  • Description
  • Formats

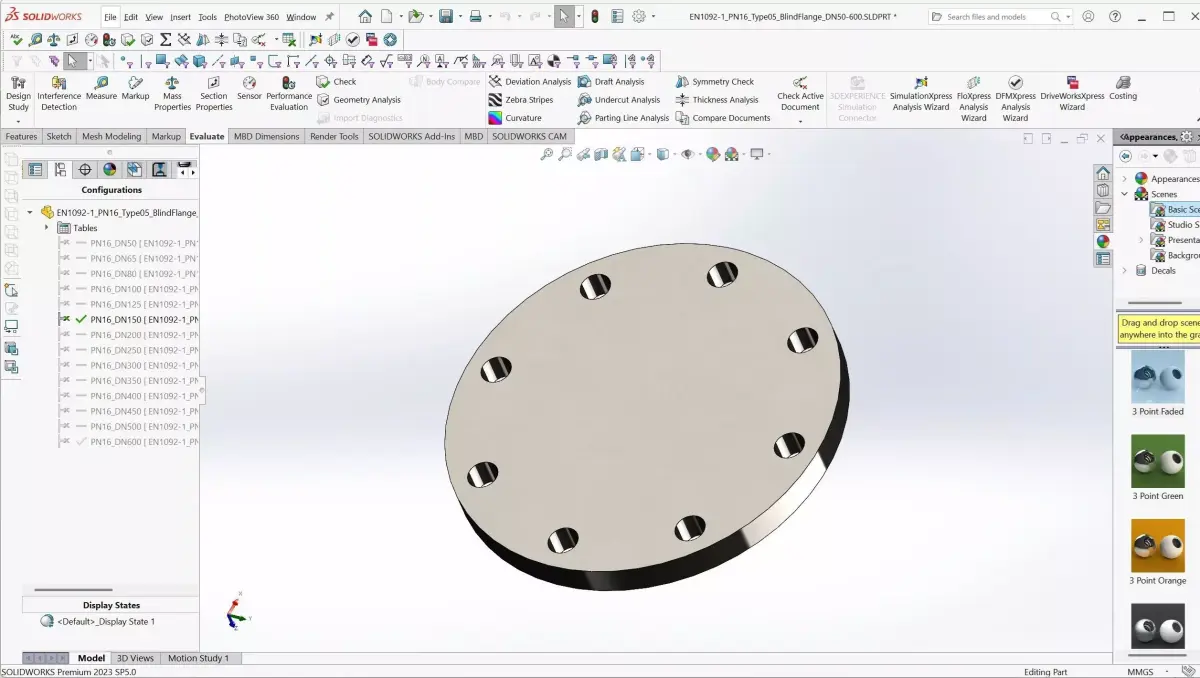

Parametric SolidWorks part file (.SLDPRT)

Standard: EN 1092-1Type: 05 Blind FlangePressure rating: PN16Size range: DN50–DN600

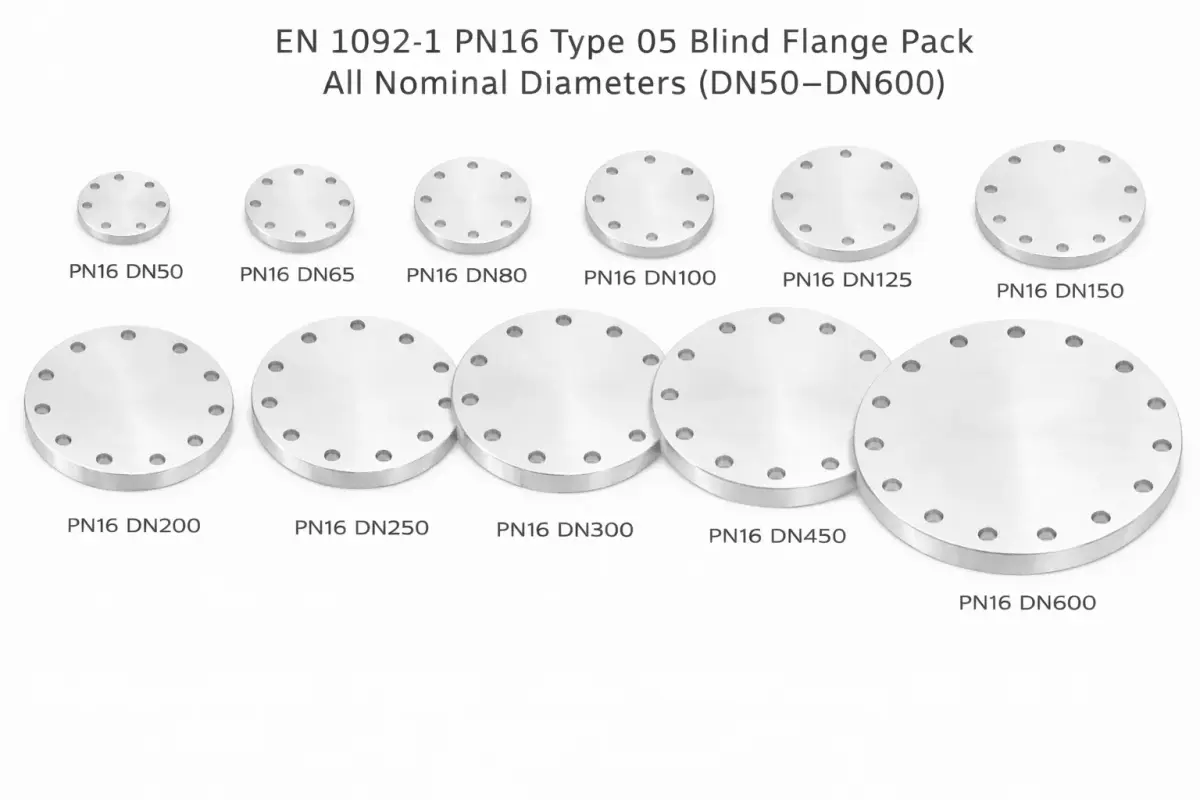

Includes 15 configurations:DN50, DN65, DN80, DN100, DN125, DN150,DN200, DN250, DN300, DN350,DN400, DN450, DN500, DN600

Fully parametric model with configuration table.All dimensions according to EN 1092-1 PN16.Units: millimeters (mm).

Neutral STEP file (.STEP)

Exported from SolidWorks 2023All configurations included as separate bodies.Units: millimeters (mm).Standard: EN 1092-1 PN16 Type 05 Blind Flange.

IGES neutral CAD file (.IGES)Compatible with most CAD systems.Units: millimeters (mm).EN 1092-1 PN16 Type 05 Blind Flange.

Bolt circle, hole diameter and thickness are fully configurable via design table.

SLDPRT (SolidWorks, filesize: 2.25 MB), IGE (IGES, filesize: 2.25 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: Nurbs

Tags

Pn16 Blind Flange Type Din Industrial Solidworks Step Parametric Piping Mechanical Engineering Cad Pressure
