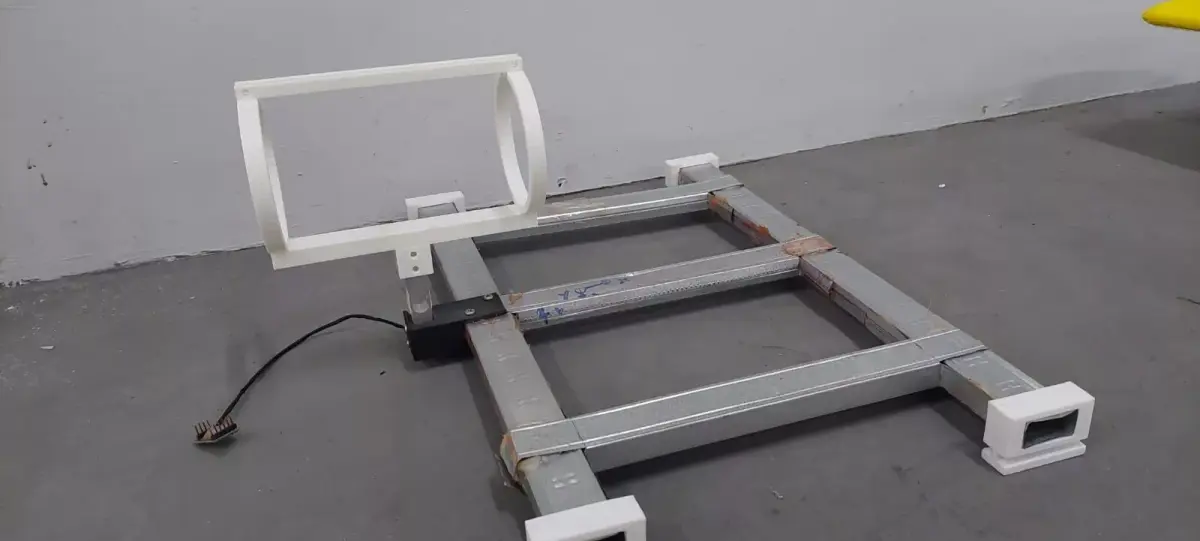

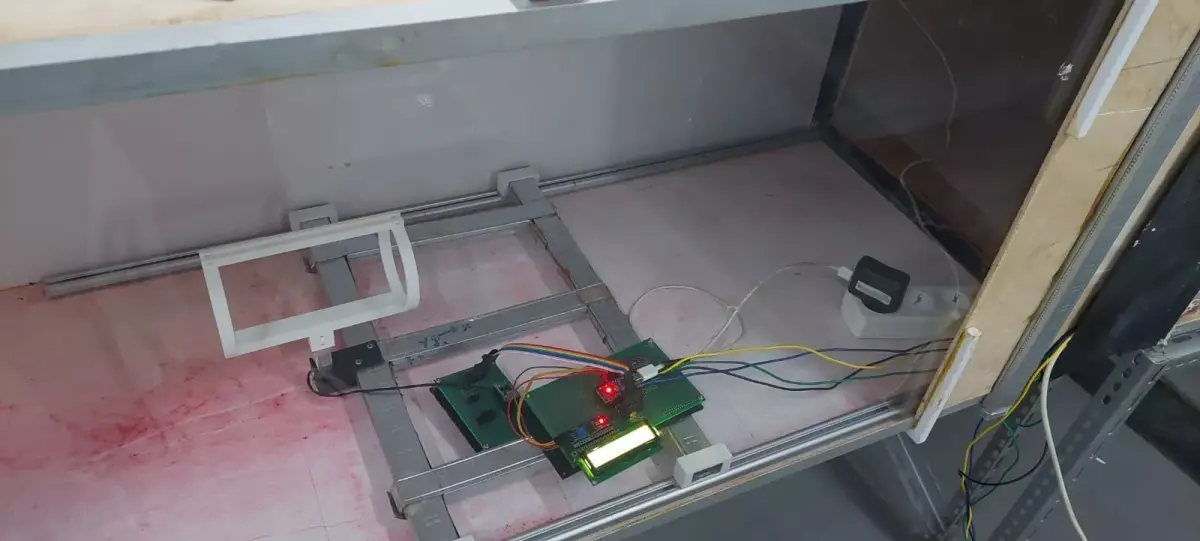

Fuselage Monocoque Test Jig for RC Aircraft Drag and Load using HX-711 Load Cell

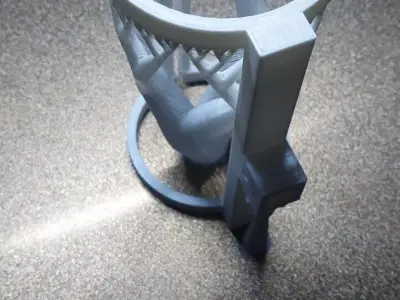

This is a structural test fixture designed to help evaluate the stiffness and load-bearing performance of RC fuselage monocoque shells.As RC builders experiment with thinner skins, composite layering, and lightweight internal frames, having a dedicated jig for repeatable testing becomes incredibly useful.

The jig provides a stable mounting base to test bending, torsional rigidity, compression strength, and skin-frame interactions. It is dimensioned to fit small to mid-size fuselage sections and can be scaled as needed.

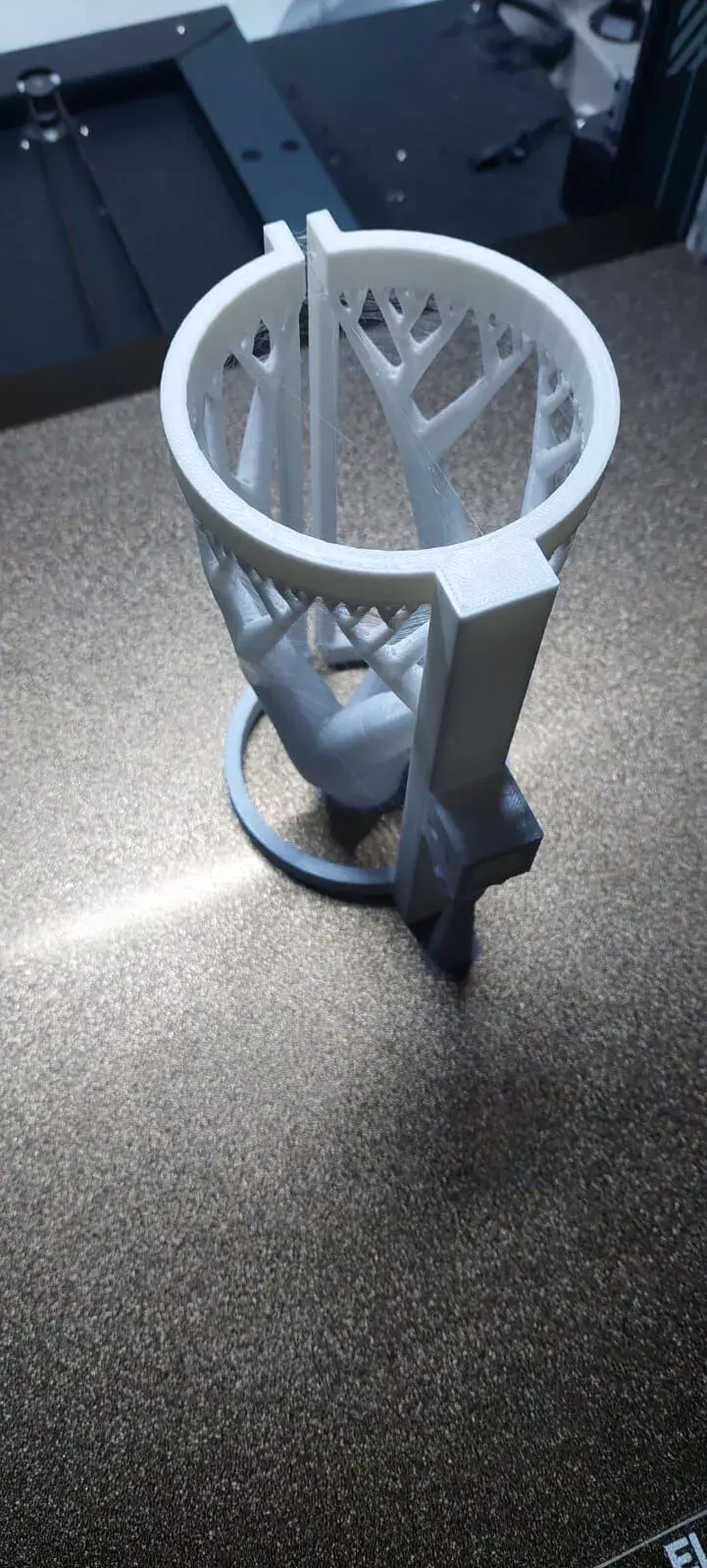

Originally designed and printed on an Elegoo Neptune 4 Max, the geometry is optimized for large-format FDM printing with reinforced walls to prevent flex during loading. Perfect for experimental builders, engineering students, and anyone studying RC aircraft structures.

THIS PRODUCT IS A PROTOTYPE. Need Front/Aft neck modification to insert the fuselage safely

You can support my models by downloading the other paid version with CAD NURBS files included:

$2 tip: Looking for the fully editable NURBS based master files? High-precicion original STEP native version available for professional and manufacturing version available here: https://www.cgtrader.com/3d-models/aircraft/military-aircraft/modern-warfare-uav-type-009-atomic-reaper-iges-included

$5 tip: Looking for the fully editable NURBS based master files? High-precicion original STEP + IGES + X_B native version available for professional and manufacturing version available here: https://www.cgtrader.com/3d-models/aircraft/military-aircraft/modern-warfare-uav-type-009-atomic-reaper-iges-and-3mf-included

STL (Stereolithography, filesize: 96.4 KB), 3MF (3D Manufacturing File, filesize: 44.3 KB)
