Equidistant loading mechanism 3D model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

forestlsls

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.

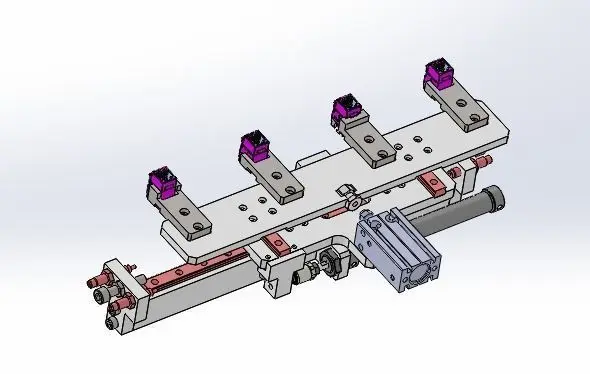

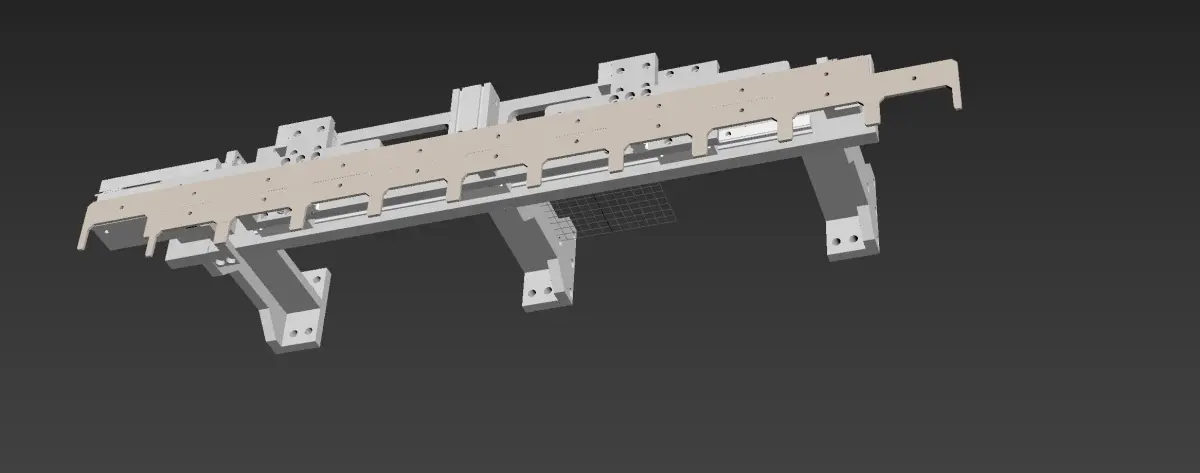

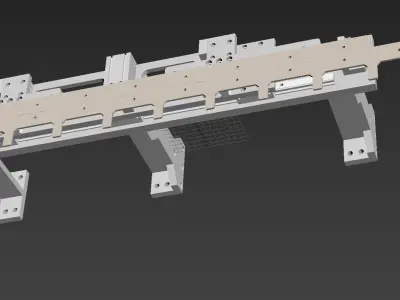

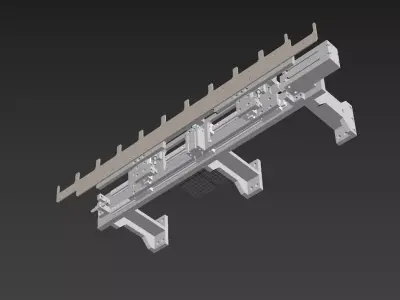

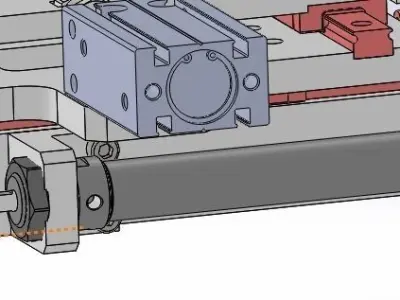

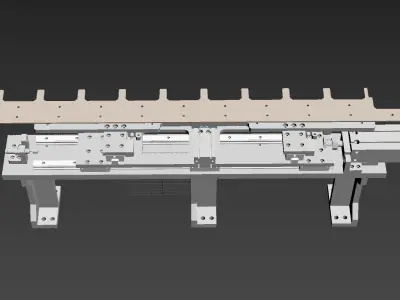

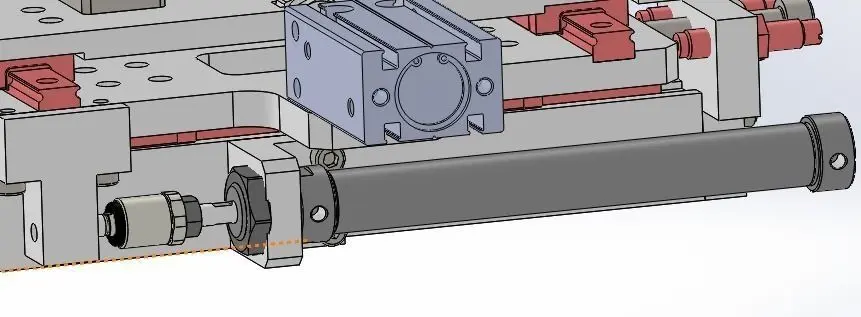

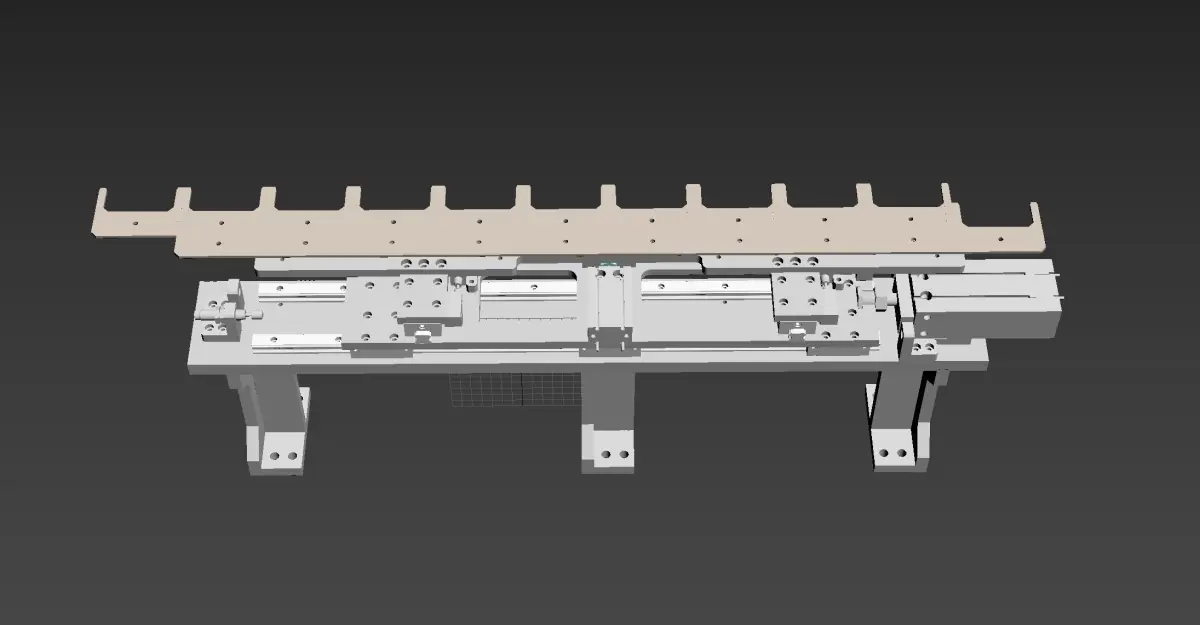

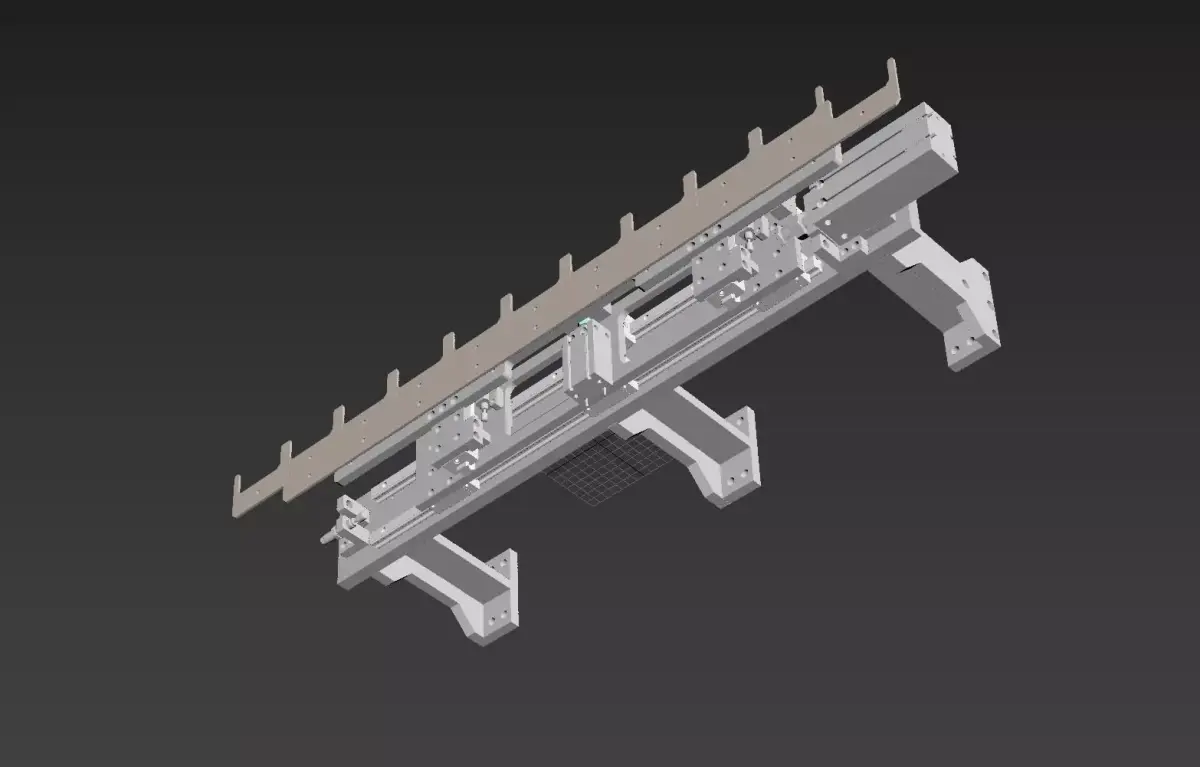

Equidistant feeding mechanism, this model is driven by cylinder

Use the buffer on both sides of the buffer to ensure the equidistant feeding of the x axis
The Y-axis also USES the air cylinder and guide rail to position the y direction to ensure the feeding of the x axis The equidistant feeding of x axis can be realized by two cylinders, which is a good mechanism model for multi-station work in linear direction. if you like,you can paypal for you to get this models or if you have any questions also you can email to me.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs:
Geometry: Polygon mesh
Polygons: 292357
Vertices: 585357
Plugins used

Tags

Equidistant Cylinder Buffer X axis Y axis Equipment Mechanism Multi station Industrial Machine Industry Manufacture Production Assembly Factory Automatic Engine Other Part Industrial machine Industrial part Industrial factory
