Publication date: 2016-04-21

Eureka gear Free 3D model

free

License: Royalty Free No Ai License

author:

allan-e-andersson

Description

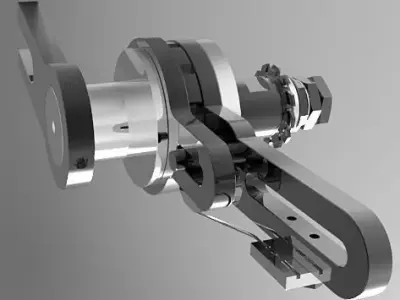

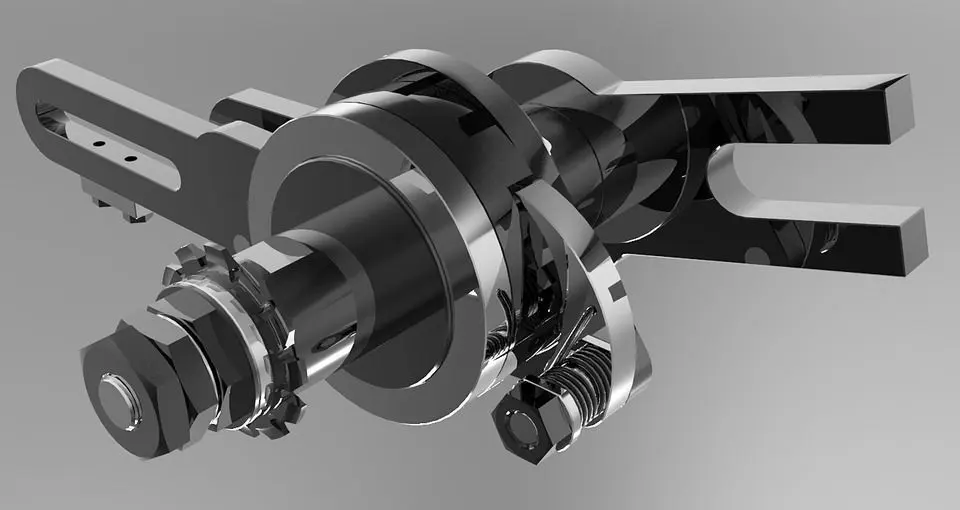

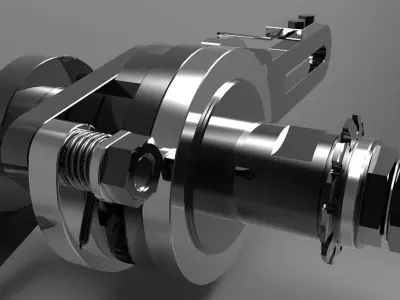

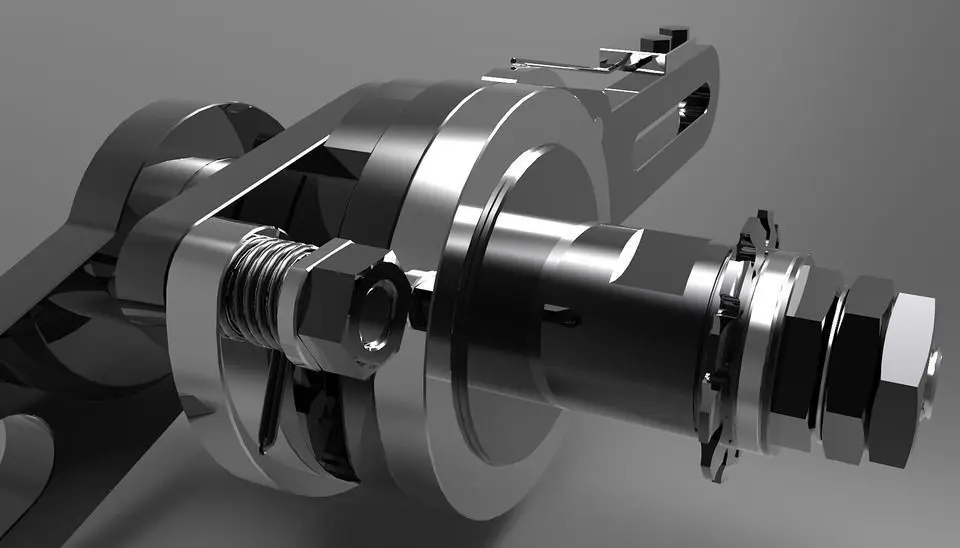

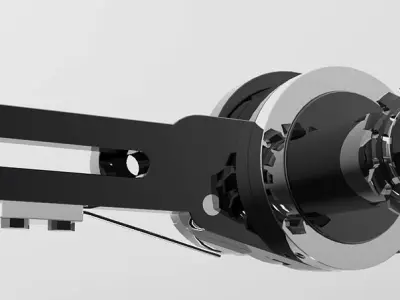

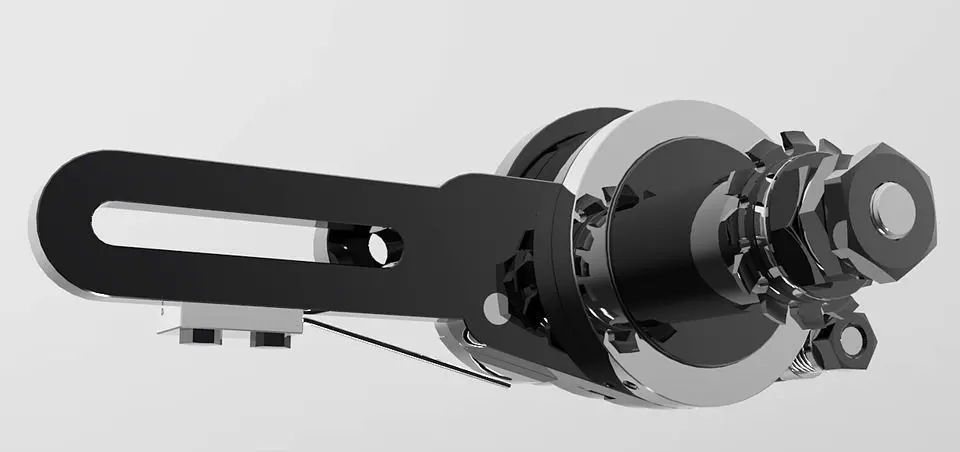

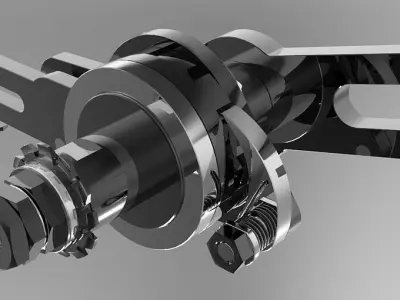

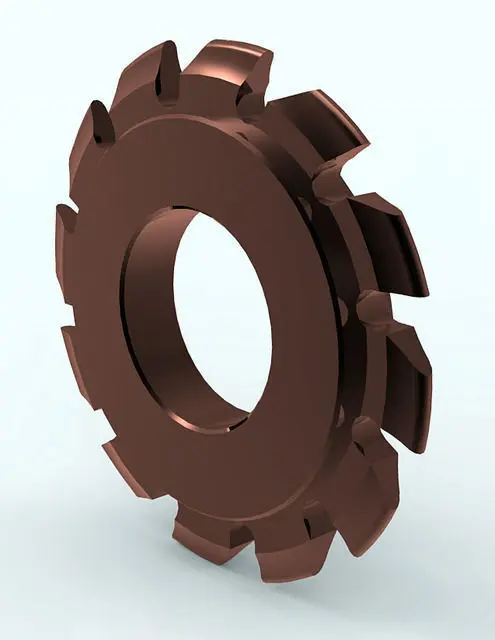

From an old Victorian tool catalogue advertising a continuous form relieving attachment.
Has been published in the Model engineer and the book "Gears and gear cutting" by Ivan Law.
The tool is used mounted between the centers of a lathe and, after giving the correct backing-off

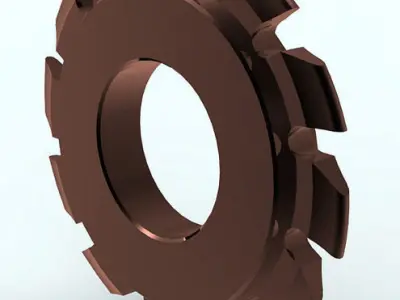

action to a tooth on a gear cutter, it then indexes it round to the next tooth and so produces a
continuous relieving action.

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 0
Vertices: 0

Tags

Tool Eureka Gears Historical Part Mechanism Industrial Industrial part
