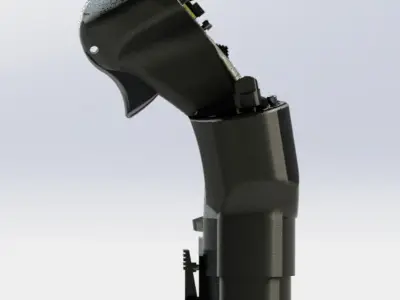

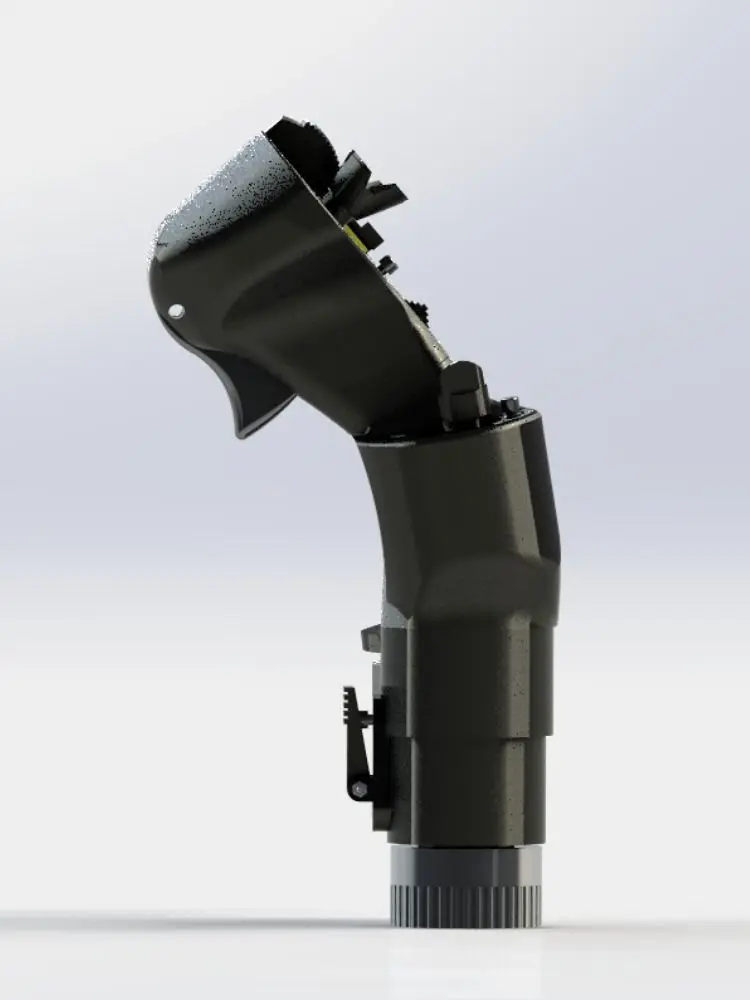

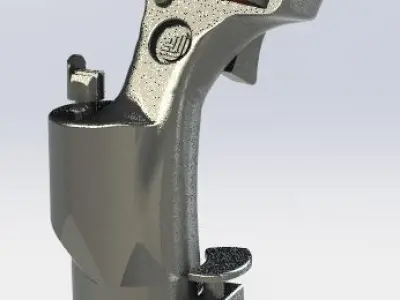

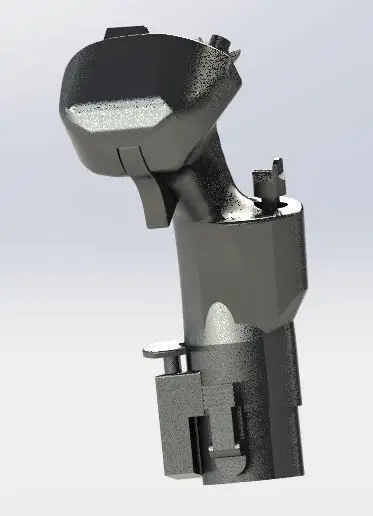

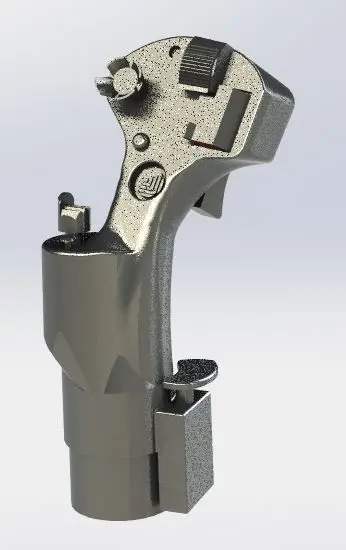

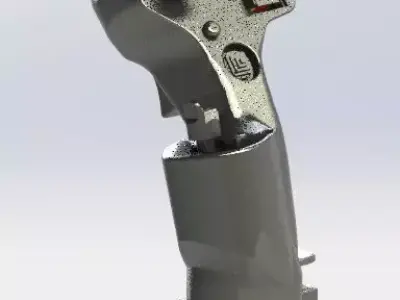

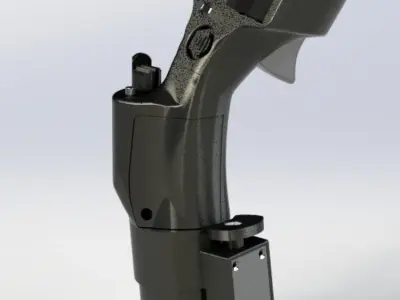

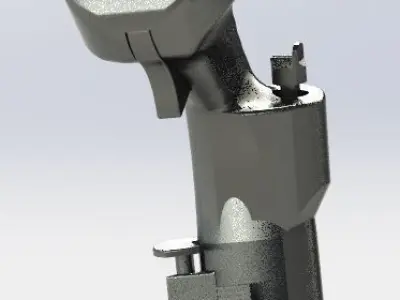

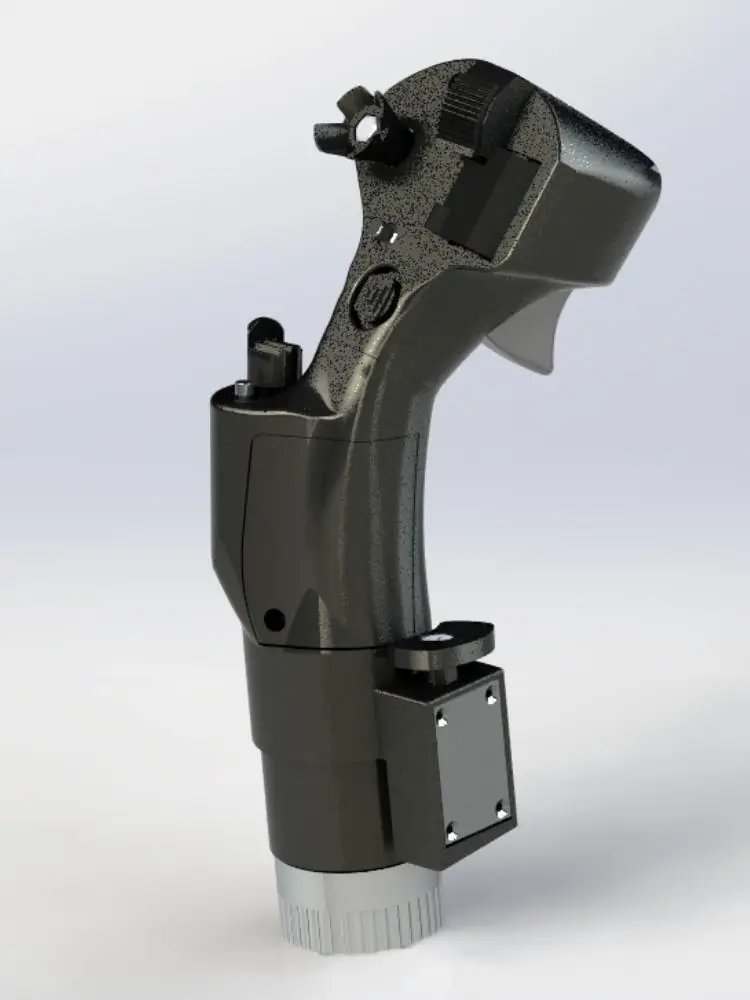

Eurofighter Typhoon Flight Simulation Stick Model Including Electronic ComponentsDescriptionThis is a Eurofighter Typhoon stick model replica. The model includes all electronic parts needed for 3d-printing and assembling a fully functional stick that operates with flight simulations.All electronic parts are standard parts, as can be seen in the pictures.Model includes space for a 34.3 X 37.8 mm electric card.The bottom tightening nut fits the Thrustmaster Cougar / Warthog stick base.
File Formats Included:STL - 48 STL files, in 1 zipped fileSTEP - 1 zipped STEP filePARASOLID - 1 zipped X_T file
Mechanical parts needed for assembly: ● M4 bolt, length 30 mm HEX head with M4 nut - for main HAT.● M4 bolt, length 50 mm cone head with M4 nut - for hand rest.● M3 bolt, length 20 mm round head - for stick body.● M2.5 bolt, cone head - for hand rest cover.● Spring, diameter approximately 5 mm, length approximately 15 mm - for the first detent trigger.● M3 bolt, length 20 mm cone head - for pinky switch housing.● M2 bolt, length 18 mm with nut - for pinky switch lever.● 2 mm pin - for pickle cover.
Electrical parts needed for assembly● 4 way Tact- for HAT switches.● Push Button Mini Switch - for 3 buttons.● Microswitch 12 mm - for the two stages trigger.● Microswitch 6 mm - for pickle button.● SMD micro switches - for main HAT.Printing Recommendations:● For a metal feel of the grip - Use Aluminum infused PLA.● Printing in normal setup: Layer Height: 0.12-0.22mm Printing Speed (for all parts): 50 mm/sec Temperature according to the printing material. ● All settings are relevant to Flashforge Creator Pro printer and may differ from one 3d printer to another.
