Fallout Vault-Tec Intercom Speaker 3D print model

$20

License: Royalty Free

author:

greenebean0883

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «greenebean0883». CGhub does not claim copyright ownership over the content used.

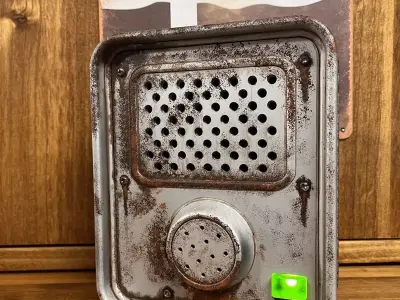

This is a complete set to create a bluetooth Vault-Tec intercom speaker like in the Fallout games.

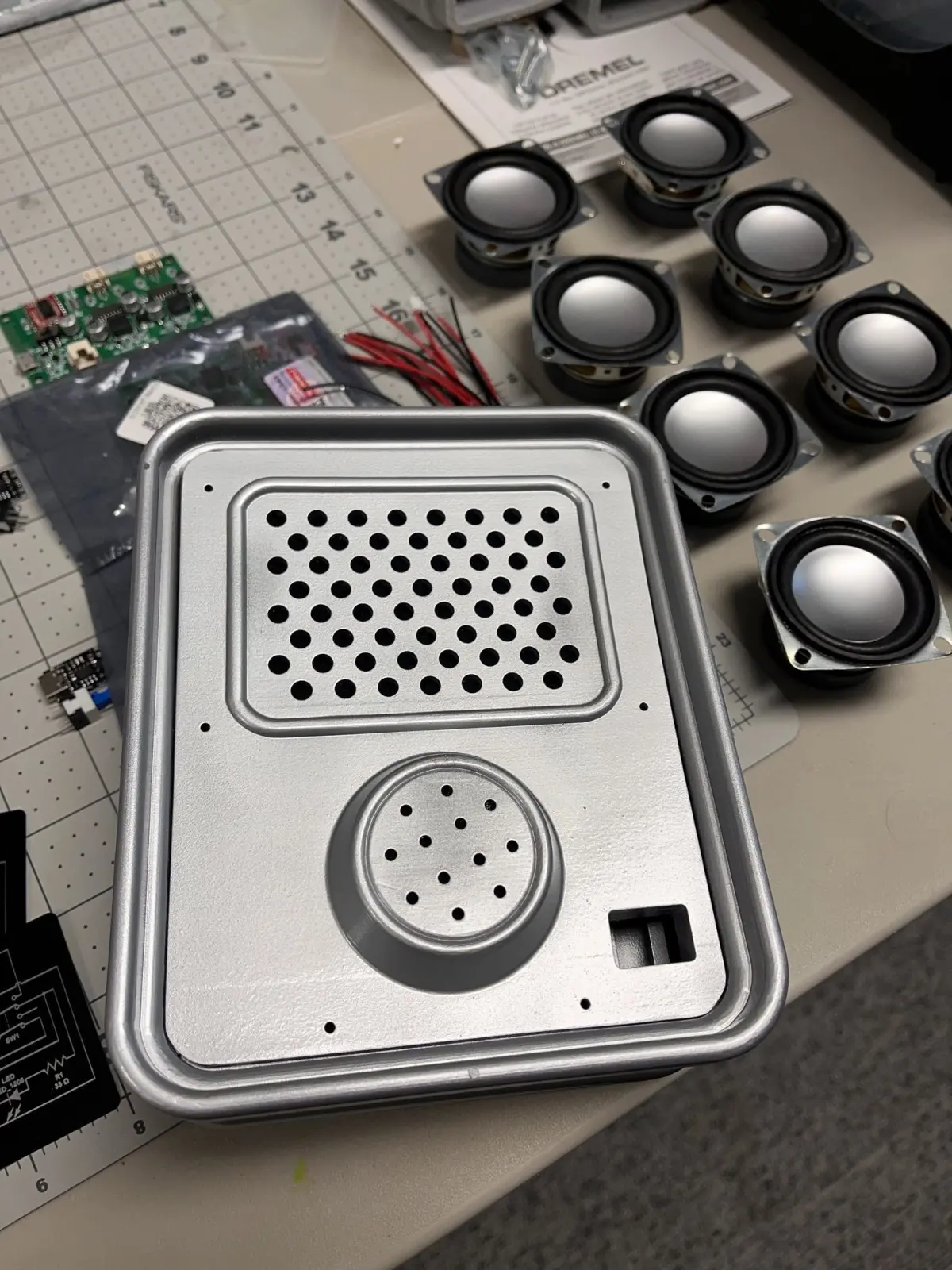

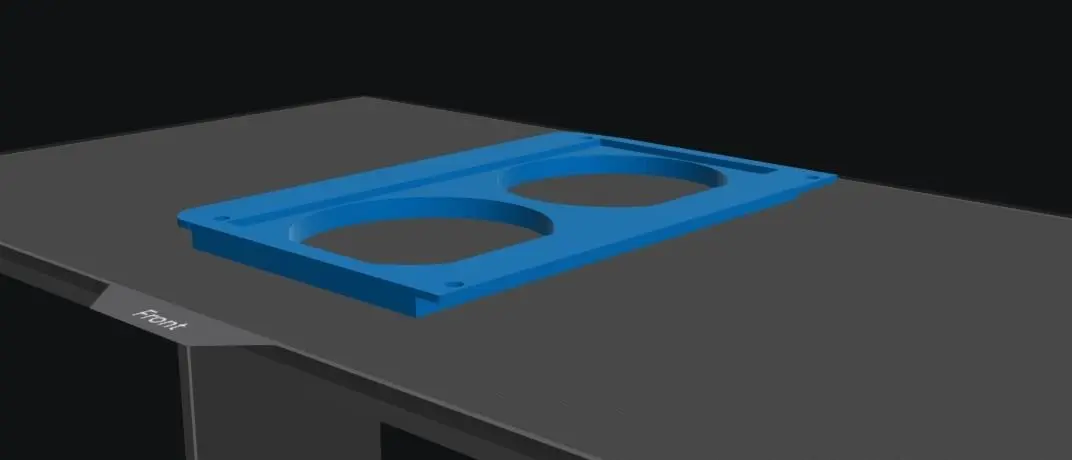

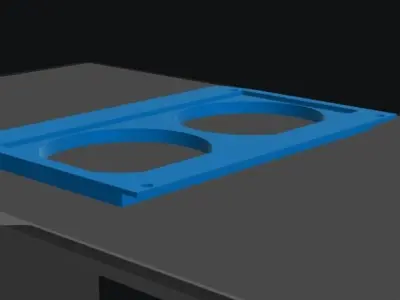

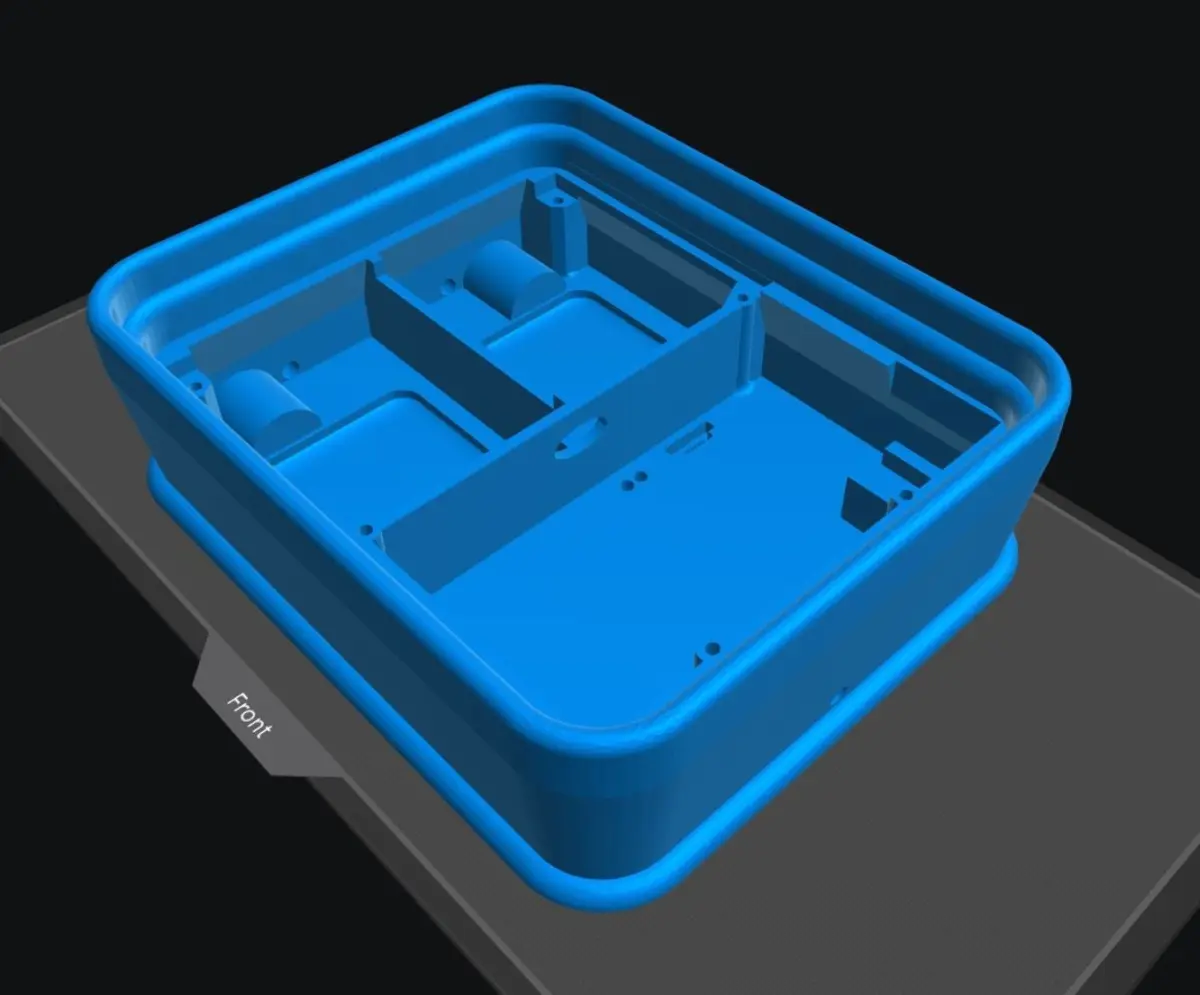

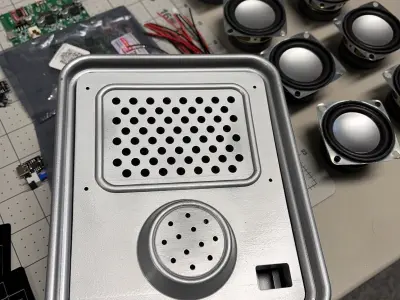

The main body has framing to hold the speaker lid and improve sound quality. It has three vents to reduce suction and improve print quality will printing flat to the bed. It has USB-C port slot and indicator light holes.The speaker lid is designed to hold 2-53mm diameter speakers.The main lid has supports built in until the microphone area so it can be printed flat to the bed. It also has opening for the single button and six M3 phillips screws hole opening.

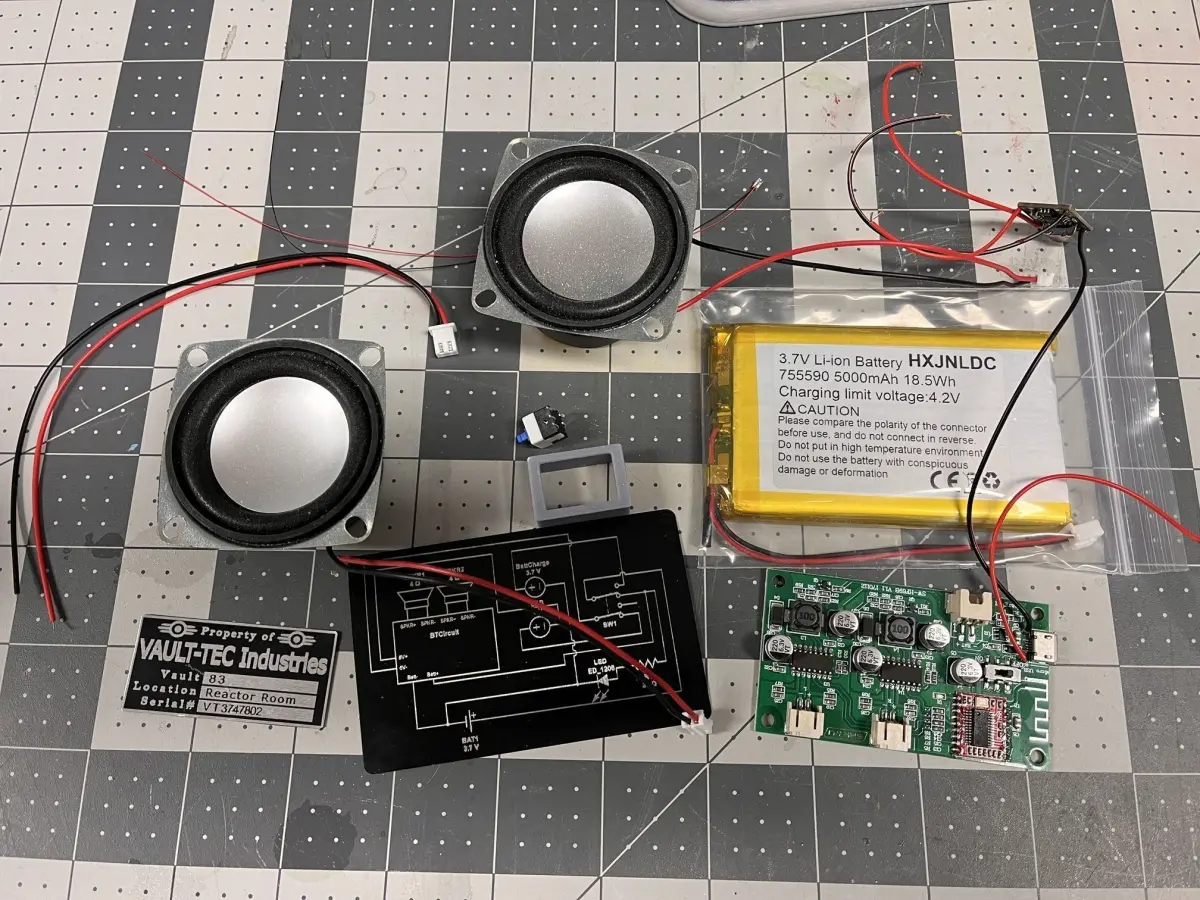

I make these with a 5000mAh LiPo battery, 10 watt bluetooth board, USB-C charge circuit, one DPDT switch, a 33 ohmm resistor, 3VDC white SMD LED, fiber optic cable, and red and black 22 gauge wire.
