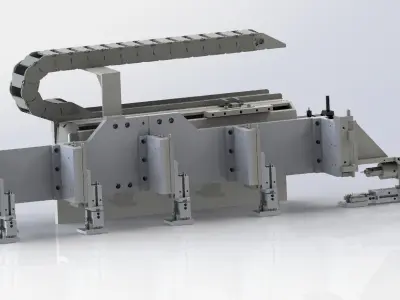

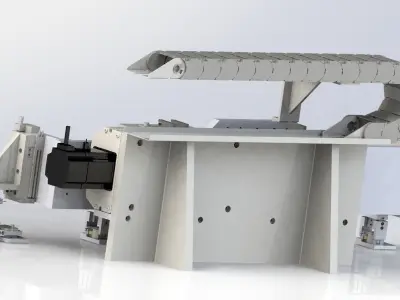

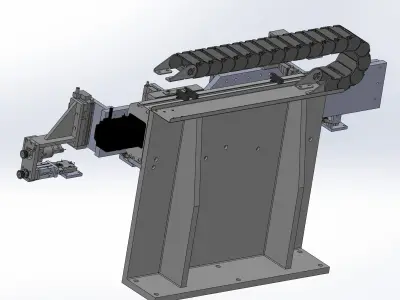

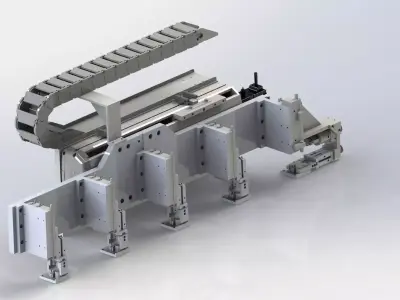

Feeding conveying and rotating module mechanism 3D model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

forestlsls

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.

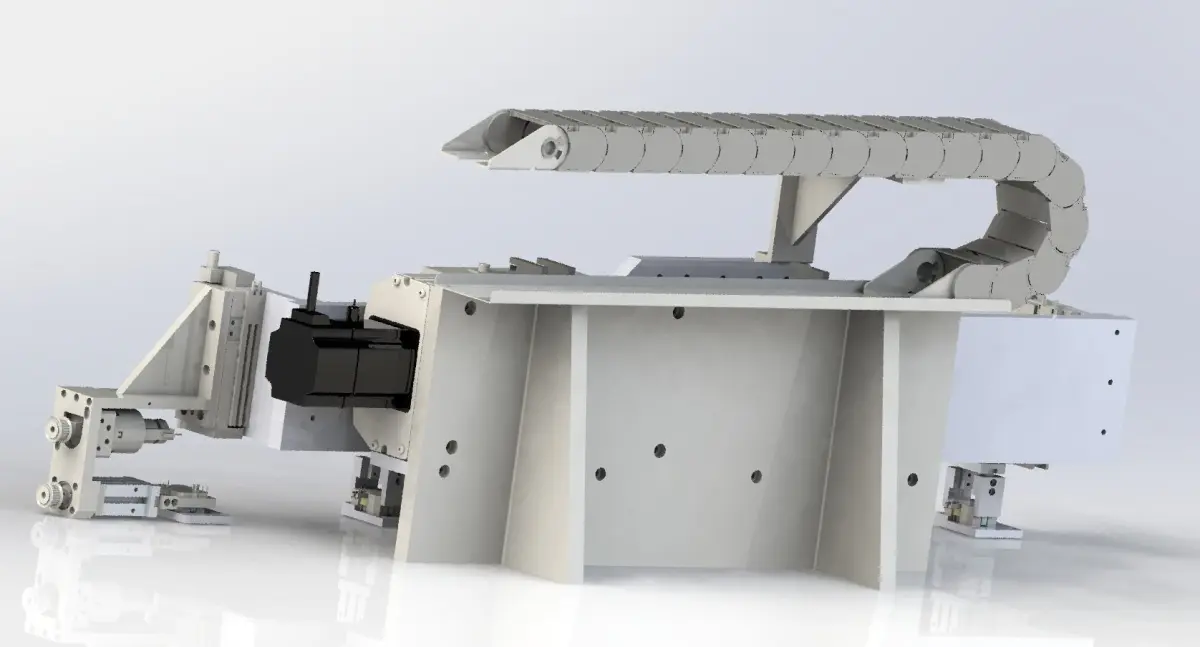

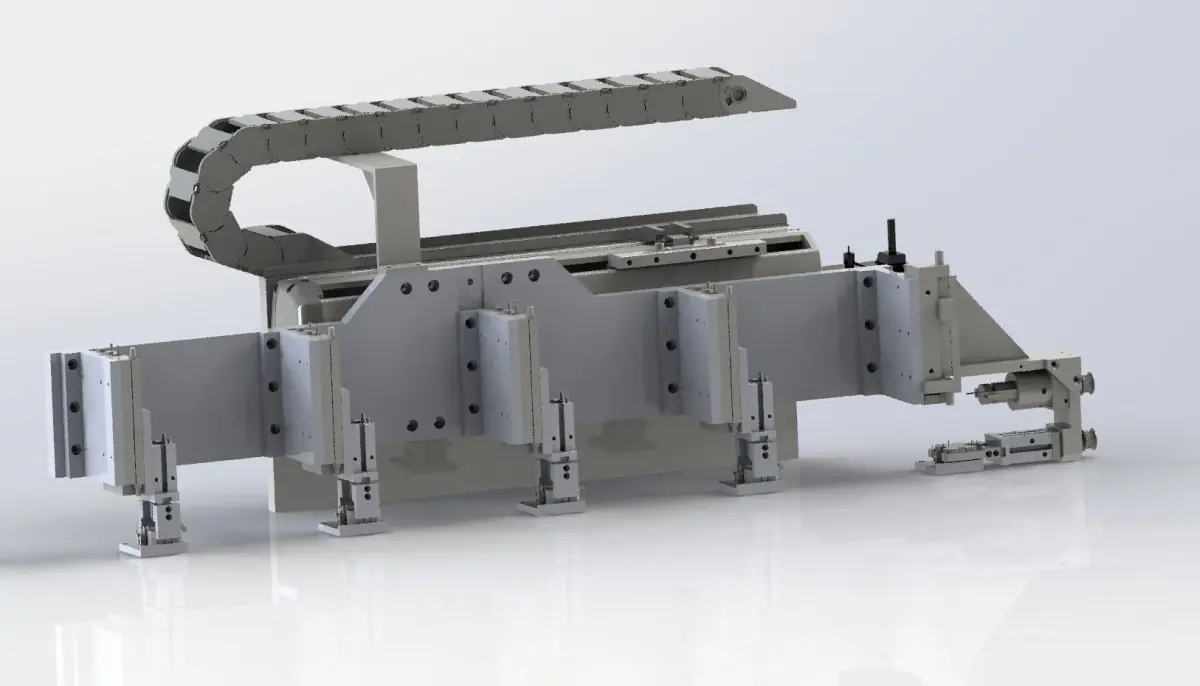

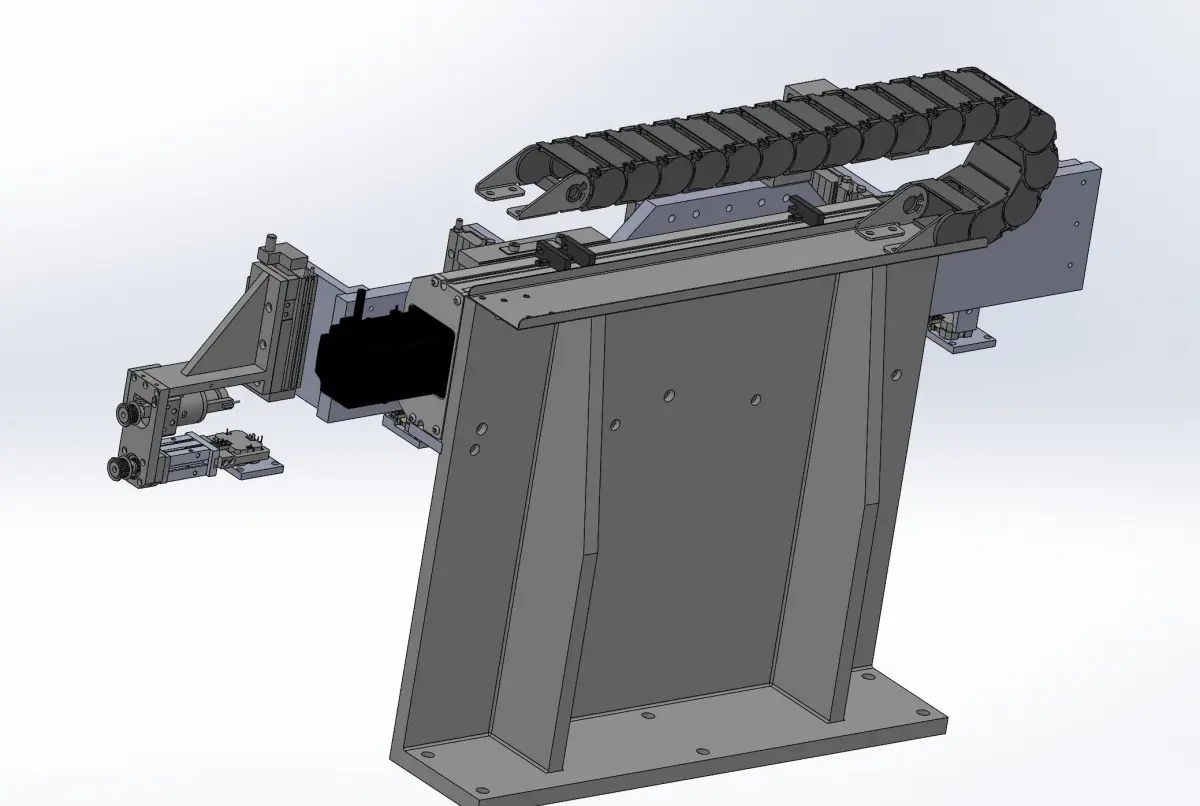

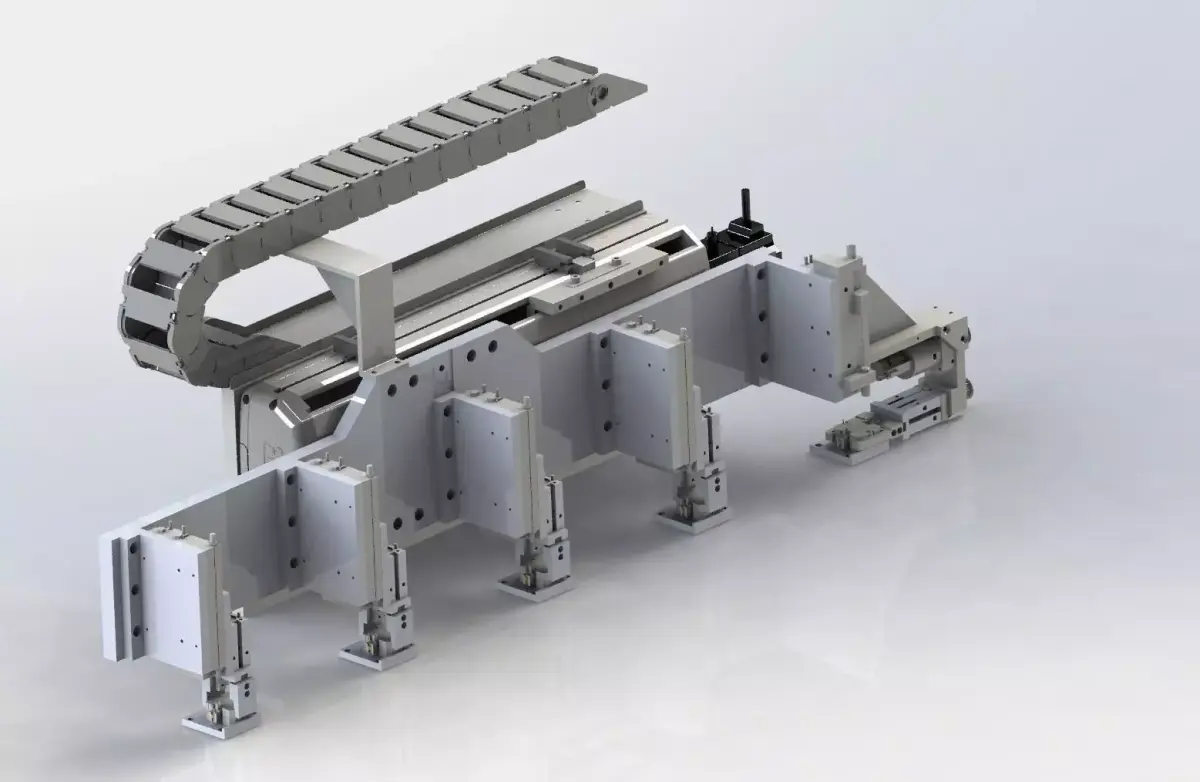

Feeding conveying and rotating module mechanism, which combines Y-axis transverse conveying and rotating Angle through large module mechanism, realizes the multi-functional combination of equidistant conveying and rotating

Mechanism include

1. Vertical locking plate structure

2. Equidistant module conveying mechanism

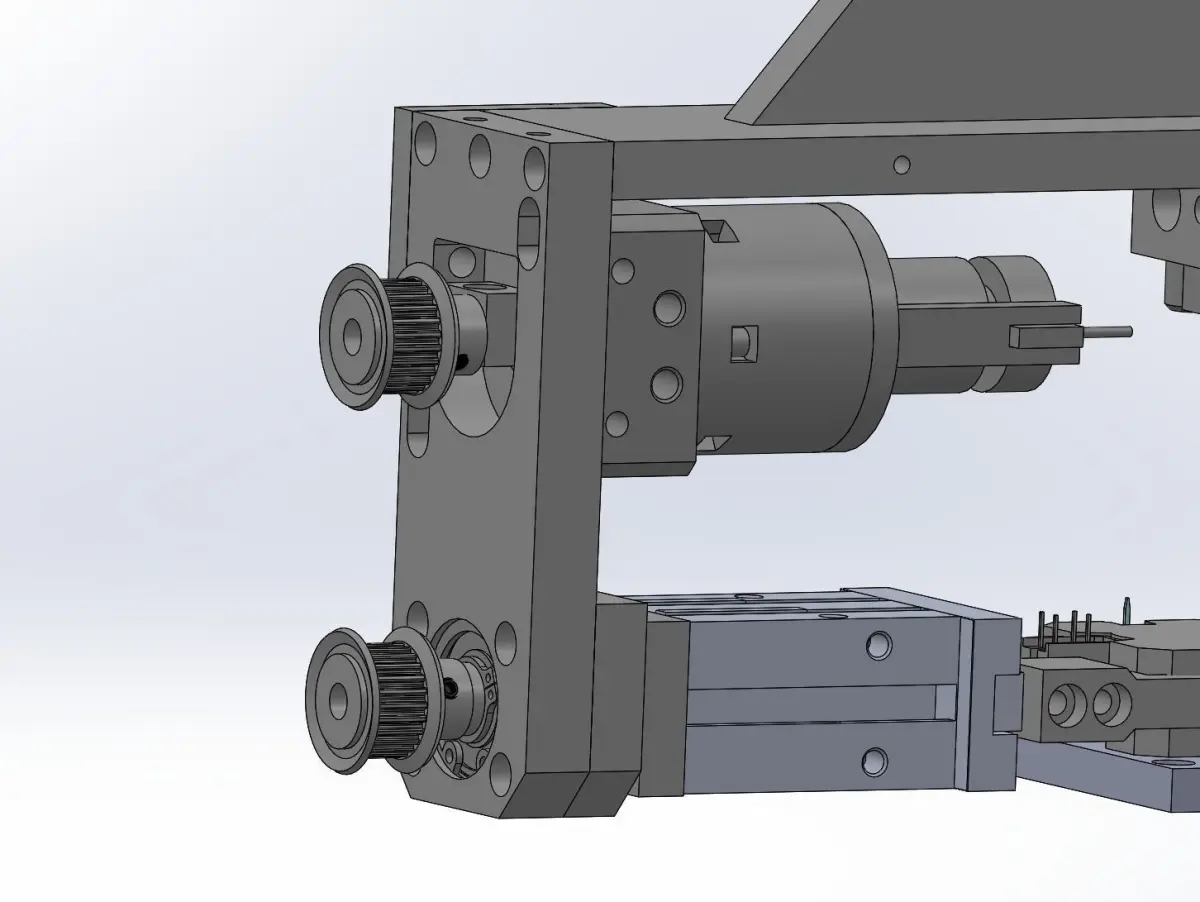

3. Rotary turn mechanism

**************************************

Files format contains

-solidworks 2017

-step

-iges

-stl

-obj

-3ds

-Fbx

-3dmax

- and other formats

**************************************

If you like,you can buy for you to get this models or if you have any questions also you can email to me.

Designed with SolidWorks 2017, render with PhotoView 360

**************************************

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 851457
Vertices: 1704318
Plugins used

Tags

Machine Industry Industrial Equipment Production Assembly Factory Automatic Mechanic Engine Tool Part Device Robot Rotate Loading Equidistant Deliver 360 Rollover Industrial machine Industrial part Industrial factory Industrial robot
