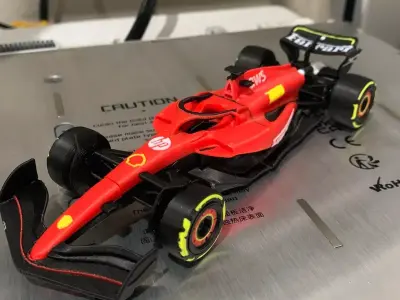

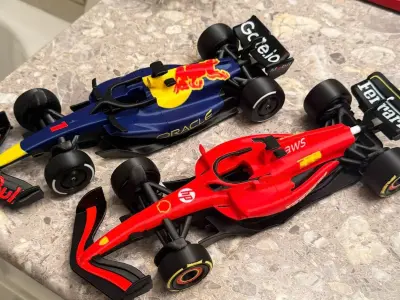

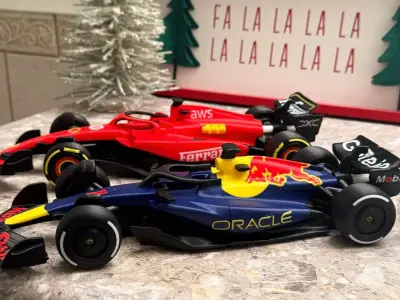

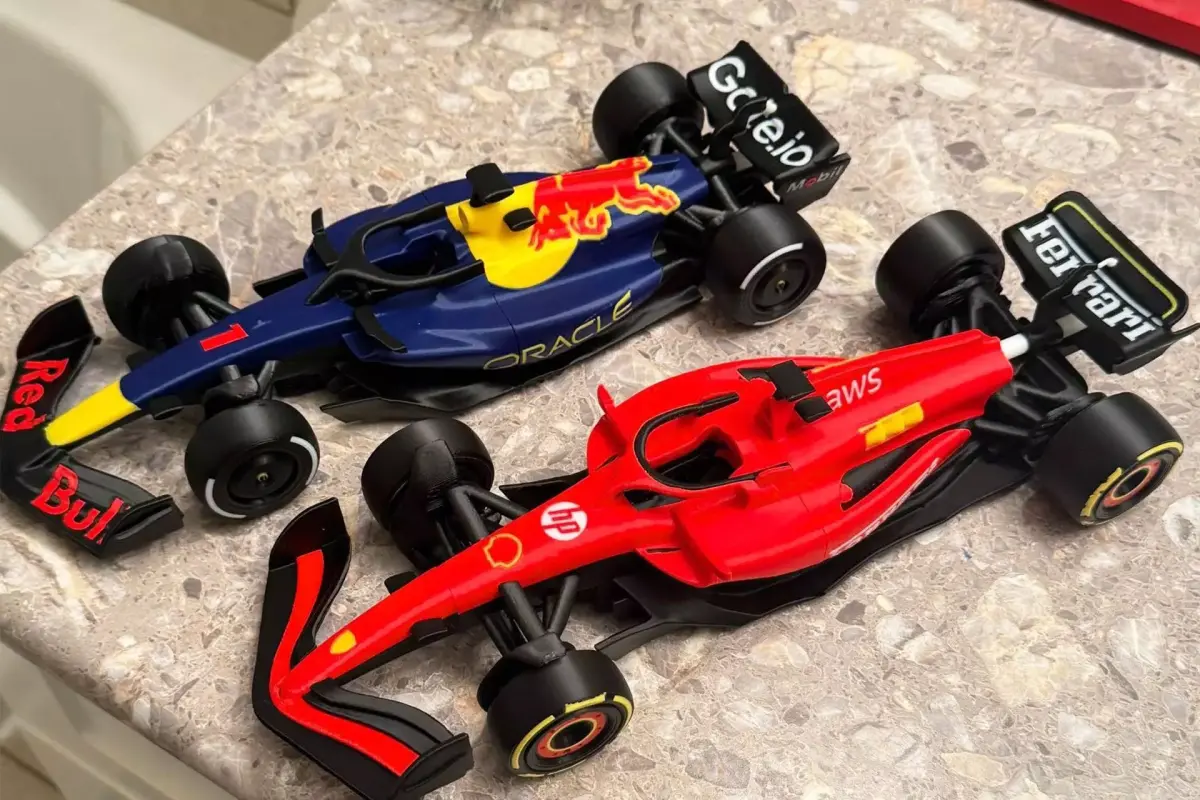

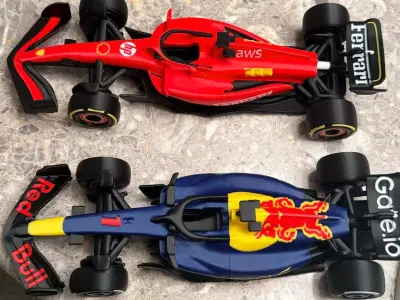

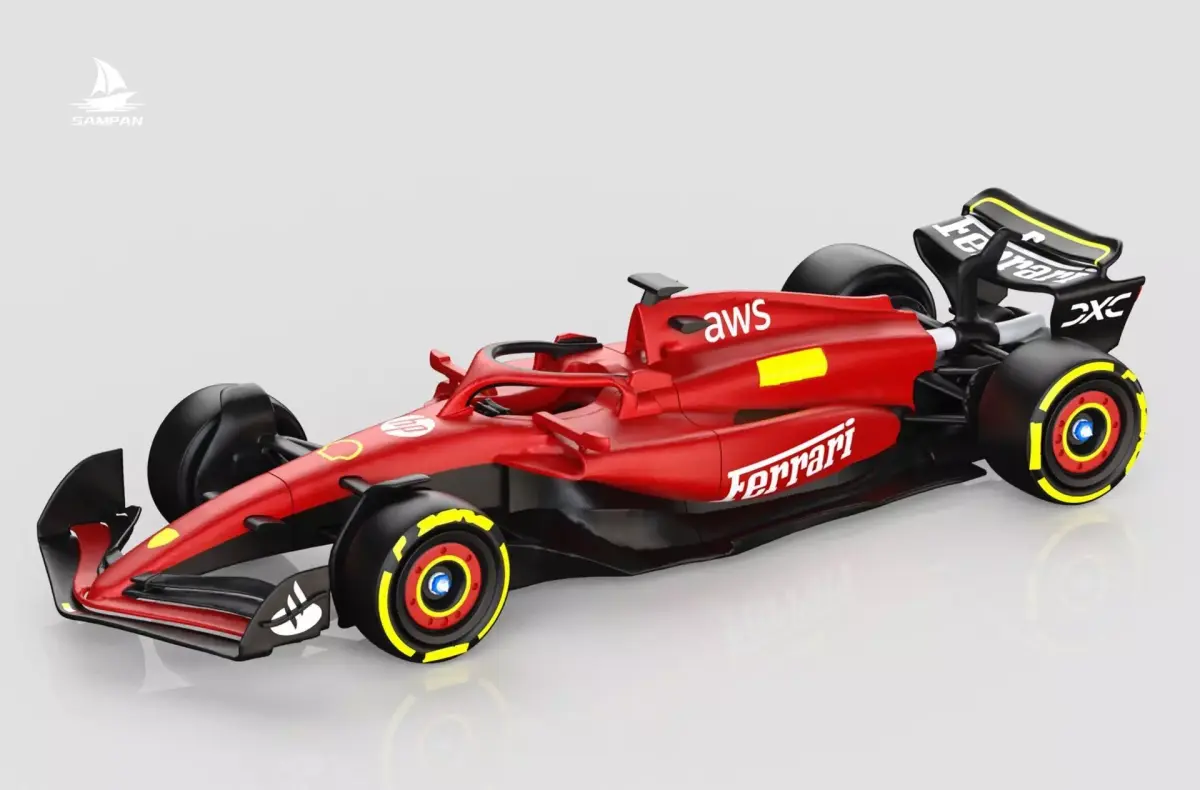

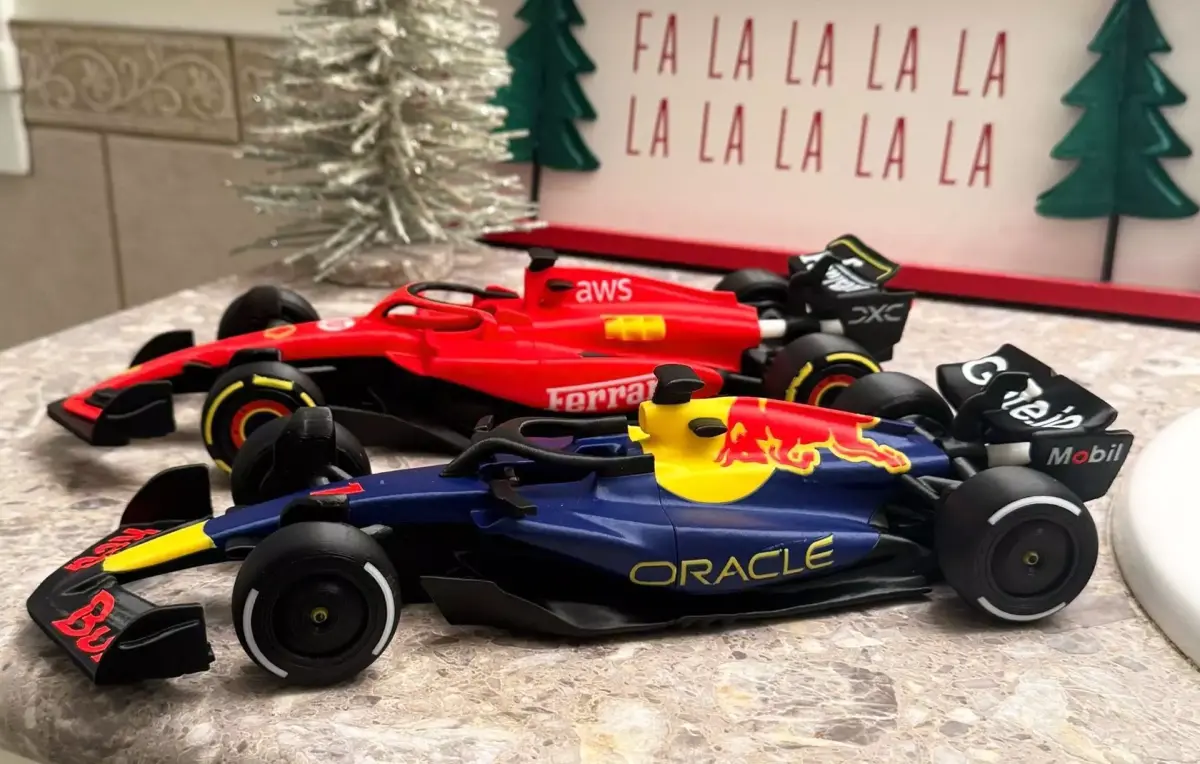

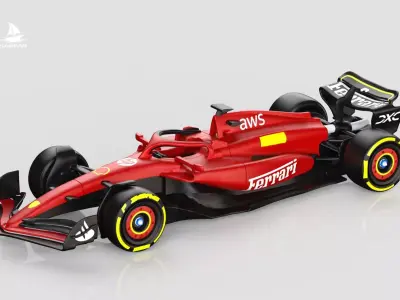

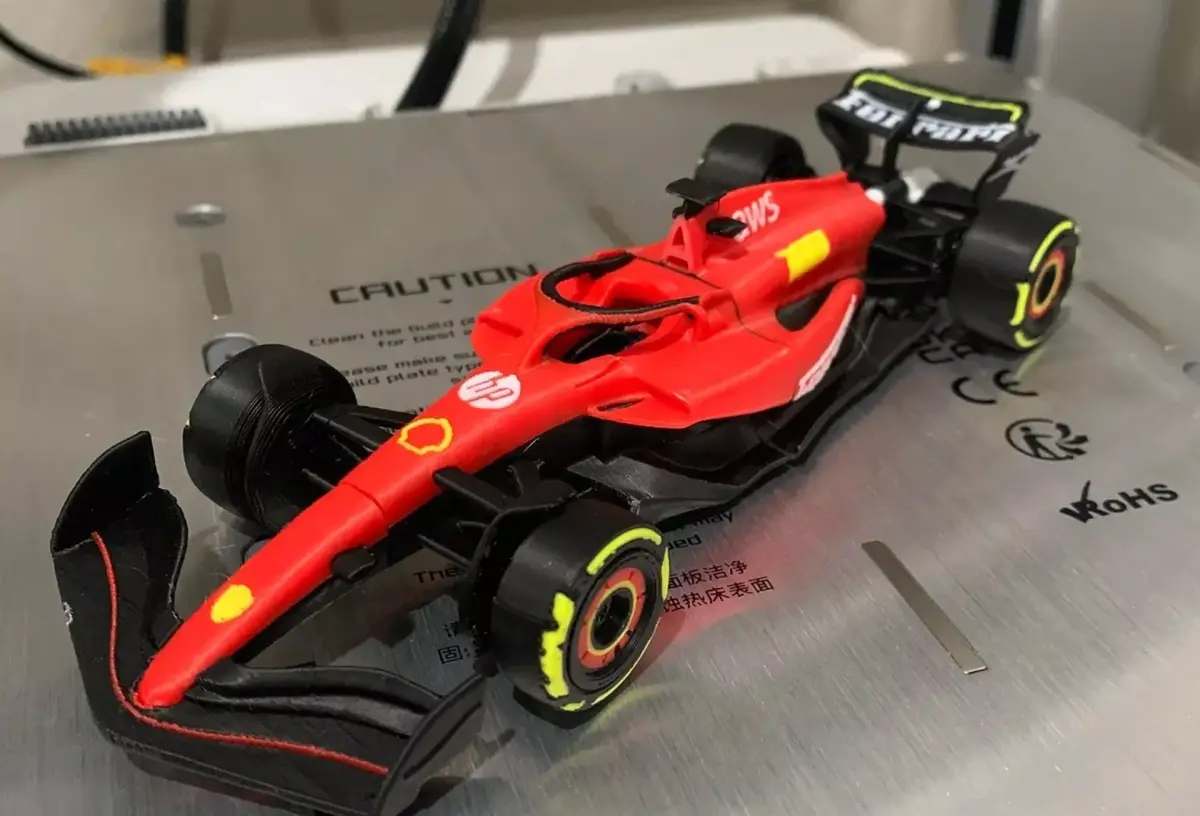

Ferrari SF-24 Formula Car – 1/32 Scale | FannCraft3D Edition
The Ferrari SF-24 represents Ferrari’s 70th Formula 1 challenger, embodying decades of racing heritage fused with modern engineering excellence. Designed to reflect Ferrari’s relentless pursuit of performance, the SF-24 showcases refined aerodynamics, improved power delivery, and endurance-focused upgrades—allowing it to challenge rivals confidently across both straights and high-speed corners.
Equally striking is its visual identity. The elegant white base combined with bold yellow accents creates a standout livery that reflects Ferrari’s ability to merge race-bred technology with iconic design language. This model captures that balance with precision, making it a must-have for motorsport enthusiasts and collectors.
Model Highlights
High-detail interior and exterior design, including front and rear wings, suspension elements, cockpit seat, and steering wheel
Functional articulated wheels, based on modern 18-inch F1 wheel standards
Real-world reference:
Front: 305/720-18
Rear: 405/720-18
1/32 scale reference:
Front: 9.5 / 22.5 – 14.3
Rear: 12.7 / 22.5 – 14.3
Detailed livery adapted for FDM printing constraints, with certain decals represented in stylized or abstract form to maintain print reliability
Dimensions & Scaling Notes
Designed at 1/32 scale
Minor scaling adjustments are acceptable, but excessive scaling may:
Affect assembly tolerances
Cause loose or overly tight connections
Alter wall thickness integrity
Sliced files are optimized for minimum printer build volumes
Users may adjust batch quantities to balance print time and filament usage
Bearing & Fitment Guidance
Body and wheels are designed with bearing-based connections
Fitment may vary depending on:
Printer calibration
Filament brand
Recommended to test using MR105 bearing assembly components (MakerWorld reference) to determine optimal bearing fit before final assembly
Recommended FDM Print Settings (Baseline)
The reference model was printed by FannCraft3D using:
Printer: A1 Mini
Nozzle: 0.4 mm
Layer Height: 0.16 mm
Filament: PLA Basic
Infill Density: 15%
Supports:
Overhang angle: 25°
Top Z distance: 0.12 mm
Top contact layers: 4
Combination of normal and tree supports based on part geometry
Advanced printers, higher-quality filaments, and refined tuning can significantly enhance surface finish and dimensional accuracy. Minor tolerance issues can be corrected using:
XY contour compensation
Light sanding
Adhesive-assisted assembly
Multicolor & Monochrome Printing Options
All colored elements are modular, allowing flexible use of slicer-based multicolor features
Multicolor printing delivers striking results but requires:
Increased print time
Higher filament usage
System-recommended multipliers are used; reduce cautiously to avoid color bleeding
Monochrome printing is fully supported and ideal for custom hand-painting with acrylics
Additional livery variations will be released in future updates
Assembly Notes
Follow the exploded-view diagram for proper assembly sequence
Tire installation may require rotational fitting rather than direct pressure
Rear wing mounts use cylindrical connectors; adhesive may be applied to lock the final angle
Handle delicate parts carefully, especially:
Suspension rods
Steering linkage
Rear wing supports
Any damaged or misprinted parts can be reprinted individually
