Buy Fiber Optic Splice Protection Press 3D model

Name: Fiber Optic Splice Protection Press 3D model
Brand: arslanarif
SKU: 872407
Price: 5.00 USD
Availability: InStock

License: Royalty Free

author:

arslanarif

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «arslanarif». CGhub does not claim copyright ownership over the content used.

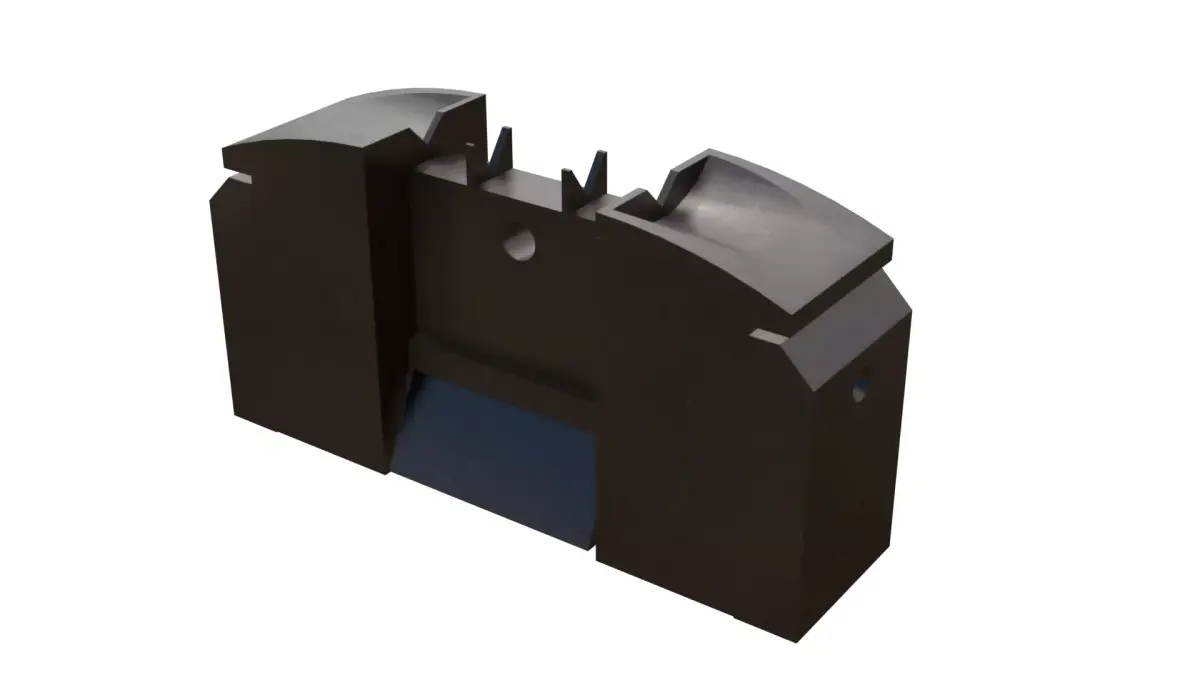

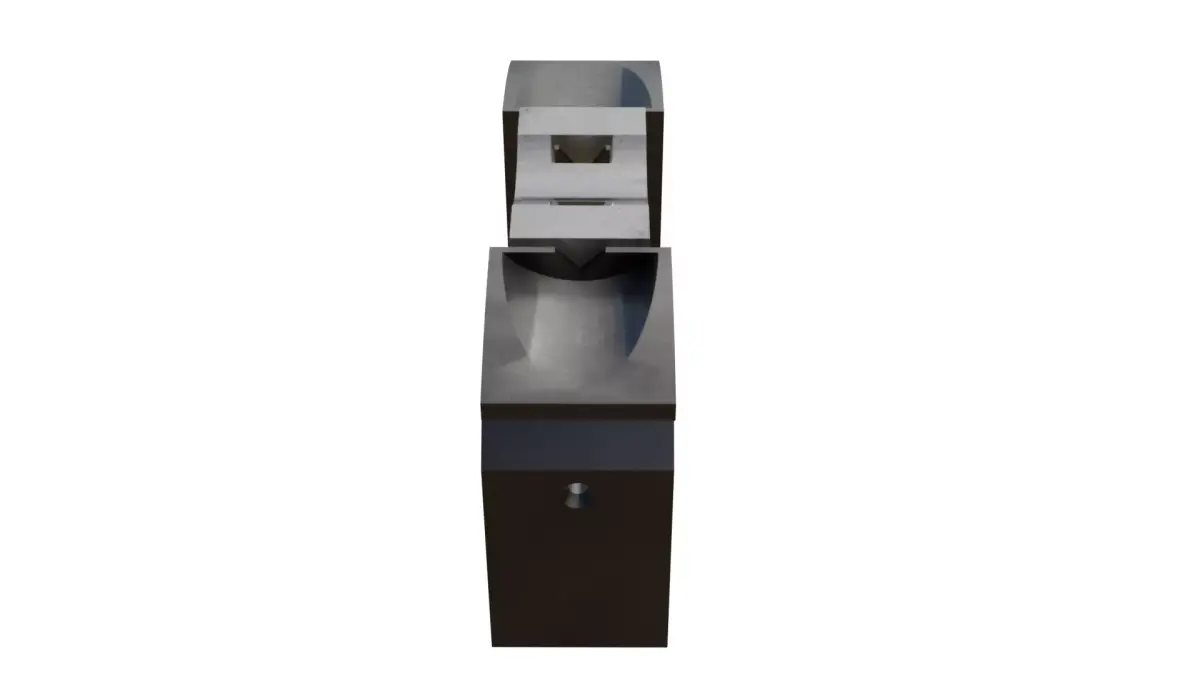

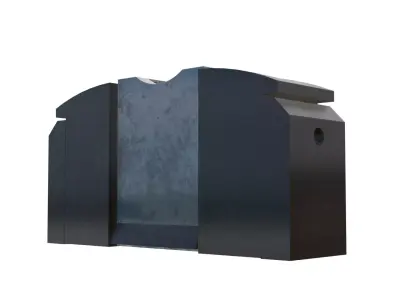

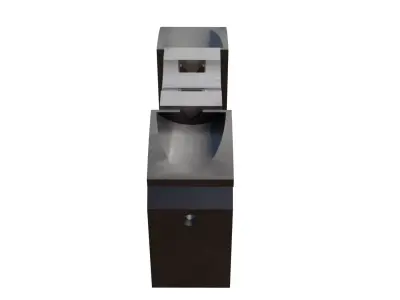

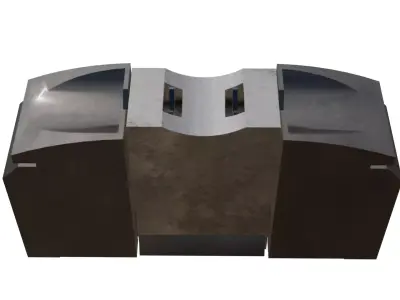

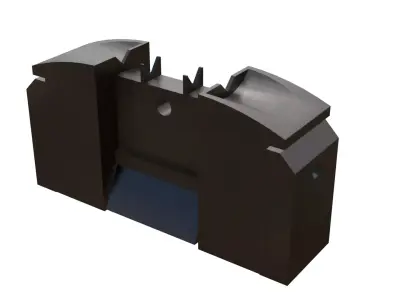

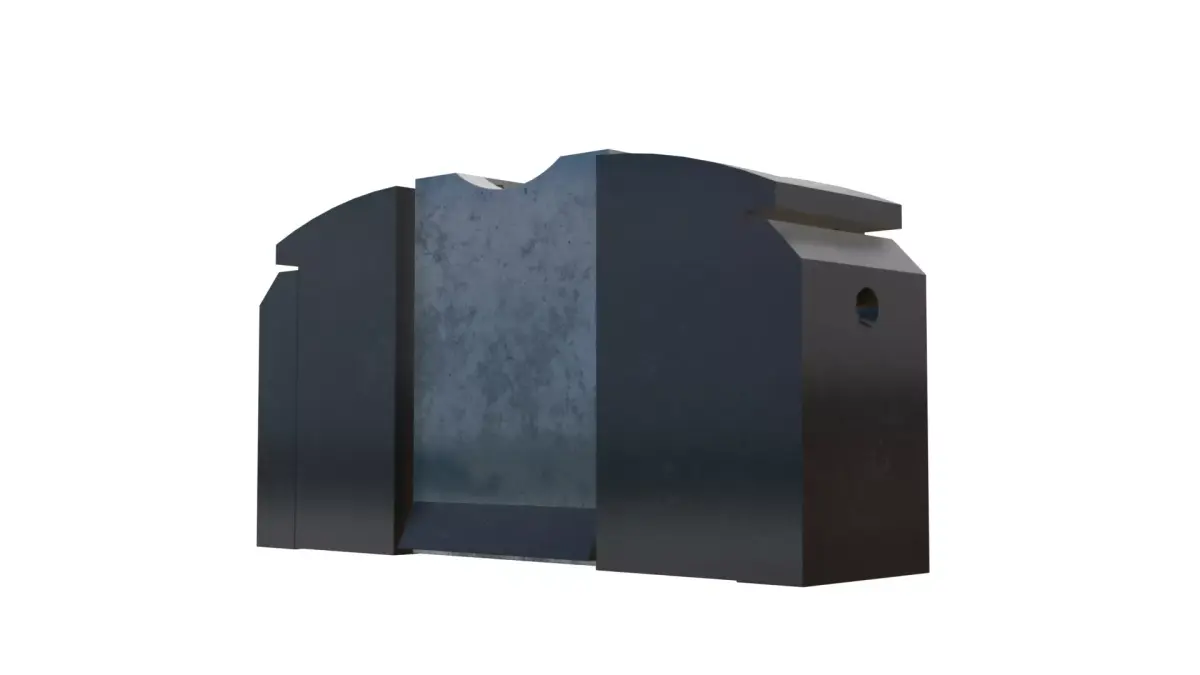

Spleißschutzpresse - Fiber Optic Splice Protection Press (3D Printable Model)

This 3D model represents a fiber optic splice protection press (Spleißschutzpresse), designed for securing and protecting fiber optic splices in telecommunications and data transmission systems. The press ensures reliable handling of splice protection sleeves, making it an essential tool for technicians working with optical fibers.

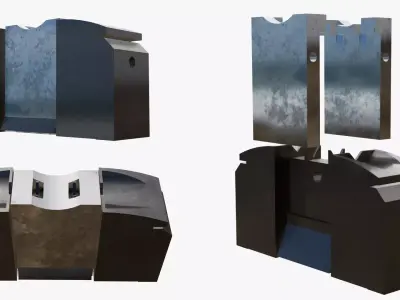

The model includes:

Main Press Unit – compact design with dimensions of 84 × 74 × 22 mm.
Raw Splice (Rohspleiß) – fiber optic splice element, 20 mm in length.
Splice Protection Sleeve (Spleißschutz) – protective element, 30 mm in length.
Protected Splice Assembly – final secured splice after protection is applied.

Key Features

Accurate technical proportions for realistic representation.
Suitable for educational, training, and visualization purposes.
Can be used in 3D printing projects, technical documentation, or instructional tutorials.
Clean geometry optimized for rendering, printing, or integration into larger assemblies.

#press #fiberoptic #splice #machinery

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 36374
Vertices: 18185
Plugins used
Geometry: No N-gons | No faceted geometry | Manifold geometry |

Tags

Splice Protection Press Machine Tool Industry Industrial Hydraulic Machining Machinery Workshop Equipment Manufacturing Technical Plant Cnc Milling Industrial machine
