Flanged 90 Degree Elbow CAD Model CATIA STEP IGES STL 3D print model

$4.99

License: Royalty Free No Ai Html

author:

Lasty3D

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lasty3D». CGhub does not claim copyright ownership over the content used.

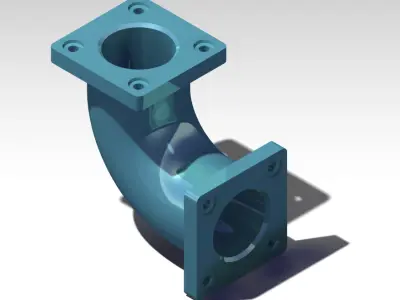

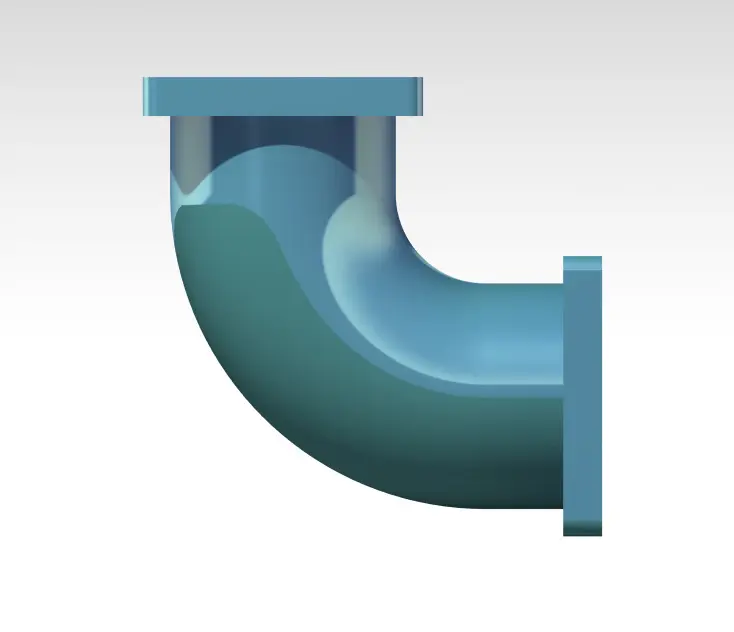

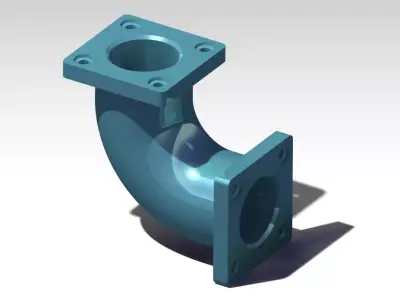

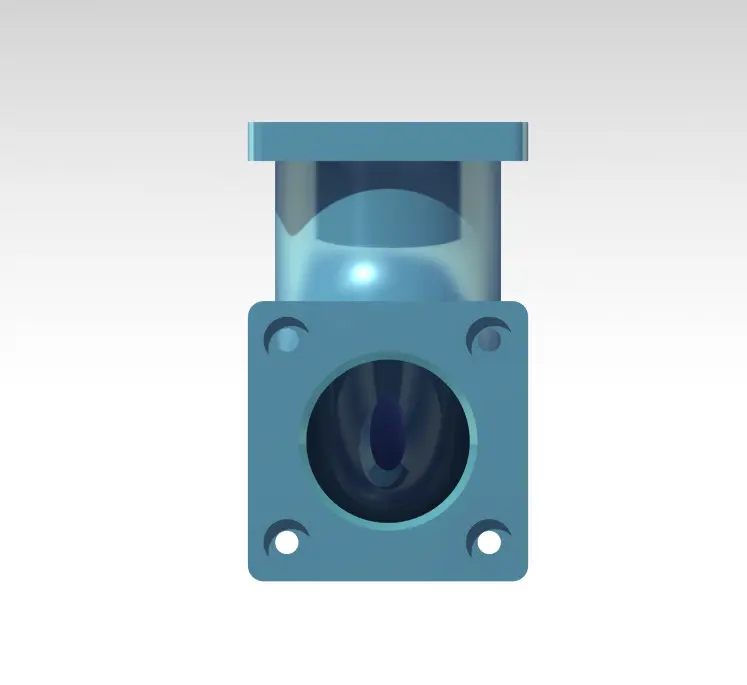

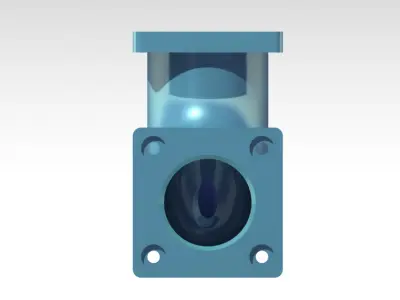

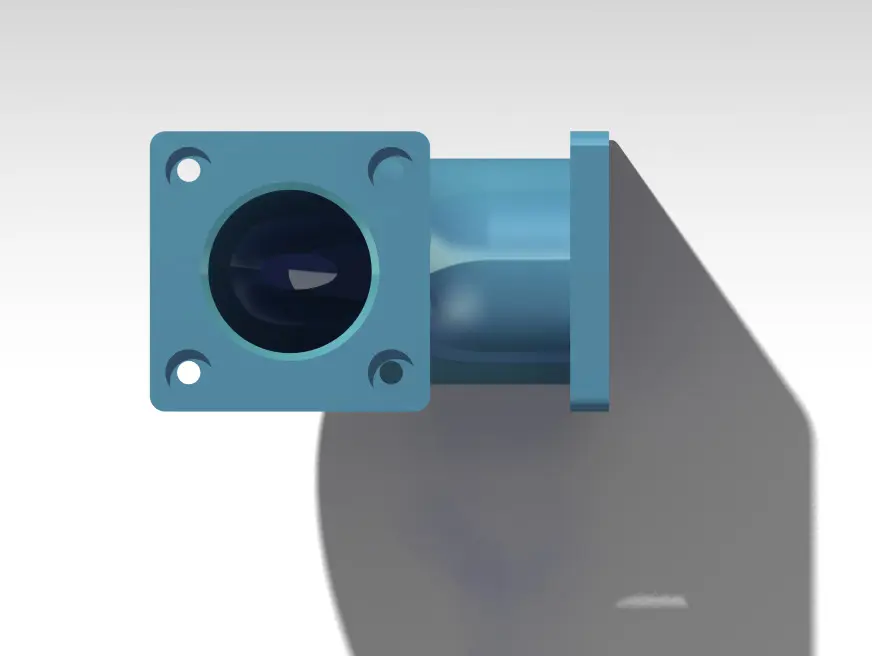

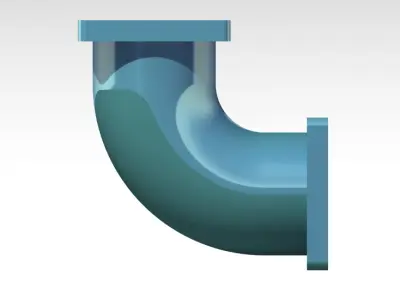

This is a 3D CAD model of a flanged 90-degree elbow, commonly used in piping systems for fluid or gas transport. The model replicates a standard industrial elbow with flanged ends for easy bolted connection to other pipes or valves.

Designed in CATIA V5 with precise geometry suitable for engineering assemblies, fluid dynamics simulation, and manufacturing layouts. Ideal for HVAC, oil & gas, chemical plant design, or piping layout visualization.

Features:

Standard 90° elbow with dual flanges
Modeled in CATIA V5
Accurate flange dimensions (generic/ANSI style)
Smooth internal radius for CFD or flow analysis
Compatible with mechanical assembly projects
Can be scaled or modified to match real pipe sizes

Applications:

Piping and process plant design
Fluid/gas flow simulation (CFD)
Mechanical design and layout
Engineering education and demos
HVAC and plumbing systems

File formats included:

CATPart (CATIA V5)
STEP (.stp)
IGES (.igs)
STL (optional, for 3D printing or meshing)
